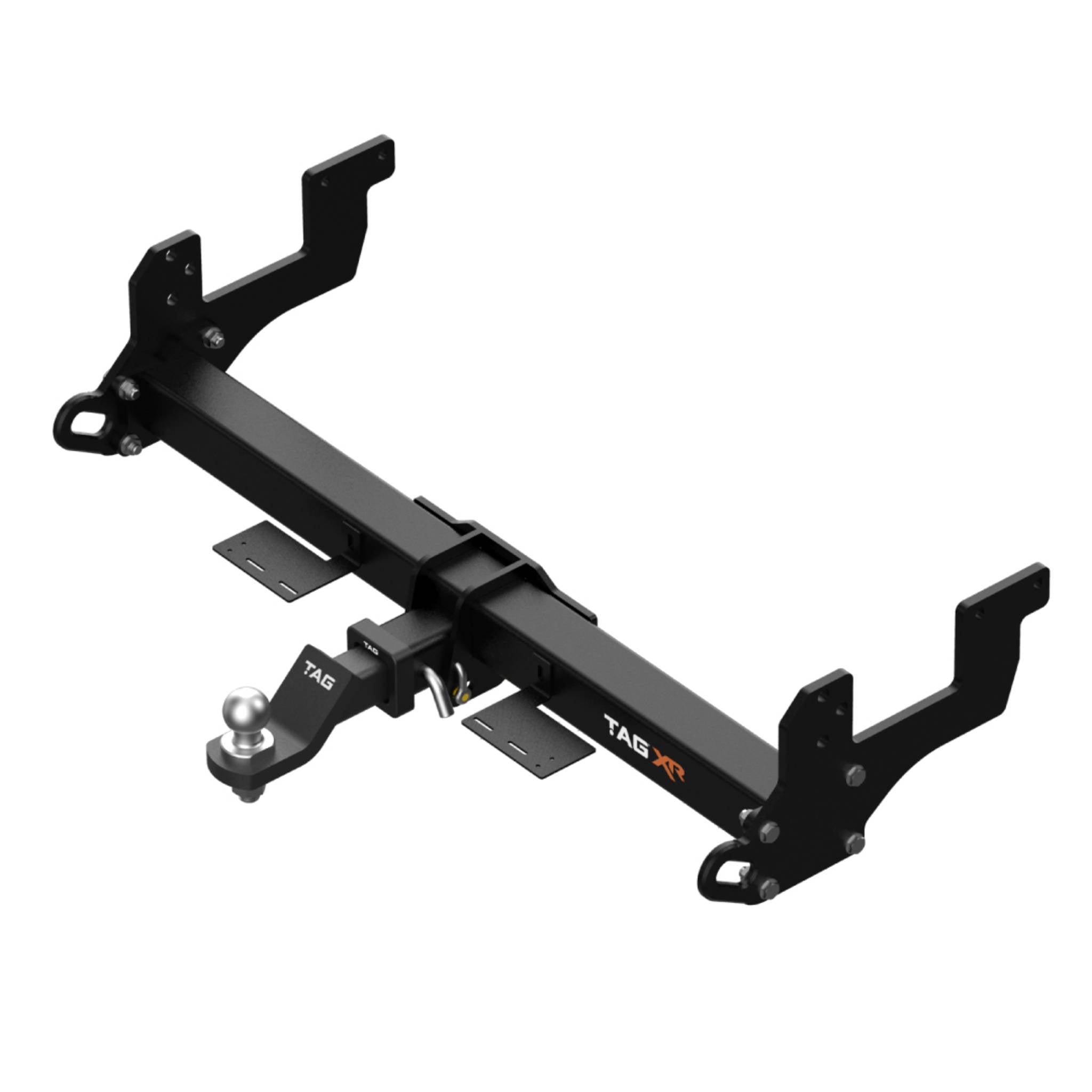

TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)

TXR862-K201
$1,232.68 $961.00
  • โœ… Includes wiring & plug
  • โœ… 3500kg trailer weight
  • โœ… 350kg tow ball weight
  • โœ… Powdercoated Finish
$961.00

Specifications
  • Diagnostic Coding: Not Required
  • Fog Cut Off: Not Applicable
  • Reverse Sensor Cut Off: Not Applicable

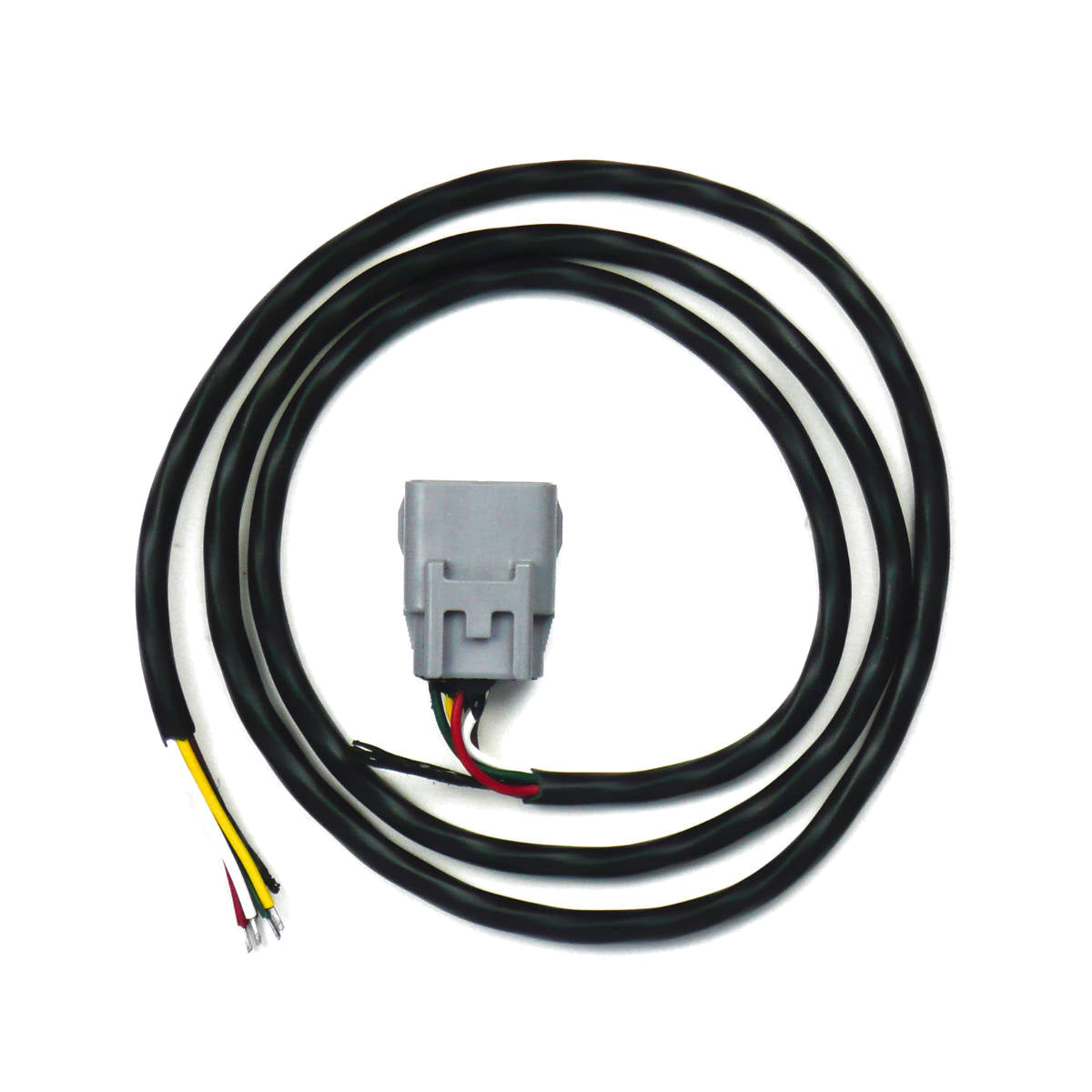

  • Wiring Option: Direct Fit Wiring Harness
  • Fitting Time [min.]: 30 (UNT272)
  • Fitting Time [min.]: 90 (TXR862)
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Ball Weight [kg]: 350
  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: No
  • Exposure: Partially concealed
Toyota Landcruiser (01/1991 - on)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 03/1991 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R Manual 4WD
TOYOTA LANDCRUISER 03/1991 08/2016 Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R 4WD
TOYOTA LANDCRUISER 11/1991 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 11/1991 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1991 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R 4WD
TOYOTA LANDCRUISER 10/1991 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
TOYOTA LANDCRUISER 01/1991 01/2007 Troop Carrier HZJ70RV, HZJ73, HZJ75RV, HZJ78R 1H-Z | 4.2L | Diesel D 4WD
TOYOTA LANDCRUISER 10/1991 07/2001 Troop Carrier 78 Series 1FZ-FE | 4.5L | Petrol FZJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1991 07/2001 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
