TAG Adjustable Heavy Duty Tow Ball Mount - 50mm Square Tow Ball Hitch 90° Face
Payment Options
Fitment Check
Installation
- Description
- TAG
- Documents

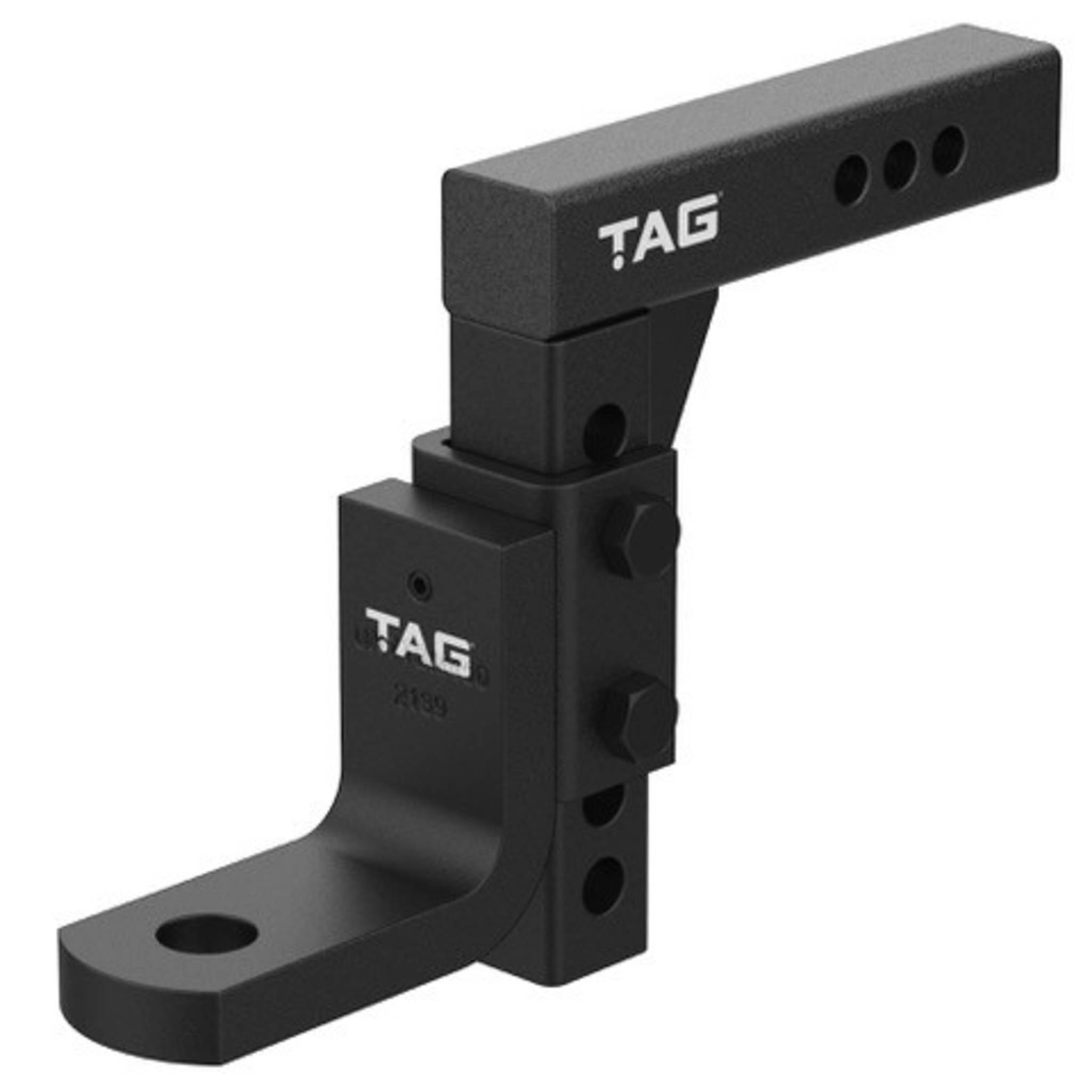

The TAG Adjustable Tow Ball Mount / Adjustable Tow Hitches features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup.
For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.
Tow Ball Hitch Features
-
90° Separate Tongue Face with four adjustable positions.
-
Drop 115mm
-

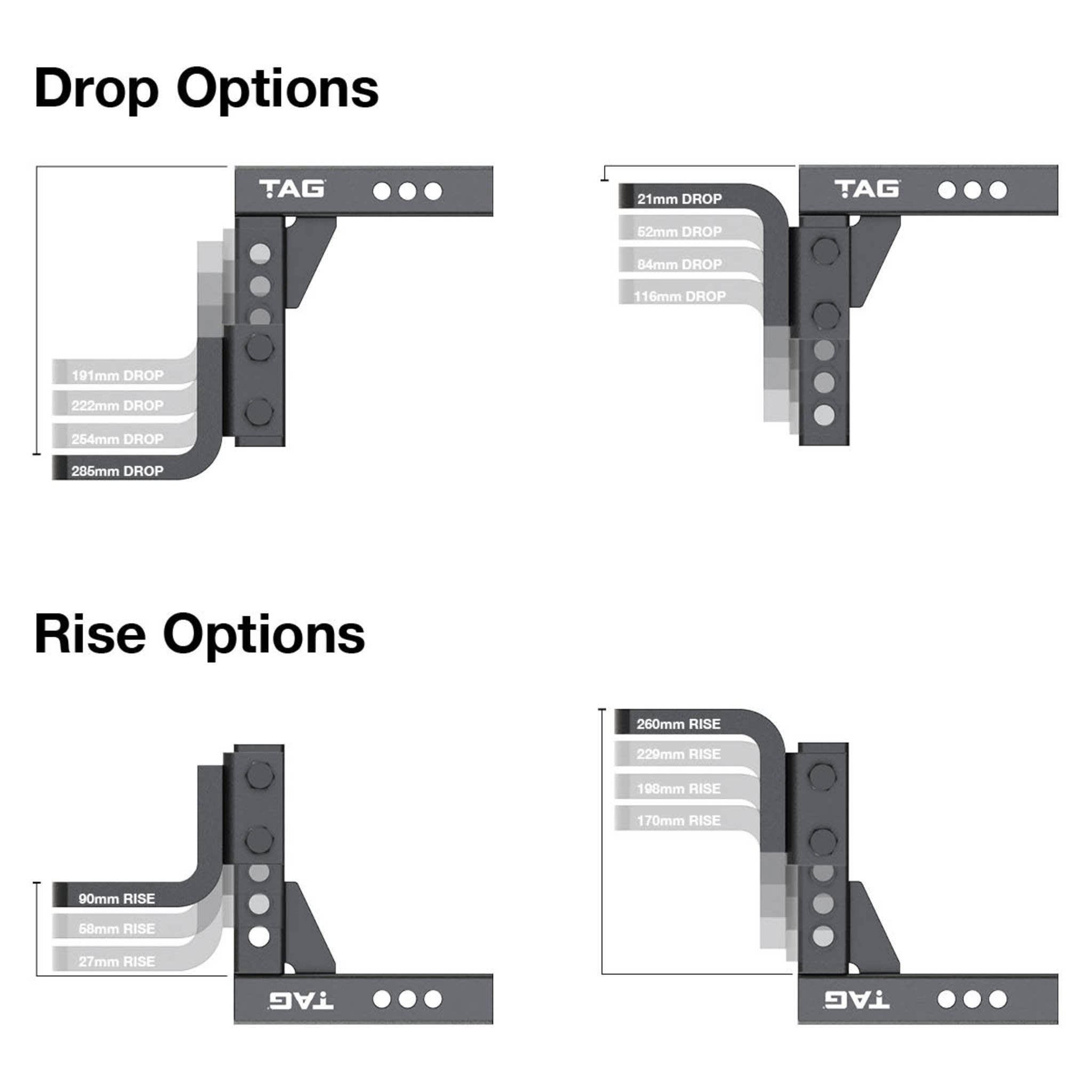

Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
Fits 70mm tow ball (or 50mm tow ball using included reducer)
-
Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
-
Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
-
Durable Powder Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
See our massive range of Tow Bar hitches and Trailer hitches.
TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.
TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.
TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.
With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

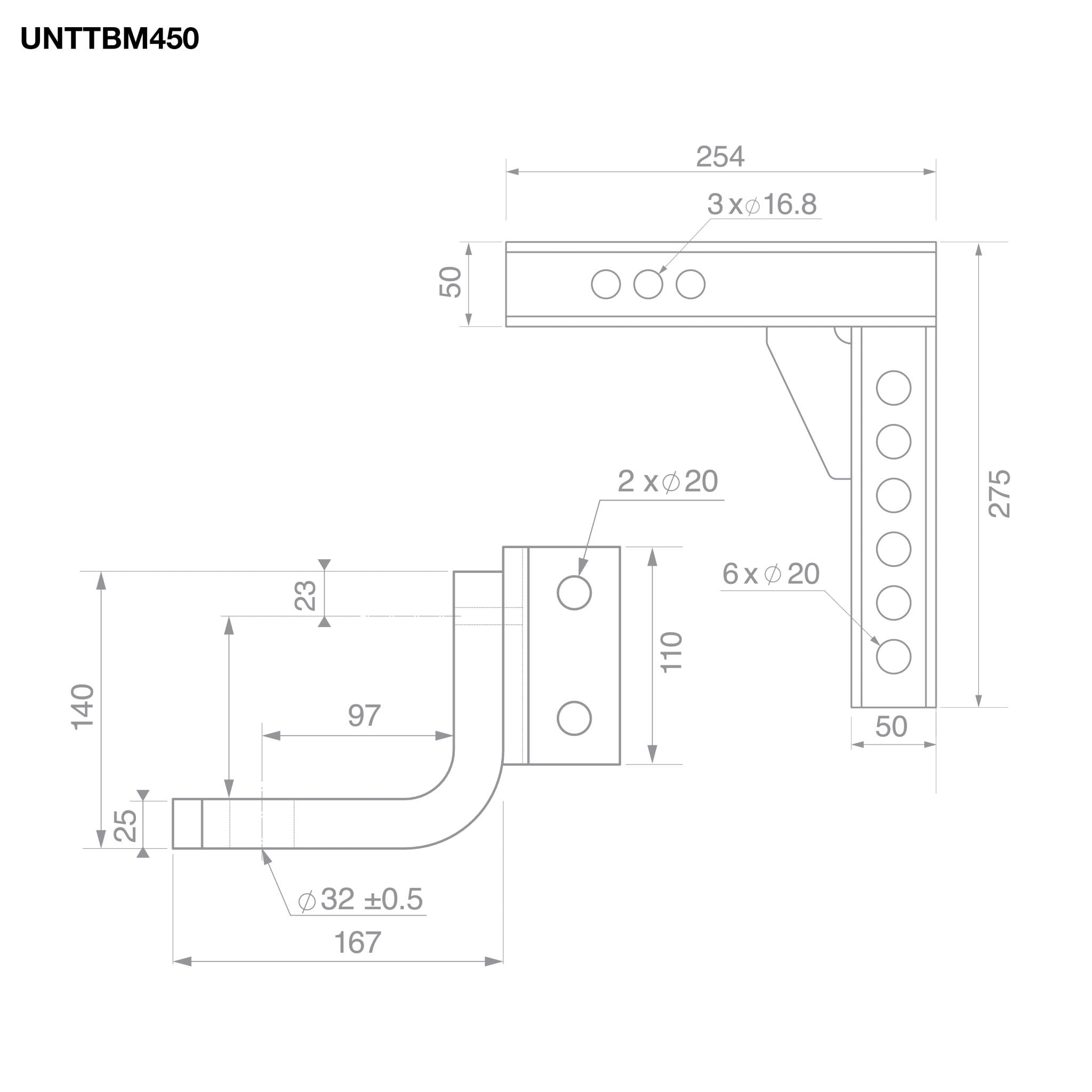

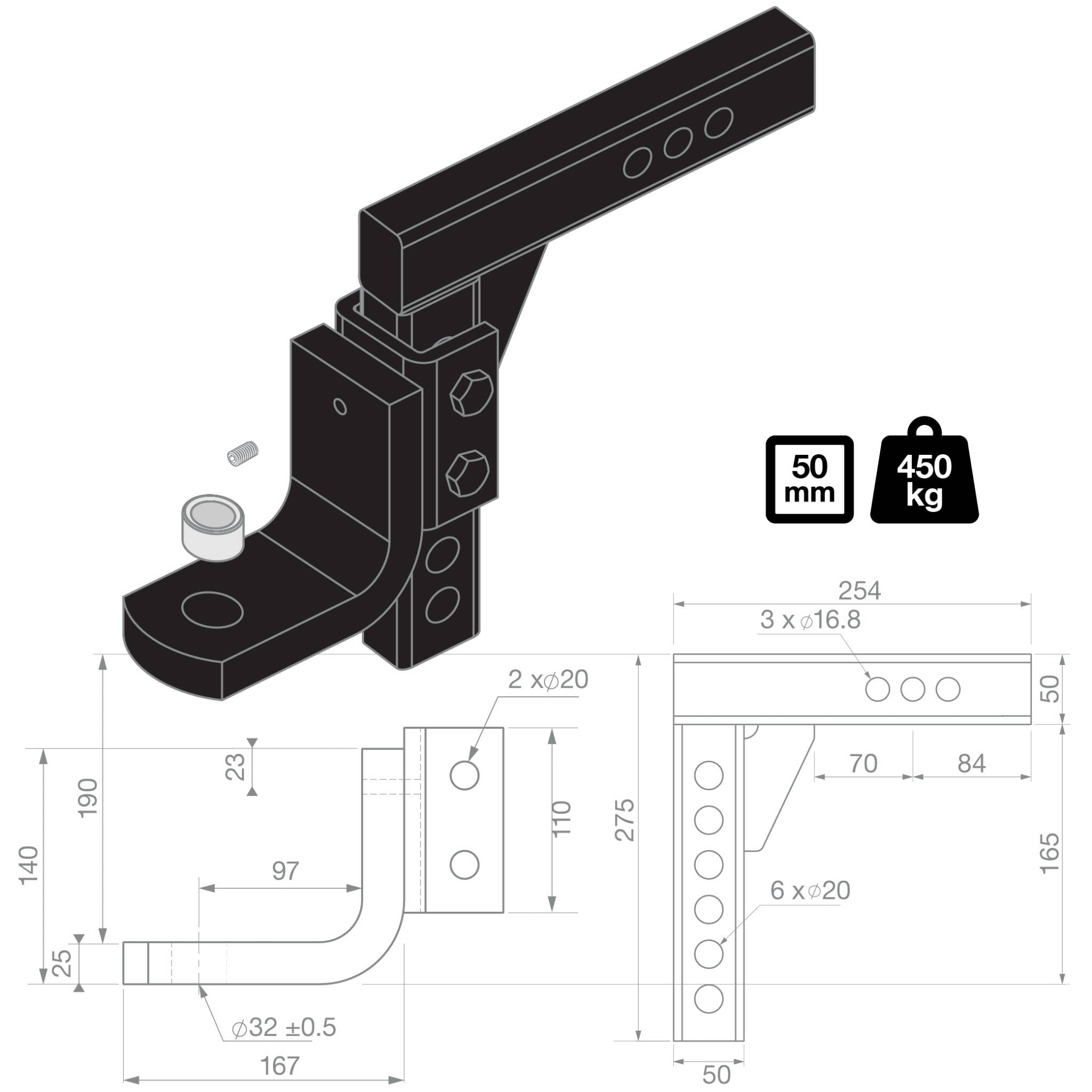

Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.
TAG Accessories & Hitches Download
