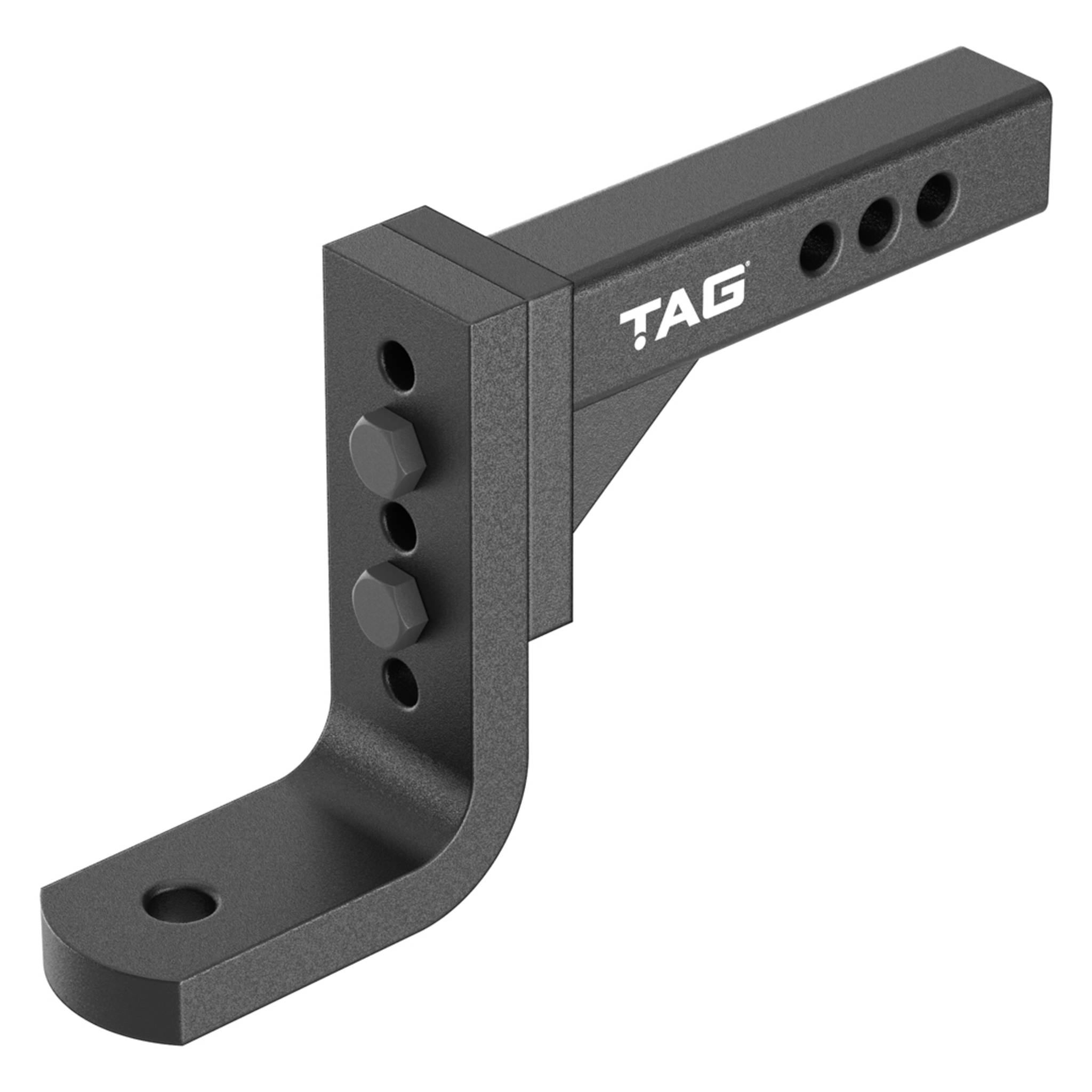

TAG Adjustable Tow Ball Mount - 297mm Long, 90° Face, 50mm Square Tow Ball Hitch
Fitment Guarantee
Checkout securley with

- Description
- Specifications
- Documents
- TAG
TOWBALL HITCH
TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.
TAG Towball Hitch Features:
-
297mm Long (Centre Pin Hole to Tow Ball Hole)
-
90° Tongue Face
-
Drop: 135mm
-
Can be mounted in Drop Mode or Rise Mode
-
3500kg Gross Trailer Weight
-
350kg Ball Weight
-
Durable Powder-Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
See our massive range of Tow Bar hitches and Trailer hitches.
Further information on:
- Product specifications
- Vehicle applications
- Related products
- Wiring
Can be found at the bottom of this product page.

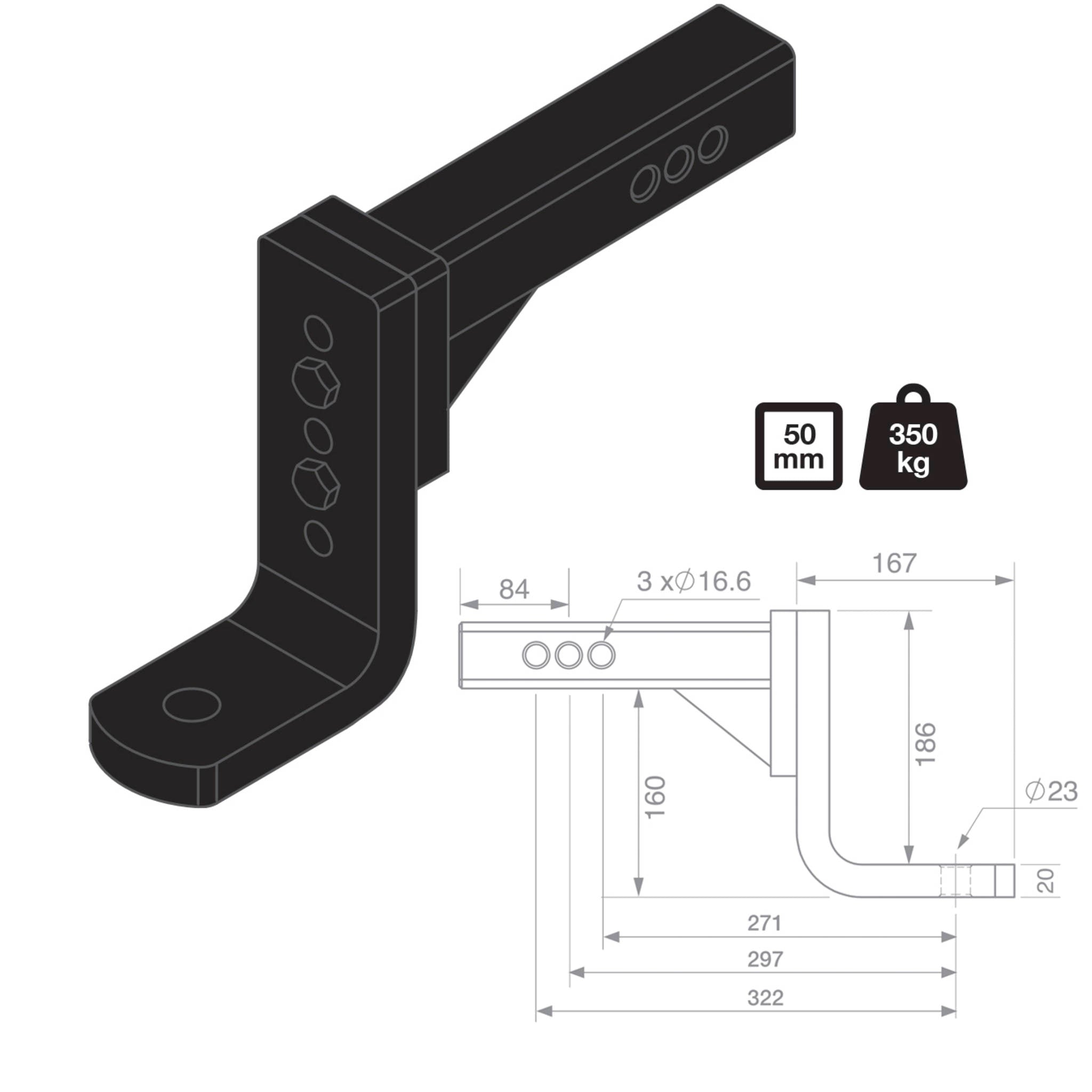

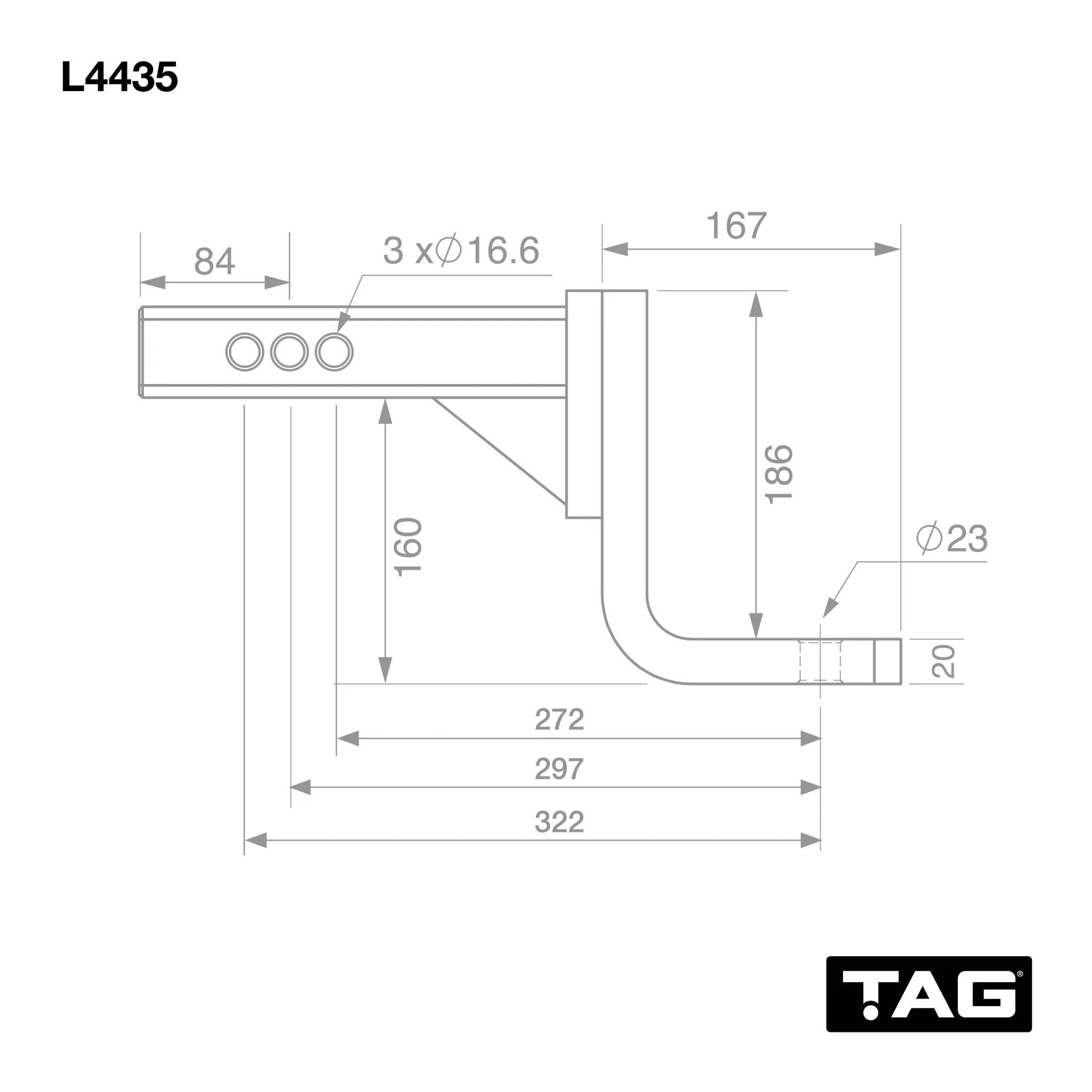

Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.
TAG Accessories & Hitches Download
TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.
TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.
TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.
With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.
- Tightening Torque [Nm]: 270
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Drop: 135mm
- Gross Trailer Weight: 3500
- Coating: Powder Coated
- Hitch Type: Heavy Duty 50mm Square
- Ball Weight: 350
- Length (Pin To Ball): 297mm
- Tongue Face: 90°
