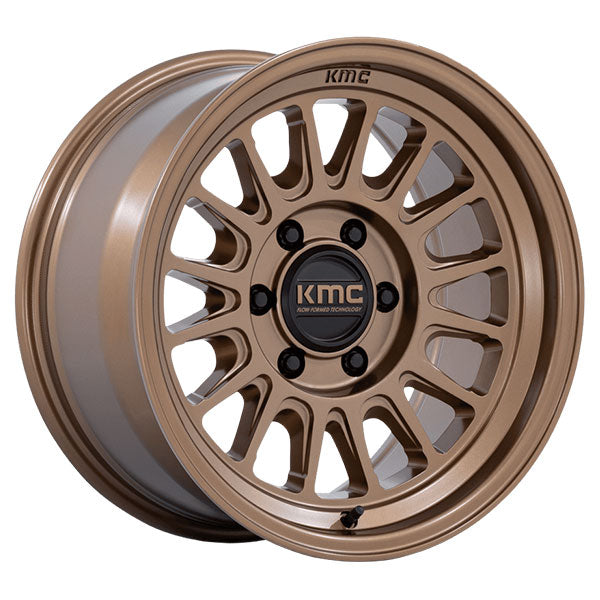

KMC Impact FFT KM733 Matte Bronze
Checkout securley with

- Description
- 🛡️ Fitment Advice
The KMC Impact FFT KM733 in Matte Bronze brings a rugged multi-spoke design and a warm, earthy finish to serious off-road builds. Featuring KMC's Bead Retention System (BRS) and offered in a solid spread of bolt patterns and sizes, the Impact FFT is engineered for trail control, load capacity and a distinctive factory-look finish.
Standout Features
- Matte Bronze finish for a warm, distinctive off-road look that stands apart from black and silver finishes
- Flow Formed aluminium construction for reduced unsprung weight and added strength over a standard cast wheel
- BRS (Bead Retention System) grooved bead seat grips the tyre bead at low PSI, giving trail-ready traction without traditional beadlocks
- DOT compliant and easy to mount using standard tyre fitting equipment
- Heavy-duty 8-stud version rated up to 2041kg per wheel for fully loaded, serious trail-rated builds
- Available in both 17" and 18" diameters to suit common dual-cab ute and 4x4 SUV fitments
Fitment Options
Available as a 17x8 / 17x8.5 wheel and an 18x9 wheel, the Impact FFT KM733 spans 6/130, 6/135, 6/139.7 and 8/170 bolt patterns with offsets from 0mm to +35mm. This fitment range suits popular dual-cab utes and 4x4 SUVs including the Toyota HiLux, Ford Ranger, Isuzu D-MAX, Mazda BT-50, Jeep Wrangler and Jeep Gladiator, as well as heavy-duty American pickups running the 8-stud pattern. Use the variant selector above to choose the size, bolt pattern and offset that suits your vehicle, and check fitment with your installer before purchase.
Available Bolt Patterns
6/130, 6/135, 6/139.7 and 8/170, with offsets from 0mm to +35mm depending on pattern and size.
Specifications
| Size | Bolt Pattern | Offset | Backspace | Centre Bore | Weight | Load Rating | SKU |
|---|---|---|---|---|---|---|---|
| 17x8 | 6/130 | +32mm | 5.76" | 84.1mm | 12.70kg | 1496kg | KM733ZX17803832 |
| 17x8 | 6/139.7 | +32mm | 5.76" | 106.1mm | 12.50kg | 1496kg | KM733ZX17806832 |
| 17x8.5 | 6/135 | 0mm | 4.75" | 87.1mm | 12.00kg | 1202kg | KM733ZX17856300 |
| 17x8.5 | 6/139.7 | 0mm | 4.75" | 106.1mm | 11.70kg | 1202kg | KM733ZX17856800 |
| 17x8.5 | 6/139.7 | +25mm | 5.73" | 106.1mm | 11.60kg | 1202kg | KM733ZX17856825 |
| 17x8.5 | 6/139.7 | +35mm | 6.13" | 108.0mm | 11.70kg | 1202kg | KM733ZX17856035 |
| 18x9 | 6/139.7 | 0mm | 5.00" | 106.1mm | 12.70kg | 1202kg | KM733ZX18906800 |
| 18x9 | 6/139.7 | +18mm | 5.71" | 106.1mm | 12.50kg | 1202kg | KM733ZX18906818 |
| 18x9 | 8/170 | 0mm | 5.00" | 125.1mm | 14.80kg | 2041kg | KM733ZX18908700 |
| 18x9 | 8/170 | +18mm | 5.71" | 125.1mm | 14.80kg | 2041kg | KM733ZX18908718 |
You Might Also Like
Prefer a different finish? The Impact FFT KM733 is also available in Matte Black, Gloss Black and Gloss Silver with Machined Face.
Structural warranty applies to original retail purchasers.
