TAG Standard Duty Towbar & Direct Fit Wiring for Hyundai IX35 (01/2010 - 12/2015)

T2Z533-K201
$714.68 $557.45
$557.45

Checkout securley with

payment options
Online payments and cash on pick up available.

  • Description
  • TAG
  • Delivery
  • Documents
  • 🛡️ Fitment Advice
  • Description
  • This Kit Includes:

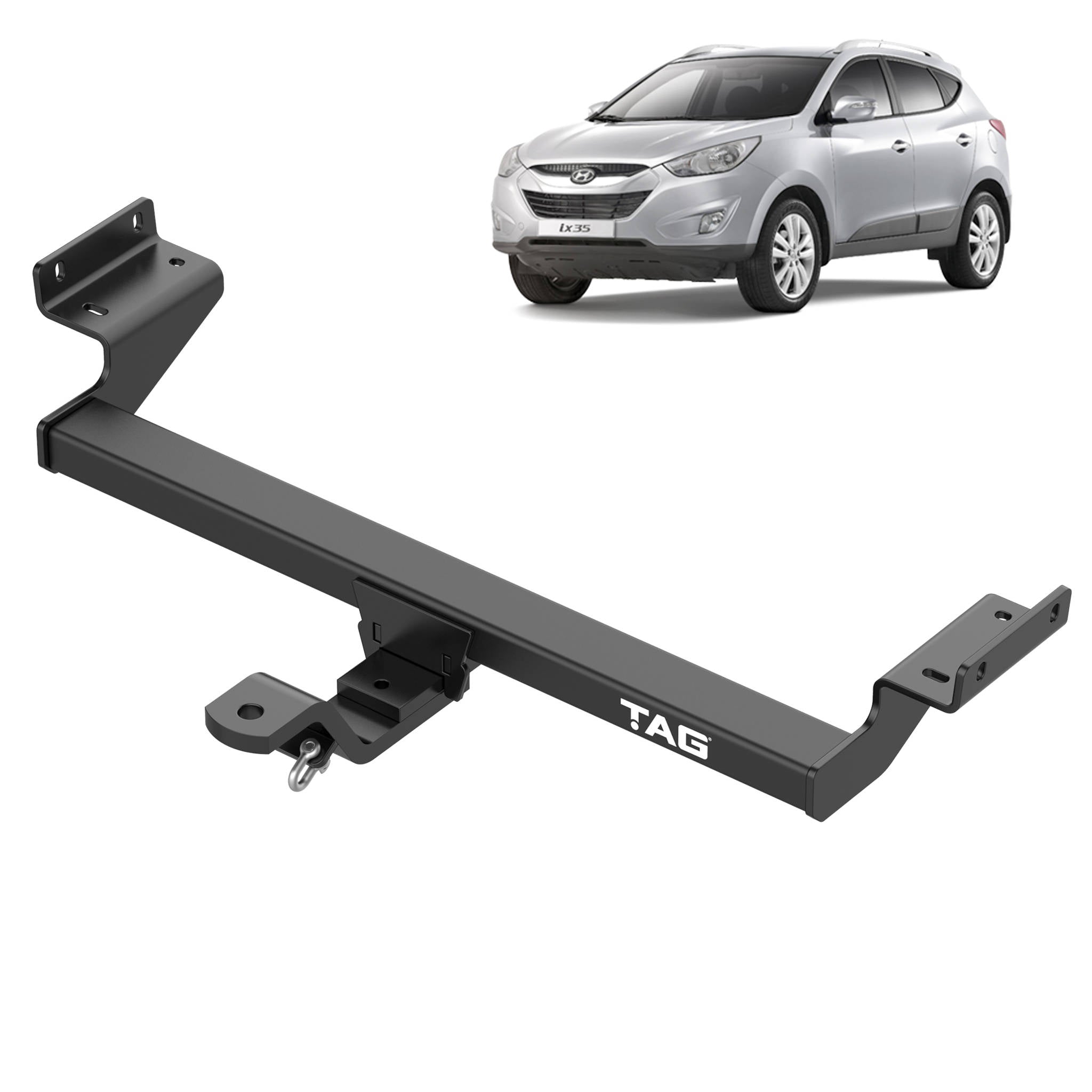

    • TAG Standard Duty Towbar

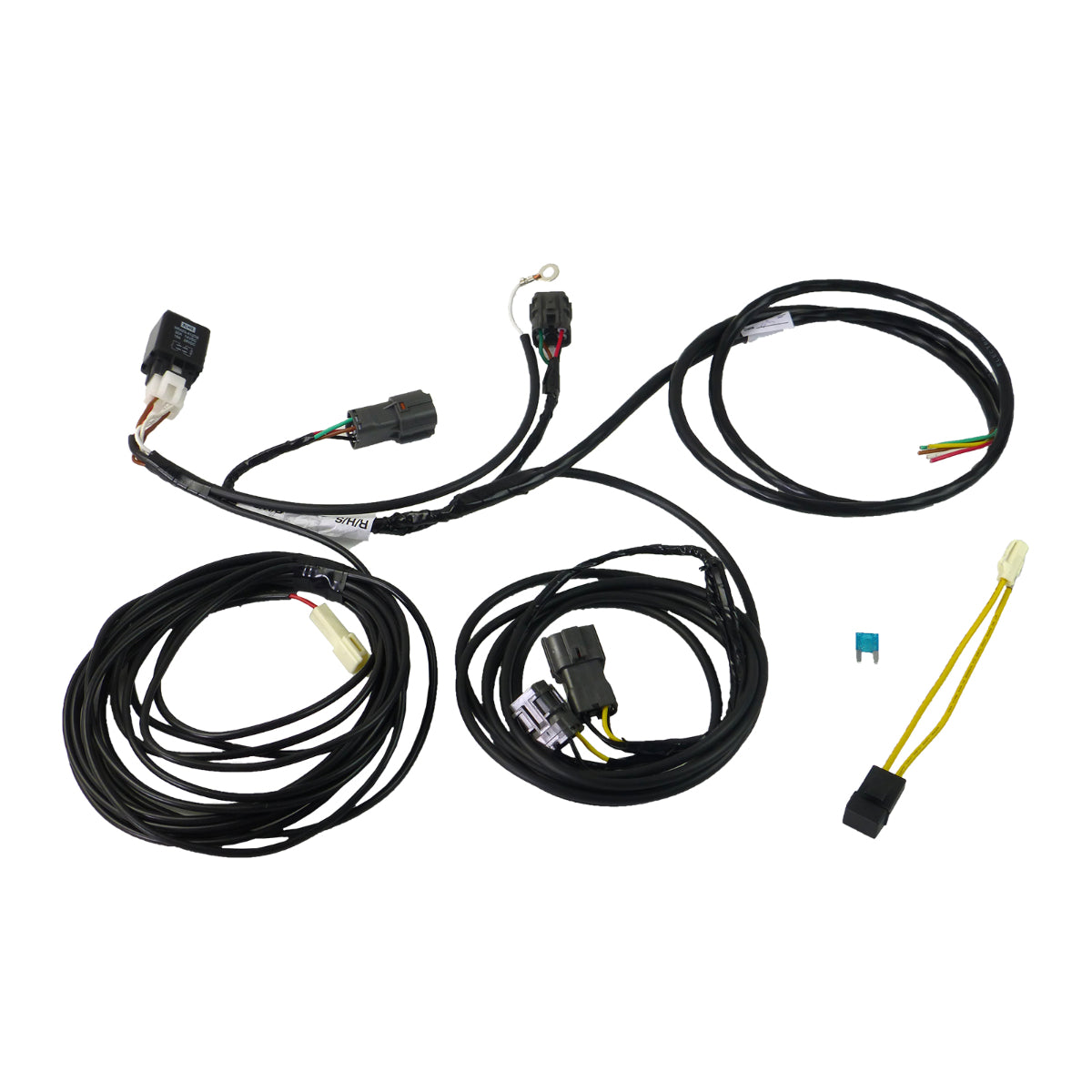

    • TAG Direct Fit Wiring Harness

    • TAG 7 Pin Flat Socket - Vehicle Side

    TAG Standard Duty Towbars are designed and manufactured in Australia and feature:

    • Factory Mounting Points for ease of fitment

    • Durable Powder Coated Finish

    • Flat Fixed 2-Bolt Tow Ball Mount

    • TAG Limited Lifetime Warranty

    • Towbar includes Tow Ball

    Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Delivery
  •

    For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.



    Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.



    Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!



    🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.











  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

  • 🛡️ Fitment Advice
  •
    Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
    Specifications
    • Style: 7 Pin Flat
    • Type: Plugs & Sockets
    • Reverse Sensor Cut Off: Not Applicable
    • Diagnostic Coding: Not Required
    • Fog Cut Off: Not Applicable
    • Wiring Option: Direct Fit Wiring Harness
    • Fitting Time [min.]: 60
    • Exposure: Concealed
    • Coating: Enamel Immersion Dipped
    • Bumper Cut Out Required: Yes
    • Tow Ball Mount: L269C
    • Bumper Removed During Fitment: Yes
    • Towbar Capacity [kg]: 1600
    • Towbar Class: Standard Duty
    • Hitch Type: Flat Fixed 2 Bolt
    • Ball Weight [kg]: 160
    Hyundai Ix35 (01/2010 - 12/2015), IX35 (01/2010 - 12/2015)
    Make Model From To Body Series Engine Variant Drivetrain
    HYUNDAI ix35 08/2013 04/2015 Wagon EL, ELH, LM G4NC | 2.0L | Petrol GDi FWD
    HYUNDAI ix35 01/2013 04/2015 Wagon EL, ELH, LM G4KJ | 2.4L | Petrol GDi AWD
    HYUNDAI ix35 10/2012 06/2015 SUV EL, ELH, LM D4HA | 2.0L | Diesel CRDi FWD
    HYUNDAI ix35 01/2010 10/2015 Wagon EL, ELH, LM G4KE | 2.4L | Petrol AWD
    HYUNDAI ix35 01/2010 10/2015 Wagon EL, ELH, LM G4KD | 2.0L | Petrol FWD
    HYUNDAI ix35 01/2010 10/2015 Wagon EL, ELH, LM G4KD | 2.0L | Petrol FWD
    HYUNDAI ix35 01/2010 10/2015 Wagon EL, ELH, LM D4HA | 2.0L | Diesel CRDi AWD
    HYUNDAI iX35 10/2013 12/2015 Wagon LM G4NC | 2.0L | Petrol ACTIVE| TROPHY Automatic/Manual FWD
    HYUNDAI iX35 10/2013 12/2015 Wagon LM G4NC | 2.0L | Petrol ELITE Automatic FWD
    HYUNDAI iX35 10/2013 12/2015 Wagon LM G4KJ | 2.4L | Petrol ELITE| HIGHLANDER Automatic AWD
    HYUNDAI iX35 10/2013 12/2015 Wagon LM G4NC | 2.0L | Petrol SE Automatic/Manual FWD
    HYUNDAI iX35 10/2013 12/2015 Wagon LM G4NC | 2.0L | Petrol SE Automatic/Manual FWD
    HYUNDAI iX35 03/2013 06/2015 Wagon LM D4HA | 2.0L | Diesel SE Automatic AWD
    HYUNDAI iX35 01/2013 12/2015 Wagon LM G4KD | 2.0L | Petrol ELITE Automatic FWD
    HYUNDAI iX35 02/2010 06/2015 Wagon LM D4HA | 2.0L | Diesel ELITE, HIGHLANDER, TROPHY Automatic/Manual AWD
    HYUNDAI iX35 01/2010 10/2015 Wagon EL, ELH, LM D4HA | 2.0L | Diesel CRDi AWD
    HYUNDAI iX35 06/2012 09/2013 Wagon LM G4KD | 2.0L | Petrol ELITE Automatic FWD
    HYUNDAI iX35 02/2010 09/2013 Wagon LM G4KD | 2.0L | Petrol ACTIVE Automatic/Manual FWD
    HYUNDAI iX35 02/2010 09/2013 Wagon LM G4KG | 2.4L | Petrol ELITE| HIGHLANDER Automatic/Manual AWD
