TAG Standard Duty TLP Towbar and Direct Fit Wiring Harness for Toyota Hiace (01/2005 - 01/2019)
Checkout securley with
- Description
- TAG
- Documents
- π‘οΈ Fitment Advice
Suits LWB models only. For SWLB and Commuter use T9T008-K201
This Kit Includes:

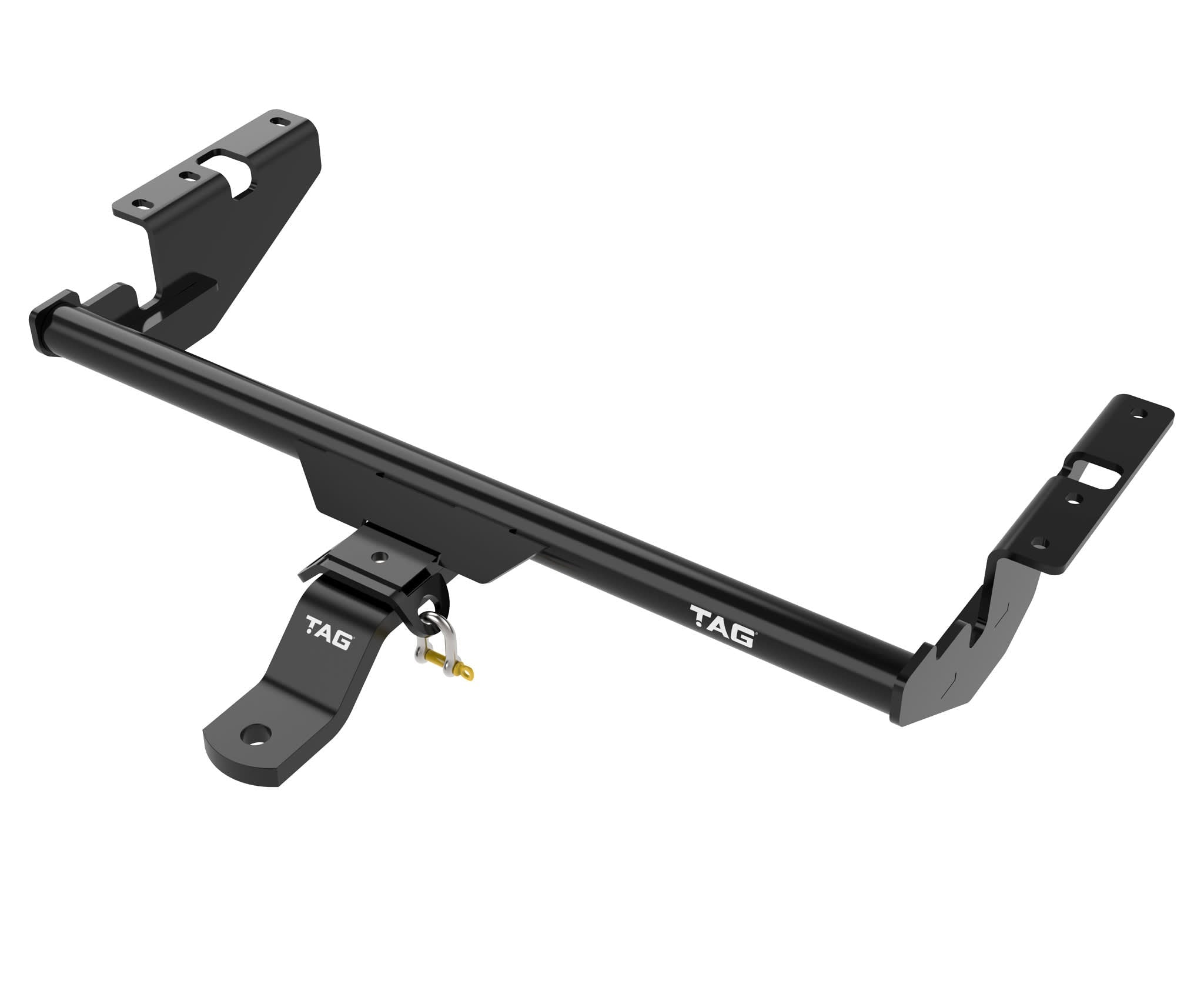

TAG Light Duty Towbar With Tail Light Protectors

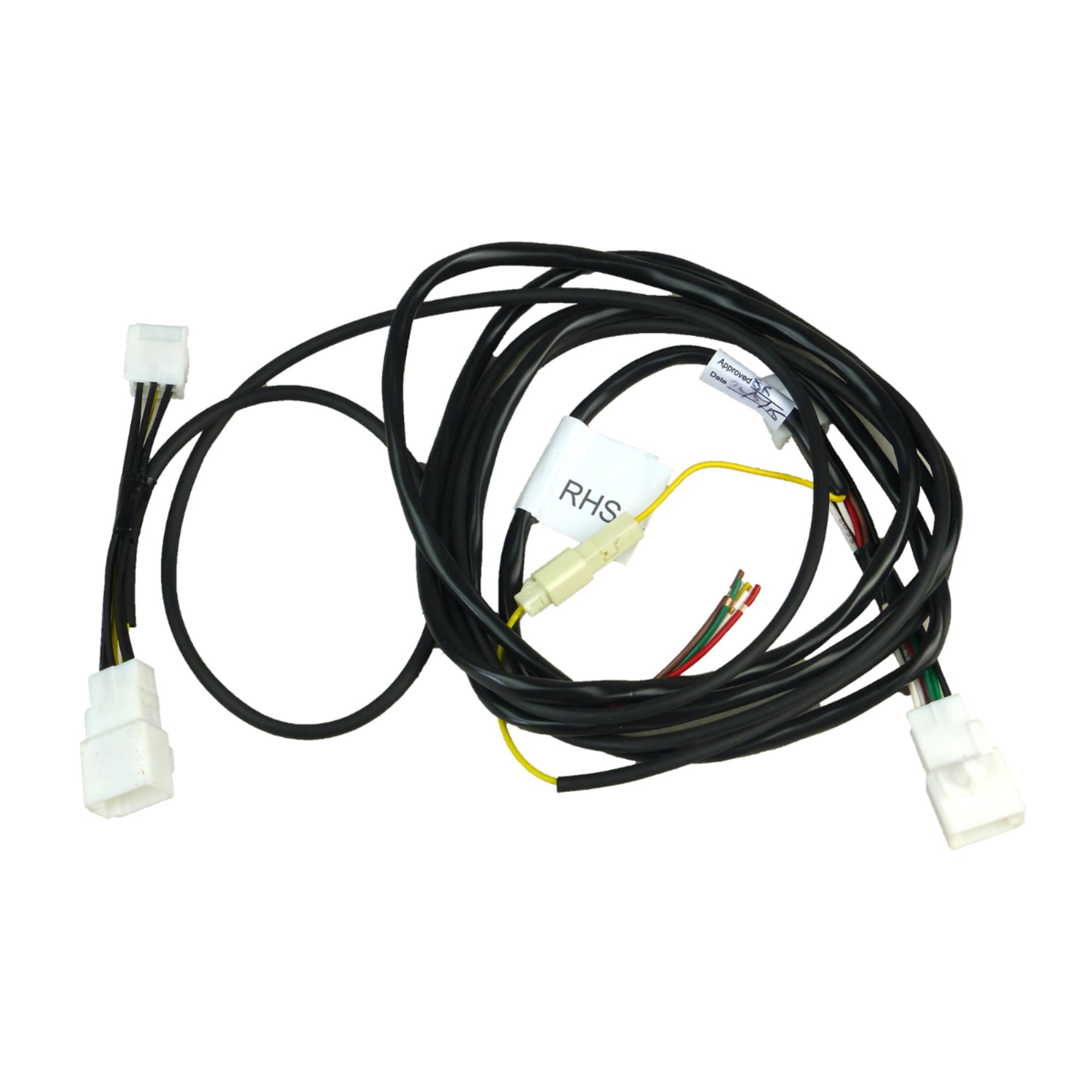

TAG Direct Fit Wiring Harness

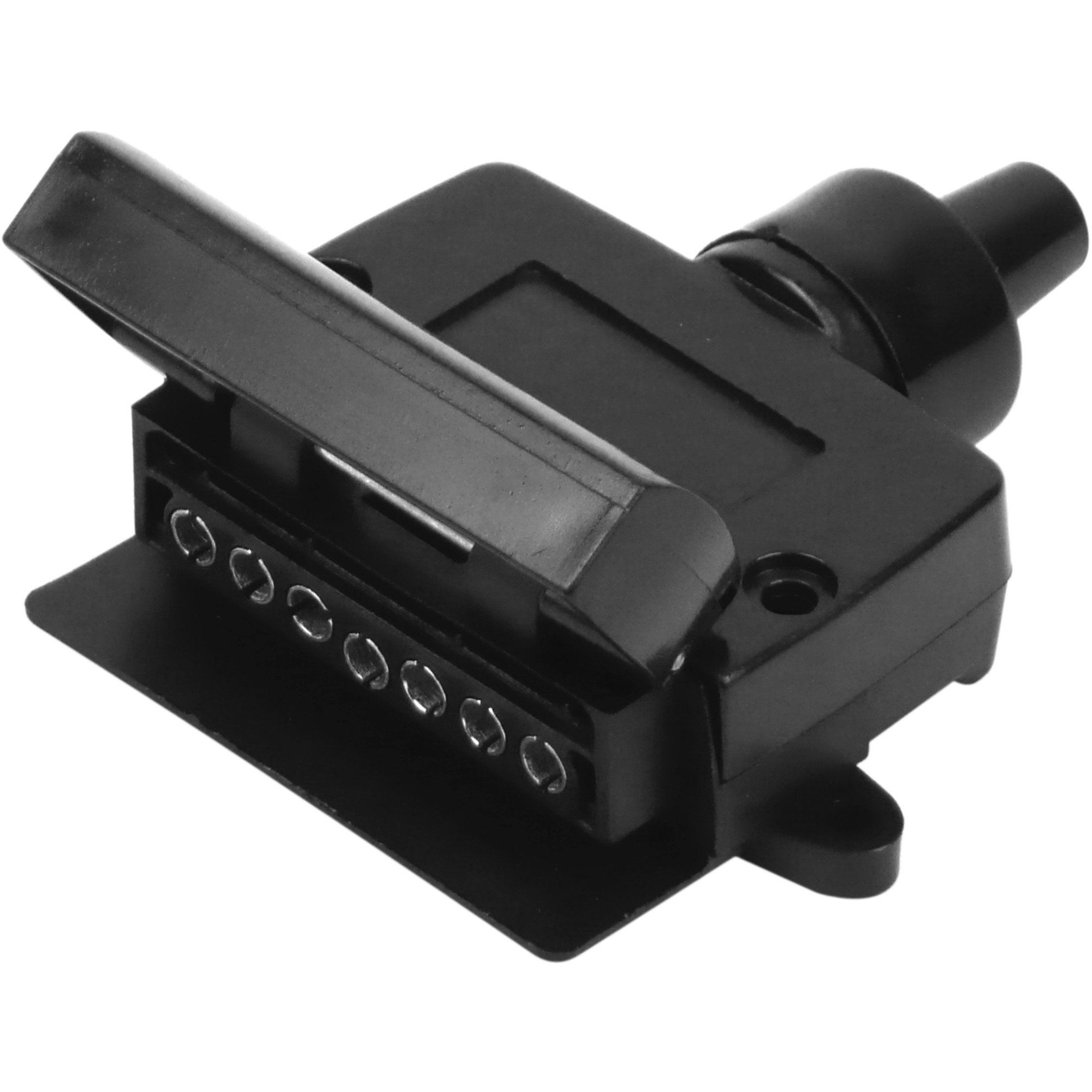

TAG 7 Pin Flat Socket - Vehicle Side
TAG Light Duty Towbars are designed and manufactured in Australia and feature:
Factory Mounting Points for ease of fitment
Durable Powder-Coated Finish
Flat Fixed 2-Bolt Tow Ball Mount
TAG Limited Lifetime Warranty
Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.
TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.
TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.
With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.
Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.
TAG Accessories & Hitches Download
You may also be interested in these great towing accessories:
Curt Spectrum Towing Brake Controller
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Fitting Time [min.]: 45 (UNT250)
- Fitting Time [min.]: 120 (T9T103)
- Diagnostic Coding: Not Required
- Fog Cut Off: Not Applicable
- Reverse Sensor Cut Off: Not Applicable
- Fits Vehicle Year To (Month): 01
- Fits Vehicle Year To: 2019
- Wiring Option: Direct Fit Wiring Harness
- Towbar Class: Standard Duty
- Towbar Capacity [kg]: 1250
- Hitch Type: Flat Fixed 2 Bolt
- Tow Ball Mount: L237
- Coating: Enamel Immersion Dipped
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: No
- Exposure: Exposed
- Ball Weight [kg]: 100
Toyota Hiace (08/2004 - 02/2019)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | GDH211 | 1GDFTV | 2.8L | Diesel | Automatic RWD | |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | GDH206, GDH226 | 1GD-FTV | 2.8L | Diesel | D | AWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | GDH201 | 1GD-FTV | 2.8L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH200 | 1TR-FE | 2.0L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH206R | 1KDFTV | 3.0L | Diesel | DX | Automatic/Manual 4WD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH201R | 2TRFE | 2.7L | Petrol | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH223 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | GDH2__, KDH2__, LH2__, TRH2__ | 1KD-FTV | 3.0L | Diesel | D | AWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH201R | 1KDFTV | 3.0L | Diesel | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH200, KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH200 | 1TR-FE | 2.0L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH201R | 2TRFE | 2.7L | Petrol | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH201, TRH221, TRH223B | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | TRH201, TRH221, TRH223B | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH200, KDH220 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
| TOYOTA | HIACE | 08/2004 | 02/2019 | Van | KDH200, KDH220 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
