TAG Rear Step, Towbar & Wiring for LDV Deliver 9 LWB Van (07/2020 - On)

T8PA17-K311
$1,925.63 $1,540.50

Checkout securley with

payment options
Online payments and cash on pick up available.

  • Description
  • TAG
  • Documents
  • 🛡️ Fitment Advice
  • Description
  • This Kit Includes:

    • TAG Heavy Duty Towbar

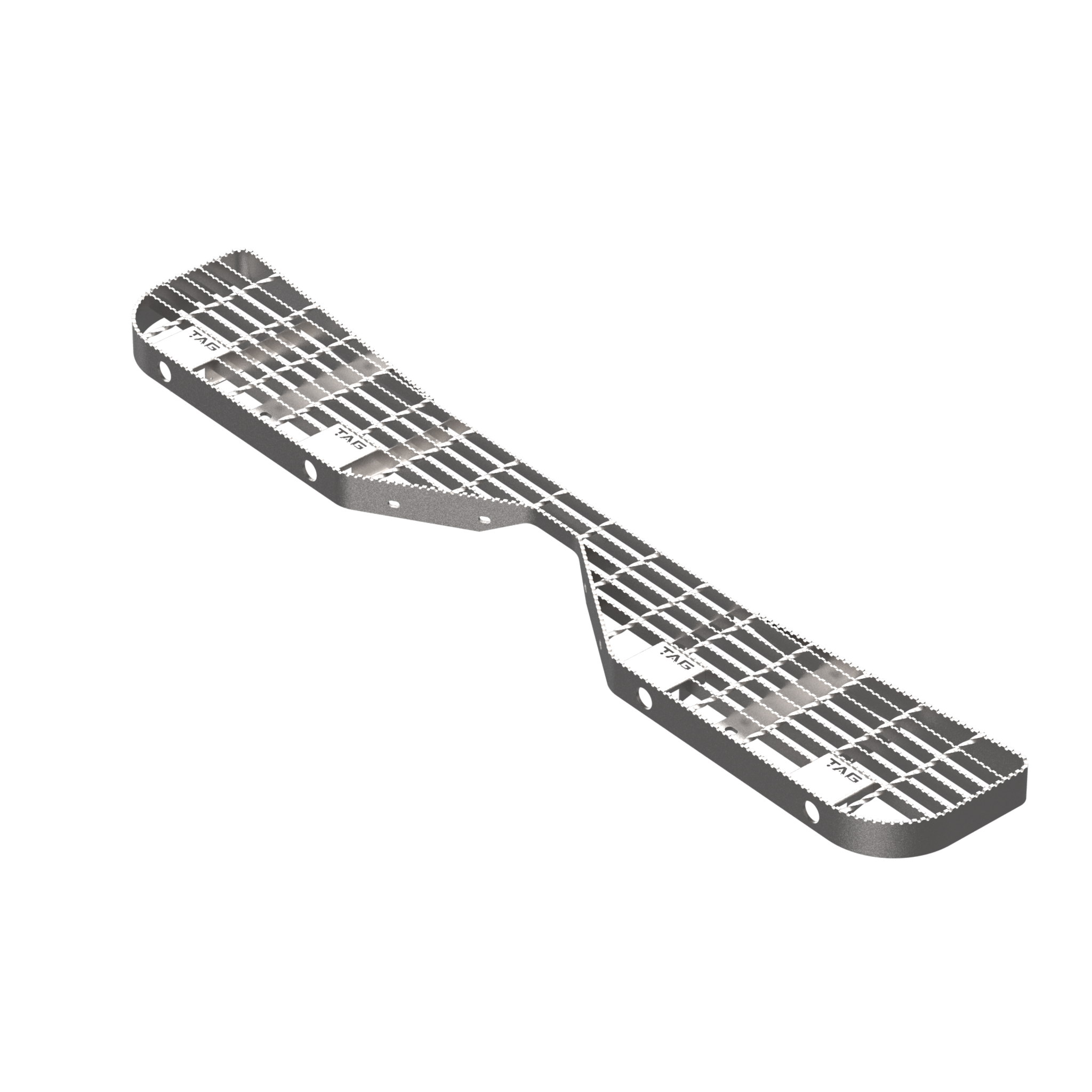

    • TAG Galvanised Rear Step

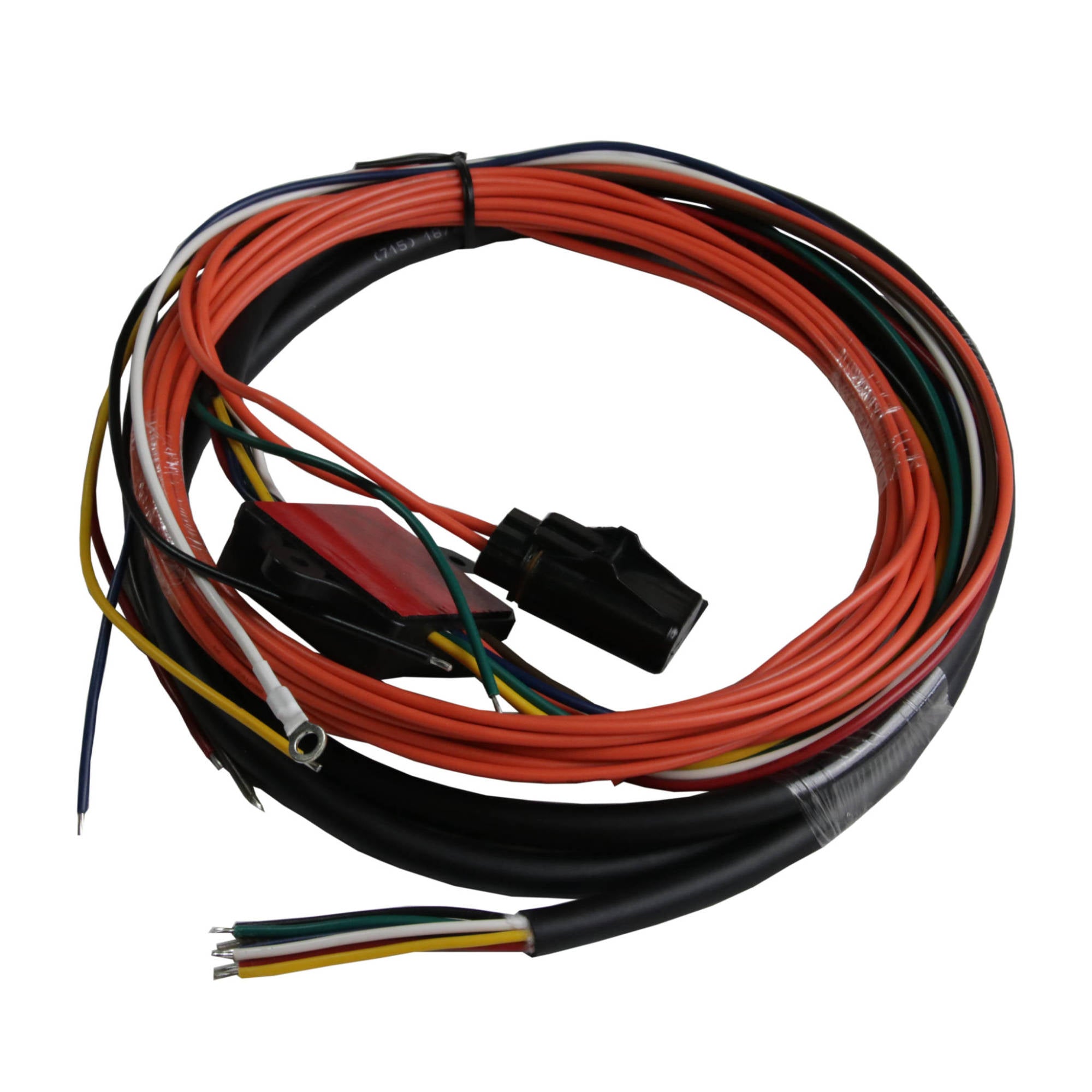

    • TAG Universal Wiring Harness

    • TAG Sensor Bracket Kit

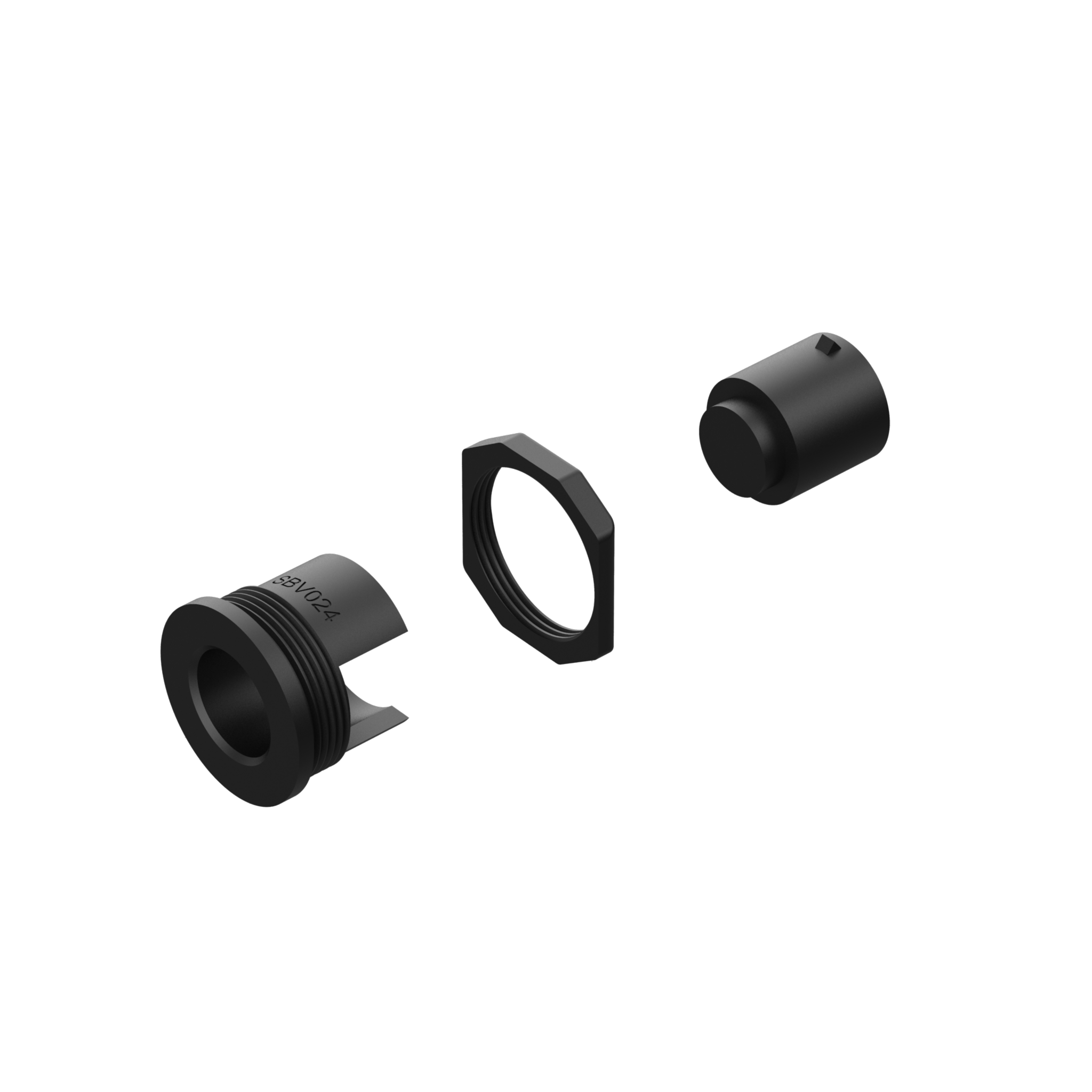

    • TAG Sensor Extender kit

    Engineered for precision fitment and durability, the TAG Rear Step and Rear Step & Towbar combinations deliver long-lasting, reliable support to transport and trade fleet vehicles.

    • Galvanised Rear Step with 250kg Static Load Rating

    • Powder coated towbar and brackets

    • Towbar utilises factory mounting points for ease of fitment

    • 50mm Square Hitch Receiver

    • TAG Limited Lifetime Warranty

    • Towbar includes - Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

    Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

  • 🛡️ Fitment Advice
  •
    Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
    Specifications
    • Style: 7 Pin Flat
    • Type: Plugs & Sockets
    • Fitting Time [min.]: 120 (UNTEC2W)
    • Fitting Time [min.]: 90 (T8PA17)
    • Coating: Galvanised (TRS002)
    • Coating: Powder Coated (T8PA17)
    • Towbar Class: Heavy Duty (3-Piece Design)
    • Towbar Combination: Rear Step & Towbar
    • Towbar Capacity [kg]: 2800
    • Ball Weight [kg]: 280
    • Static Load Capacity [kg]: 250
    • Tow Ball Mount: L4240
    • Hitch Type: 50mm Square Hitch Receiver
    • Bumper Removed During Fitment: No
    • Bumper Cut Out Required: No
    • Exposure: Partially Concealed
    LDV Deliver 9 (07/2020 - on)
    Make Model From To Body Series Engine Variant Drivetrain
    LDV DELIVER 9 01/2025 - Van SC20M177Q6 | 2.0L | Diesel TD RWD
    LDV DELIVER 9 07/2022 - Van 0.0L | Electric FWD
    LDV DELIVER 9 07/2020 - Van SV63B SC20M | 2.0L | Diesel LWB HIGH ROOF, LWB MID ROOF Automatic/Manual RWD
    LDV DELIVER 9 07/2020 - Van SC20M150Q5 | 2.0L | Diesel TD RWD
