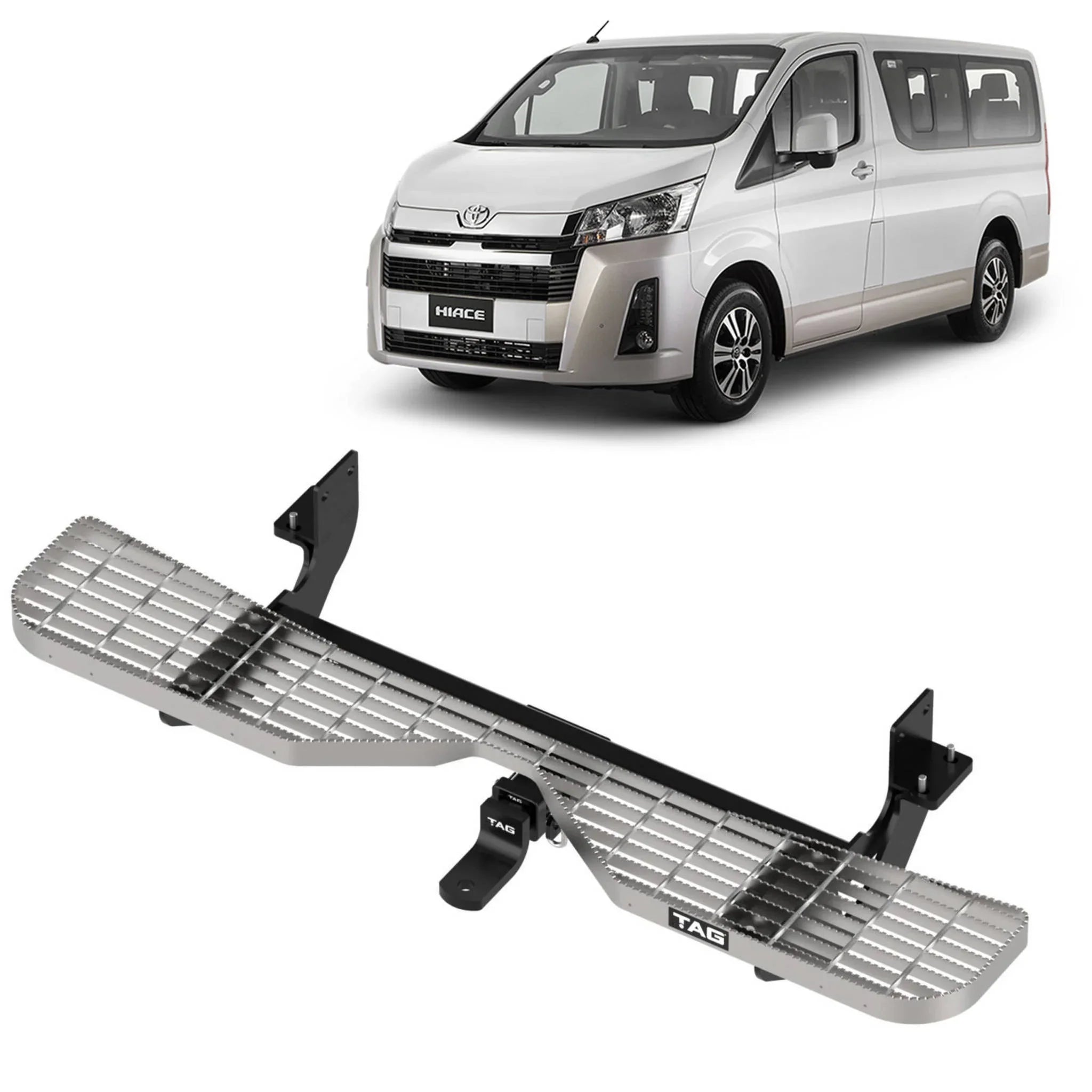

TAG Heavy Duty Towbar, Rear Step & Wiring Harness for Toyota Hiace / Commuter (02/2019 - on)
- ✅ Step has 250kg static load capacity
- ✅ 1900kg towing capacity
- ✅ 190kg towball weight
- TAG Direct Fit Wiring Harness
- ✅ Includes sensor bracket kit
- ✅ Powercoated towbar
- ✅ Galvanised step
Payment Options

Fitment Check
Installation
- Description
- TAG
- Delivery
- Documents
This Kit Includes:
-

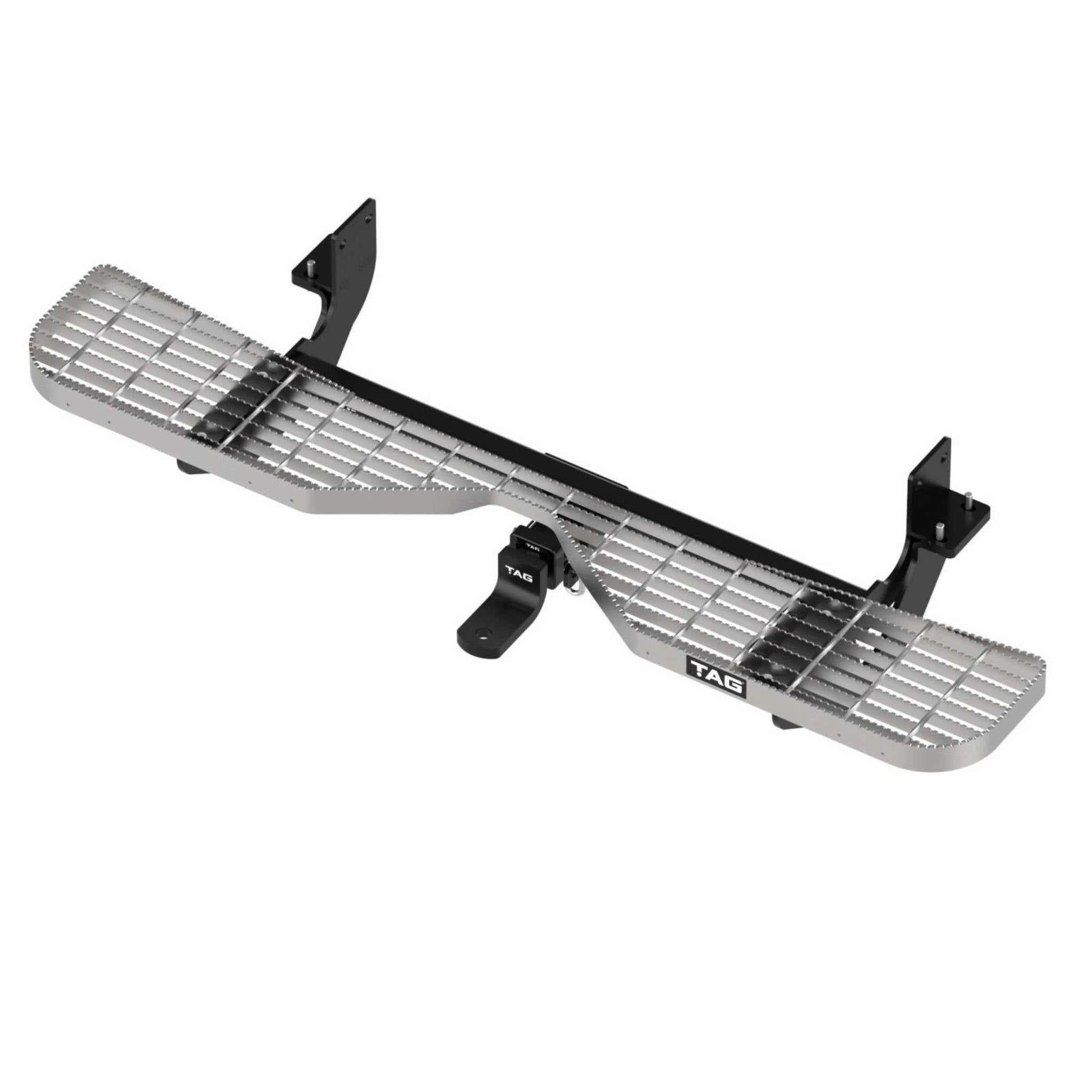

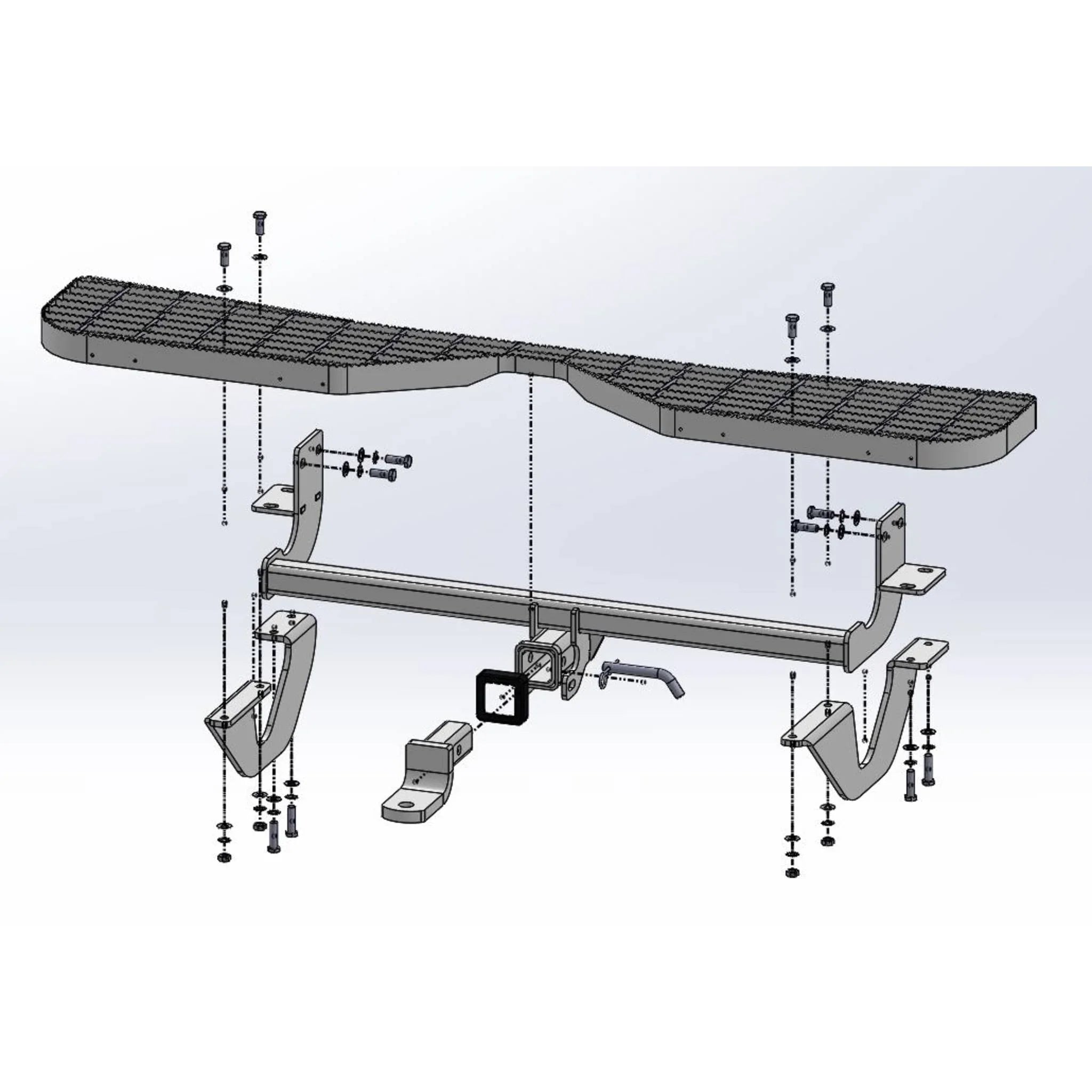

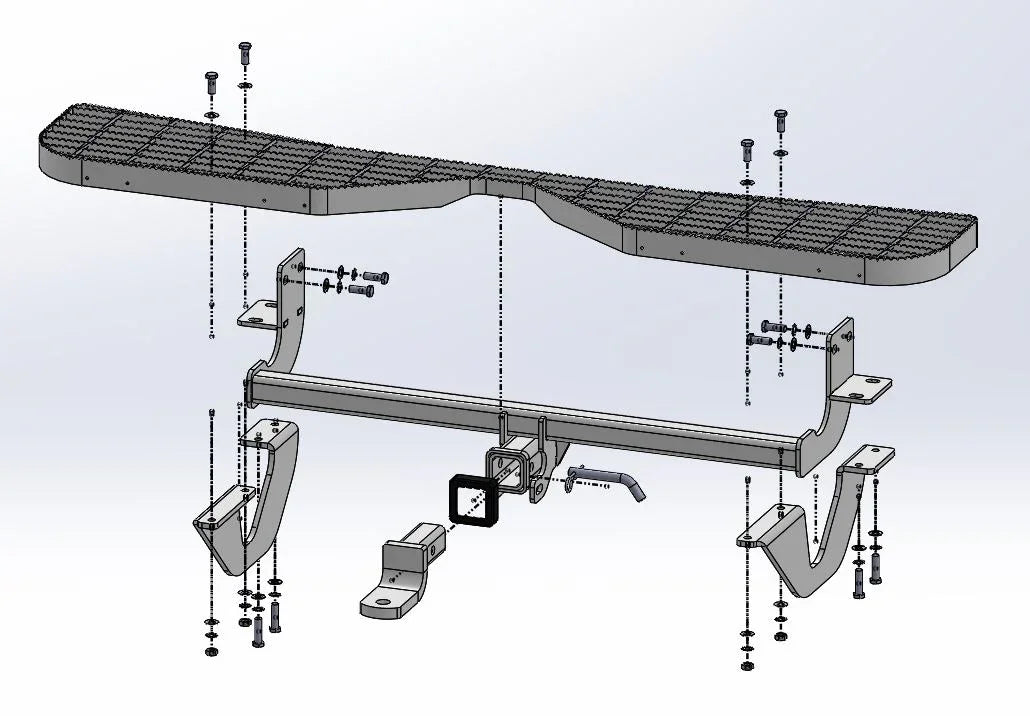

TAG Heavy Duty 3-Piece Towbar
-

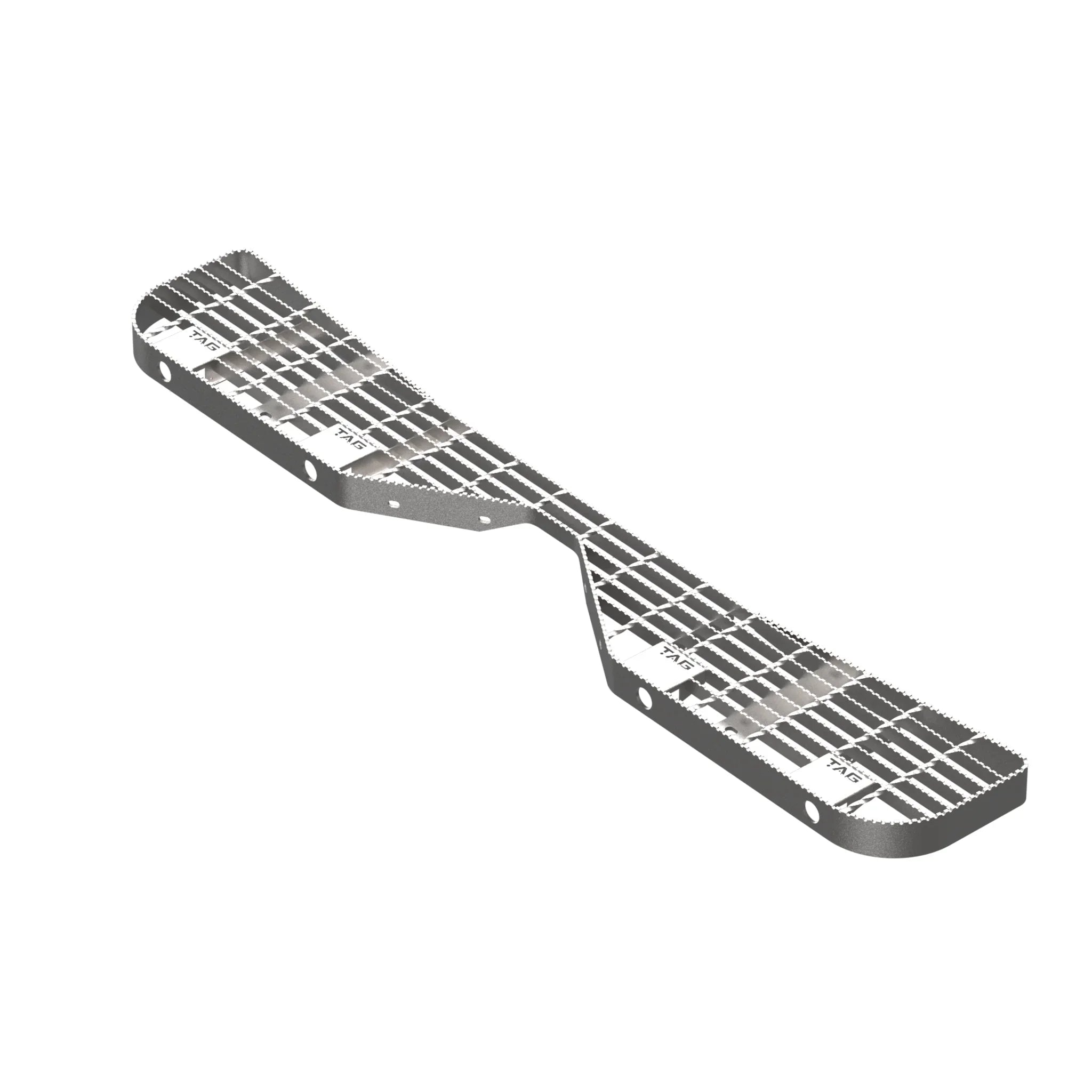

TAG Galvanised Rear Step
-

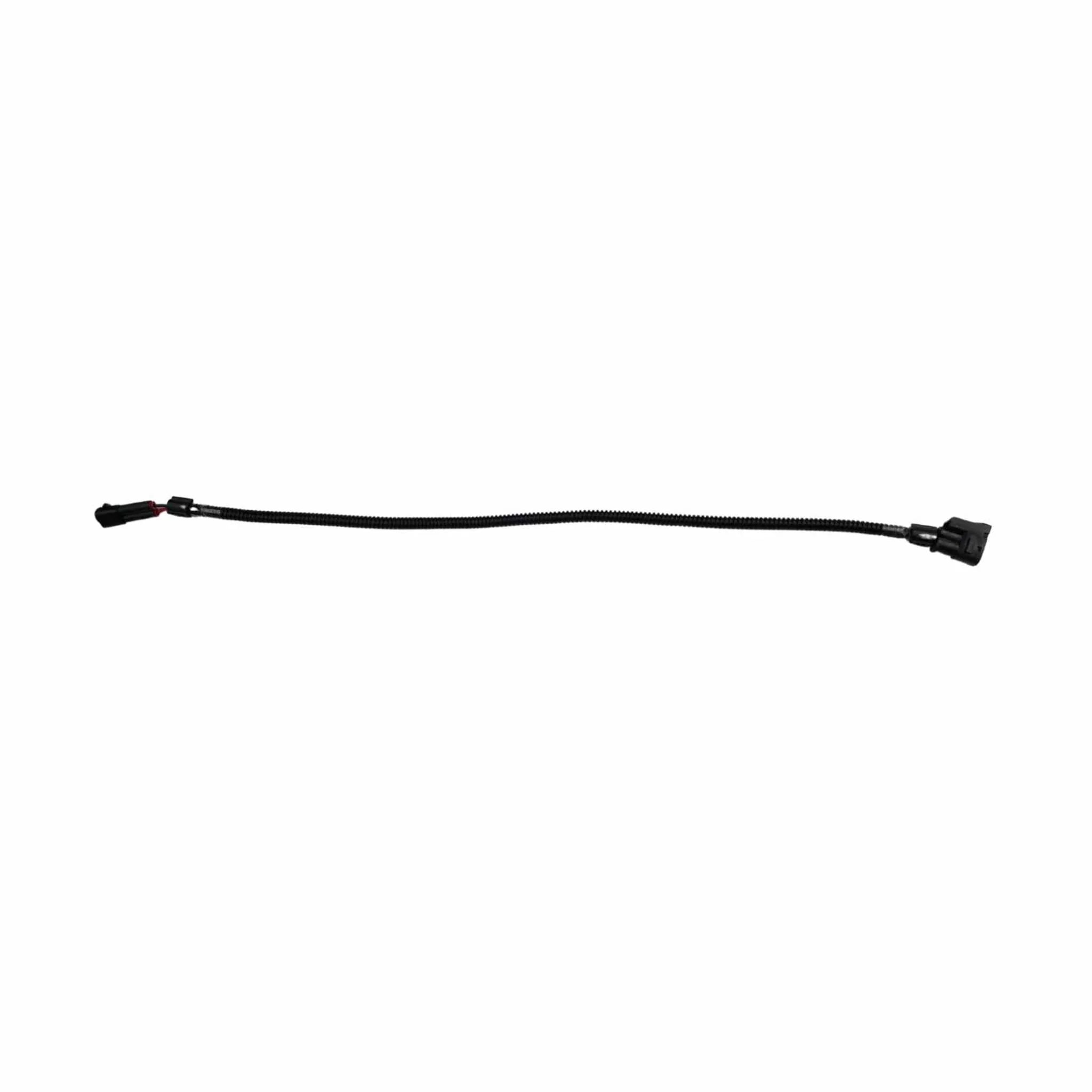

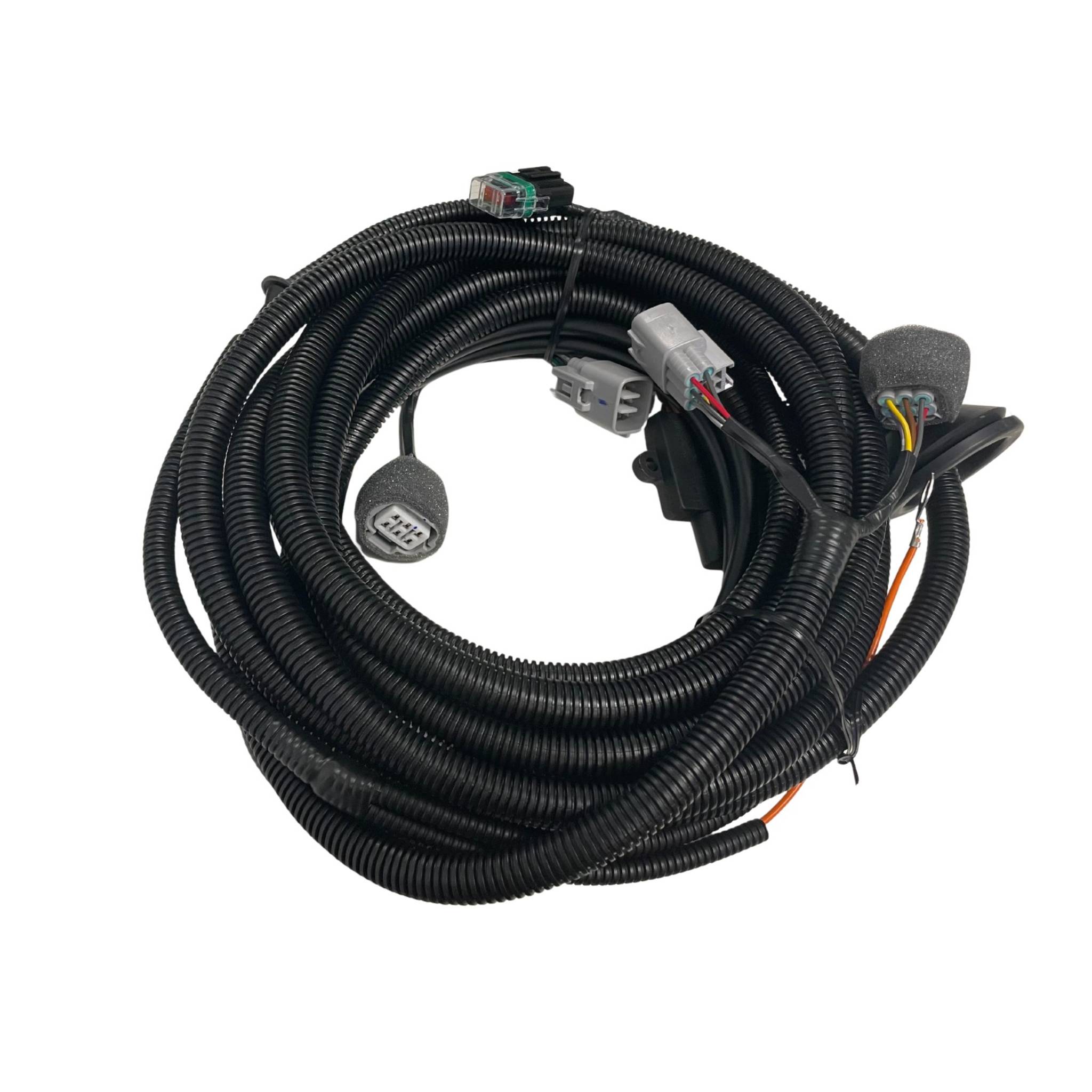

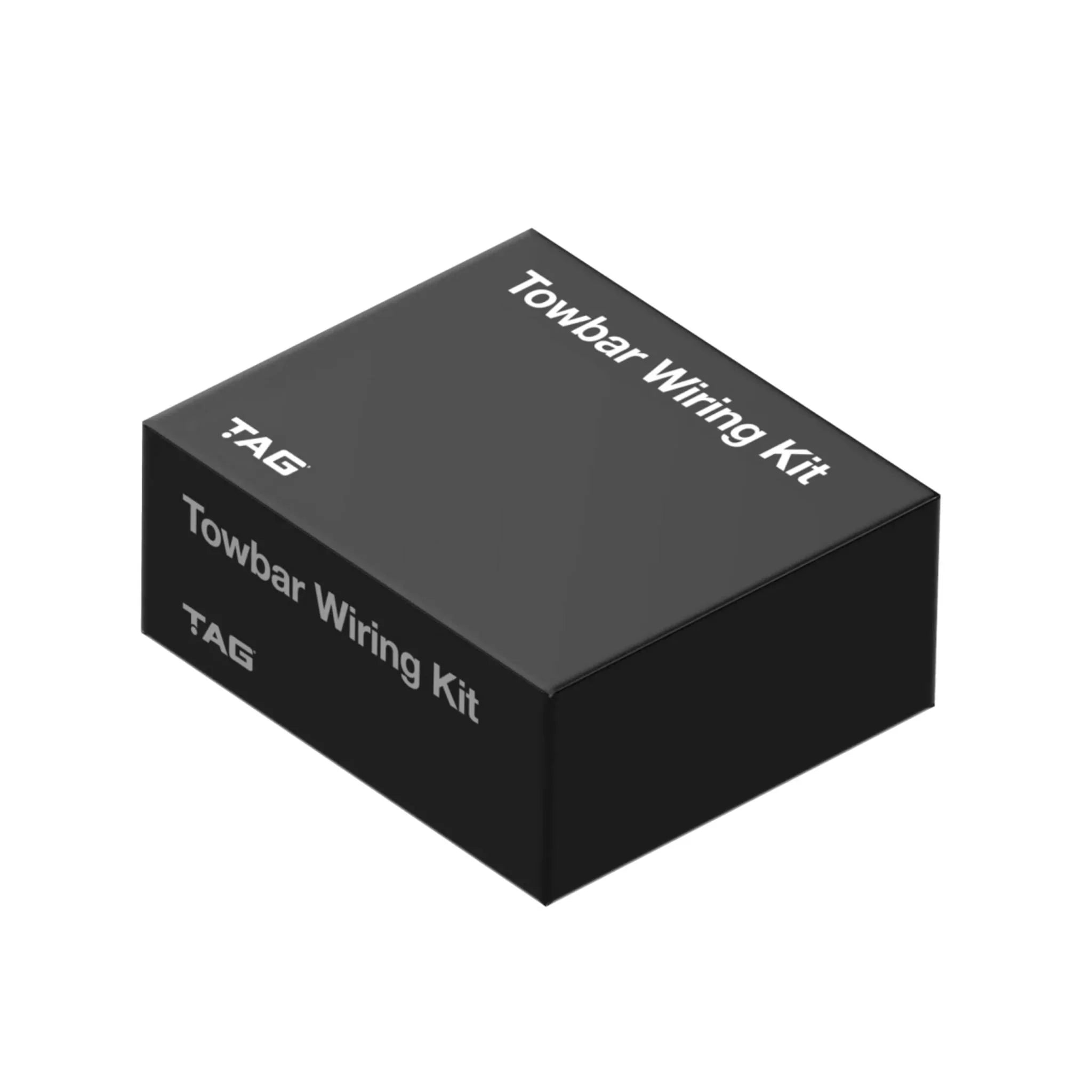

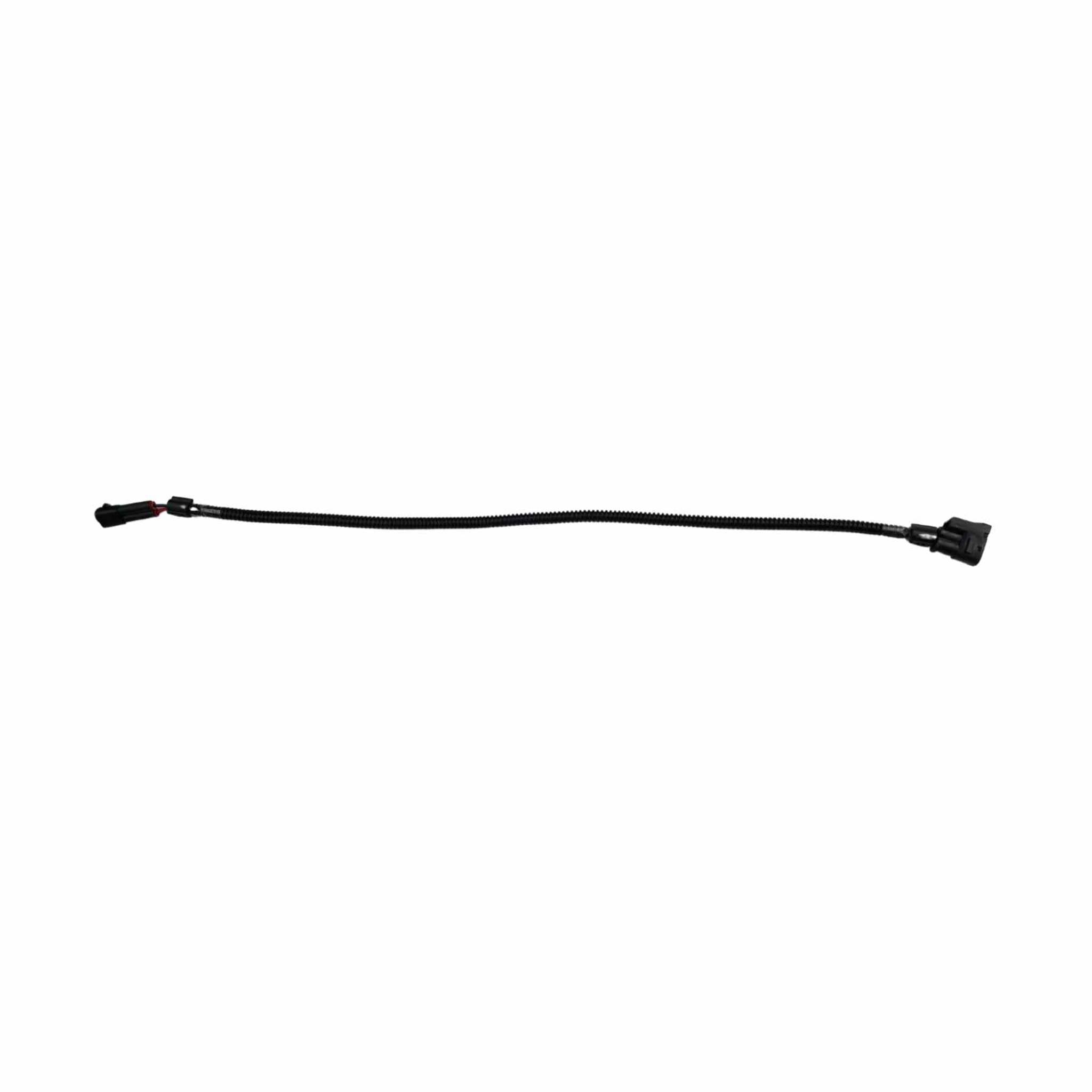

TAG Direct Fit Wiring Harness
-
TAG 7 Pin Flat Socket - Vehicle Side
-

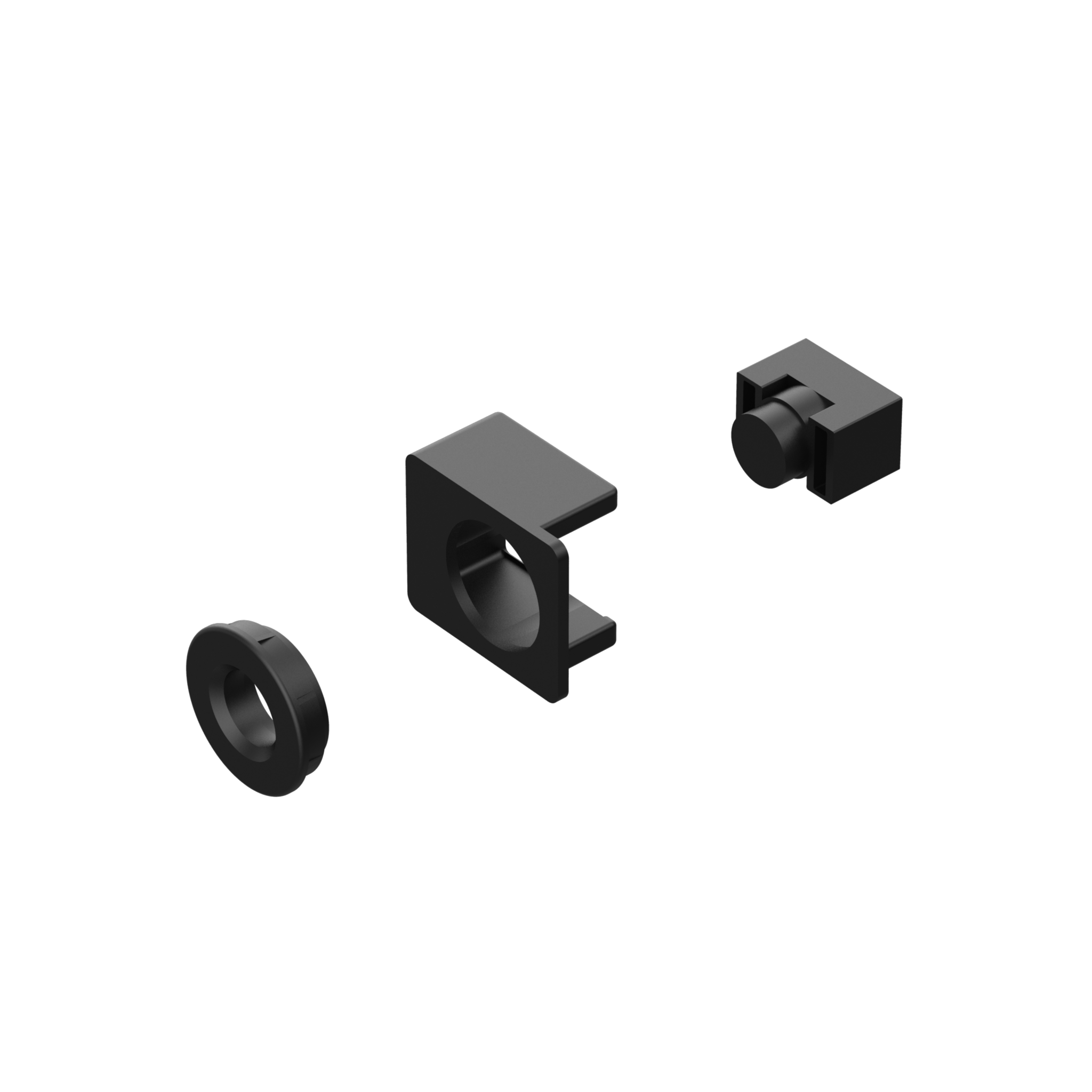

TAG Sensor Bracket Kit
Engineered for precision fitment and durability, the TAG Rear Step and Rear Step & Towbar combinations deliver long-lasting, reliable support to transport and trade fleet vehicles.
-
Galvanised Rear Step
-
Powder coated towbar and brackets
-
Towbar utilises factory mounting points for ease of fitment
-
50mm Square Hitch Receiver
-
TAG Limited Lifetime Warranty
-
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles
For improved visibility while towing, check out our range of Clearview towing mirrors to complement your towbar setup.
TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.
TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.
TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.
With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.
For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.
Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.
Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!
🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.
Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.
TAG Accessories & Hitches Download
You may also be interested in these great towing accessories:
Curt Spectrum Towing Brake Controller
Toyota Hiace (02/2019 - on), Hiace / Commuter (02/2019 - on)
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Coating: Galvanised (TRS002)
- Coating: Powder Coated (T7T743)
- Fits Vehicle Year From (Month): 06
- Wiring Option: Direct Fit ECU
- Fitting Time [min.]: 45 (UNT345)
- Fitting Time [min.]: 120 (T7T743)
- Towbar Combination: Rear Step & Towbar
- Towbar Class: Heavy Duty (3-Piece Design)
- Towbar Capacity [kg]: 1900
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4180
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: No
- Exposure: Exposed
- Static Load Capacity [kg]: 250
- Ball Weight [kg]: 190
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
TOYOTA | HIACE | 06/2020 | - | Van | GDH300R | 1GDFTV | 2.8L | Diesel | LWB | Automatic/Manual RWD |
TOYOTA | HIACE | 05/2020 | - | Minibus | GDH321R | 1GDFTV | 2.8L | Diesel | ZX | Automatic RWD |
TOYOTA | HIACE | 05/2019 | - | Bus | GDH322 | 1GD-FTV | 2.8L | Diesel | RWD | |
TOYOTA | HIACE | 02/2019 | - | Minibus | GDH301R | 1GDFTV | 2.8L | Diesel | ZR | Automatic RWD |
TOYOTA | HIACE | 02/2019 | - | Minibus | GDH301R | 1GDFTV | 2.8L | Diesel | ZR | Automatic RWD |
TOYOTA | HIACE | 02/2019 | - | Van | GDH300R | 1GDFTV | 2.8L | Diesel | LWB | Automatic/Manual RWD |
TOYOTA | HIACE | 02/2019 | - | Van | GDH300R | 1GDFTV | 2.8L | Diesel | LWB, COURIER PACK, EXTERIOR PACK, INTERIOR PACK, TECHICAN PACK, TOW & STOW | Automatic RWD |
TOYOTA | HIACE | 02/2019 | - | Van | GDH300R | 1GDFTV | 2.8L | Diesel | LWB CREW, EXTERIOR PACK, INTERIOR PACK, TOW AND STOW | Automatic RWD |
TOYOTA | HIACE | 02/2019 | - | Van | GRH320R | 7GRFKS | 3.5L | Petrol | SLWB | Automatic RWD |
TOYOTA | HIACE | 02/2019 | - | Van | GDH320R | 1GDFTV | 2.8L | Diesel | SLWB, SLWB GL PACK | Automatic RWD |
TOYOTA | HIACE / COMMUTER | 06/2019 | - | Van/Wagon | H300 | 1GD-FTV | 2.8L | Diesel | Automatic/Manual 4X2 | |
TOYOTA | HIACE / COMMUTER | 02/2019 | - | Bus | GDH322R | 1GDFTV | 2.8L | Diesel | Automatic RWD | |
TOYOTA | HIACE / COMMUTER | 02/2019 | - | Bus | GDH322R | 1GDFTV | 2.8L | Diesel | Automatic RWD |
