TAG Heavy Duty Towbar & Direct Fit Wiring for Toyota Prado 120 Series (09/2002 - 10/2009)

T7T729-K202
$1,024.68 $819.74
$819.74

Checkout securley with

payment options
Online payments and cash on pick up available.

  • Description
  • TAG
  • Delivery
  • Documents
  • 🛡️ Fitment Advice
  • Description
  • This Kit Includes:

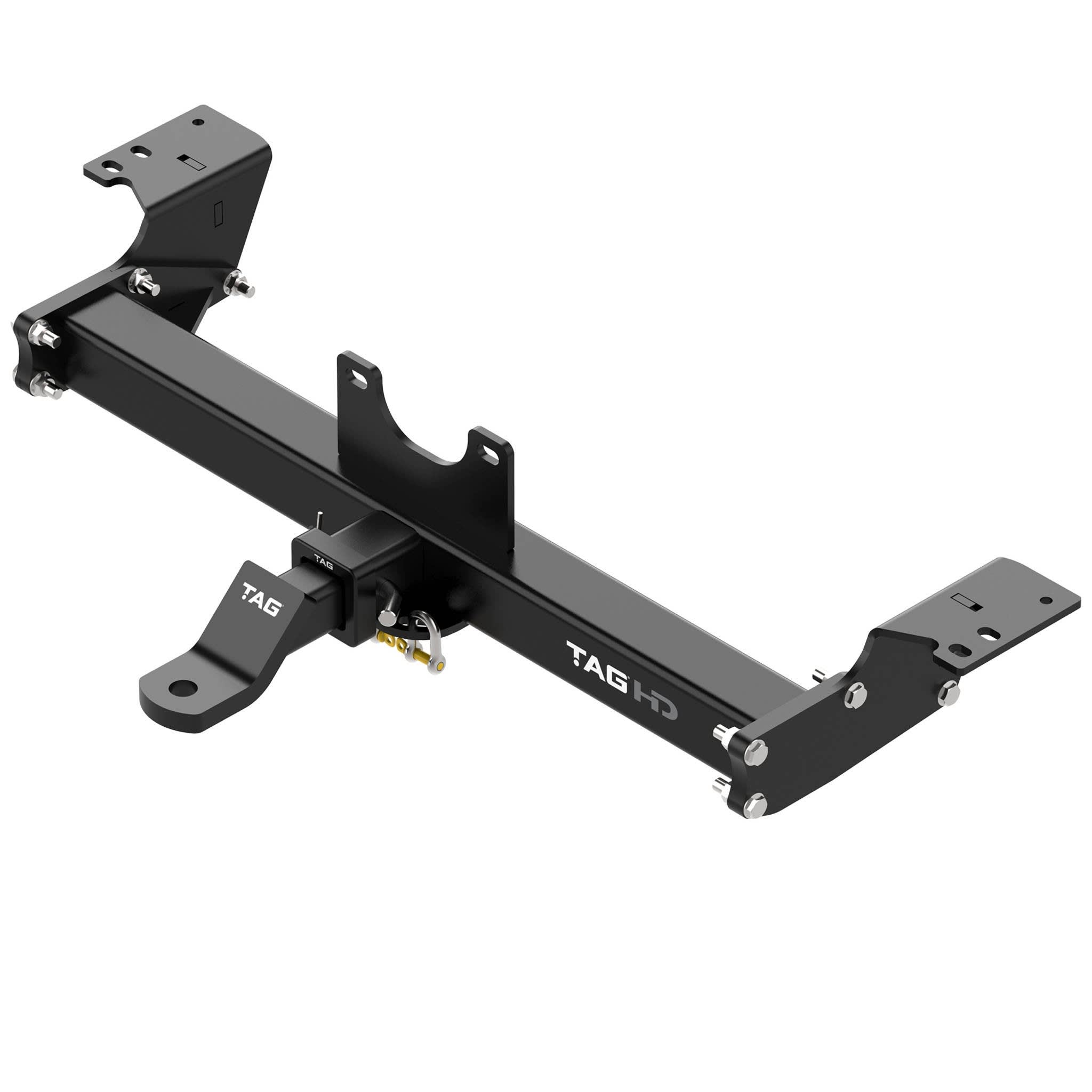

    • TAG Heavy Duty 3-Piece Towbar

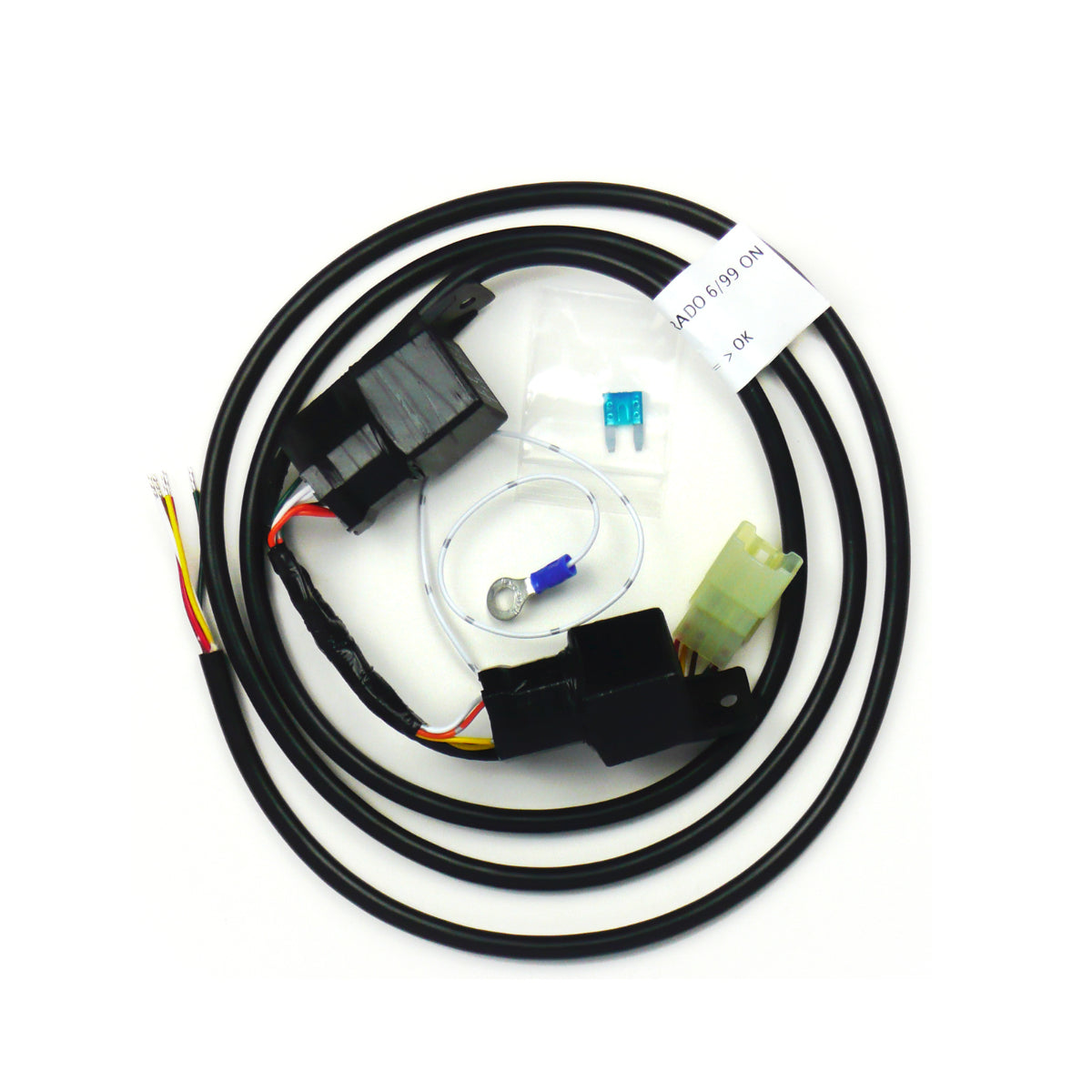

    • TAG Direct Fit Wiring Harness

    • TAG 7 Pin Flat Socket - Vehicle Side

    TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

    • 3-Piece Design for easier installation

    • Class 4 Towbar - 50mm Square Hitch Receiver

    • Durable Powder Coated Finish

    • TAG Limited Lifetime Warranty

    • Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

    Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.

  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Delivery
  •

    For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.



    Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.



    Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!



    🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.











  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

  • 🛡️ Fitment Advice
  •
    Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
    Specifications
    • Diagnostic Coding: Not Required
    • Reverse Sensor Cut Off: Not Applicable
    • Fog Cut Off: Not Applicable
    • Wiring Option: Direct Fit Wiring Harness
    • Fitting Time [min.]: 30
    • Style: 7 Pin Flat
    • Type: Plugs & Sockets
    • Towbar Class: Heavy Duty (3-Piece Design)
    • Towbar Capacity [kg]: 3000
    • Hitch Type: 50mm Square Hitch Receiver
    • Coating: Powder Coated
    • Bumper Removed During Fitment: No
    • Bumper Cut Out Required: No
    • Exposure: Exposed
    • Ball Weight [kg]: 300
    Toyota Prado (09/2002 - 10/2009)
    Make Model From To Body Series Engine Variant Drivetrain
    TOYOTA PRADO 08/2005 07/2009 SUV GRJ120 1GR-FE | 4.0L | Petrol AWD
    TOYOTA PRADO 08/2005 07/2009 SUV KZJ120 1KZTE | 3.0L | Diesel D AWD
    TOYOTA PRADO 07/2005 08/2009 SUV GRJ120R 1GRFE | 4.0L | Petrol PRADO TX 4WD, PRADO TX LIMITED 4WD, 60TH SPECIAL EDITION 4WD Automatic 4WD
    TOYOTA PRADO 08/2004 08/2009 SUV TRJ120R 2TRFE | 2.7L | Petrol PRADO TX 4WD, PRADO TX LIMITED 4WD, 60TH SPECIAL EDITION 4WD Automatic 4WD
    TOYOTA PRADO 08/2004 10/2009 Wagon 120 Series 1KD-FTV | 3.0L | Diesel KDJ120R AWD
    TOYOTA PRADO 08/2004 10/2009 Wagon 120 Series 3.0L | Diesel KDJ120R AWD
    TOYOTA PRADO 03/2003 10/2009 SUV GRJ120R 1GRFE | 4.0L | Petrol Automatic 4WD
    TOYOTA PRADO 03/2003 10/2009 SUV GRJ120R 1GRFE | 4.0L | Petrol PRADO GX, PRADO GX LIMITED, PRADO GXL Automatic/Manual 4WD
    TOYOTA PRADO 03/2003 08/2009 SUV GRJ120 1GR-FE | 4.0L | Petrol V6 WTi AWD
    TOYOTA PRADO 03/2003 08/2009 Wagon GRJ120 1GR-FE | 4.0L | Petrol V6 WTi AWD
    TOYOTA PRADO 03/2003 02/2007 SUV KZJ120R 1KZTE | 3.0L | Diesel Automatic/Manual 4WD
    TOYOTA PRADO 10/2002 07/2007 SUV KDJ120R 1KD-FTV | 3.0L | Diesel PRADO TX, PRADO TX DIESEL TURBO 4WD, PRADO TX LIMITED 60TH SPECIAL EDITION DIESEL TURBO 4WD Automatic 4WD
    TOYOTA PRADO 09/2002 02/2007 SUV KZJ120 1KZ-TE | 3.0L | Diesel D AWD
    TOYOTA PRADO 09/2002 02/2007 Wagon KZJ120 1KZ-TE | 3.0L | Diesel D AWD
    TOYOTA PRADO 10/2002 06/2005 SUV VZJ120R 5VZFE | 3.4L | Petrol PRADO, PRADO TX, PRADO TX 4WD, PRADO TX LIMITED 4WD Automatic/Manual 4WD
    TOYOTA PRADO 10/2002 06/2005 Wagon KDJ125 1KDFTV | 3.0L | Diesel RX, RZ Automatic 4WD
