TAG Extreme Recovery Towbar & Direct Fit Wiring Kit for GWM Tank 300 (10/2022 - on), Tow Mode: Yes
✅ TAG Extreme Recovery (XR) Towbar for GWM Tank 300 (Oct 2022–present) — 3,000kg tow capacity / 300kg ball weight. Class 4, 50mm square hitch receiver.
✅ Two integrated 4,000kg WLL recovery points with bevelled edges for soft shackle compatibility. Flush chassis-mounted for maximum departure angle.
✅ Direct fit wiring harness included — activates Tow Mode, automatically cuts reverse park assist and cruise control while towing. 7-pin flat socket included.
✅ TAG Limited Lifetime Warranty. Professional installation strongly recommended.
Checkout securley with
- Description
- TAG
- Delivery
- Documents
- 🛡️ Fitment Advice

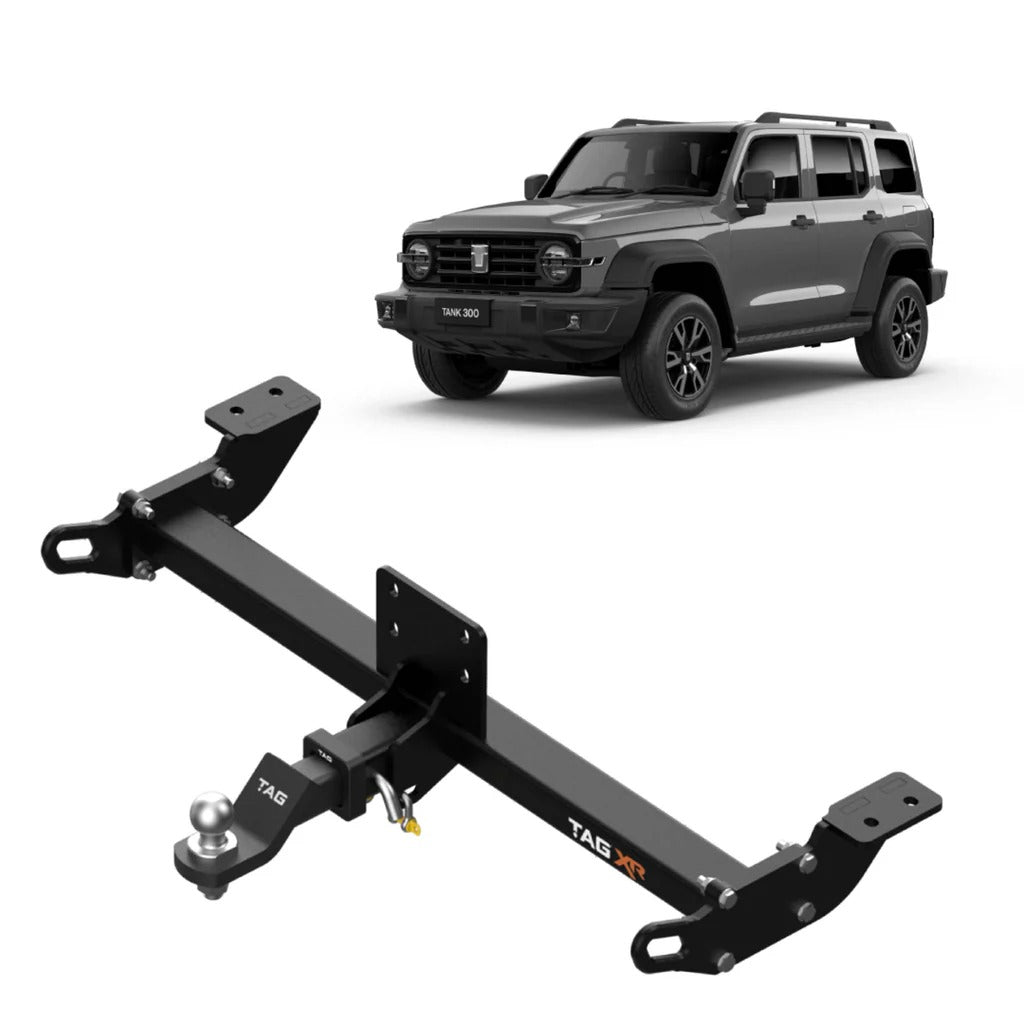

The TAG Extreme Recovery (XR) Towbar is engineered for GWM Tank 300 owners who need serious towing and recovery capability from a single rear bar. Built in Australia for professional trade, fleet, and off-road applications, it combines a 3,000kg tow rating with two integrated 4,000kg WLL recovery points — designed to get you and your convoy out of the most demanding recovery situations.

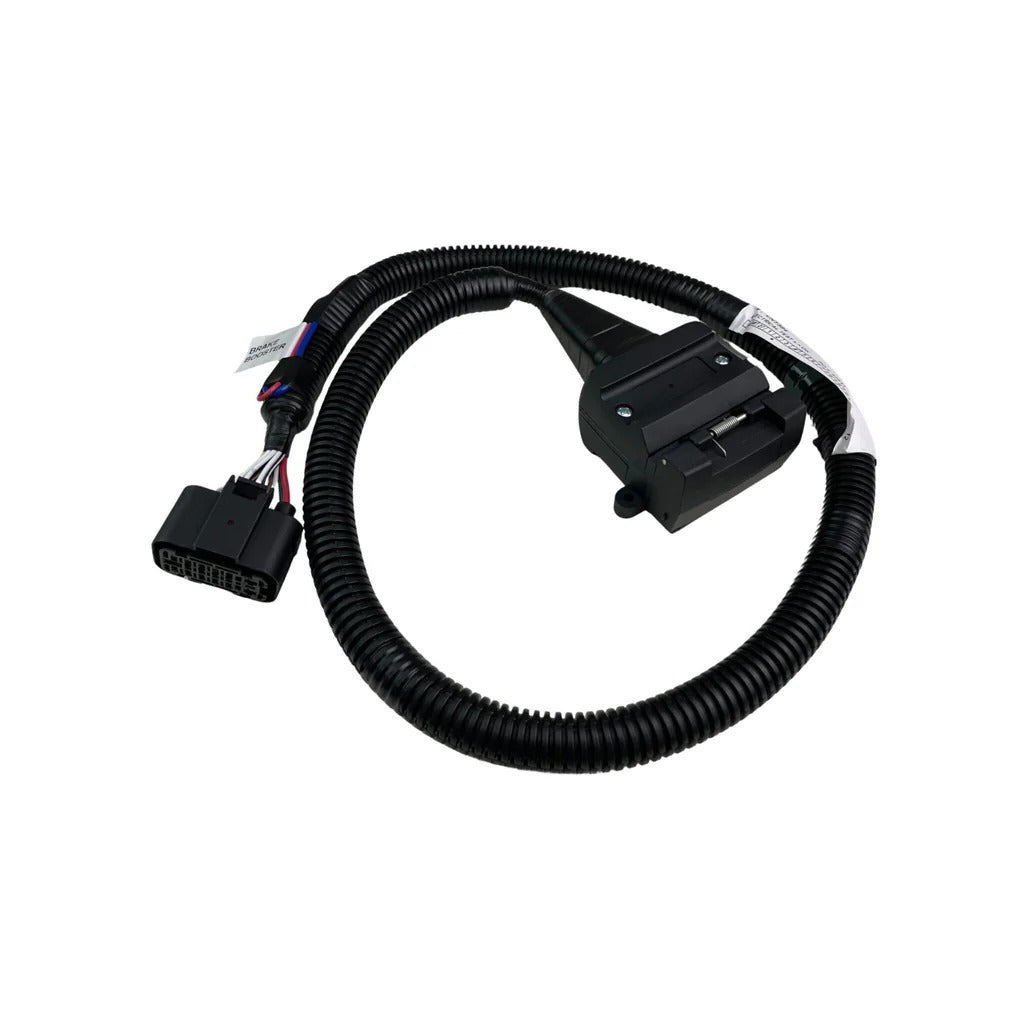

The kit includes a direct fit wiring harness that activates the Tank 300’s Tow Mode, automatically disabling reverse park assist and cruise control while towing. A 7-pin flat socket is included as standard, along with a zinc tow ball, extreme duty hitch, pin and clip, and D-shackles. The flush chassis-mounted profile maximises departure angle for off-road use, and dual top-mounted trailer and Anderson plug mounts are built in.
⚠️ Note: A towbar is a safety-critical item. Professional installation by a qualified towbar or vehicle accessory workshop is strongly recommended.
Kit includes:
- TAG Extreme Recovery Towbar
- TAG Direct Fit Wiring Harness
- 7-pin flat socket
- Zinc tow ball, extreme duty hitch, pin & clip, and D-shackles
Specifications:
- Towbar class: Heavy Duty (4x4 Recovery)
- Towbar capacity: 3,000kg
- Ball weight: 300kg
- Recovery load-tested: 4,000kg WLL
- Recovery points: 2
- Hitch type: 50mm square hitch receiver
- Coating: Textured powder coat
- Wiring type: Direct fit
- Reverse sensor cut-off: Automatic
- Brake controller prep: Yes
- Diagnostic coding: No
- Bumper removed during fitment: No
- Bumper cut-out required: Yes
- Exposure: Partially concealed
- Fitting time: approx. 10 min (UNT384 wiring) / 60 min (TXR883 towbar)
Additional features:
- Extreme duty reinforced crossbar
- Recovery points with bevelled edges for soft shackle compatibility
- Class 4 — 50mm square hitch receiver
- Textured extreme duty powder coat finish
- TAG Limited Lifetime Warranty
Compatibility: GWM Tank 300, October 2022 onwards
Need Help Choosing?
Our team is available via online chat to help confirm fitment and talk through your towing and recovery setup. We offer Australia-wide delivery and a range of flexible payment options to suit your budget — just reach out and we’ll get you sorted.
TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.
TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.
TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.
With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.
For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.
Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.
Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!
🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.
Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.
