TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Hilux Cab Chassis (08/2008 - 09/2015)

TXR815-K201
$1,576.00 $1,260.80
  • ✅ Includes wiring & plug
  • ✅ 3500kg trailer weight
  • ✅ 350kg tow ball weight
  • ✅ Powdercoated Finish
$1,260.80

Checkout securley with

payment options
Online payments and cash on pick up available.

  • Description
  • TAG
  • Delivery
  • Documents
  • 🛡️ Fitment Advice
  • Description
  • This Kit Includes:

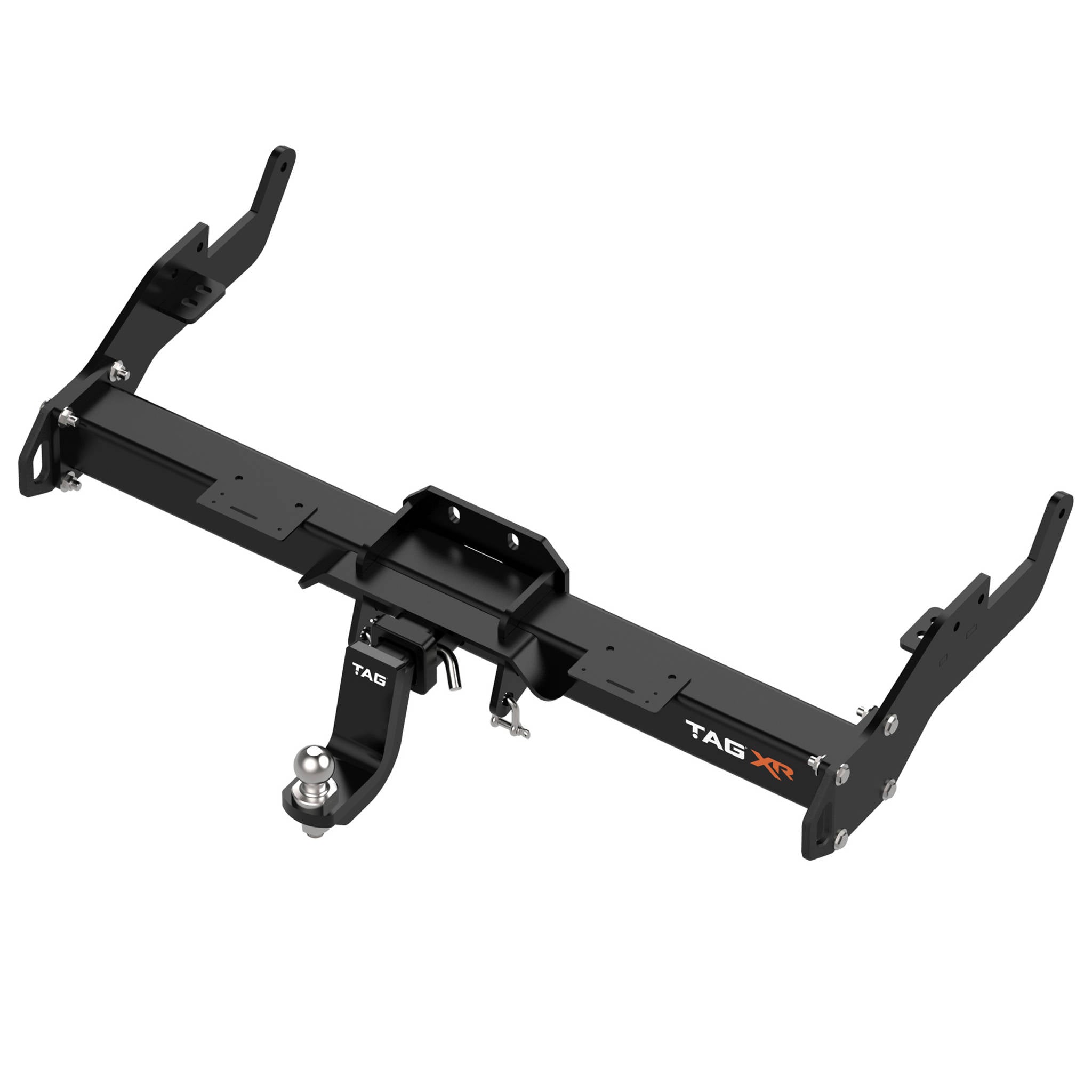

    • TAG 4x4 Recovery Towbar

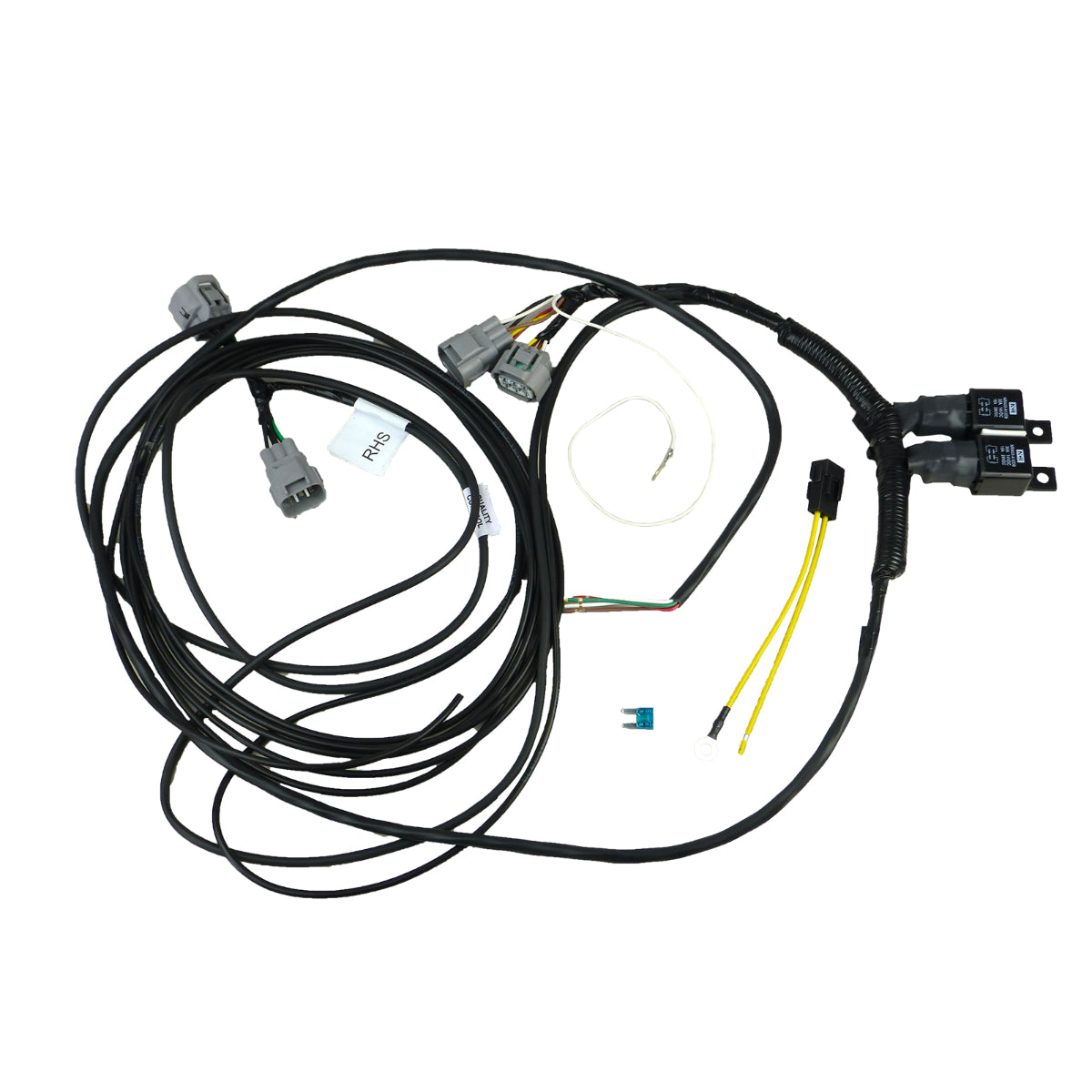

    • TAG Direct Fit Wiring Harness

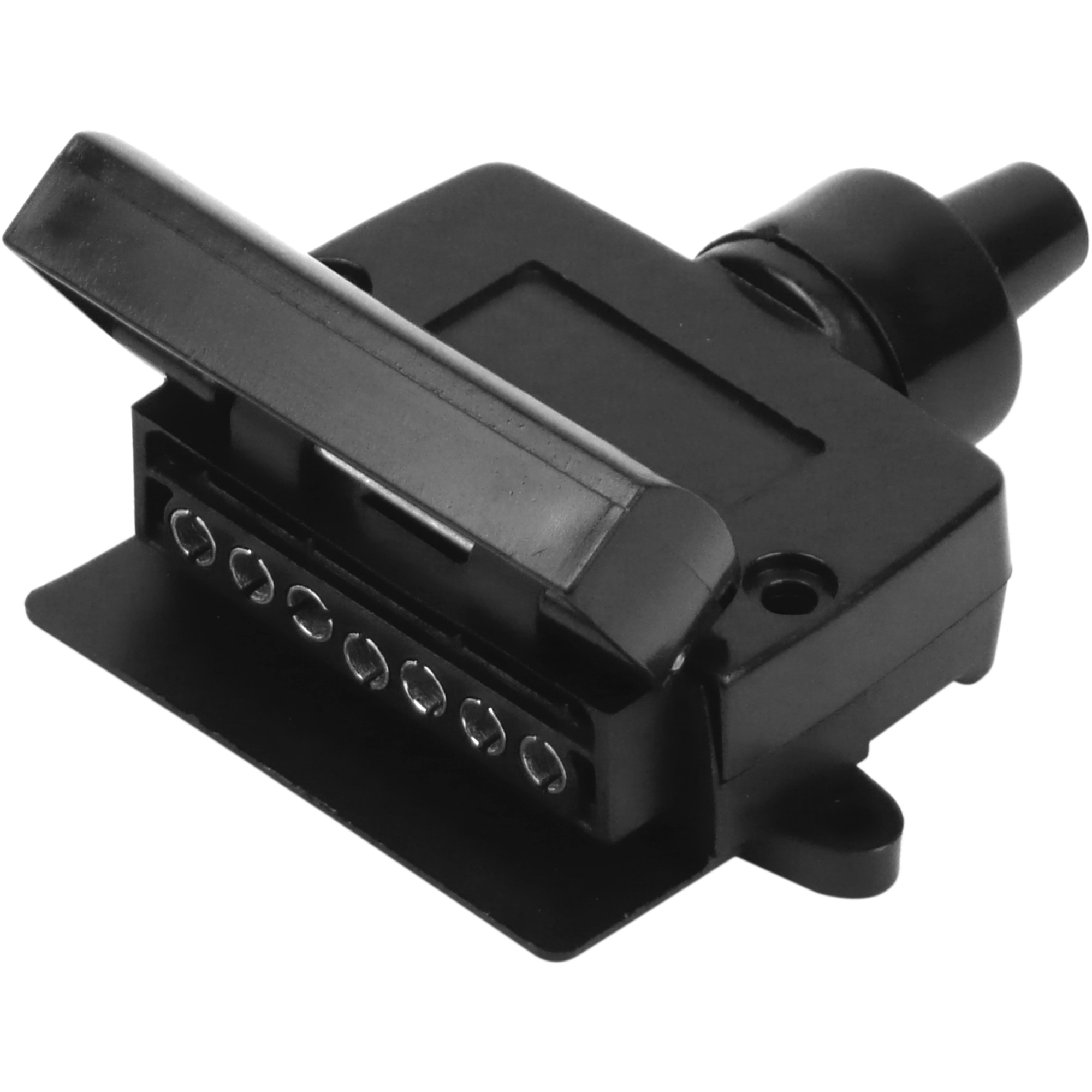

    • TAG 7 Pin Flat Socket - Vehicle Side

    Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

    Featuring:

    • 89mm x 89mm Extreme Duty Reinforced Crossbar

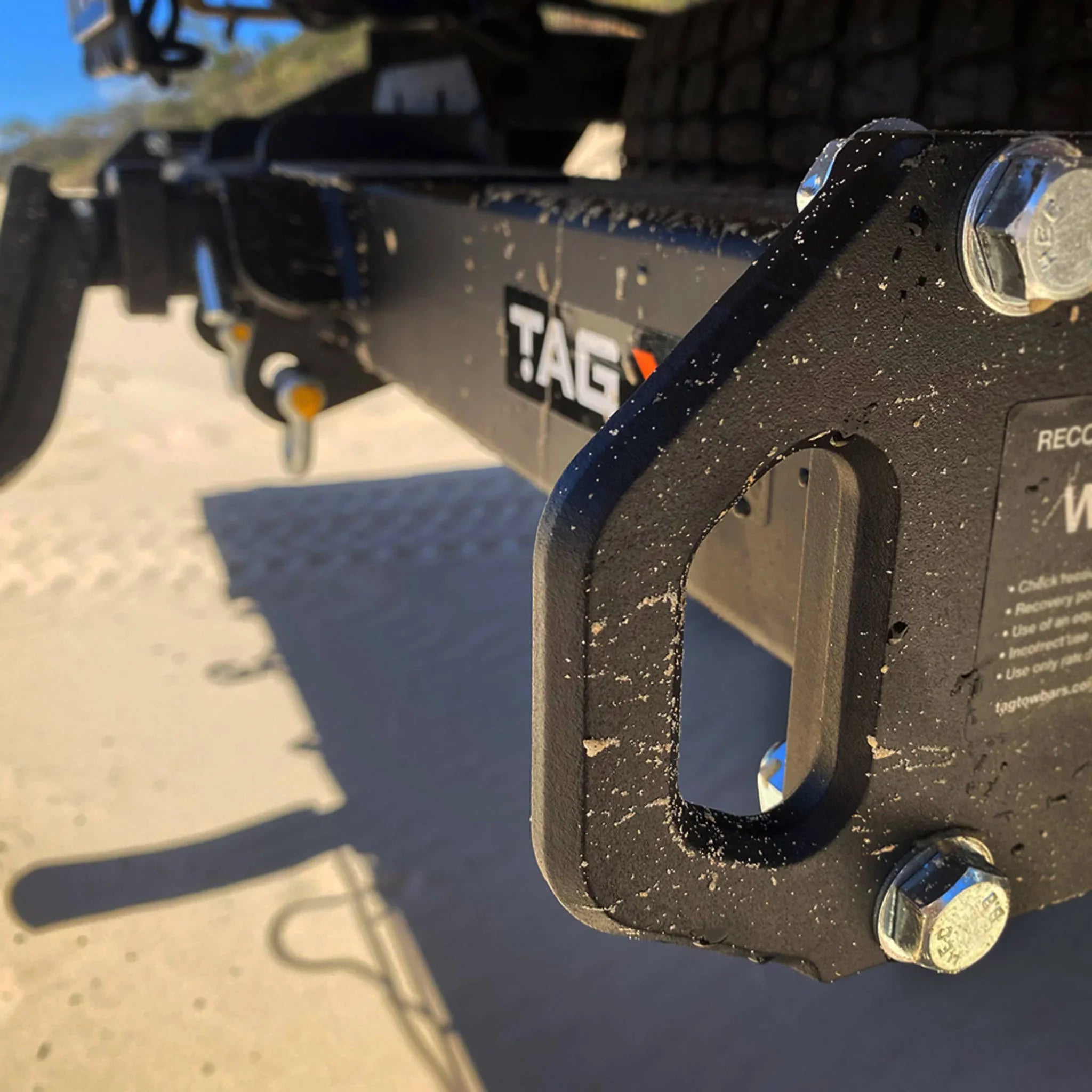

    • Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with beveled edges to suit soft-shackles.

    • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

    • Highly durable, textured Extreme Duty Powder Coated Finish

    • Dual top-mounted Trailer & Anderson Plug Mounts

    • Class 4 Towbar - 50mm Square Hitch Receiver

    • TAG Limited Lifetime Warranty

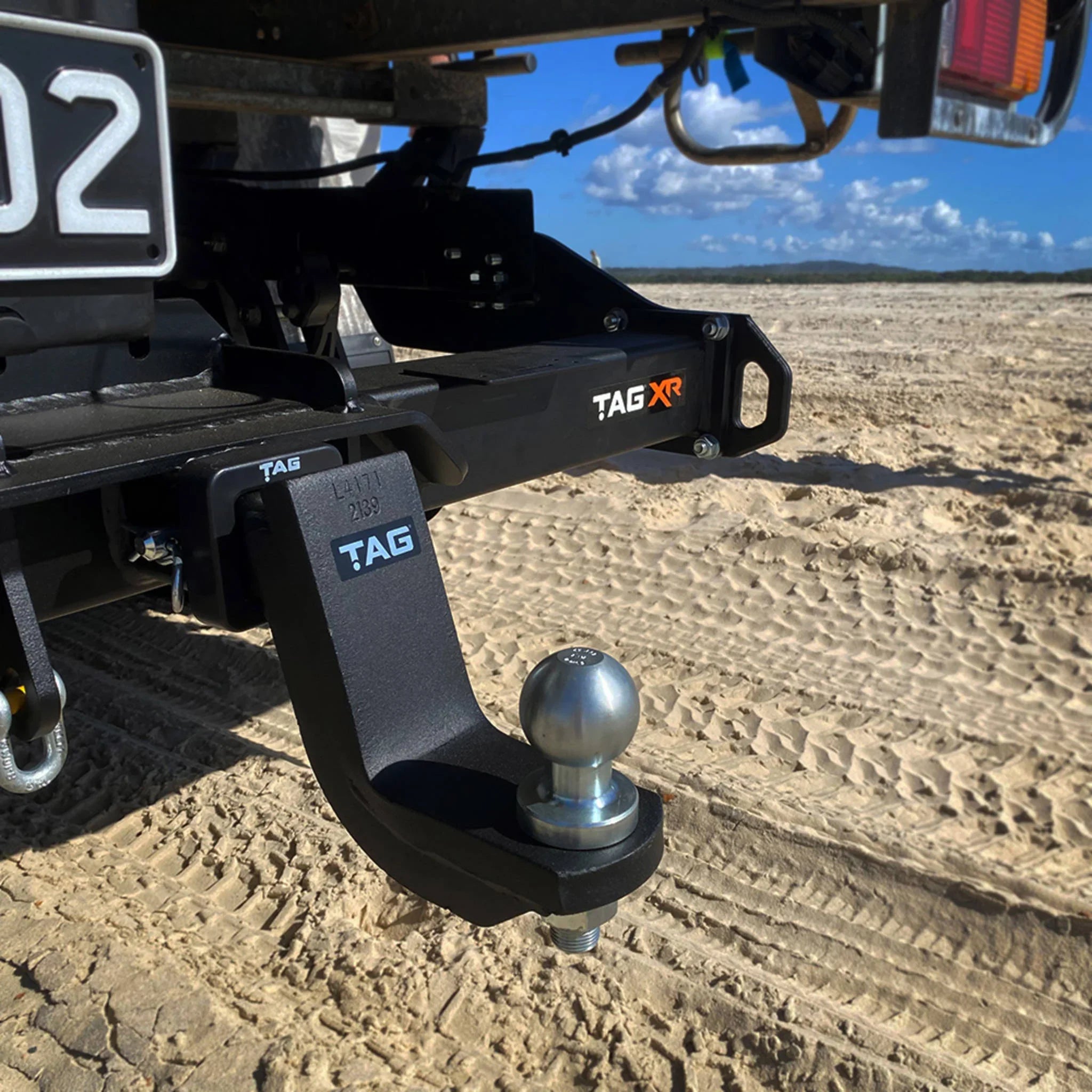

    • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

    For improved visibility while towing, check out our range of Clearview towing mirrors to complement your towbar setup.

  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Delivery
  •

    For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.



    Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.



    Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!



    🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.











  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

  • 🛡️ Fitment Advice
  •
    Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
    Specifications
    • Style: 7 Pin Flat
    • Type: Plugs & Sockets
    • Reverse Sensor Cut Off: Not Applicable
    • Wiring Option: Direct Fit Harness with Relays
    • Fits Vehicle Year To: 2015
    • Fits Vehicle Year To (Month): 09
    • Fits Vehicle Year From: 2008
    • Fits Vehicle Year From (Month): 08
    • Fog Cut Off: Not Applicable
    • Diagnostic Coding: Not Required
    • Fitting Time [min.]: 60 (UNT278)
    • Fitting Time [min.]: 120 (TXR815)
    • Ball Weight [kg]: 350
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towbar Capacity [kg]: 3500
    • Recovery Load-tested: 4500kg WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Coating: Textured Powder Coated
    • Exposure: Exposed
    Toyota Hilux (08/2008 - 10/2015)
    Make Model From To Body Series Engine Variant Drivetrain
    TOYOTA HILUX 05/2011 05/2015 Ute KUN15 2KD-FTV | 2.5L | Diesel VIGO VII RWD
    TOYOTA HILUX 01/2011 01/2015 Ute KUN35L 2KD-FTV | 2.5L | Diesel Manual 4WD
    TOYOTA HILUX 01/2011 01/2015 Ute KUN35L 2KD-FTV | 2.5L | Diesel Manual 4WD
    TOYOTA HILUX 01/2011 10/2015 Ute KUN15, KUN35 2KD-FTV | 4.0L | Diesel VIGO VII RWD
    TOYOTA HILUX 01/2008 01/2015 Ute KUN16R 1KD-FTV | 3.0L | Diesel SR X-CAB Manual RWD
    TOYOTA HILUX 12/2007 05/2015 Ute KUN25 2KD-FTV | 2.5L | Diesel VIGO VII AWD
    TOYOTA HILUX 08/2006 09/2015 Cab Chassis KUN26 1KD-FTV | 3.0L | Diesel D-4D AWD
    TOYOTA HILUX 08/2006 06/2015 Cab Chassis KUN16R 1KD-FTV | 3.0L | Diesel D-4D RWD
    TOYOTA HILUX 08/2006 06/2015 Cab Chassis KUN16R 1KD-FTV | 3.0L | Diesel D-4D RWD
    TOYOTA HILUX 08/2006 09/2015 Cab Chassis KUN26R 1KD-FTV | 3.0L | Diesel SR, WORKMATE Automatic/Manual 4WD
    TOYOTA HILUX 08/2006 09/2015 Cab Chassis KUN16R 1KD-FTV | 3.0L | Diesel SR, WORKMATE Manual RWD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN26 1KD-FTV | 3.0L | Diesel D-4D 4WD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN26 1KD-FTV | 3.0L | Diesel D-4D AWD
    TOYOTA HILUX 08/2006 05/2015 Ute KUN16 1KD-FTV | 3.0L | Diesel D-4D RWD
    TOYOTA HILUX 08/2006 05/2015 Ute KUN16 1KD-FTV | 3.0L | Diesel D-4D RWD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN16R 1KD-FTV | 3.0L | Diesel SR Manual RWD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR5 EXTRA CAB Manual 4WD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR5, SR5 BLACK Automatic/Manual 4WD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR EXTRA CAB Manual 4WD
    TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR, WORKMATE Automatic/Manual 4WD
    TOYOTA HILUX 06/2006 02/2015 Ute KUN25 2KD-FTV | 2.5L | Diesel VIGO VII AWD
    TOYOTA HILUX 08/2005 09/2015 Ute KUN25R 2KDFTV | 2.4L | Diesel Manual 4WD
    TOYOTA HILUX 08/2005 09/2015 Ute KUN25R 2KD-FTV | 2.5L | Diesel Manual 4WD
    TOYOTA HILUX 08/2005 08/2015 Ute GGN25 1GR-FE | 4.0L | Petrol V6 VVTi AWD
    TOYOTA HILUX 08/2005 08/2015 Ute GGN25 1GR-FE | 4.0L | Petrol V6 VVTi AWD
    TOYOTA HILUX 08/2005 08/2015 Ute GGN15 1GR-FE | 4.0L | Petrol V6 VVTi RWD
    TOYOTA HILUX 08/2005 08/2015 Ute GGN15 1GR-FE | 4.0L | Petrol V6 VVTi RWD
    TOYOTA HILUX 08/2005 05/2015 Ute TGN26 2TR-FE | 2.7L | Petrol VIGO VII AWD
    TOYOTA HILUX 08/2005 05/2015 Ute TGN16 2TR-FE | 2.7L | Petrol VVTi RWD
    TOYOTA HILUX 08/2005 05/2015 Ute TGN16 2TR-FE | 2.7L | Petrol VVTi RWD
    TOYOTA HILUX 03/2005 09/2015 Cab Chassis TGN16R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
    TOYOTA HILUX 03/2005 09/2015 Ute GGN15R 1GR-FE | 4.0L | Petrol SR Automatic/Manual RWD
    TOYOTA HILUX 03/2005 09/2015 Ute GGN25R 1GR-FE | 4.0L | Petrol SR5 Automatic/Manual 4WD
    TOYOTA HILUX 03/2005 09/2015 Ute GGN15R 1GR-FE | 4.0L | Petrol SR5 Automatic/Manual RWD
    TOYOTA HILUX 03/2005 09/2015 Ute GGN15R 1GR-FE | 4.0L | Petrol SR EXTRA CAB Automatic RWD
    TOYOTA HILUX 03/2005 05/2015 Ute KUN15, KUN10 2KD-FTV | 2.5L | Diesel VIGO VII RWD
    TOYOTA HILUX 03/2005 09/2015 Ute TGN16R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
    TOYOTA HILUX 02/2005 06/2015 Cab Chassis GGN25R 1GR-FE | 4.0L | Petrol V6 VVTi AWD
    TOYOTA HILUX 02/2005 06/2015 Cab Chassis GGN25R 1GR-FE | 4.0L | Petrol V6 VVTi AWD
    TOYOTA HILUX 02/2005 06/2015 Cab Chassis GGN15R 1GR-FE | 4.0L | Petrol V6 VVTi RWD
    TOYOTA HILUX 02/2005 06/2015 Cab Chassis GGN15R 1GR-FE | 4.0L | Petrol V6 VVTi RWD
    TOYOTA HILUX 02/2005 06/2015 Cab Chassis TGN16R 2TR-FE | 2.7L | Petrol VVTi RWD
    TOYOTA HILUX 02/2005 06/2015 Cab Chassis TGN16R 2TR-FE | 2.7L | Petrol VVTi RWD
    TOYOTA HILUX 01/2005 01/2015 Cab Chassis KUN26R 1KD-FTV | 3.0L | Diesel SR Automatic/Manual 4WD
    TOYOTA HILUX 01/2005 01/2015 Ute KUN25R 2KD-FTV | 2.5L | Diesel Manual 4WD
    TOYOTA HILUX 03/2005 01/2014 Ute GGN25R 1GR-FE | 4.0L | Petrol SR Automatic/Manual 4WD
    TOYOTA HILUX 03/2005 06/2013 Cab Chassis GGN15R 1GR-FE | 4.0L | Petrol SR Automatic/Manual RWD
    TOYOTA HILUX 03/2005 06/2013 Ute GGN15R 1GR-FE | 4.0L | Petrol SR5 X-CAB Automatic RWD
    TOYOTA HILUX 08/2005 08/2006 Ute KUN16 1KD-FTV | 3.0L | Diesel D-4D RWD
