TAG 4x4 Recovery Towbar for Toyota Hilux (10/2015 - on)

2 sold in last 8 days
TXR783-K201
$1,558.43 $1,246.74
$1,246.74

Payment Options

payment options
Online payments and cash on pick up available.

Fitment Check

Contact our team via our online chat system to get a fitment check for your vehicle. Click 'Text us' below.

Fitment Guarantee

You are required to supply your registration and state at the time of purchase. Our team will review the purchased products against fitment with your supplied vehicle information. If the product is suitable for this vehicle type, without any aftermarket variations, we will ship the goods.

If your vehicle has had any aftermarket alternations including but not limited to suspensions, lift, bull bar & flares, you will need to contact our team via chat to discuss suitability in further detail prior to purchase.

If the products don't legally fit the vehicle upon receipt we will organise return of the goods and refund your purchase

Installation

Contact our team via the online chat to get a quote for installation of this product at our partner installers on the Gold Coast.
Installation has an additional fee & is available at The Garage Miami QLD.
customers are viewing this product
  • Description
  • TAG
  • Delivery
  • Documents
  • Description
  • This Kit Includes:

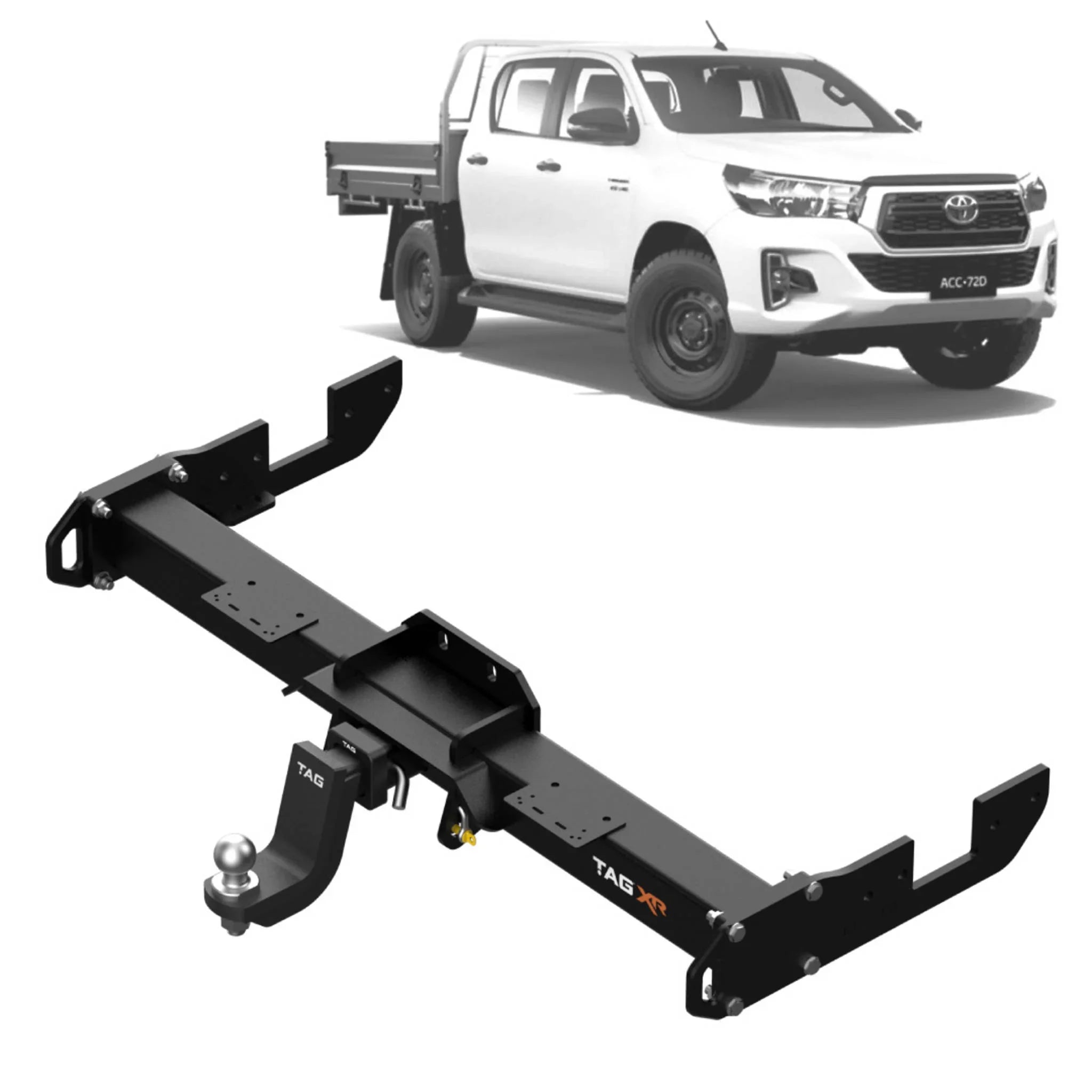

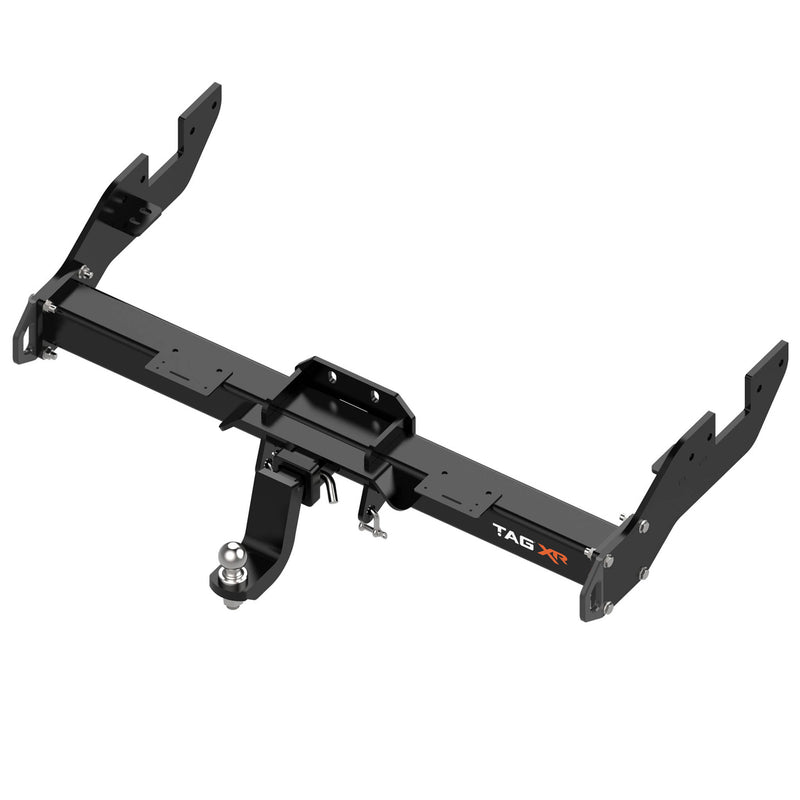

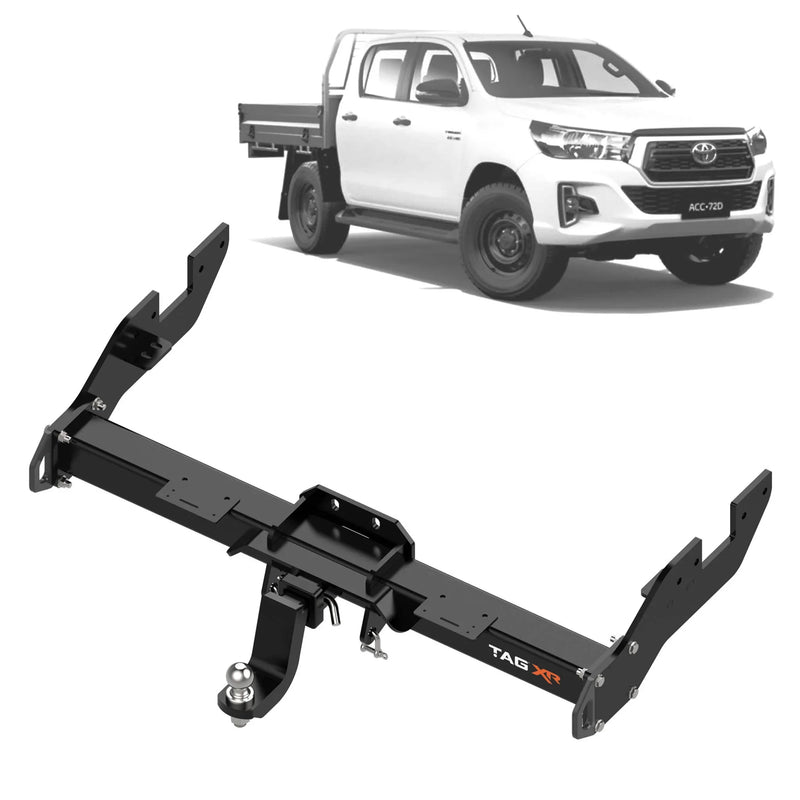

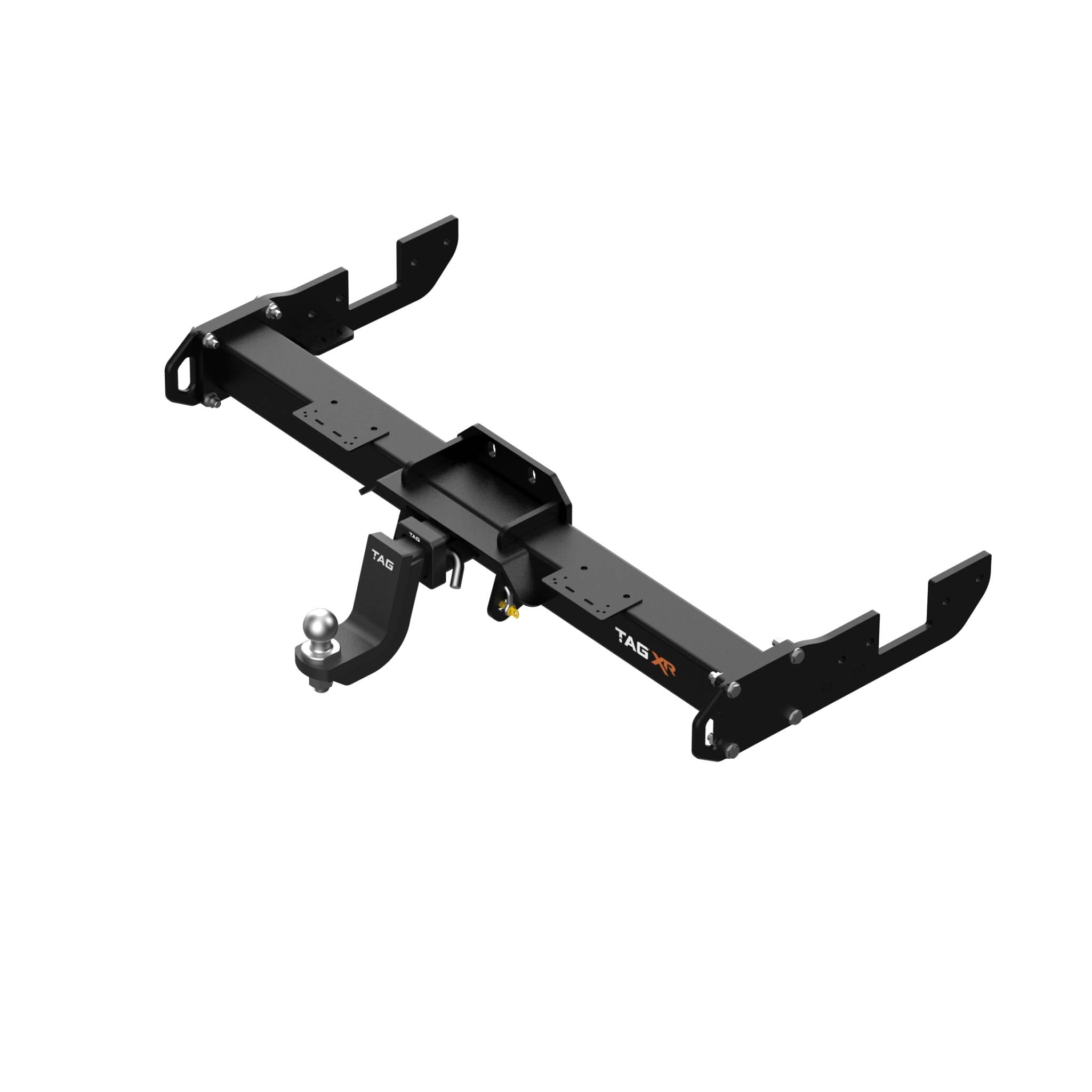

    • TAG 4x4 Recovery Towbar

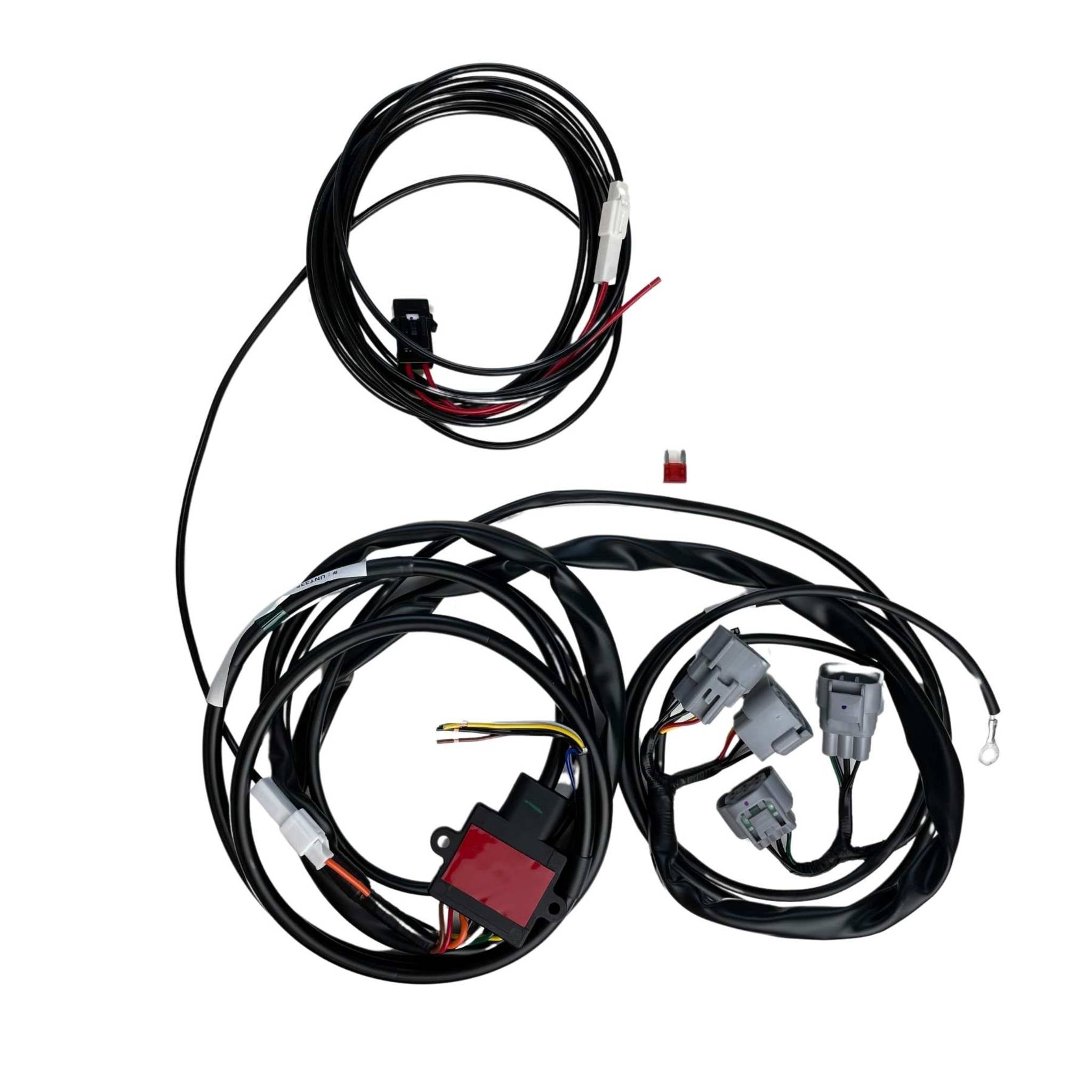

    • TAG Direct Fit Wiring Harness

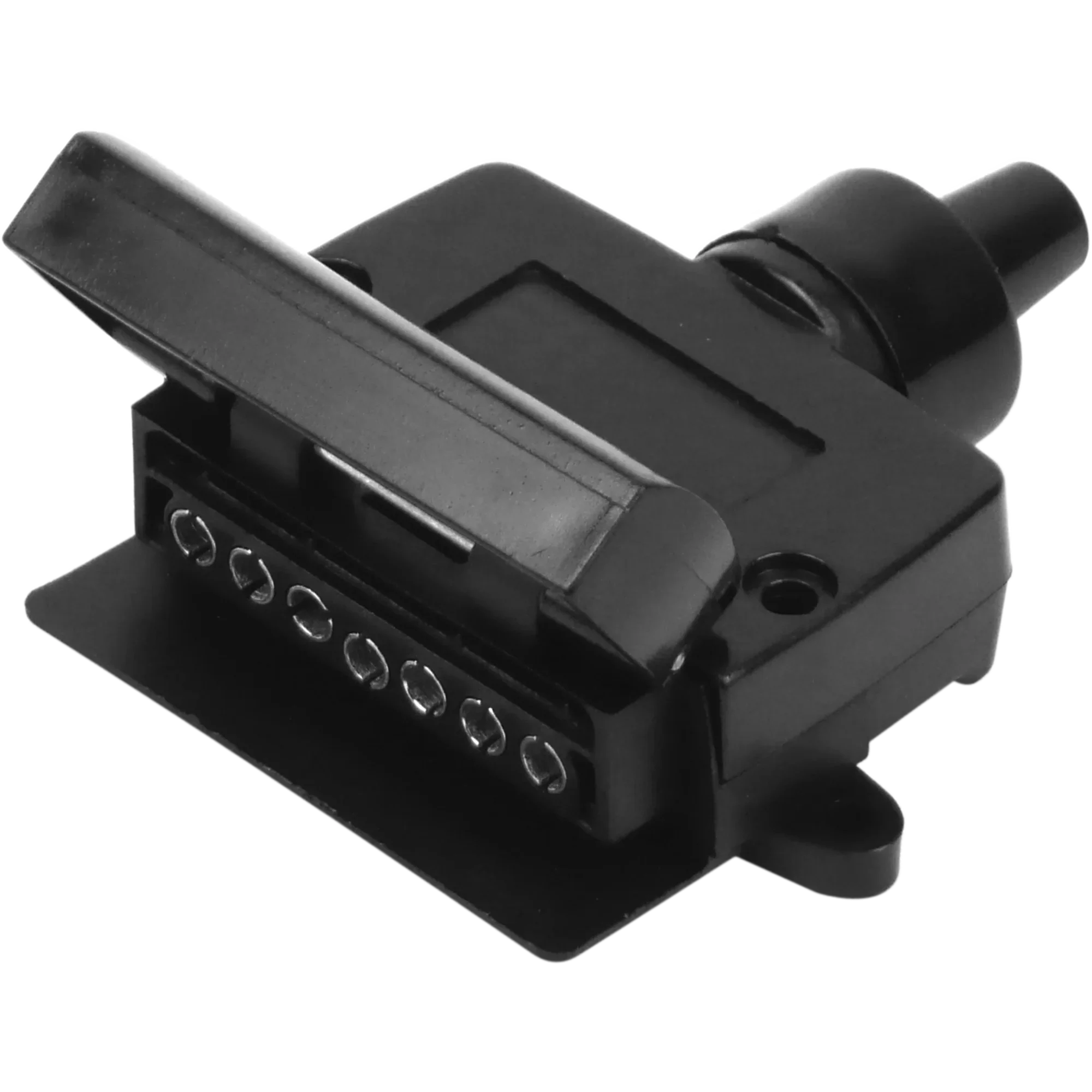

    • TAG 7 Pin Flat Socket - Vehicle Side

    Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

    Featuring:

    • 89mm x 89mm Extreme Duty Reinforced Crossbar

    • Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

    • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

    • Highly durable, textured Extreme Duty Powder Coated Finish

    • Dual top-mounted Trailer & Anderson Plug Mounts

    • Class 4 Towbar - 50mm Square Hitch Receiver

    • TAG Limited Lifetime Warranty

    • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Delivery
  •

    For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.



    Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.



    Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!



    ūü§Ē Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.











  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

    Toyota Hilux (07/2015 - on)
    Specifications
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towing Capacity: 3500
    • Ball Weight [kg]: 350
    • Recovery Load-tested: 4500KG WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Tow Ball Mount: L4171-PC
    • Coating: Powder Coated
    • Remove Bumper: No
    • Bumper Cut Out Required: No
    • Exposure: Exposed
    • Fitting Time Approx: 2 hr
    • Style: 7 Pin Flat
    • Type: Plugs & Sockets
    • Reverse Sensor Cut Off: Automatic
    • Diagnostic Coding: Not Applicable
    • Fog Cut Off: Automatic
    • Wiring Option: Direct Fit ECU
    Make Model From To Body Series Engine Variant Drivetrain
    TOYOTA HILUX 05/2020 - Cab Chassis GUN126 1GD-FTV | 2.8L | Diesel D AWD
    TOYOTA HILUX 07/2015 - Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel D AWD
    TOYOTA HILUX 07/2015 - Cab Chassis GUN112_, GUN122_, GUN135_ 2GD-FTV | 2.4L | Diesel D RWD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE EXTRA CAB Automatic/Manual 4WD
    Toyota Hilux (10/2015 - on)
    Specifications
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towing Capacity: 3500
    • Ball Weight [kg]: 350
    • Recovery Load-tested: 4500KG WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Tow Ball Mount: L4171-PC
    • Coating: Powder Coated
    • Remove Bumper: No
    • Bumper Cut Out Required: No
    • Exposure: Exposed
    • Fitting Time Approx: 2 hr
    • Style: 7 Pin Flat
    • Type: Plugs & Sockets
    • Reverse Sensor Cut Off: Automatic
    • Diagnostic Coding: Not Applicable
    • Fog Cut Off: Automatic
    • Wiring Option: Direct Fit ECU
    Make Model From To Body Series Engine Variant Drivetrain
    TOYOTA HILUX 10/2018 - Ute GUN126 1GD-FTV | 2.8L | Diesel Rogue| Rugged| Rugged X 4WD
    TOYOTA HILUX 10/2015 - Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR AWD
    TOYOTA HILUX 10/2015 - Cab Chassis GUN123 1GD-FTV | 2.8L | Diesel SR RWD
    TOYOTA HILUX 10/2015 - Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel Workmate AWD
    TOYOTA HILUX 10/2015 - Cab Chassis GUN122R 2GD-FTV | 2.4L | Diesel Workmate RWD
    TOYOTA HILUX 10/2015 - Ute GUN126R 1GD-FTV | 2.8L | Diesel SR AWD
    TOYOTA HILUX 10/2015 - Ute GUN126R 1GD-FTV | 2.8L | Diesel SR5 AWD
    TOYOTA HILUX 10/2015 - Ute GUN136R 1GD-FTV | 2.8L | Diesel SR5 Hi-Rider RWD
    TOYOTA HILUX 10/2015 - Ute GUN136R 1GD-FTV | 2.8L | Diesel SR Hi-Rider RWD
    TOYOTA HILUX 10/2015 - Ute GUN125R 2GD-FTV | 2.4L | Diesel Workmate AWD
    TOYOTA HILUX 10/2015 - Ute GUN122R 2GD-FTV | 2.4L | Diesel Workmate RWD
    TOYOTA HILUX 10/2015 - Cab Chassis GUN112_, GUN122_, GUN135_ 2GD-FTV | 2.4L | Diesel D RWD
    TOYOTA HILUX 10/2015 - Cab Chassis TGN121 2TR-FE | 2.7L | Petrol Workmate RWD
    TOYOTA HILUX 10/2015 - Cab Chassis TGN121R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
    TOYOTA HILUX 10/2015 - Ute TGN121 2TR-FE | 2.7L | Petrol Workmate RWD
    TOYOTA HILUX 10/2015 - Ute TGN121R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
    TOYOTA HILUX 10/2015 - Ute TGN111R, TGN121R, TGN136R 2TR-FE | 2.7L | Petrol RWD
    TOYOTA HILUX 10/2015 - Ute GUN125R 2GD-FTV | 2.4L | Diesel D AWD
    TOYOTA HILUX 10/2015 - Ute GUN112R, GUN120R, GUN122R, GUN135R 2GD-FTV | 2.4L | Diesel D RWD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE EXTRA CAB Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Ute GUN126R 1GD-FTV | 2.8L | Diesel ROGUE, RUGGED, RUGGED X, SR5, SR5+ Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Ute GUN136R 1GD-FTV | 2.8L | Diesel SR HI-RIDER Automatic/Manual RWD
    TOYOTA HILUX 10/2015 04/2020 Ute GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
    TOYOTA HILUX 10/2015 04/2020 Ute GUN126R 1GD-FTV | 2.8L | Diesel D AWD
    TOYOTA HILUX 10/2015 04/2020 Ute GUN136 1GD-FTV | 2.8L | Diesel D RWD
    TOYOTA HILUX 10/2015 06/2019 Cab Chassis GUN122R 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
    TOYOTA HILUX 10/2015 06/2019 Ute GUN122R 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
    TOYOTA HILUX 10/2015 09/2019 Ute GUN126R 1GD-FTV | 2.8L | Diesel SR5 EXTRA CAB Automatic 4WD
    TOYOTA HILUX 10/2015 09/2017 Cab Chassis GUN123R 1GD-FTV | 2.8L | Diesel SR Manual RWD
    TOYOTA HILUX 10/2015 09/2017 Ute GUN123R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Manual RWD
    TOYOTA HILUX 10/2015 07/2017 Ute GGN125, GGN135 1GR-FE | 4.0L | Petrol AWD
    TOYOTA HILUX 10/2015 07/2017 Ute GGN120R, GGN135R 1GR-FE | 4.0L | Petrol RWD
    TOYOTA HILUX 10/2015 07/2017 Ute GUN123 1GD-FTV | 2.8L | Diesel D RWD
    TOYOTA HILUX 10/2015 10/2017 Ute GGN125 1GR-FE | 4.0L | Petrol SR AWD
    TOYOTA HILUX 10/2015 10/2017 Ute GGN120 1GR-FE | 4.0L | Petrol SR RWD
    TOYOTA HILUX 10/2015 09/2017 Ute GGN120R 1GR-FE | 4.0L | Petrol SR Automatic RWD
    TOYOTA HILUX 10/2015 09/2017 Ute GGN125R 1GR-FE | 4.0L | Petrol SR5 Automatic 4WD
    TOYOTA HILUX 10/2015 10/2017 Ute GGN125 1GR-FE | 4.0L | Petrol SR5 AWD
    TOYOTA HILUX 10/2015 09/2017 Ute GUN136R 1GD-FTV | 2.8L | Diesel SR5 HI-RIDER Automatic RWD
    TOYOTA HILUX 10/2015 10/2017 Ute GGN125R 1GR-FE | 4.0L | Petrol SR Automatic 4WD
    TOYOTA HILUX 10/2015 09/2015 Ute KUN112R 2KD-FTV | 2.5L | Diesel SR EXTRA CAB Manual RWD
