TAG 4x4 Recovery Towbar for Isuzu D-MAX (07/2020 - on), Mazda BT-50 (07/2020 - on)

2 sold in last 8 days
TXR800-K201
$1,493.85 $1,269.77

Subcribe to back in stock notification

Payment Options

payment options
Online payments and cash on pick up available.

Fitment Check

Contact our team via our online chat system to get a fitment check for your vehicle. Click 'Text us' below.

Fitment Guarantee

You are required to supply your registration and state at the time of purchase. Our team will review the purchased products against fitment with your supplied vehicle information. If the product is suitable for this vehicle type, without any aftermarket variations, we will ship the goods.

If your vehicle has had any aftermarket alternations including but not limited to suspensions, lift, bull bar & flares, you will need to contact our team via chat to discuss suitability in further detail prior to purchase.

If the products don't legally fit the vehicle upon receipt we will organise return of the goods and refund your purchase

Installation

Contact our team via the online chat to get a quote for installation of this product at our partner installers on the Gold Coast & Byron Bay.
Installation has an additional fee & is available at The Garage Miami QLD & Simno's Auto Byron Bay NSW.
customers are viewing this product
  • Description
  • TAG
  • Delivery
  • Documents
  • Description
  • This Kit Includes:

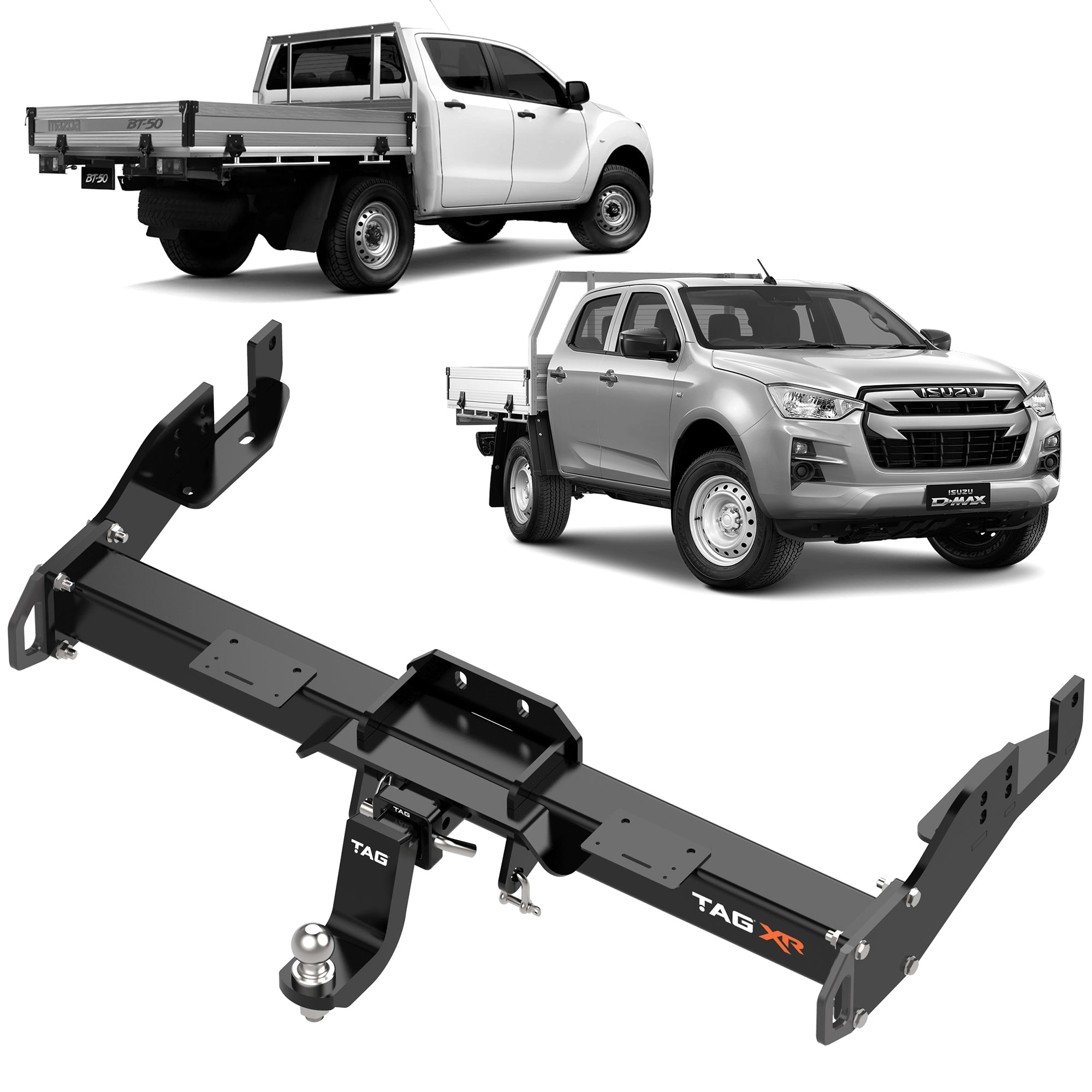

    • TAG 4x4 Recovery Towbar

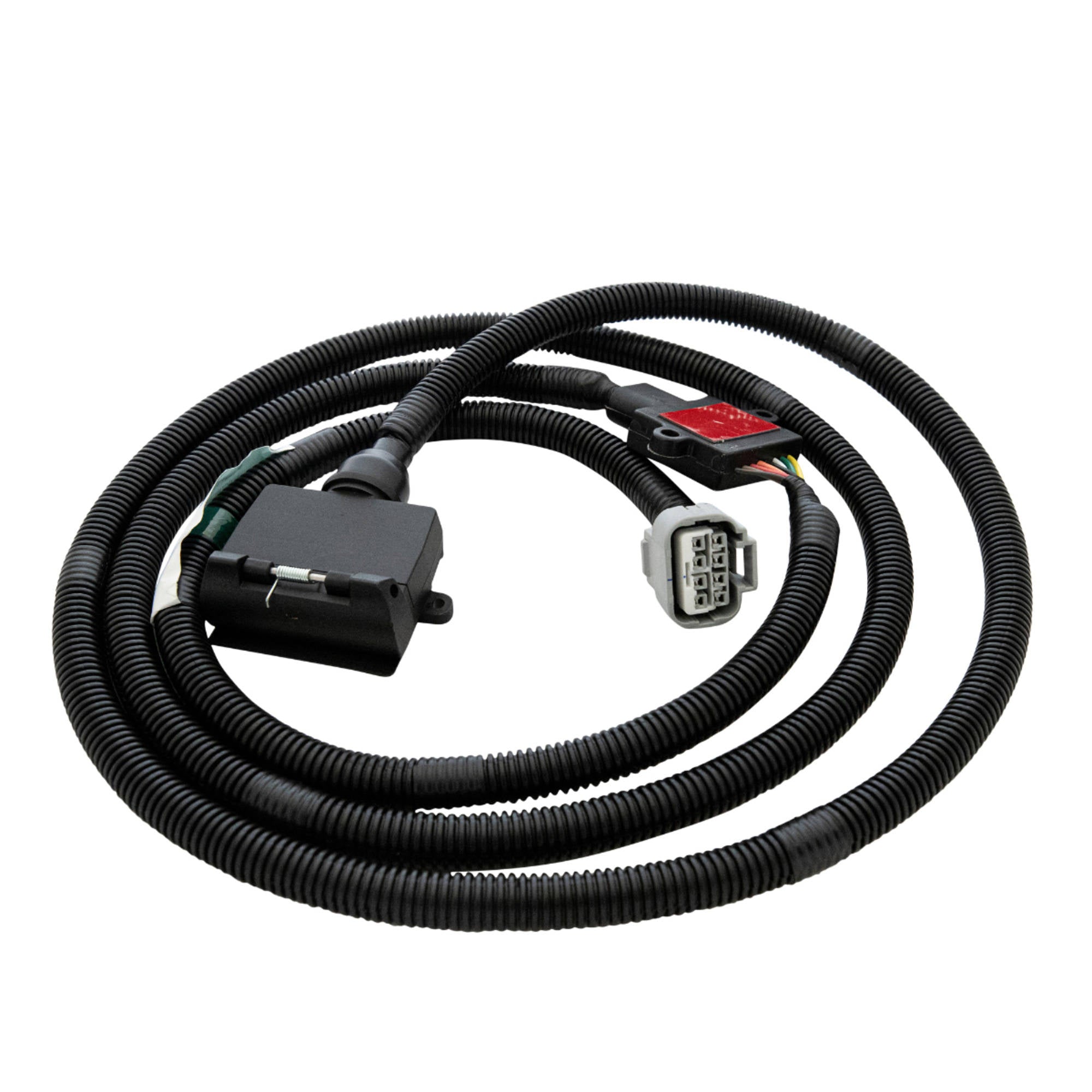

    • TAG Direct Fit Wiring Harness

    • TAG 7 Pin Flat Socket - Vehicle Side

    Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

    Featuring:

    • 89mm x 89mm Extreme Duty Reinforced Crossbar

    • Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

    • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

    • Highly durable, textured Extreme Duty Powder Coated Finish

    • Dual top-mounted Trailer & Anderson Plug Mounts

    • Class 4 Towbar - 50mm Square Hitch Receiver

    • TAG Limited Lifetime Warranty

    • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Delivery
  •

    For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.



    Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.



    Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!



    🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.











  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

    Isuzu D-MAX (07/2020 - on)
    Specifications
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towing Capacity: 3500
    • Ball Weight [kg]: 350kg
    • Recovery Load-tested: 4500KG WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Tow Ball Mount: L4045TXR
    • Coating: Powder Coated
    • Exposure: Exposed
    • Fitting Time Approx: 1 hr
    • Diagnostic Coding: Not Required
    • Reverse Sensor Cut Off: Automatic
    • Wiring Option: Direct Fit ECU
    Make Model From To Body Series Engine Variant Drivetrain
    ISUZU D-MAX 07/2021 - Cab Chassis TFR, TFS RZ4E-TC | 1.9L | Diesel RWD
    ISUZU D-MAX 07/2020 - Cab Chassis 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
    ISUZU D-MAX 07/2020 - Cab Chassis 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
    ISUZU D-MAX 07/2020 - Cab Chassis TFR, TFS 3.0L | Diesel DDI 4WD
    ISUZU D-MAX 07/2020 - Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI AWD
    ISUZU D-MAX 07/2020 - Cab Chassis TFR, TFS (TFR40J) 4JJ3-TCX | 3.0L | Diesel DDI RWD
    ISUZU D-MAX 07/2020 - Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI RWD
    Mazda BT-50 (07/2020 - on)
    Specifications
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towing Capacity: 3500
    • Ball Weight [kg]: 350kg
    • Recovery Load-tested: 4500KG WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Tow Ball Mount: L4045TXR
    • Coating: Powder Coated
    • Exposure: Exposed
    • Fitting Time Approx: 1 hr
    • Diagnostic Coding: Not Required
    • Reverse Sensor Cut Off: Automatic
    • Wiring Option: Direct Fit ECU
    Make Model From To Body Series Engine Variant Drivetrain
    MAZDA BT-50 07/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
    MAZDA BT-50 07/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
    MAZDA BT-50 07/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
    MAZDA BT-50 07/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
    MAZDA BT-50 07/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic/Manual 4WD
    MAZDA BT-50 07/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic RWD
    MAZDA BT-50 07/2020 - Cab Chassis TF (TFS40JDR, TFS40JPR) 4JJ3-TCX | 3.0L | Diesel AWD
    MAZDA BT-50 07/2020 - Cab Chassis TF (TFR40JDR, TFR40JPR) 4JJ3-TCX | 3.0L | Diesel RWD
    Isuzu D-MAX (06/2020 - on), MU-X (06/2021 - on), Mazda BT-50 (07/2020 - on)
    Specifications
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towing Capacity: 3500
    • Ball Weight [kg]: 350kg
    • Recovery Load-tested: 4500KG WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Tow Ball Mount: L4045TXR
    • Coating: Powder Coated
    • Exposure: Exposed
    • Fitting Time Approx: 1 hr
    • Diagnostic Coding: Not Required
    • Reverse Sensor Cut Off: Automatic
    • Wiring Option: Direct Fit ECU
    Make Model From To Body Series Engine Variant Drivetrain
    ISUZU D-MAX 07/2020 - Cab Chassis 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
    ISUZU D-MAX 07/2020 - Cab Chassis 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
    ISUZU D-MAX 07/2020 - Single Cab 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
    ISUZU D-MAX 07/2020 - Single Cab 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
    ISUZU D-MAX 07/2020 - Ute TFS40 4JJ3-TCX | 3.0L | Diesel CRD Automatic/Manual 4WD
    ISUZU D-MAX 07/2020 - Ute TFR40 4JJ3-TCX | 3.0L | Diesel LS-U, SX Automatic RWD
    ISUZU D-MAX 07/2020 - Ute TFS40 4JJ3-TCX | 3.0L | Diesel LS-U, SX SPACECAB Automatic/Manual 4WD
    ISUZU D-MAX 07/2020 - Ute TFS40 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
    ISUZU D-MAX 07/2020 - Ute TFR40 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
    ISUZU D-MAX 07/2020 - Ute TFR40 4JJ3-TCX | 3.0L | Diesel SX SPACECAB Automatic RWD
    ISUZU D-MAX 06/2020 - Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI AWD
    ISUZU D-MAX 06/2020 - Cab Chassis TFR, TFS (TFR40J) 4JJ3-TCX | 3.0L | Diesel DDI RWD
    ISUZU MU-X 07/2021 - SUV RJ 4JJ3-TCX | 3.0L | Diesel LS-M, LS-T, LS-U Automatic 4WD
    ISUZU MU-X 07/2021 - SUV RJ 4JJ3-TCX | 3.0L | Diesel LS-M, LS-T, LS-U Automatic RWD
    ISUZU MU-X 06/2021 - SUV TFS/TFR 4JJ3-TCX | 3.0L | Diesel Ddi 4WD
    ISUZU MU-X 06/2021 - SUV TFS/TFR 4JJ3-TCX | 3.0L | Diesel Ddi RWD
    MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
    MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
    MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
    MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic RWD
    MAZDA BT-50 08/2020 - Ute B30B 4JJ3-TCX | 3.0L | Diesel GT, XT, XTR Automatic/Manual 4WD
    MAZDA BT-50 08/2020 - Ute B30B 4JJ3-TCX | 3.0L | Diesel XT, XTR Automatic RWD
    MAZDA BT-50 07/2020 - Cab Chassis TF (TFS40JDR, TFS40JPR) 4JJ3-TCX | 3.0L | Diesel AWD
    MAZDA BT-50 07/2020 - Cab Chassis TF (TFR40JDR, TFR40JPR) 4JJ3-TCX | 3.0L | Diesel RWD
