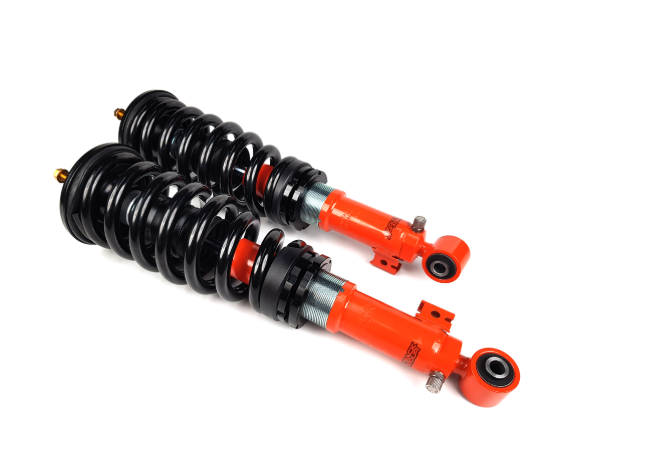

Outback Armour Adjustable Bypass Suspension Lift Kit for Mitsubishi Triton MV 2024 onwards
Lift Kits
Checkout securely with
- Description
- Shipping
- Get A Quote
- 🛡️ Fitment Advice
Designed and engineered in Australia by Outback Armour, this system features an adjustable internal bypass that offers more than 20 stages of velocity-sensitive damping control. This allows both front and rear settings to be adjusted as needed to suit accessories, load weight, terrain, driving conditions, and personal comfort preferences.
Increasing the bypass (-) provides a softer, more comfortable ride, while decreasing the bypass (+) delivers greater control.
A high-strength polymer adjustable spring seat is included to fine-tune ride height or compensate for additional accessories. Each unit is supplied with a complete fitting kit, including rubber bushes.
*Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Mitsubishi Triton MV Front Lift Kits Include:
Front - Adjustable Bypass Trail - 40mm (approx unladen)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits oem bumper
Adjustable Bypass - Front Strut OASU0865050-ADJ x2 ea.
Front - Trail OASU1047001 x1 pr.
Bump Stop Kit - Front Heavy Duty - (2 per kit) OASU4210202 x1 kit
Strut Mount OASU0767001 x2 ea.
Front - Adjustable Bypass Expedition- 40mm (approx 50-100kgs)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar or steel bullbar/winch
Adjustable Bypass - Front Strut OASU0865050-ADJ x2 ea.
Front - Expedition/Expedition HD OASU1047003 x1 pr.
Bump Stop Kit - Front Heavy Duty - (2 per kit) OASU4210202 x1 kit
Strut Mount OASU0767001 x2 ea.
Front - Adjustable Bypass Expedition HD- 40mm (approx 100-150kgs)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar & winch
Adjustable Bypass - Front Strut OASU0865050-ADJ x2 ea.
Front - Expedition/Expedition HD OASU1047003 x2 pr.
Bump Stop Kit - Front Heavy Duty - (2 per kit) OASU4210202 x1 kit
Strut Mount OASU0767001 x2 ea.
Mitsubishi Triton MV Rear Lift Kits Include:
Rear - Adjustable Bypass Trail - 50mm (approx unladen)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165116-ADJ x2 ea.
Trail OASU1167001 x2 ea.
U-Bolt (M14 x 62 ID x 230 L) OASU2362005 x4 ea.
Greasable Pin OASU2500052 x2 ea.
Greasable Shackle OASU2400070 x2 ea.
Leaf Spring Bush Kit OASU210041K x1 ea.
Transmission Mount Stabilizer Kit OASU3767001 x1 kit
Rear - Adjustable Bypass Expedition - 50mm (approx 100kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165116-ADJ x2 ea.
Trail Plus OASU1167002 x2 ea.
U-Bolt (M14 x 62 ID x 230 L) OASU2362005 x4 ea.
Greasable Pin OASU2500052 x2 ea.
Greasable Shackle OASU2400070 x2 ea.
Leaf Spring Bush Kit OASU210041K x1 ea.
Transmission Mount Stabilizer Kit OASU3767001 x1 kit
Rear - Adjustable Bypass Expedition - 50mm (approx 200kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165116-ADJ x2 ea.
Expedition OASU1167004 x2 ea.
U-Bolt (M14 x 62 ID x 230 L) OASU2362005 x4 ea.
Greasable Pin OASU2500052 x2 ea.
Greasable Shackle OASU2400070 x2 ea.
Leaf Spring Bush Kit OASU210041K x1 ea.
Transmission Mount Stabilizer Kit OASU3767001 x1 kit
Rear - Adjustable Bypass Expedition XHD - 50mm (approx 600kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165116-ADJ x2 ea.
Expedition XHD OASU1167006 x2 ea.
U-Bolt (M14 x 62 ID x 240 L) OASU2362006 x4 ea.
Greasable Pin OASU2500052 x2 ea.
Greasable Shackle OASU2400070 x2 ea.
Leaf Spring Bush Kit OASU210041K x1 ea.
Transmission Mount Stabilizer Kit OASU3767001 x1 kit
