HSP Roll Mate Manual Roll-Up Tonneau Cover to suit LDV Terron 9 2025 onwards (1820-RM)

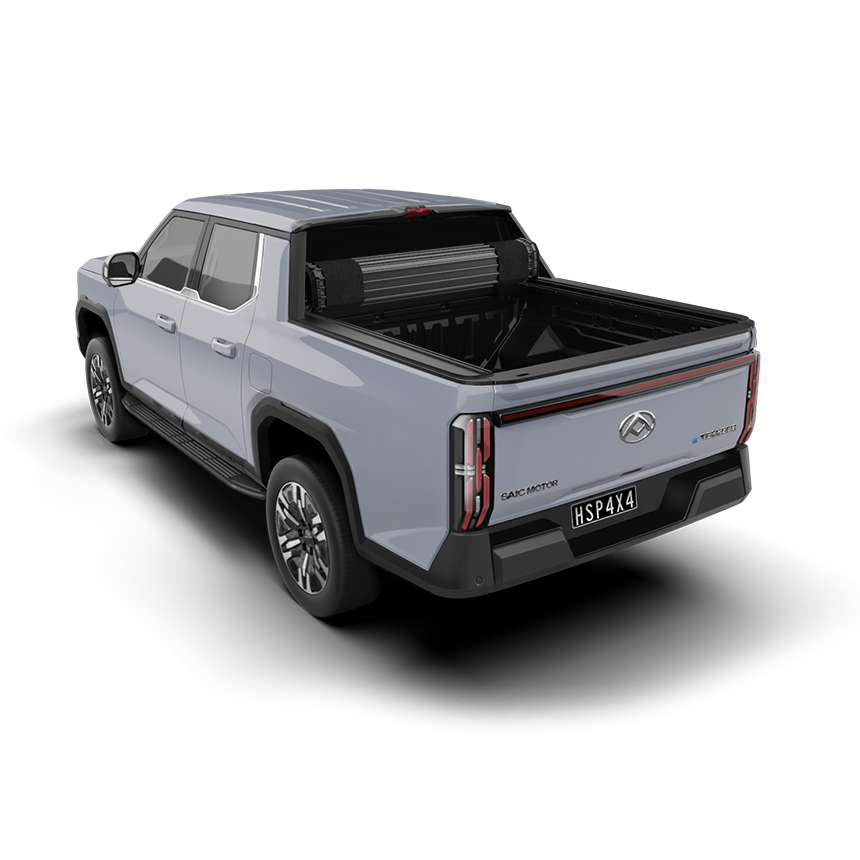

HSP Roll Mate Manual Roll-Up Tonneau Cover for the LDV Terron 9

Lock down your LDV Terron 9 tub with the HSP Roll Mate, a rugged manual hard roll-up tonneau cover that suits work, touring and everyday driving. There is no motor and no wiring to worry about. Strong aluminium slats and a sleek, profile-cut finish give you secure, weather-resistant cargo protection that blends in with your ute.

Designed and supported in Australia by HSP, the Roll Mate (part number 1820-RM) is made to suit the LDV Terron 9 with no sports bar fitted.

Key Features

• Terron 9 specific: built to match the Terron 9 tub for correct fitment and smooth operation
• Simple manual operation: no electronics, with a factory-point or clamp-on install

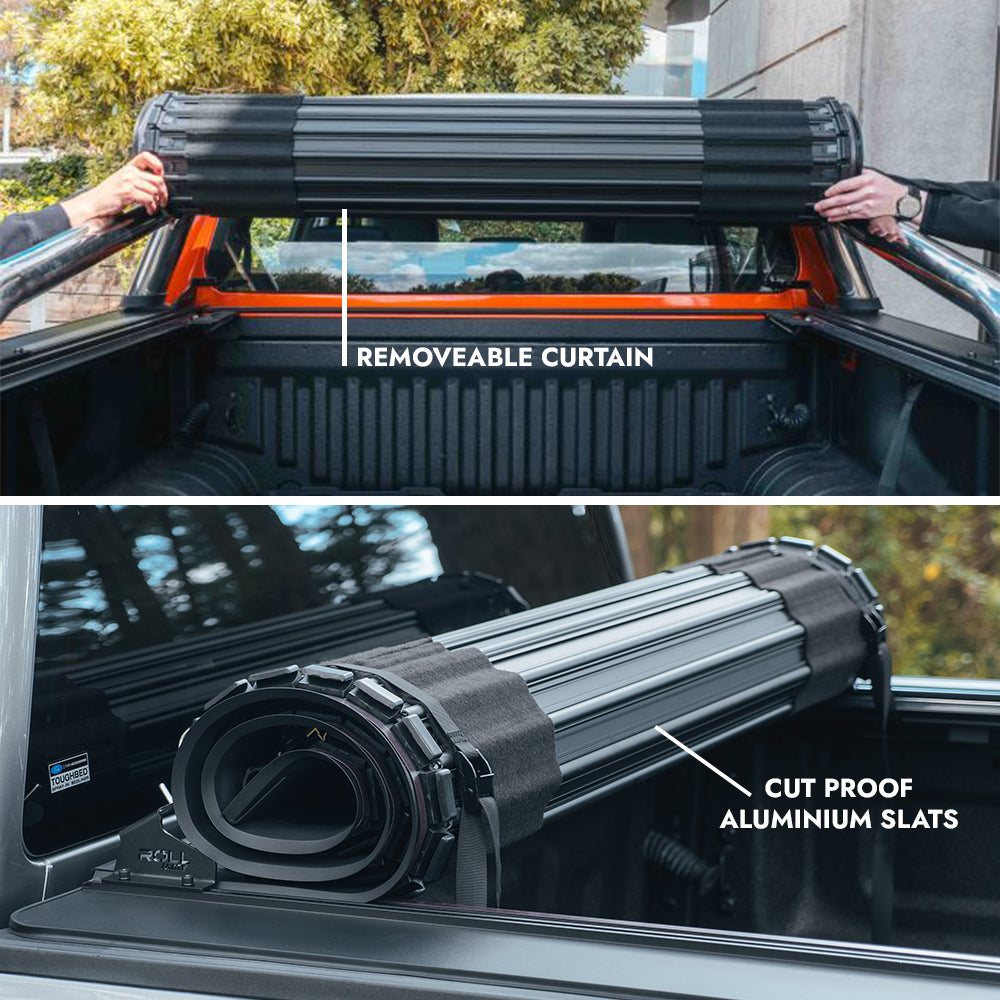

• Cut-proof aluminium slats: a vinyl-bonded top layer delivers strength and security every day
• Built for Australian weather: magnetic seals, rubber seals, C-channel drainage and thermal pads manage rain, dust and sun
• Factory-style look: slim, profile-cut side rails sit neatly on the tub
• No tools to release: switch quickly between a covered tub and full open access
• Strapped down for the trip: integrated straps stop the rolled-back curtain moving on and off the road
• Wide support network: 500+ authorised HSP fitting centres across Australia

Hard Roll-Up Cover Versus Soft Cover or Electric Roller

Slats made from cut-proof aluminium give far more security than a soft vinyl tonneau cover. Unlike an electric roller cover, the Roll Mate has nothing to wire in, so you can fit it by hand in under an hour without permanently modifying the tub.

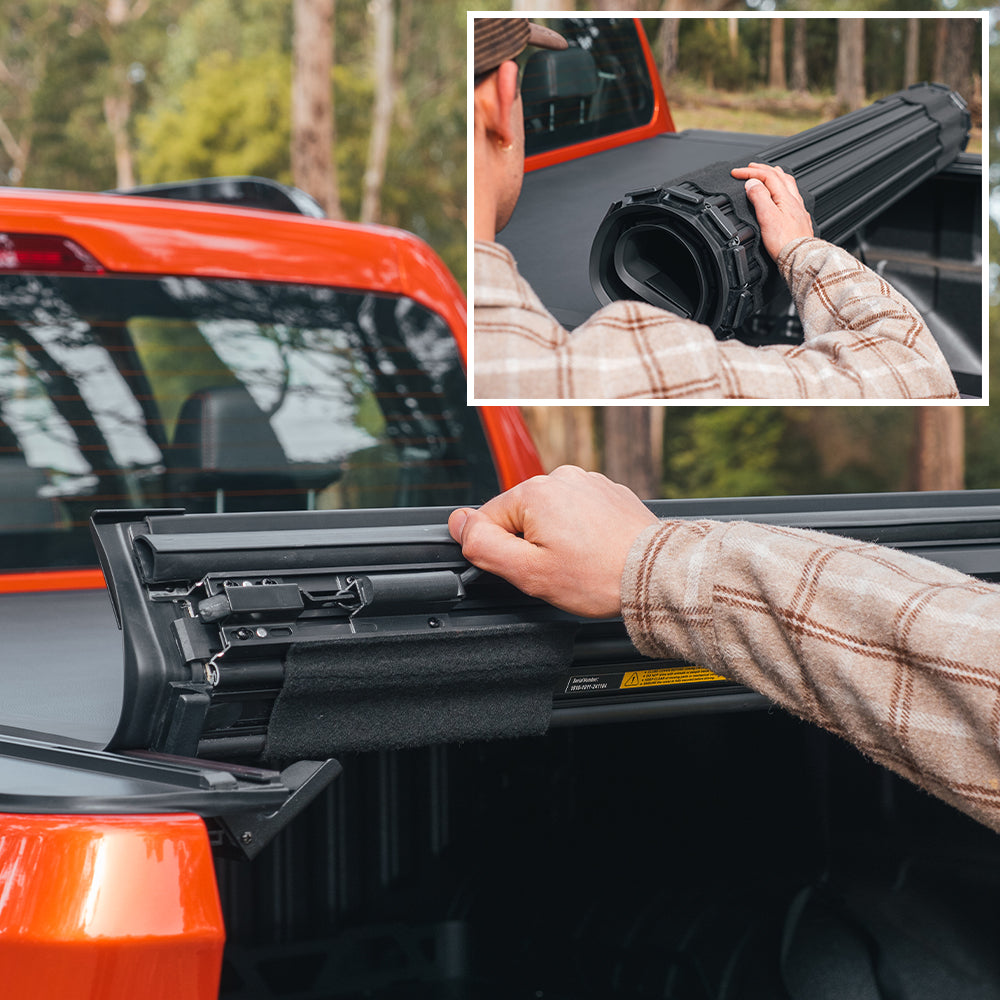

The full system weighs approximately 45kg, with the curtain at around 23kg. It is light enough to take off yourself in four steps, and the quick-release curtain lifts out in about 60 seconds.

Installation

• Mounts to the factory points or with a clamp-on method
• Fully manual, so no wiring is required
• HSP suggests having it fitted at one of its 500+ fitting centres
• Lightweight enough for a DIY install
• PDF installation instructions are available from HSP

Technical Specifications

• Part number: 1820-RM
• Vehicle fitment: LDV Terron 9, no sports bar
• Product type: manual roll-up hard tonneau cover
• Installation: factory points or clamp-on
• Curtain material: aluminium slats with vinyl-bonded top layer
• Side rail material: aluminium with sheet metal mounting brackets
• Waterproofing: magnetic seals, rubber seals and C-channel drainage
• Dust resistance: yes (the tub is not fully dustproof)
• Distance between side rails: 1188mm
• Curtain height: approx. 180mm to 225mm
• Curtain weight: approx. 23kg
• Total system weight: approx. 45kg
• Load rating: not designed to be weight-bearing
• Manufacturing standard: ISO9001 certified

Important Fitment Information

The Roll Mate needs the factory cargo rails on your LDV Terron 9. If your ute does not come with them, speak to your local dealership and order part number C00665035. These rails are 1290mm long and you need 2.

Note: the Roll Mate may clash with some sports bars when rolled, may need a small push to pass, and may not roll back 100%. It cannot support extra weight, so do not place items on the cover or on the sports bars.

Care and Upkeep

• Read the full instructions before you begin the install
• Wash with mild detergent and water to remove dust, dirt and debris
• Skip abrasive cleaners and solvents, which can harm the finish and seals
• Check the side rails regularly to confirm they stay aligned and run smoothly

Warranty and Support

The HSP Roll Mate is covered by a 2 year warranty on the unit. With minimal moving parts, replacing items is simple, and HSP has an Australian-based customer service team.

Frequently Asked Questions

Is a tonneau cover worth it for a Terron 9? Yes. It improves security, protects cargo from the elements and makes the tub more useful for work and recreation.

How weather and off-road resistant is it? It is designed for Australian conditions, with sealed rails and aluminium construction that resist rain and dust.

Complete Your LDV Terron 9 Setup

Want a motorised option? See the HSP Electric Roll Cover for the LDV Terron, or add the HSP Load Bar Kit for the LDV Terron 9 to carry more gear.

Covered by the HSP product warranty.
