Hamer 4x4 Force 12 Winch
✅ 12,000lb rated line pull — 4.5kW motor with 2-speed gearbox and 4-stage planetary gear for serious recovery performance.
✅ IP68 rated motor and gearbox — fully sealed for deep water crossings and extreme conditions.
✅ 11mm x 24m black synthetic rope with protective sleeve and aircraft-grade aluminium hawse fairlead with integrated magnets.
✅ Dual wireless/wired remote — 25m wireless range or 3m wired lead. Limited lifetime warranty (5-year electrical).
Checkout securley with
- Description
- Delivery
- 🛡️ Fitment Advice
The Hamer Force 12 Winch is built for serious off-road recovery. Whether you’re pulling out of deep sand, working through thick mud, or recovering on a steep incline, the Force 12 delivers the torque and reliability needed to get you moving again. A 4.5kW (6.0hp) motor paired with a 2-speed gearbox and 4-stage planetary gear system gives you the ability to switch between high and low speed depending on the load, while the 100% load-holding proportional spring brake keeps everything under control.
The winch runs 11mm black synthetic rope (24m with protective sleeve) through an aircraft-grade aluminium hawse fairlead with integrated magnets. Control is handled via a dual-connection remote — wireless up to 25m or wired via a 3m lead. The motor and gearbox carry an IP68 waterproof rating, and the whole unit is finished in an electrophoresis pre-treated black satin powder coat. Backed by a limited lifetime warranty, with a 5-year warranty on electrical components.
Specifications:
- Model: Force Winch 12,000lbs / HA407-120

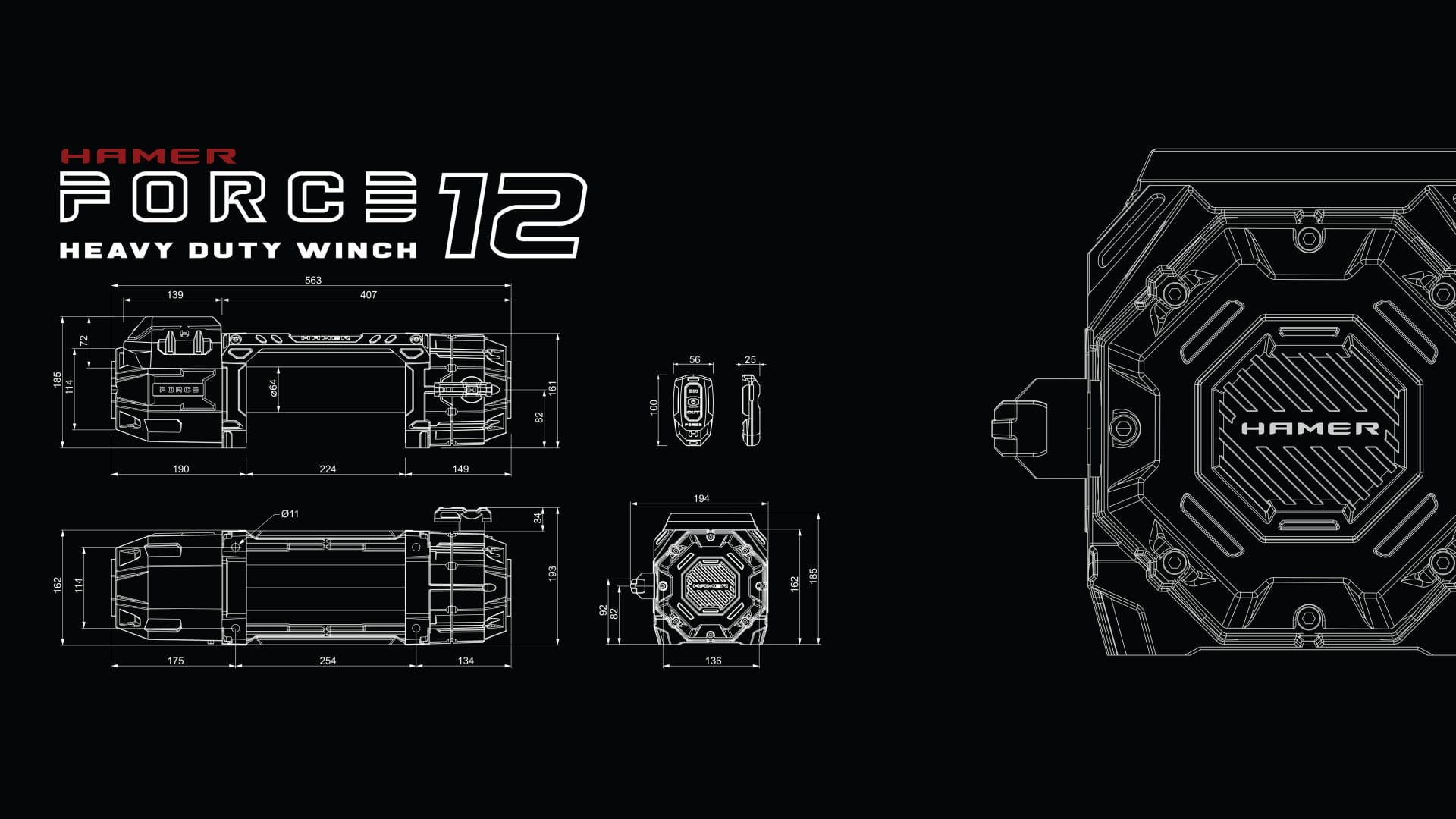

- Dimensions: 563mm (L) x 194mm (W) x 185mm (H)
- Winch weight: 27kg
- Rated line pull (1st layer): 12,000lbs (5,443kg)
- Motor: 4.5kW (6.0hp)

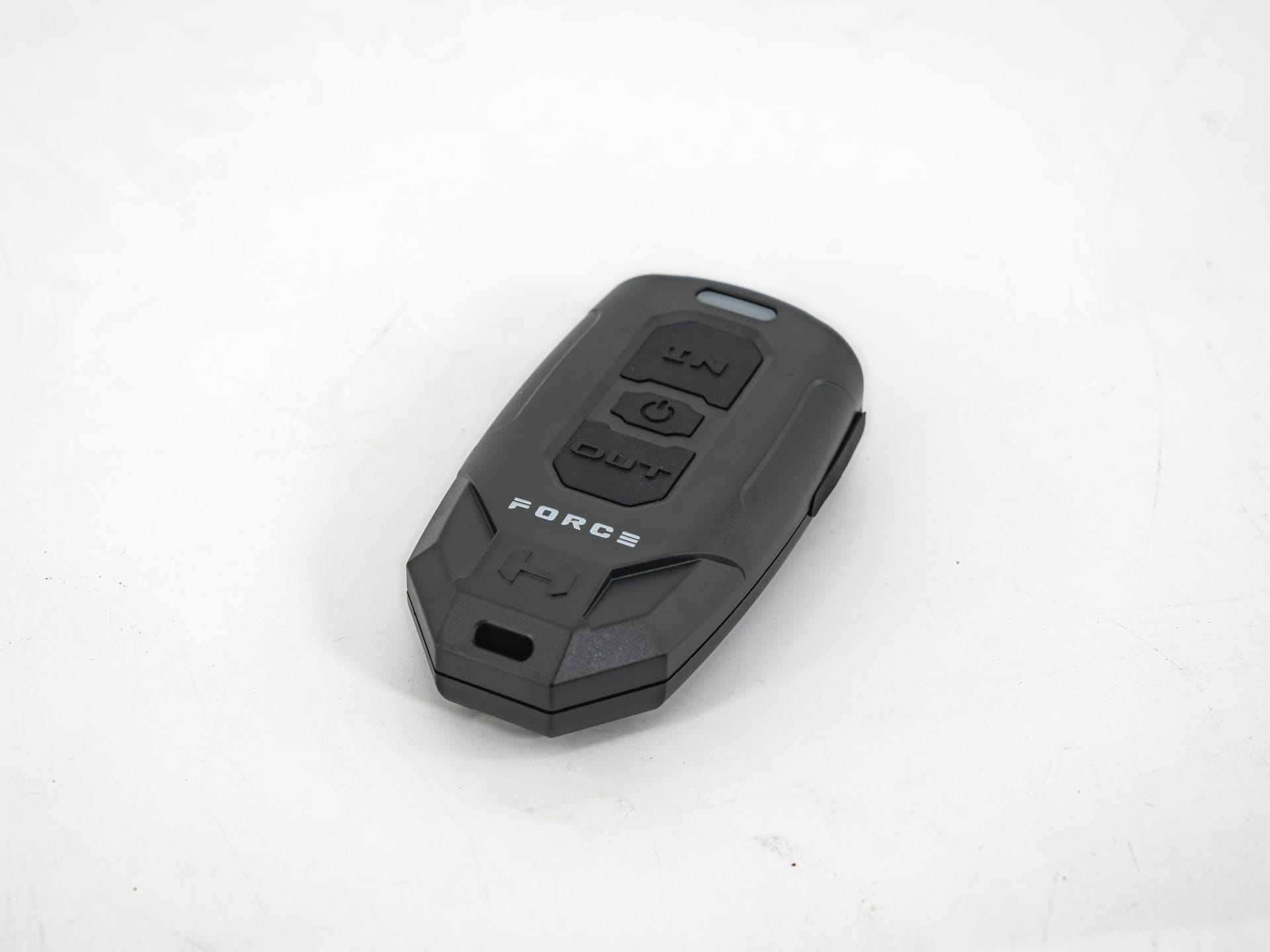

- Remote: Dual connection — wireless 25m range / wired 3m lead
- Electrical contactor: DC contactor — 500AMP

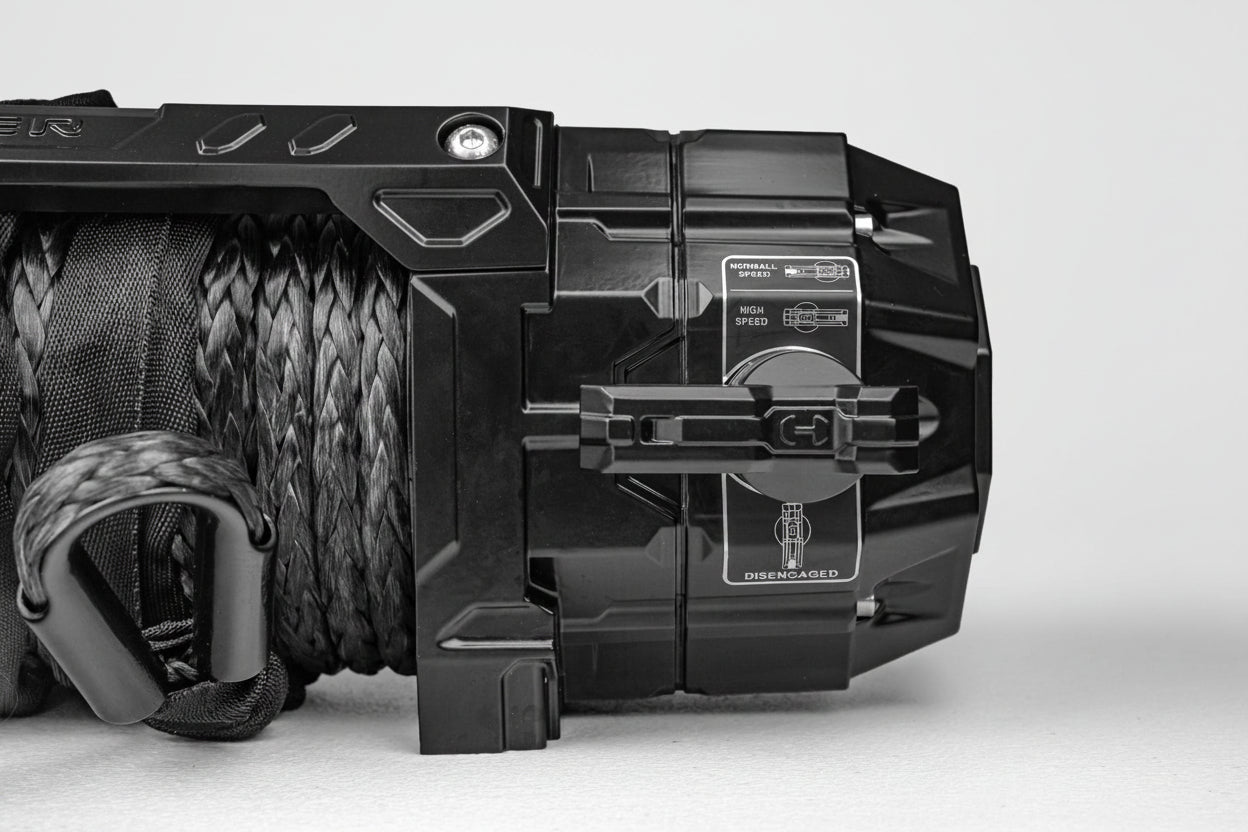

- Gearbox: 2-speed gearbox with 4-stage planetary gear (switchable high/low)
- Brake: Gearbox-mounted 100% load-holding proportional spring brake
- Clutch: Rotating ring gear — turn handle
- Rope: Black 11mm diameter x 24m synthetic rope with protective sleeve
- Fairlead: Aircraft-grade aluminium hawse fairlead with integrated magnets
- Finish: Electrophoresis pre-treated black satin powder coat
- Waterproof rating: IP68 (motor and gearbox)
- Warranty: Limited lifetime warranty (5-year warranty on electrical components)
Need Help Choosing?
Our team is available via online chat to help you find the right winch for your setup and confirm compatibility with your bull bar or mounting plate. We offer Australia-wide delivery and a range of flexible payment options to suit your budget — just reach out and we’ll get you sorted.
