EFS Recon R10 Winch (EFS Winch)
Fitment Advice
Checkout securley with

- Description
- What's Included
- Delivery
The EFS Recon R13 Winch has been developed with a super fast retrieve rate and boasts a 13,000 LBS rated single line pull. The R13 efs winch has a full load automatic brake with a 265:1 gear ratio and comes complete with all pictured accessories.
-

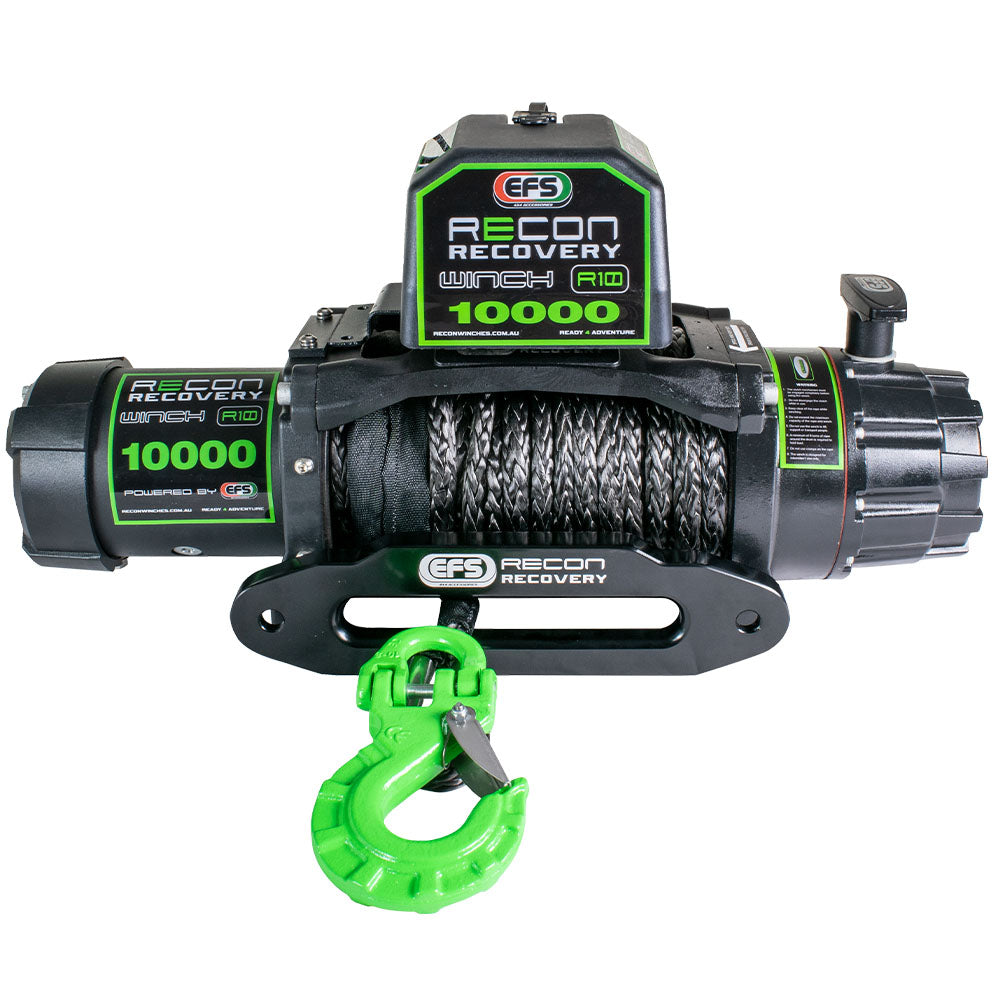

10,000lbs / 4,540kg rated single line pull
-

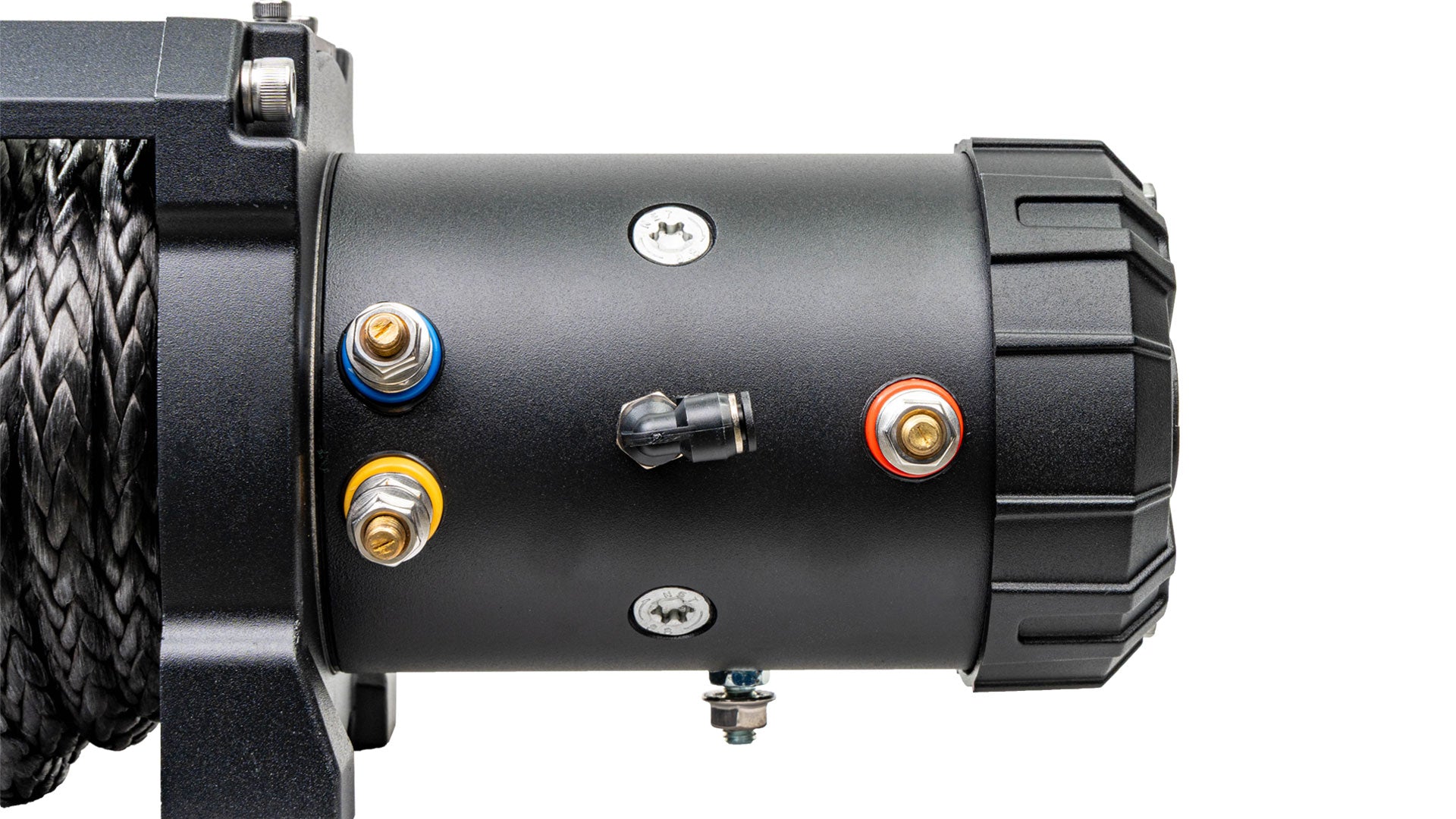

6.0HP 12volt series wound electric motor Waterproof motor/gearbox
-
Breather kit
-
3 stage zinc plated hardened planetary gears
-
158:1 gear ratio
-
Rotating ring gear clutch with T-handle clutch engagement
-

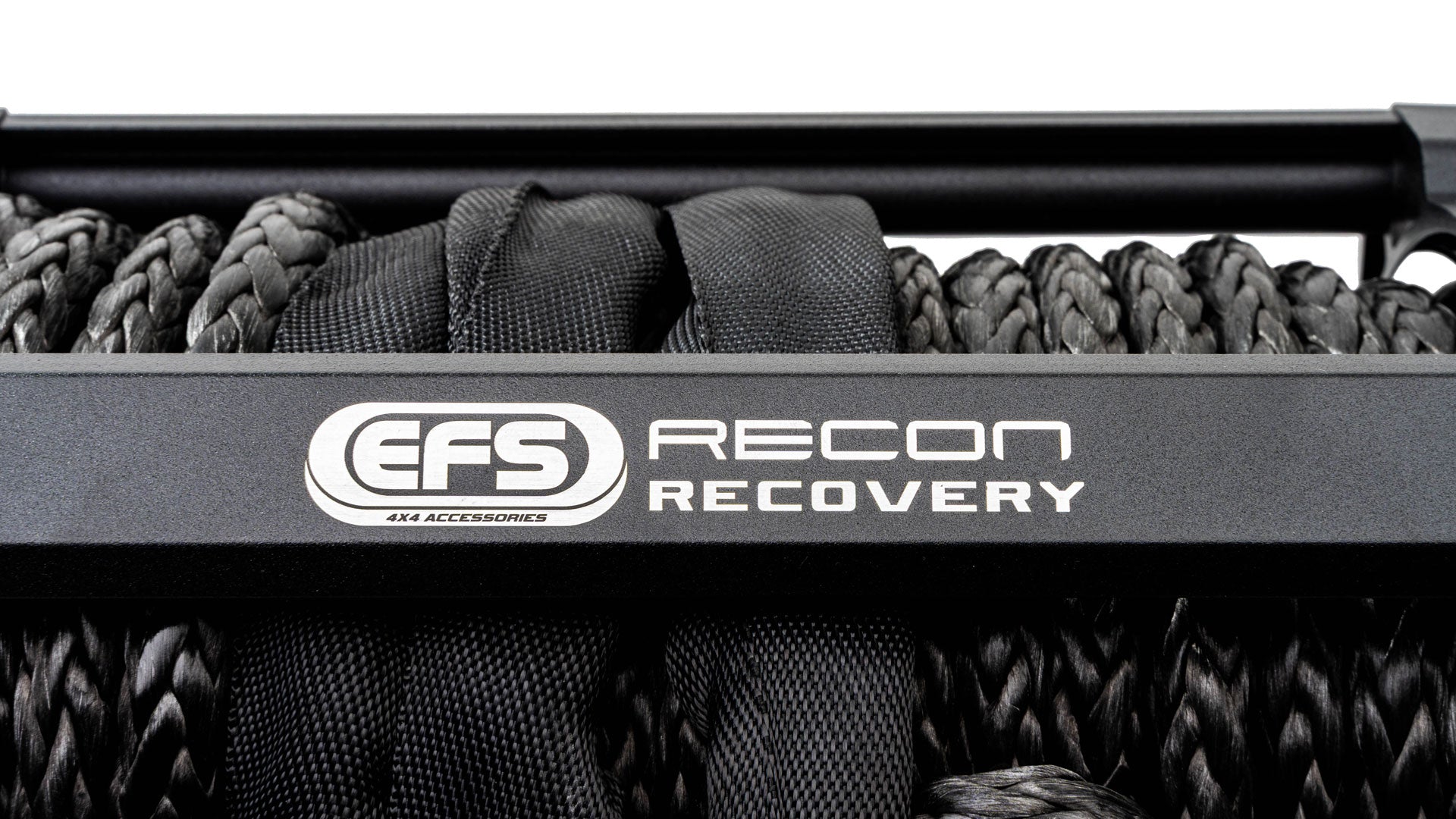

18,000lbs SYNTUFF synthetic multistrand rope
-
High strength antibind nano technology
-
Abrasion resistant – 10mm diameter – 25m length
-
Full load automatic brake located at the motor side of the drum
-
Designed for synthetic rope – no heat build up in the drum
-
Recommended battery 650CCA minimum for winching
-
Battery leads: 1.83m
-
Mounting bolt pattern: 254mm x 114.3mm
-
Fairlead: Aluminium
-
Control box relay: 450A
-
Waterproof
-
Incl wireless & wired remote 3.6m lead
Weight: 27.5kgs
Rated pulling power: rated single line pull
–Recon 10: 10,000lbs / 4,540kg
–Recon 10 & 13: 6.0HP Gear ratio:
–Recon 10: 158:1
Gearing system: 3-stage zinc-plated hardened planetary gears
-Brake: Full load automatic brake (motor side of the drum)
-Designed for: Synthetic rope – no heat build-up in the drum
-Bearings: Sealed bearings for smooth motor operation

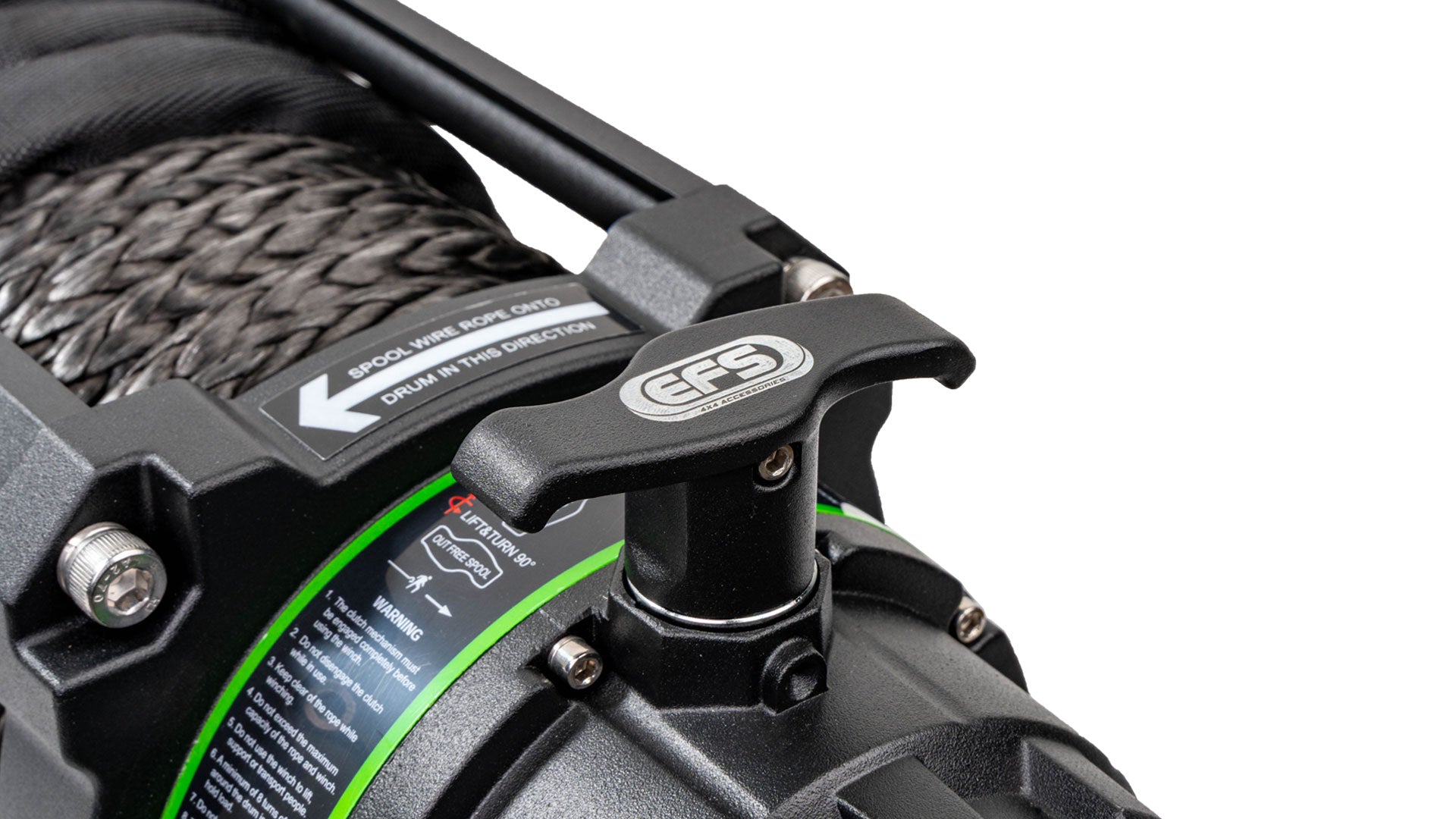

-Clutch type: Rotating ring gear with T-handle engagement
Brixton 4x4 has a great range of 4x4 Recovery Gear including winches, ropes & tracks. All our goods are available online to purchase, including the efs winch. Get fast dispatch and Australia-wide delivery.
We stock a great range of the EFS 4x4 Adventure gear, including the efs winch, plus other great brands for Recovery, Air Compressors, Winches, and Tents.
