EFS Lift Kit for Volkswagen Amarok 2H (2016 - 2023) (V6)
Calculate Your Vehicle Weight
Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The V6 Amarok is one of the quickest and most comfortable utes on the road, and many owners use that torque to tow and tour. The factory rear leaves sag under a canopy or heavy towball load, and the front softens under a bar. This EFS kit gives the V6 Amarok about 25mm of lift and restores support at both ends without spoiling its road manners.
Front struts are supplied with new coils, and the rear gets raised leaf packs, bushes and U-bolts.
Choose Your Shock
Elite
A refined everyday shock that keeps the Amarok composed around town and on gravel.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Fitted front and rear

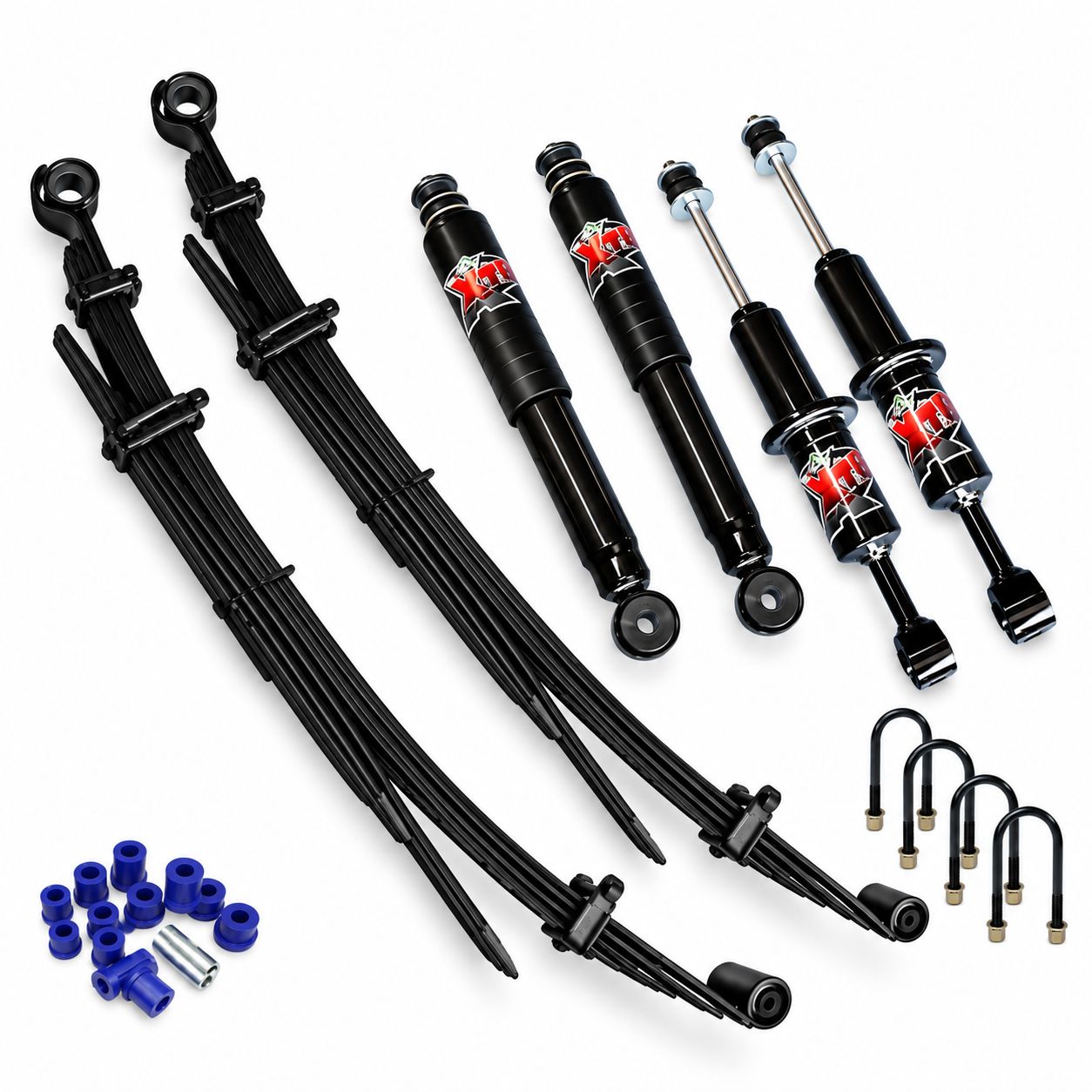

XTR
This option pairs Elite front struts with larger XTR rear shocks, giving the rear end more capacity for towing and constant load.
- Elite 35mm front struts
- XTR 40mm twin-tube rear shocks
- Extra rear damping capacity for heavy loads

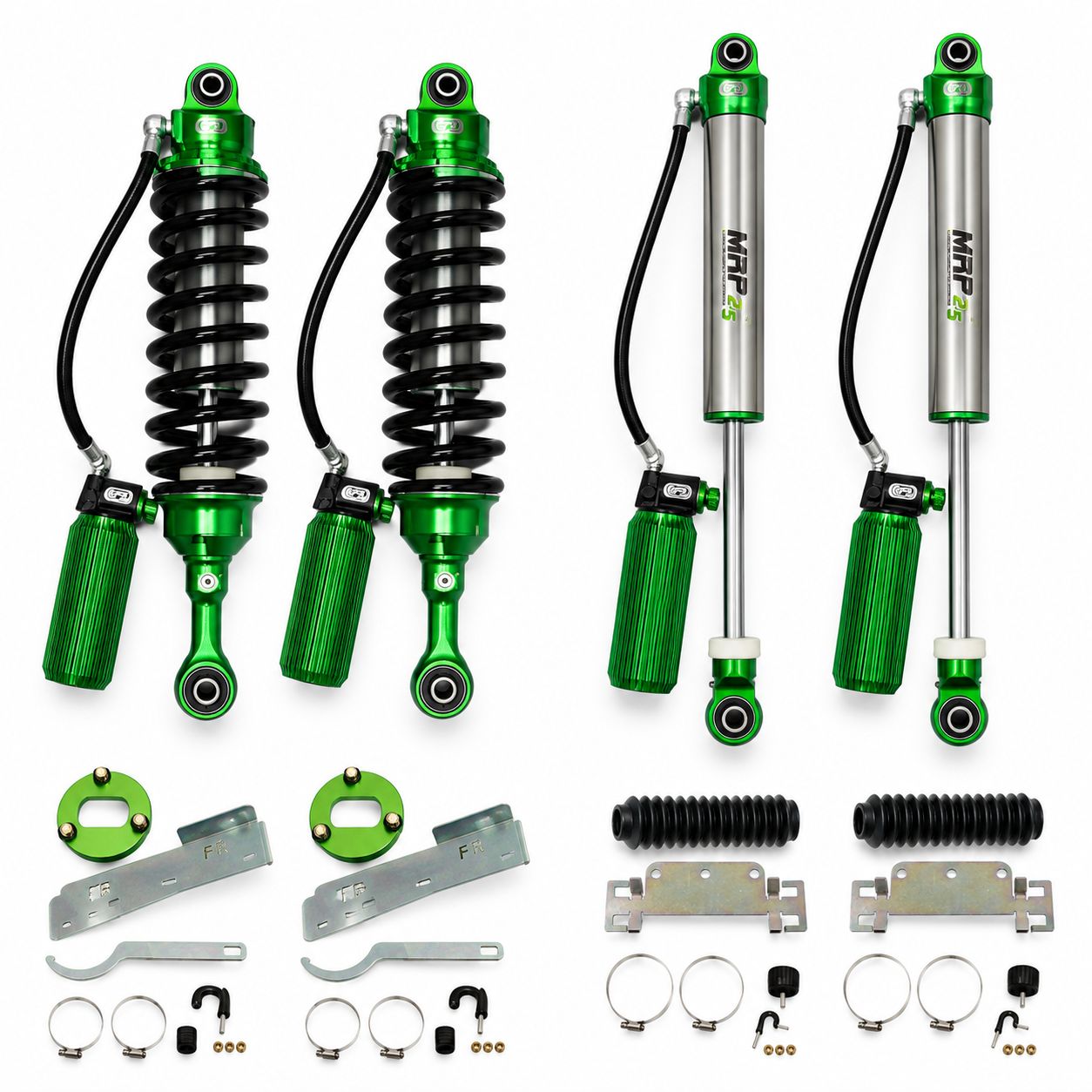

MRP
The adjustable remote-reservoir system for the best blend of comfort and control on and off road.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: factory bumper or light accessories.
- 100-150kgs: a steel bullbar or bar and winch. Rated for a constant 120kg.
Rear Load Options
- 0-150kgs: a comfort-rated rear spring for light everyday use.
- 300kgs: a constant load such as a canopy, toolboxes or touring gear. Rated for a constant 350kg.

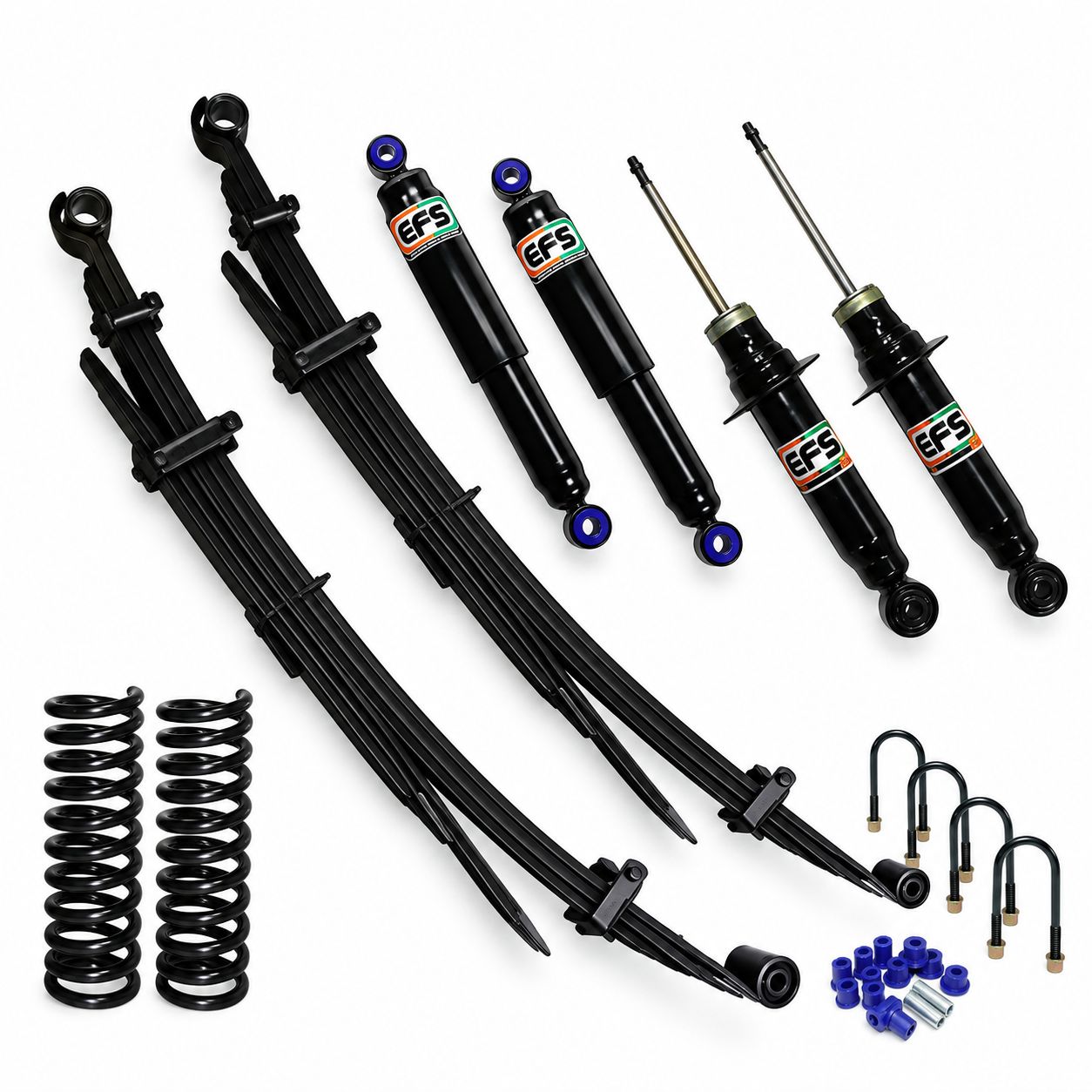

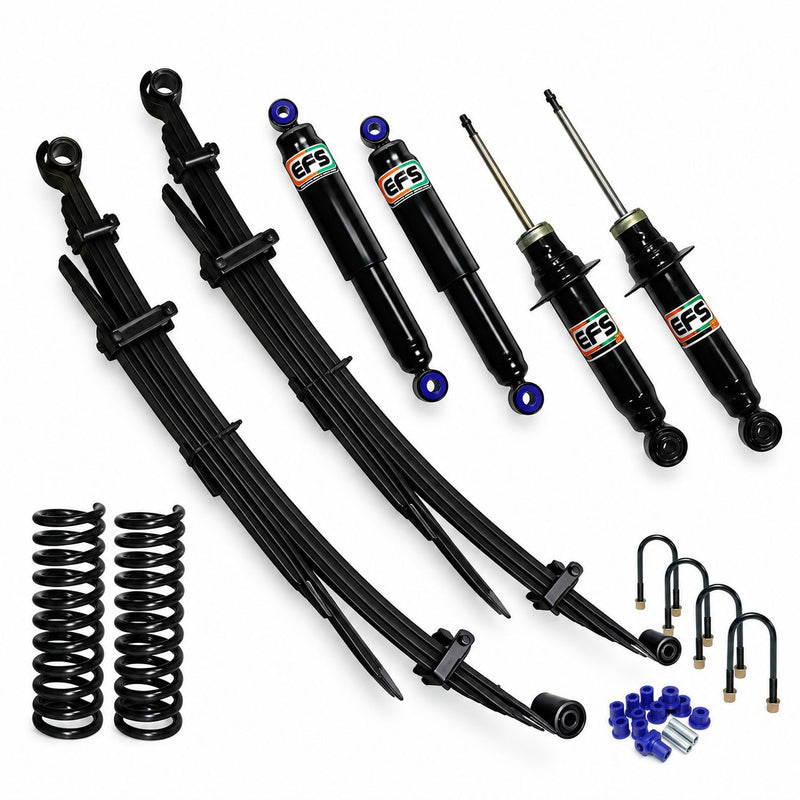

What's Included
- 2 x EFS front struts (Elite or MRP) with coil springs rated to your selected front load
- 2 x EFS rear shock absorbers (Elite, XTR or MRP)
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
Fitment
- Volkswagen Amarok 2H V6 turbo diesel, 2016 to May 2023
- Not suitable for 4-cylinder models or the 2023+ Amarok
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Need help choosing the right lift kit?
Our team can help you find the right setup for your vehicle, with expert fitment advice and a personalised quote based on your vehicle, accessories and requirements.
Complete our Weight Calculator & Quote Request form with your vehicle details and the products you're interested in, and one of our team will be in touch to help you with the best option for your setup.
