EFS Lift Kit for Toyota LandCruiser 78 Series (2007+) (Troop Carrier)
Calculate Your Vehicle Weight
Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The 78 Series Troop Carrier is often the go-to base for a serious touring rig, with long-range tanks, water, a fridge and a full drawer system in the back. That much weight flattens the factory rear leaves and the nose drops under a heavy bar. This EFS kit lifts the Troopy by about 50mm and restores load support with raised coils up front and raised leaf packs at the rear.
Front castor correction bushes are supplied, along with new rear spring bushes, U-bolts and greasable shackles.
Choose Your Shock
Elite
An all-round shock for a Troop Carrier used for work and regular weekend trips.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Valving matched to the raised EFS springs
XTR
The better pick for a fully loaded touring Troopy, with more oil to resist fade on long corrugated roads.
- 40mm bore twin-tube design
- Larger oil capacity than the Elite
- Built for heavy loads and remote travel
Front Load Options
- 0-50kgs: a factory front end with no bar. Rated for up to about 60kg.
- 50-100kgs: an alloy bar, light steel bar or driving lights. Rated for 60-100kg.
- 100-150kgs: a steel bullbar and winch. Rated for 100-130kg.
Rear Load Options
- 0-150kgs: a lightly loaded rear. Rated for up to about 100kg.
- 300kgs: a constant touring load such as drawers, a fridge and water. Rated for a constant 300kg.
- 500kgs: heavy constant loads such as a full camper fit-out, long-range water and a rear wheel carrier. Rated for a constant 400kg.

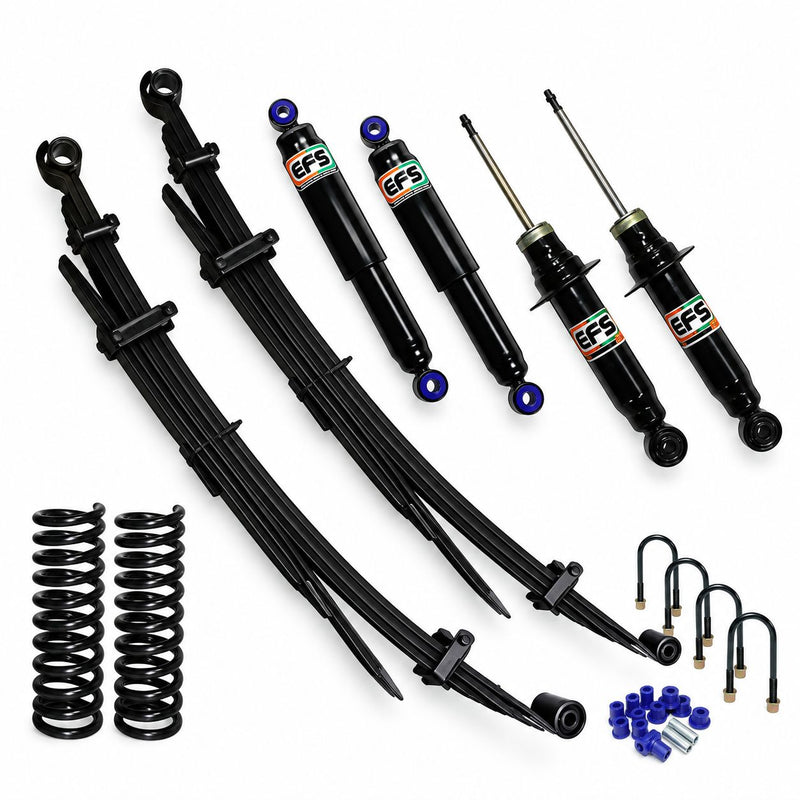

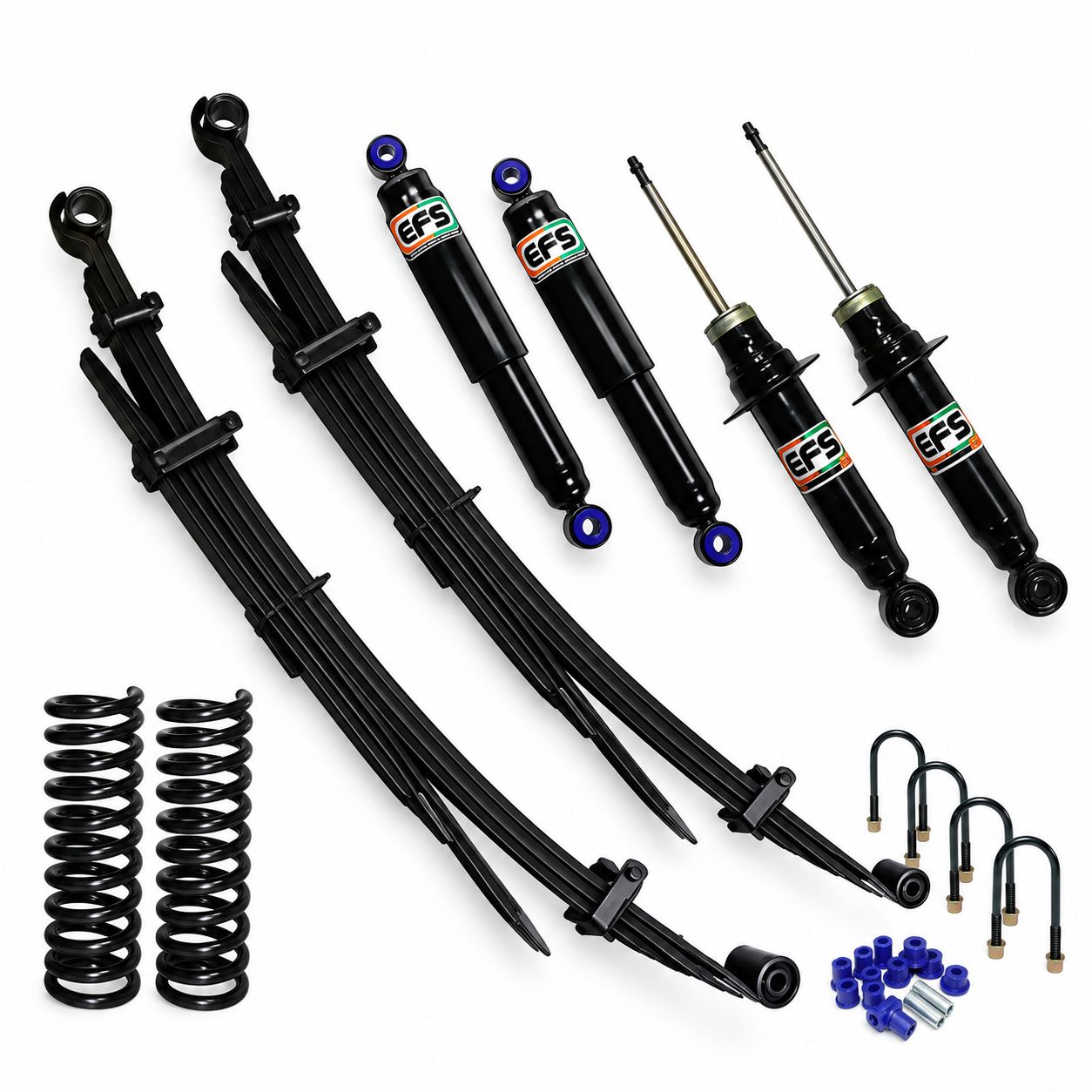

What's Included
- 2 x EFS front shock absorbers (Elite or XTR)
- 2 x raised front coil springs, rated to your selected front load
- Front 2-degree castor correction bushes
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
- Rear greasable shackles
Fitment
- Toyota LandCruiser 78 Series Troop Carrier, 2007 onwards
- V8 turbo diesel models
- Not suitable for the 76 wagon or 79 Series cab chassis
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Need help choosing the right lift kit?
Our team can help you find the right setup for your vehicle, with expert fitment advice and a personalised quote based on your vehicle, accessories and requirements.
Complete our Weight Calculator & Quote Request form with your vehicle details and the products you're interested in, and one of our team will be in touch to help you with the best option for your setup.
