EFS Lift Kit for Toyota LandCruiser 76 Series (2007+) (Wagon)
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The 76 Series wagon is built to work, and most end up carrying a bar, winch, rear storage, water and spares. Under that weight, the factory front coils and rear leaves settle and the wagon loses clearance and composure. This EFS kit lifts the 76 by roughly 50mm, with raised coils up front and raised leaf packs at the back.
Castor correction bushes are supplied to keep the steering stable after the lift, and new rear spring bushes, U-bolts and greasable shackles complete the rear end.
Choose Your Shock
Elite
A well-balanced shock for a 76 that does a mix of daily driving, work and weekend trips.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Valving matched to the raised EFS springs
XTR
Better suited to remote touring and constant weight, with a larger body that keeps damping consistent on long rough roads.
- 40mm bore twin-tube design
- More oil capacity than the Elite
- Suited to heavy loads and outback travel
Front Load Options
- 0-50kgs: a factory front end with no bar. Rated for up to about 60kg.
- 50-100kgs: an alloy bar, light steel bar or driving lights. Rated for a constant 60-100kg.
- 100-150kgs: a steel bullbar with a winch. Rated for a constant 100-130kg.
Rear Load Options
- 0-150kgs: a progressive rear spring for light to medium use. Rated for up to about 250kg.
- 300kgs: a constant load such as drawers, a fridge and water. Rated for a constant 250kg.
- 500kgs: the firmest rear spring offered for the 76, for heavier constant loads. Rated for a constant 350kg.

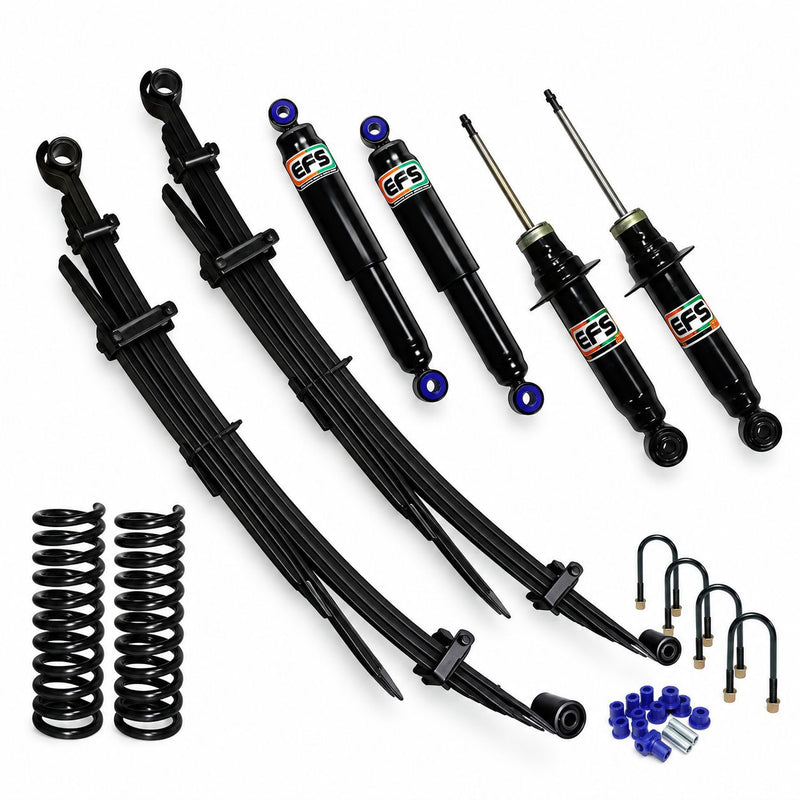

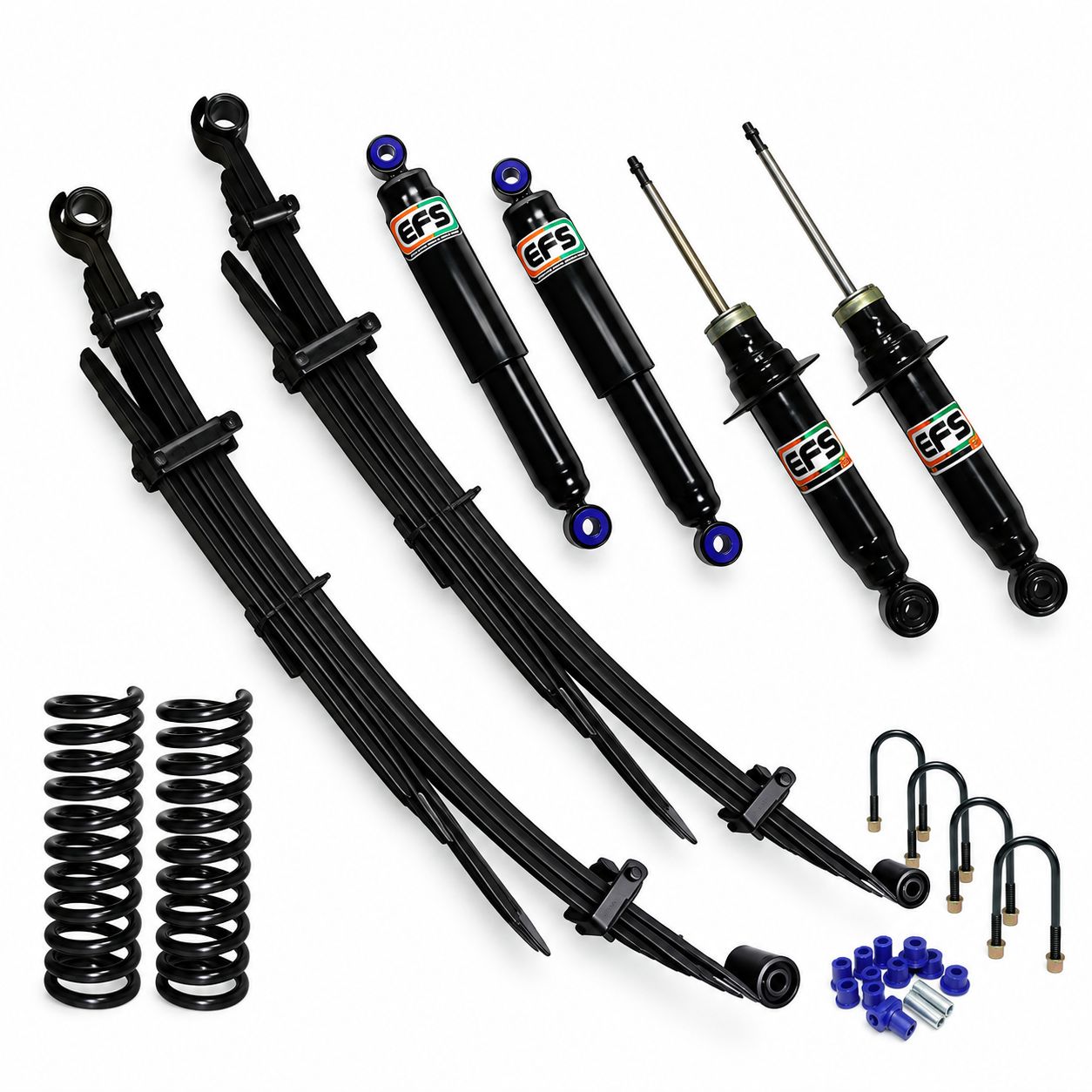

What's Included
- 2 x EFS front shock absorbers (Elite or XTR)
- 2 x raised front coil springs, rated to your selected front load
- Front 2-degree castor correction bushes
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
- Rear greasable shackles
Fitment
- Toyota LandCruiser 76 Series wagon, 2007 onwards
- Not suitable for the 78 Troop Carrier or 79 Series cab chassis
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
