The 200 Series LandCruiser is a heavy wagon before anything is added, and once a steel bar, winch, drawers and a long-range tank go on, the factory coils have little left to give. The front sits low, the rear squats when towing and the body floats over undulations. This EFS kit lifts the 200 Series by around 35mm and restores firm, predictable control with matched struts, coils and shocks at all four corners.
Front struts come pre-assembled with their coils, which keeps installation simple. Pick a shock series to suit how far and how hard you travel, then choose spring rates for the weight you carry.
Choose Your Shock
Elite
A refined everyday option for a 200 Series used as a family wagon, tow vehicle and weekend tourer.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Pre-assembled front struts
XTR
A step up in capacity for long trips and heavier towing, with extra oil to keep damping steady over hours of rough road.
- 40mm bore twin-tube design
- More oil volume than the Elite
- Pre-assembled front struts
Xtreme
The heaviest-duty twin-tube shock EFS makes, built for a fully loaded 200 Series working hard on corrugations and rocky tracks.
- 45mm bore twin-tube design
- Largest twin-tube body in the EFS range
- Pre-assembled front struts

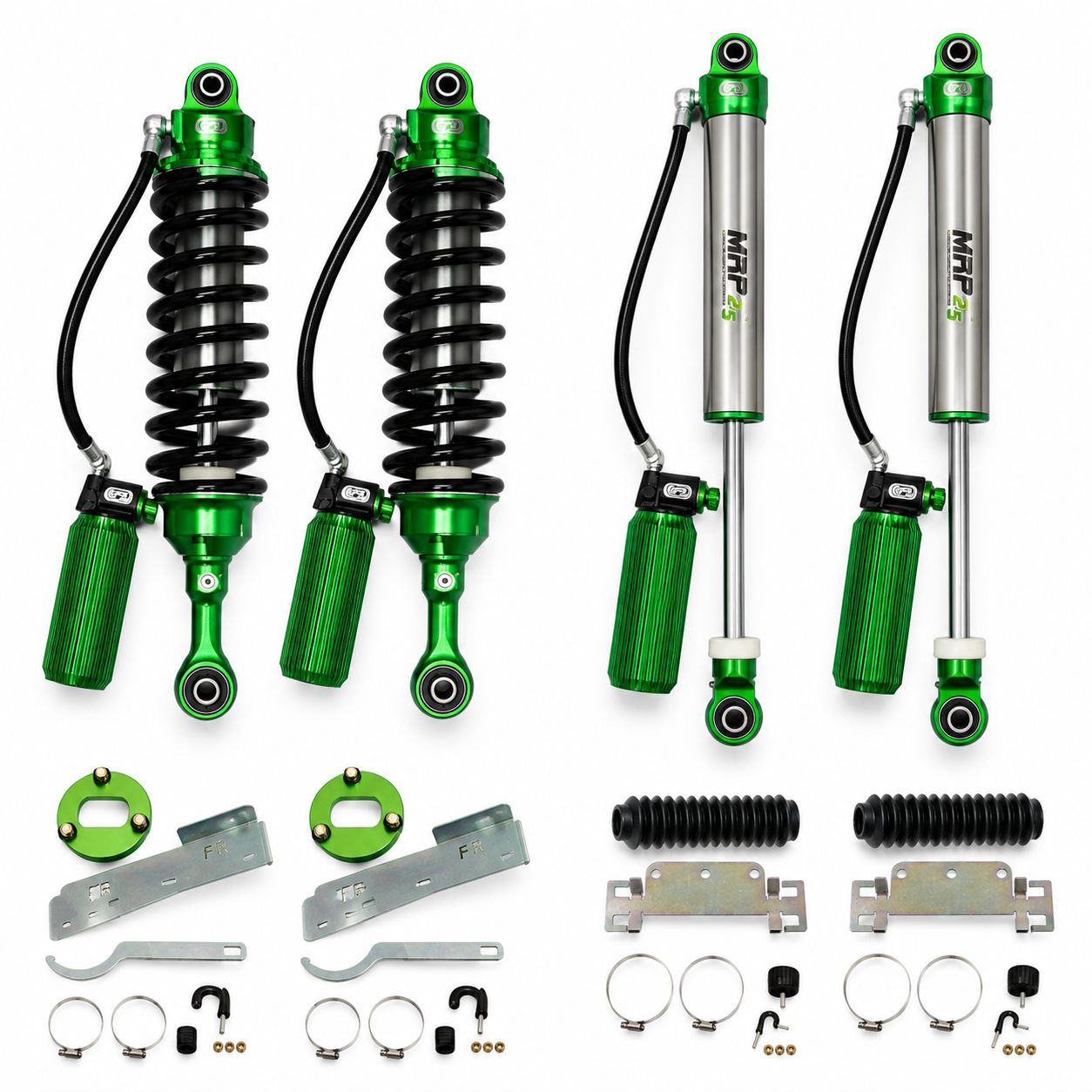

MRP
A fully adjustable remote-reservoir system for owners who want to dial in comfort on the highway and control off-road.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: the factory bumper or a very light front end.
- 50-100kgs: an alloy bar, driving lights or a light bar.
- 100-150kgs: a steel bullbar, or a bar with a winch fitted.
Rear Load Options
- 0-150kgs: everyday driving with light gear in the cargo area. Rated for up to about 100kg.
- 300kgs: a constant touring load such as drawers, a fridge, water and towing. Rated for a constant 250kg.
- 500kgs: heavy constant loads such as a full touring fit-out, long-range tanks and a heavy towball weight.
What's Included
- 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs rated to your selected front load
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear coil springs, rated to your selected rear load
Fitment
- Toyota LandCruiser 200 Series wagon, October 2007 onwards
- Coil-sprung front and rear
- Not suitable for 100 Series or 300 Series LandCruisers
