EFS Lift Kit for Toyota LandCruiser 100 Series (1998 - 2007)
Calculate Your Vehicle Weight
Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The independent front suspension 100 Series LandCruiser is a supremely capable touring wagon, but it is heavy, and the factory torsion bars and rear coils soften with age. Add a bullbar, roof rack or full touring setup and the nose drops while the rear sags under load. This EFS kit lifts the 100 Series by around 50mm and firms up the ride, with uprated torsion bars at the front and new raised coils at the back.
The kit also includes a reinforcement bracket for the factory lower control arms, adding strength where the IFS 100 Series is known to need it once it is lifted and loaded. Choose your engine, a shock series and the rear spring rate that matches your load.
Choose Your Shock

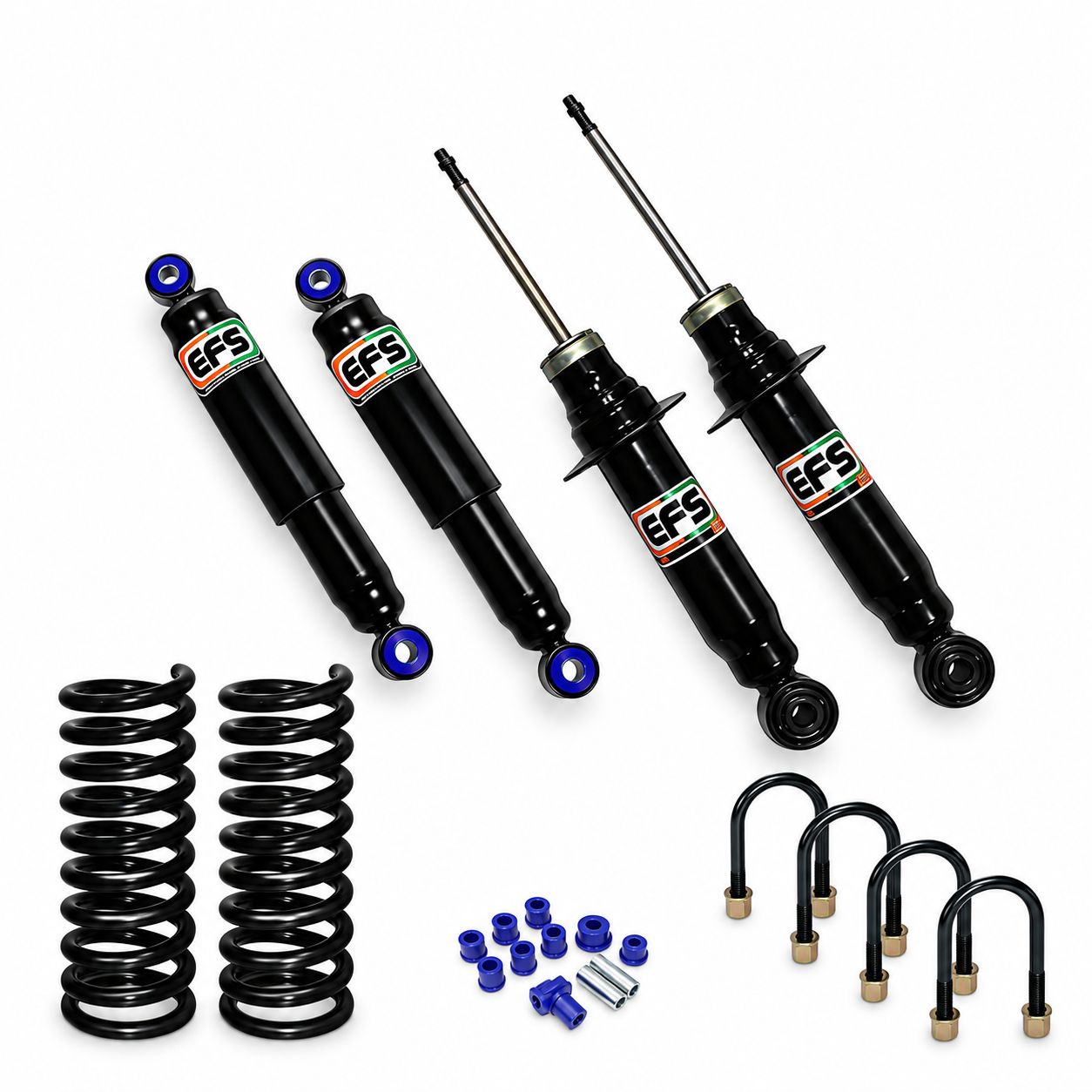

Elite
The everyday choice for a 100 Series used for family touring and weekend trips. Elite shocks keep the big wagon settled on sealed roads while handling gravel and fire trails with ease.
- 35mm bore twin-tube design
- Hardened chrome piston rod
- Valving matched to the heavy-duty torsion bars and raised rear coils

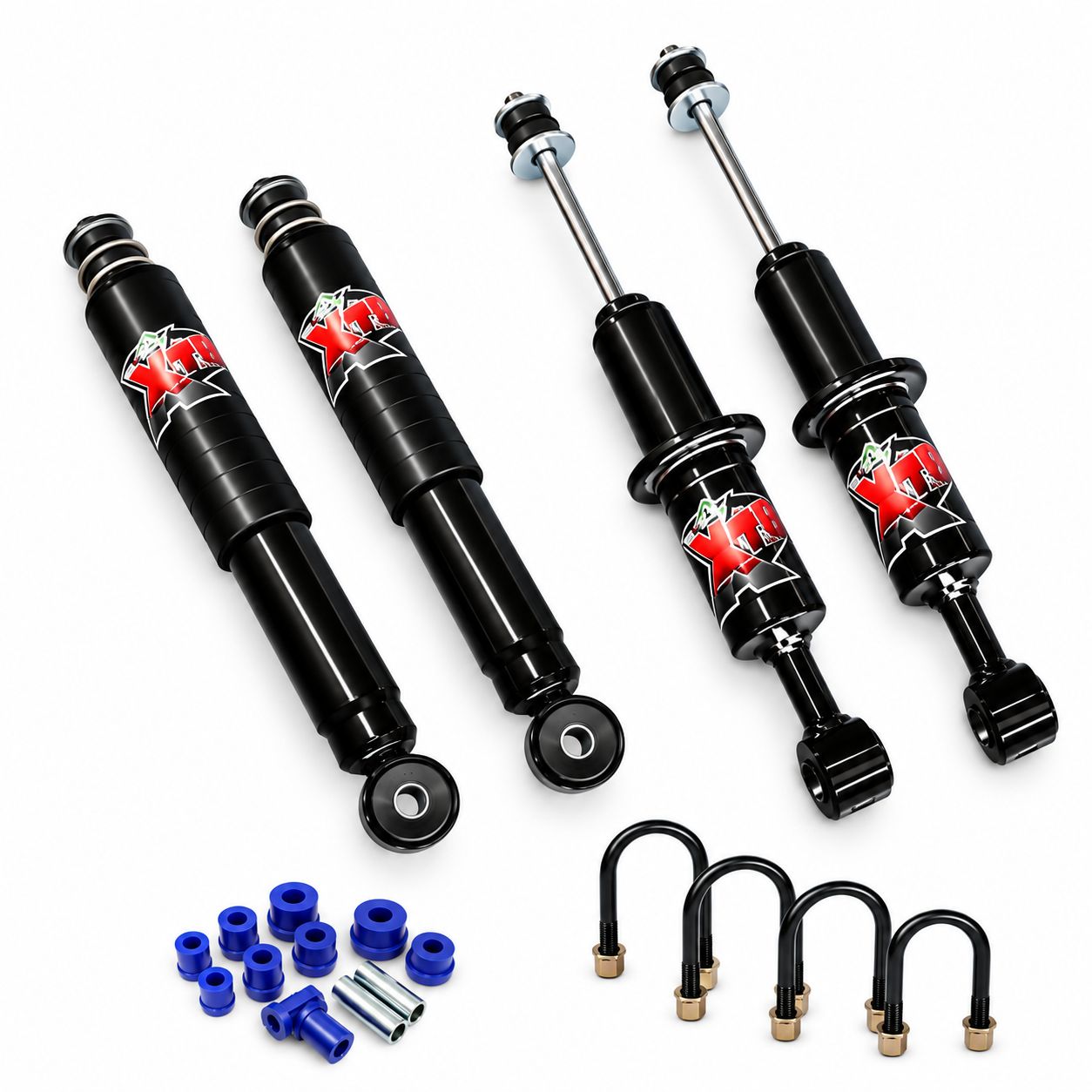

XTR
The upgrade for owners who head bush often, tow a van or carry a heavy rear load. The larger body holds more oil and resists fade on long rough stretches.
- 40mm bore twin-tube design
- Greater oil capacity than the Elite
- Firmer control for towing and extended touring
Engine Type
Select V8 petrol or turbo diesel so the kit is supplied to suit your 100 Series. Pricing is the same for both engines.
Rear Load Options
- 0-150kgs: light everyday loads and general family use. Rated for up to around 200kg in the cargo area.
- 300kgs: a constant touring load such as drawers, a fridge, water, a rear bar with spare wheel carrier or towing.
What's Included
- 2 x EFS front shock absorbers (Elite or XTR)
- Heavy-duty front torsion bars
- Front lower control arm reinforcement bracket
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear coil springs, rated to your selected rear load
Fitment
- Toyota LandCruiser 100 Series wagon with independent front suspension (IFS), 1998 to 2007
- V8 petrol and turbo diesel models
- Not suitable for the solid front axle 105 Series
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
