EFS Lift Kit for RAM 1500 DT (2020+)
Calculate Your Vehicle Weight
Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The RAM 1500 DT rides on coil springs at both ends, which makes it smooth on the highway but quick to sag when a heavy tonneau, gear or a towball load is added. This EFS kit raises the DT by about 50mm and replaces the coils and shocks front and rear with a matched set.
Choose a shock series, then pick front and rear coil rates to suit the weight your RAM carries.
Choose Your Shock

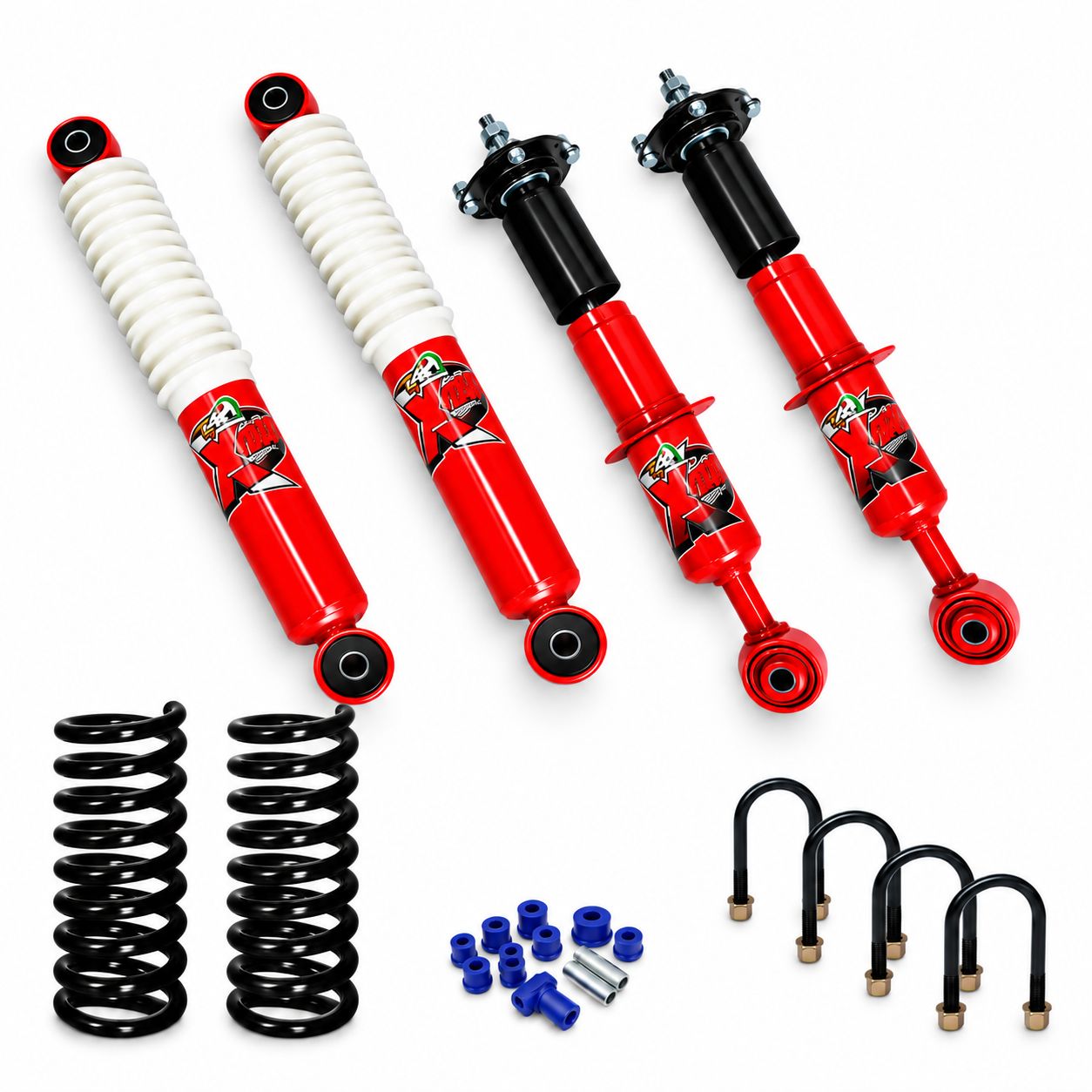

Xtreme
A robust twin-tube shock for a full-size pickup that tows and carries weight. Front struts come pre-assembled.
- 45mm bore twin-tube design
- Largest twin-tube body in the EFS range
- Pre-assembled front struts

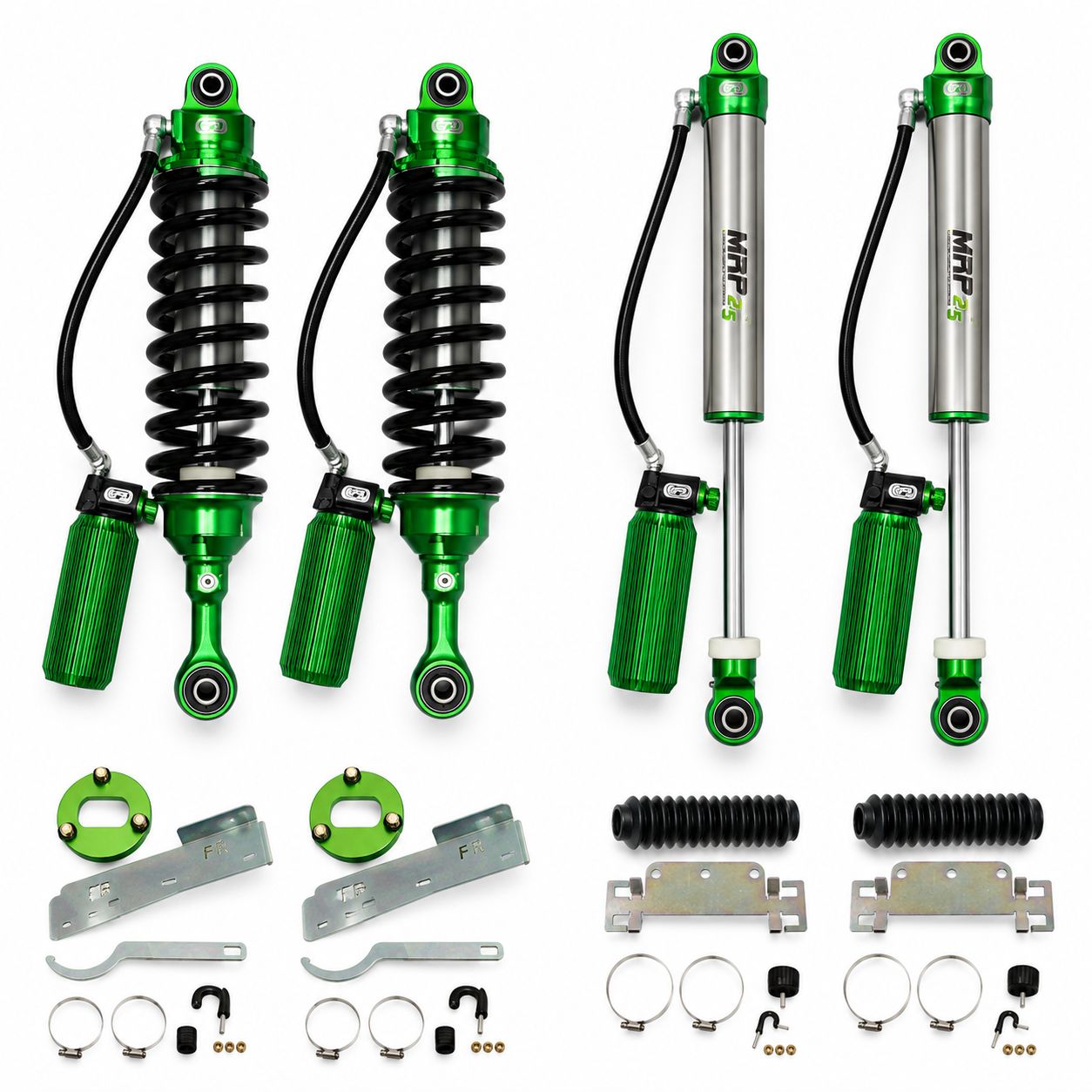

MRP
The adjustable remote-reservoir option, letting you set the ride for highway comfort or off-road control.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: the factory front end with no heavy accessories.
- 50-100kgs: a constant-load front coil for a bar, winch or heavier lighting.
Rear Load Options
- 0-150kgs: a comfort-rated rear coil for light everyday use.
- 500kgs: a constant-load rear coil for heavy loads and regular towing. Rated for a constant 500kg.
What's Included
- 2 x EFS front struts or shocks (Xtreme or MRP) with front coil springs rated to your selected front load
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x rear coil springs, rated to your selected rear load
Fitment
- RAM 1500 DT, 2020 onwards
- 3.0L diesel and 5.7L V8 petrol models
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Need help choosing the right lift kit?
Our team can help you find the right setup for your vehicle, with expert fitment advice and a personalised quote based on your vehicle, accessories and requirements.
Complete our Weight Calculator & Quote Request form with your vehicle details and the products you're interested in, and one of our team will be in touch to help you with the best option for your setup.
