EFS Lift Kit for Holden Colorado RG (2012 - 2020)
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The RG Colorado brought more power and towing ability to Holden's ute line-up, and owners make the most of it with bullbars, canopies and big touring setups. The factory springs were never meant for that weight, so the rear squats and the ride becomes jittery on rough roads. This EFS kit lifts the RG Colorado by about 45mm and lets you choose spring rates that suit your load.
Front struts are supplied pre-assembled on new strut plates, and the rear gets matched shocks, raised leaf packs and greasable shackles and pins.
Choose Your Shock
Elite
A comfortable everyday option for a Colorado that works through the week and heads off-road on weekends.
- 35mm bore twin-tube design
- Hardened chrome piston rod
- Comfort-focused valving
XTR
Designed for outback touring. The larger shock body holds more oil and resists fade on long corrugated roads.
- 40mm bore twin-tube design
- More oil capacity than the Elite
- Steady control when towing or loaded
Xtreme
For a Colorado that carries heavy accessories all the time and spends real time on rough tracks.
- 45mm bore twin-tube design
- Largest twin-tube shock in the EFS range
- Built for constant heavy loads

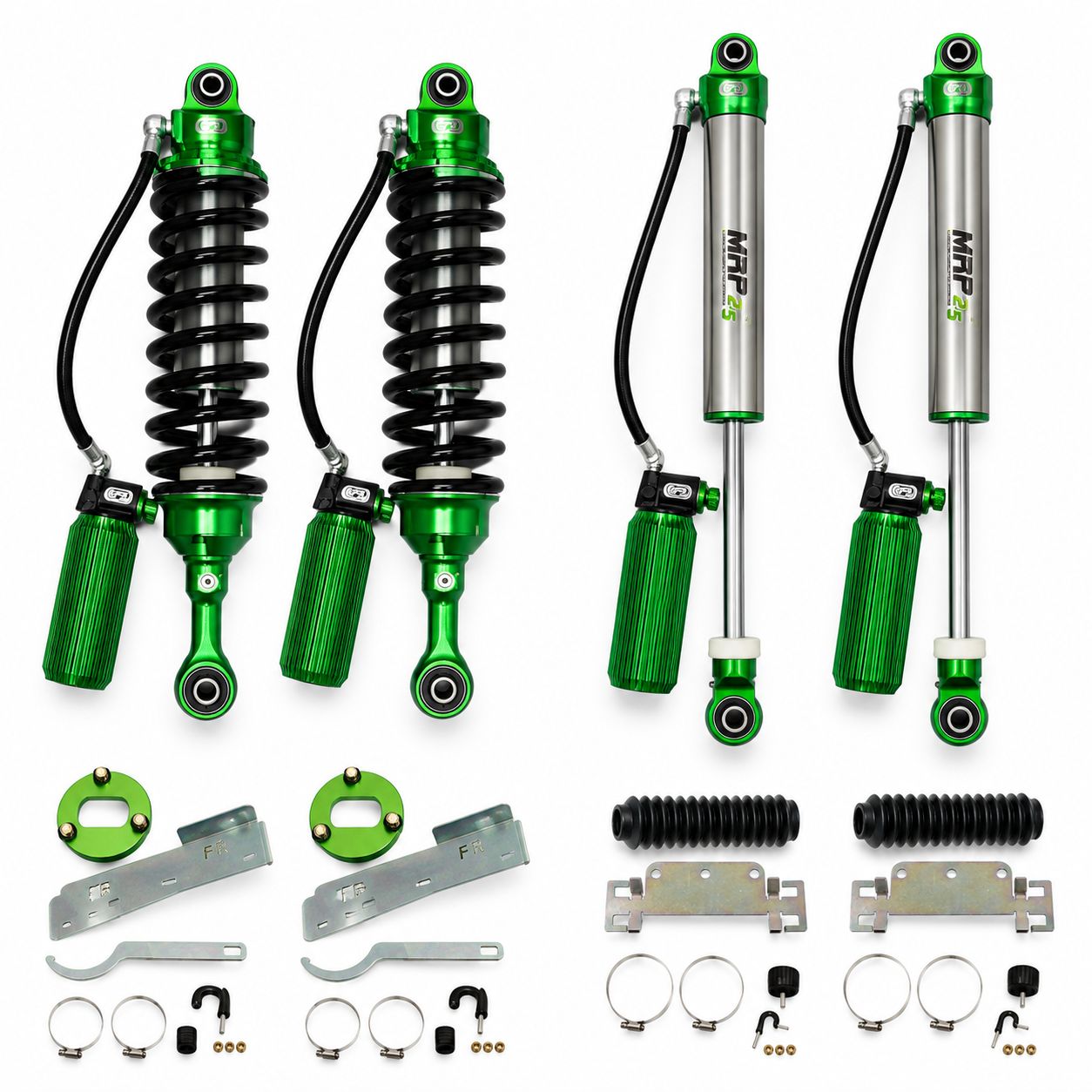

MRP
The adjustable remote-reservoir system for owners who want to fine-tune their ride for touring or hard off-road driving.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: factory bumper or very light accessories.
- 50-100kgs: an alloy bar, light steel bar or driving lights.
- 100-150kgs: a full steel bullbar or bar and winch, rated for around 120kg up front.
Rear Load Options
- 0-150kgs: an empty tub or light everyday gear.
- 300kgs: a canopy, fridge, water and touring equipment.
- 500kgs: heavy constant loads such as drawers, a service body or a slide-on camper.

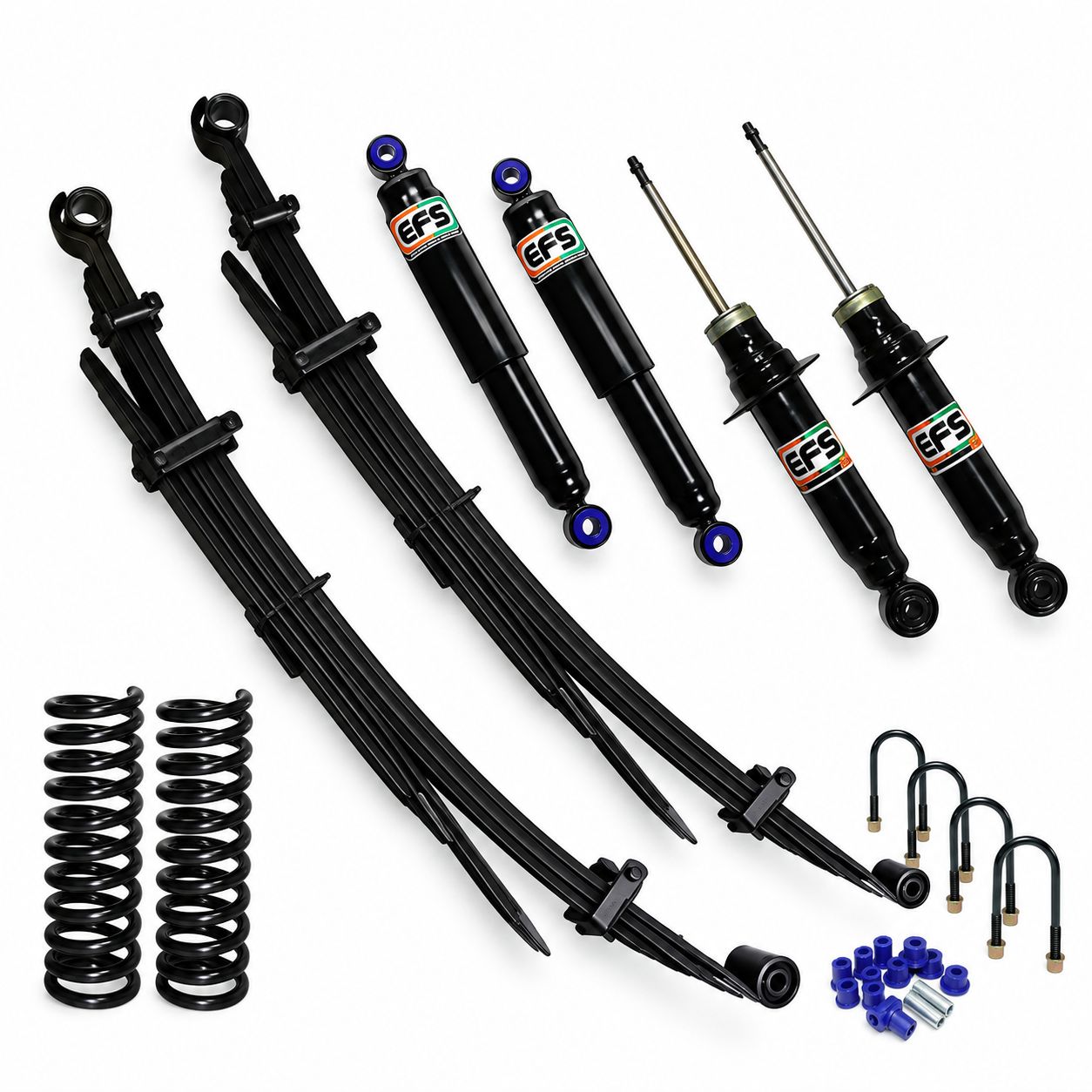

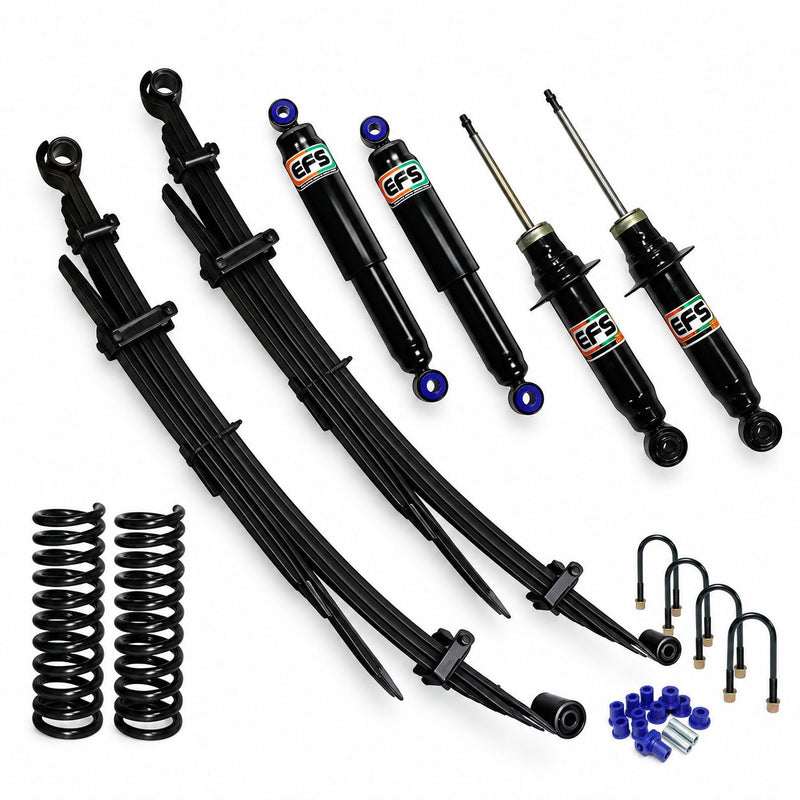

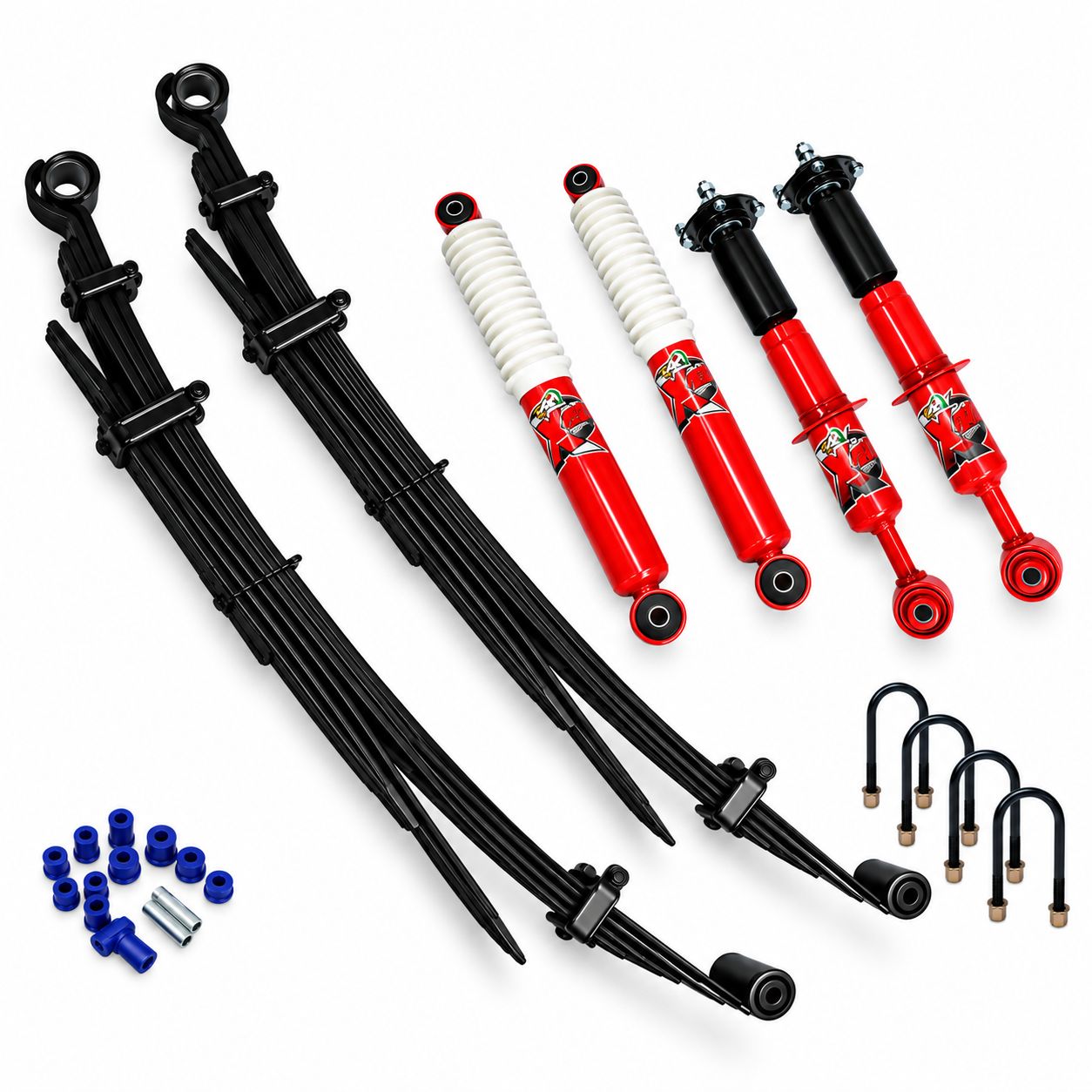

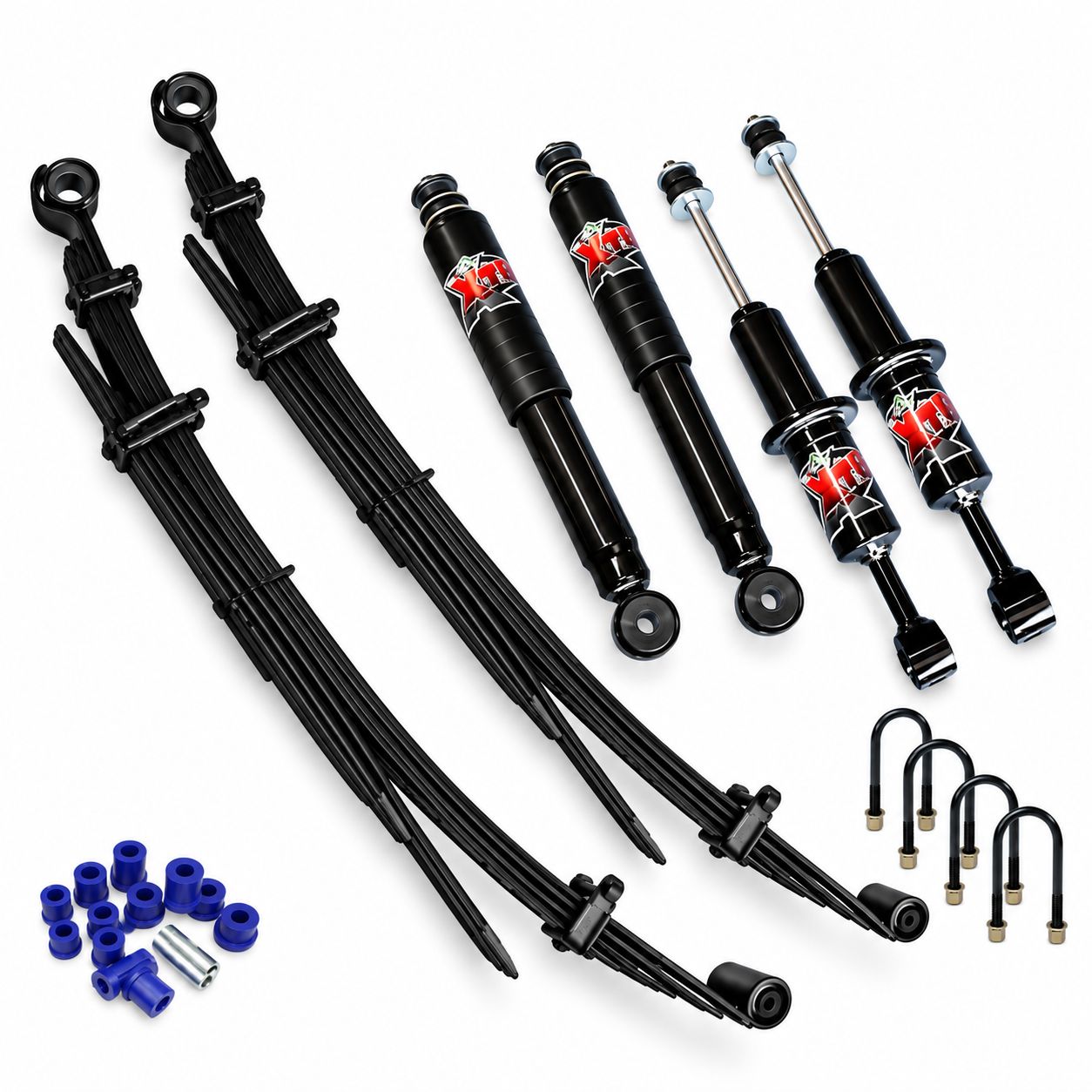

What's Included
- 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs and new strut plates
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
- Rear greasable shackles and greasable fixed pins
Fitment
- Holden Colorado RG 4WD, June 2012 to 2020
- Single cab, space cab and crew cab models
- Not suitable for 2WD models or the earlier RC Colorado
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
