EFS Lift Kit for Ford Ranger Next Gen RA (2022+)

2 sold in last 8 days
EFS
EFS-RNGNG-ELT-F050-R150
$5,120.00 $2,326.00
Shock Type :
Front Load :
Rear Load :
$2,326.00

Calculate Your Vehicle Weight

Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.

Not sure which weight rating you need?

The accessories fitted to the front of your vehicle and the constant load carried in the rear can affect which lift kit setup is best suited to your vehicle.

Our Lift Kit Weight Calculator lets you select your front accessories and rear constant load to estimate your Front & Rear Weight Rating. You can then use this information to help choose the most suitable lift kit option.

Use our Lift Kit Weight Calculator →

*Weights and ranges provided are a rough guide only, as individual vehicle setups can vary.

Lift Kits

Due to the weight of the lift kits they are shipped on a pallet. They require commercial address with forklift for delivery.
Please contact our team via online chat if you require delivery to a residential address or pick up from a freight depot.

Checkout securely with

payment options
Online payments and cash on pick up available.
customers are viewing this product

  • Description
  • Get A Quote
  • 🛡️ Fitment Advice
  • Description

    • The Next Gen Ranger is bigger, stronger and more capable than any Ranger before it, and owners are quick to load it up with bars, canopies and touring gear. That extra weight pushes the factory springs past their comfort zone. This EFS kit lifts the Next Gen Ranger by roughly 50mm and pairs it with spring rates chosen for how you use the ute.

    The front struts are pre-assembled, and the rear includes raised leaf packs, a bump stop strike plate and greasable shackles and pins for a complete rear setup.

    Choose Your Shock

    Elite

    The everyday option for a Ranger that commutes during the week and heads to the bush on weekends.

    • 35mm bore twin-tube design
    • Hardened chrome piston rod
    • Pre-assembled front struts

    XTR

    A tougher shock for regular touring and towing, with more oil to keep damping steady on long rough stretches.

    • 40mm bore twin-tube design
    • Greater oil capacity than the Elite
    • Pre-assembled front struts

    Xtreme

    For heavily accessorised Rangers that spend serious time off-road.

    • 45mm bore twin-tube design
    • Largest twin-tube body EFS makes
    • Built for heavy constant loads

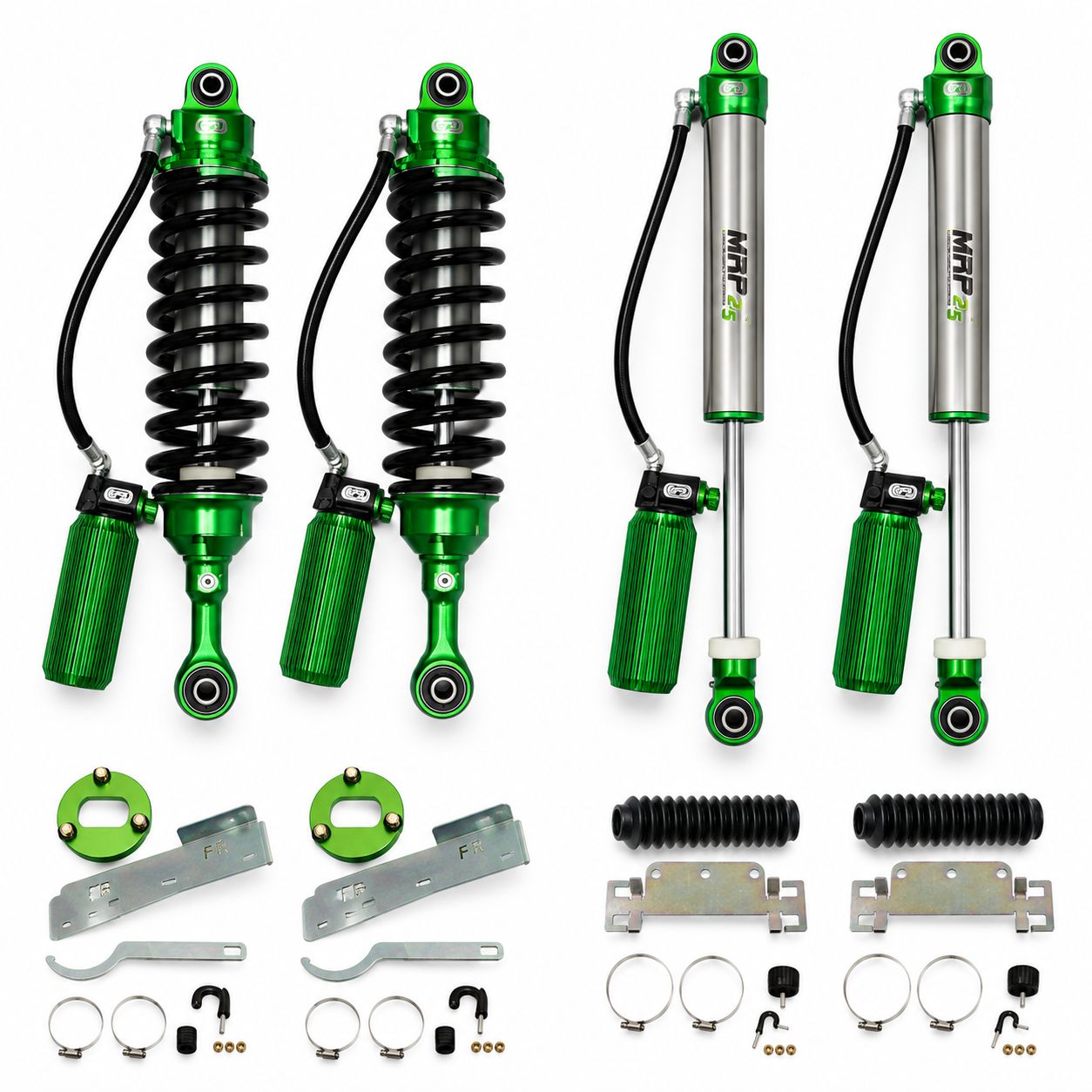

    MRP

    The premium adjustable system with remote reservoirs, letting you tune the Ranger for highway comfort or hard-track control.

    • 2.5" monotube body with finned remote reservoir
    • 24-stage compression adjustment
    • Up to 36-stage rebound adjustment
    • Front supplied as a complete strut and coil assembly

    Front Load Options

    • 0-50kgs: factory bumper or light accessories.
    • 50-100kgs: a constant-load front coil for a bullbar, winch or heavy lights.

    Rear Load Options

    • 0-150kgs: light daily loads and an empty tub.
    • 300kgs: regular touring weight such as a canopy, fridge and camping gear.
    • 500kgs: heavy constant loads like drawers, a service body or a slide-on camper. Rated for a constant 400kg.

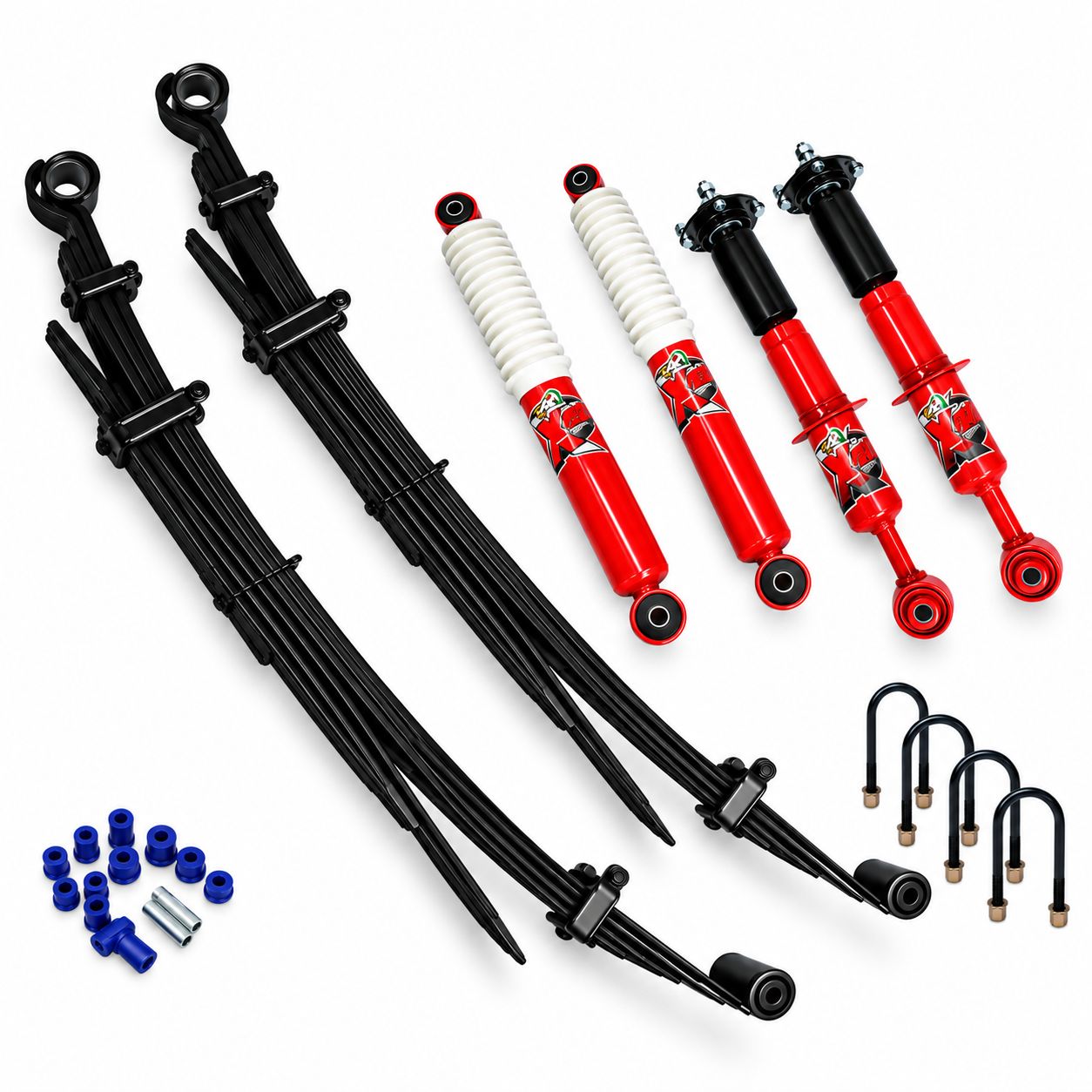

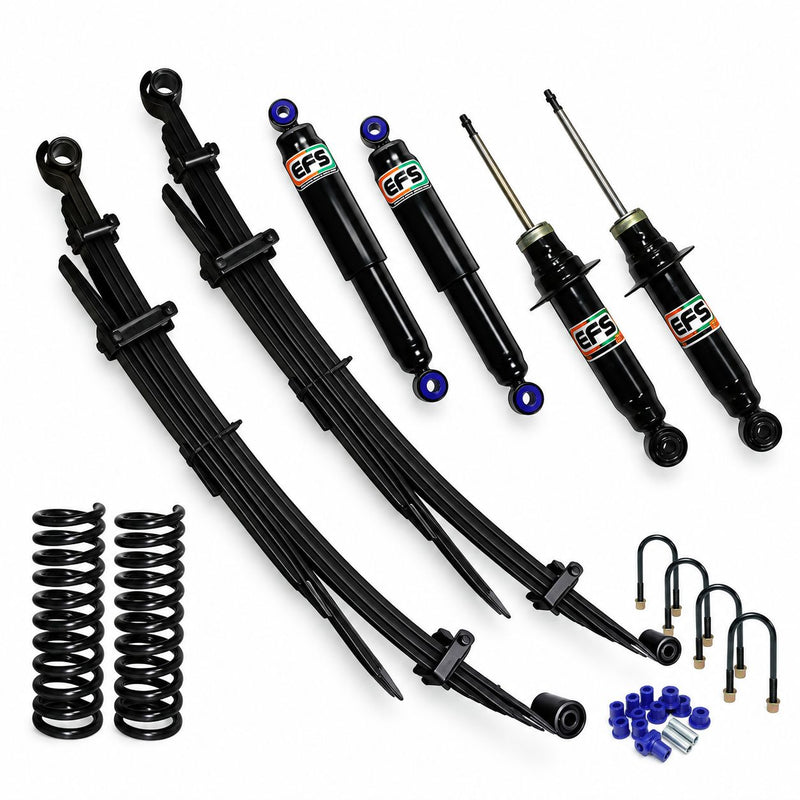

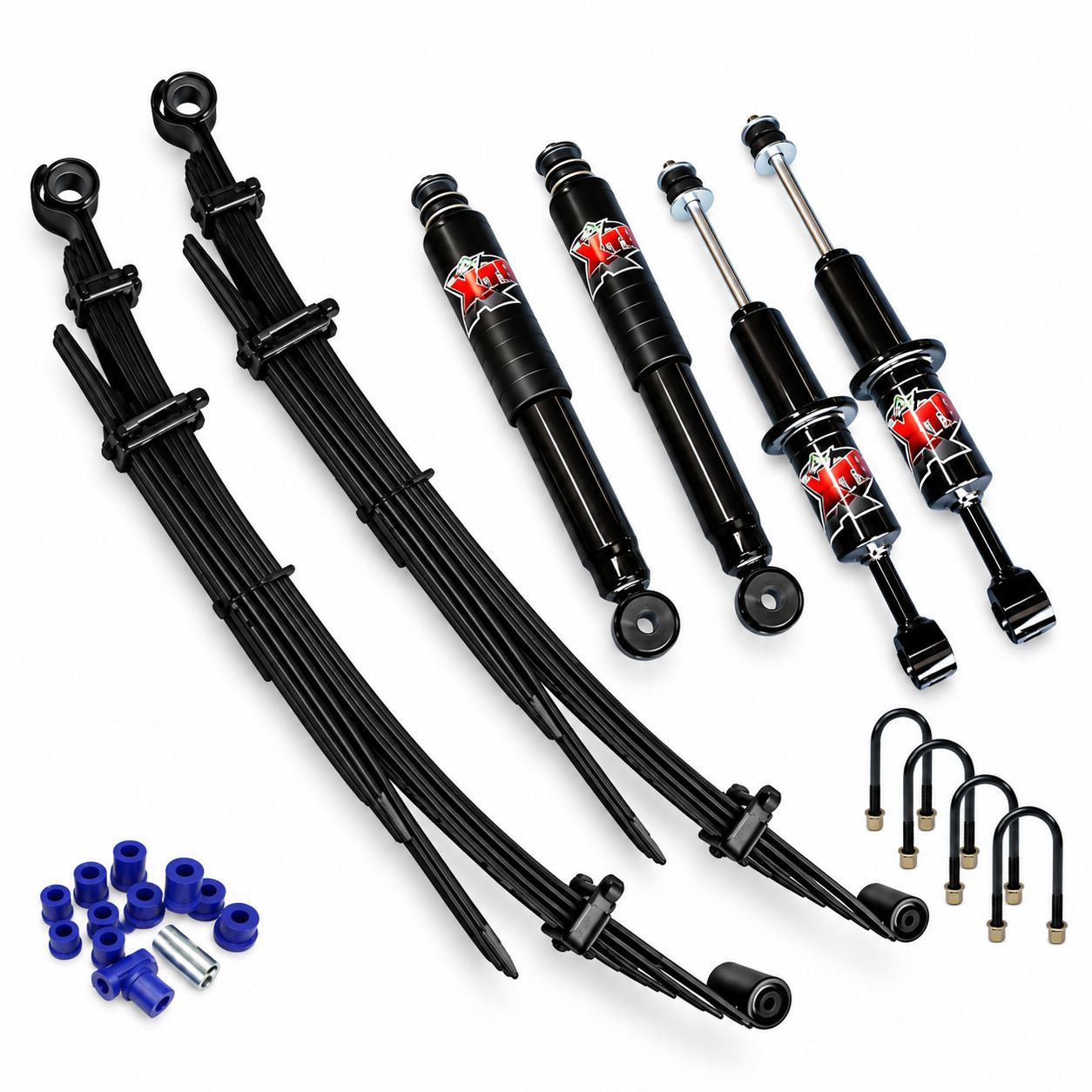

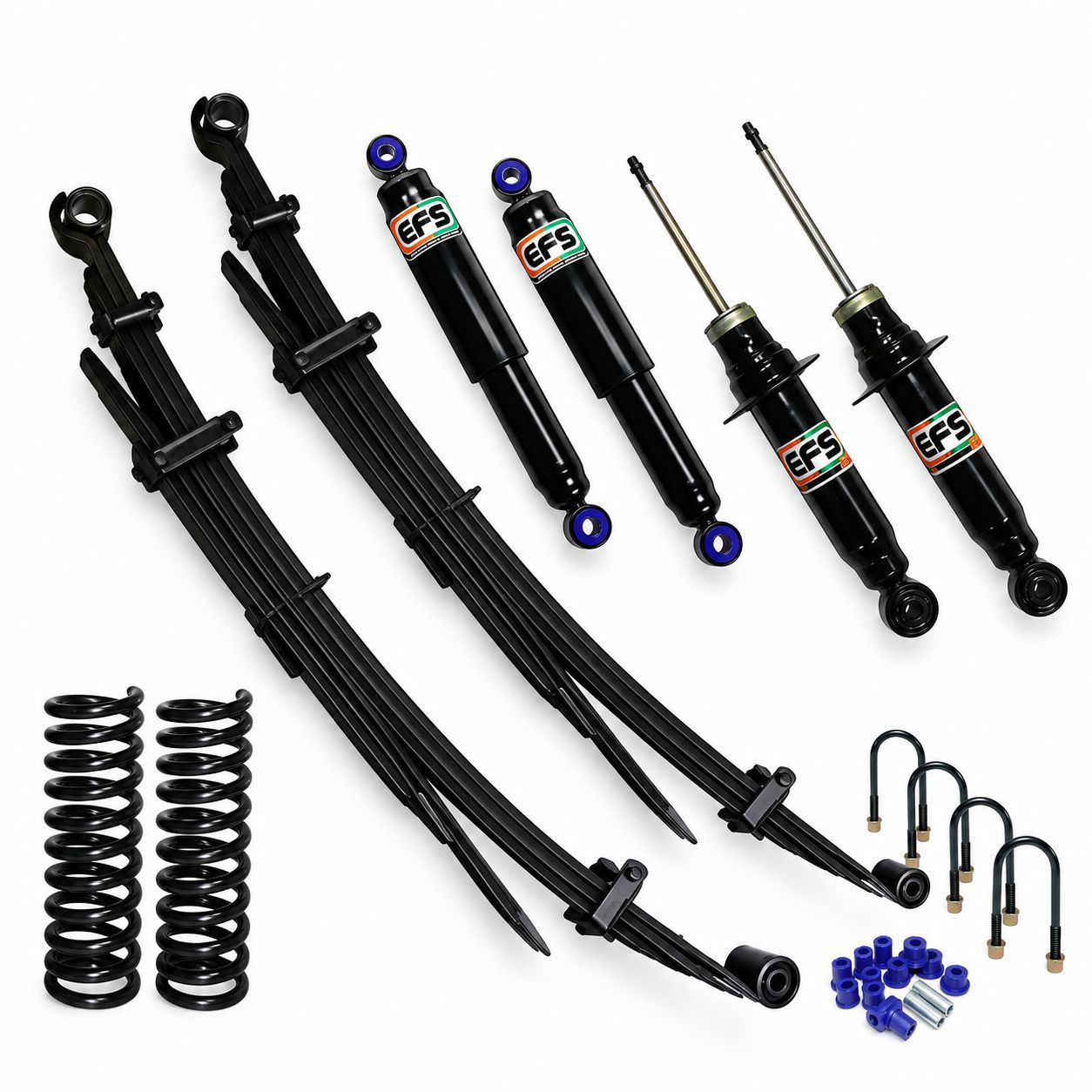

    What's Included

    • 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs
    • 2 x EFS rear shock absorbers to match your chosen series
    • 2 x raised rear leaf spring packs, rated to your selected rear load
    • Rear spring bushes
    • Rear leaf spring bump stop strike plate
    • Rear U-bolts
    • Rear greasable swing shackles and fixed pins

    Fitment

    • Ford Ranger Next Gen RA 4WD, June 2022 onwards
    • Single cab, super cab and double cab models
    • Not suitable for Ranger Raptor, 2WD models or the earlier PX Rangers

    Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.

  • Get A Quote

    • Need help choosing the right lift kit?

    Our team can help you find the right setup for your vehicle, with expert fitment advice and a personalised quote based on your vehicle, accessories and requirements.

    Complete our Weight Calculator & Quote Request form with your vehicle details and the products you're interested in, and one of our team will be in touch to help you with the best option for your setup.

    👉 GET A PERSONALISED QUOTE

  • 🛡️ Fitment Advice
    •
    Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
