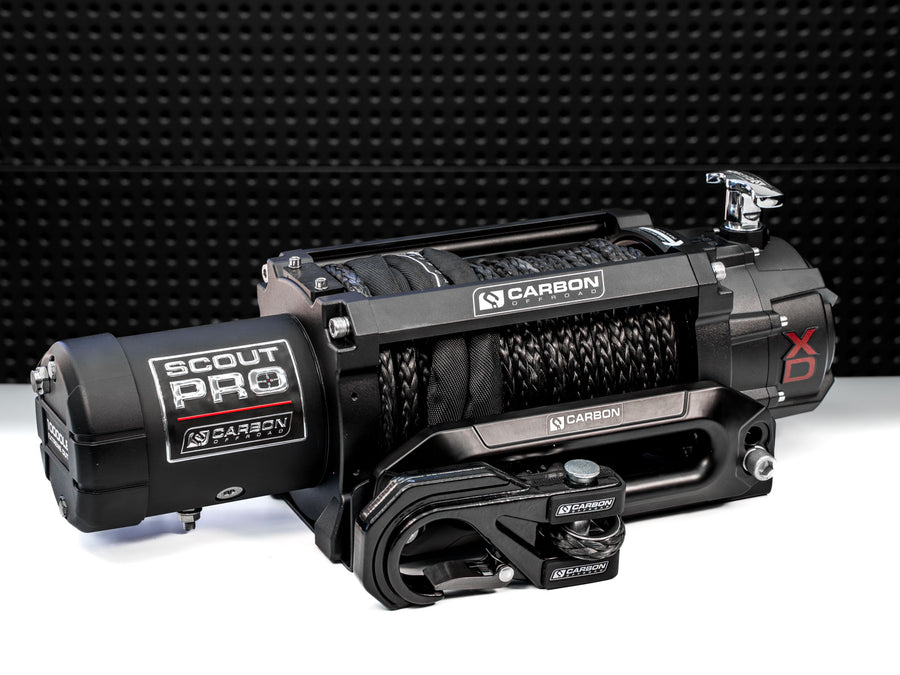

Carbon Scout Pro XD10 10000lb Winch V3 with Mega Pro Hook
- ✅ 10,000lb (4,536kg) single-line pull with 12V 6HP series wound motor
- ✅ Mega Pro Winch Hook included (choose your colour)
- ✅ 3-stage planetary gearbox with 180:1 ratio + automatic brake
- ✅ IP68 water & dust protection for tough Australian conditions
- ✅ 24m × 10mm synthetic rope, MegaPro CNC fairlead, wired + wireless remotes
Checkout securley with
- Description
- 🛠️ Installation
- Delivery
- 🛡️ Fitment Advice
Carbon Scout Pro XD10 10000lb Winch V3 with Mega Pro Hook

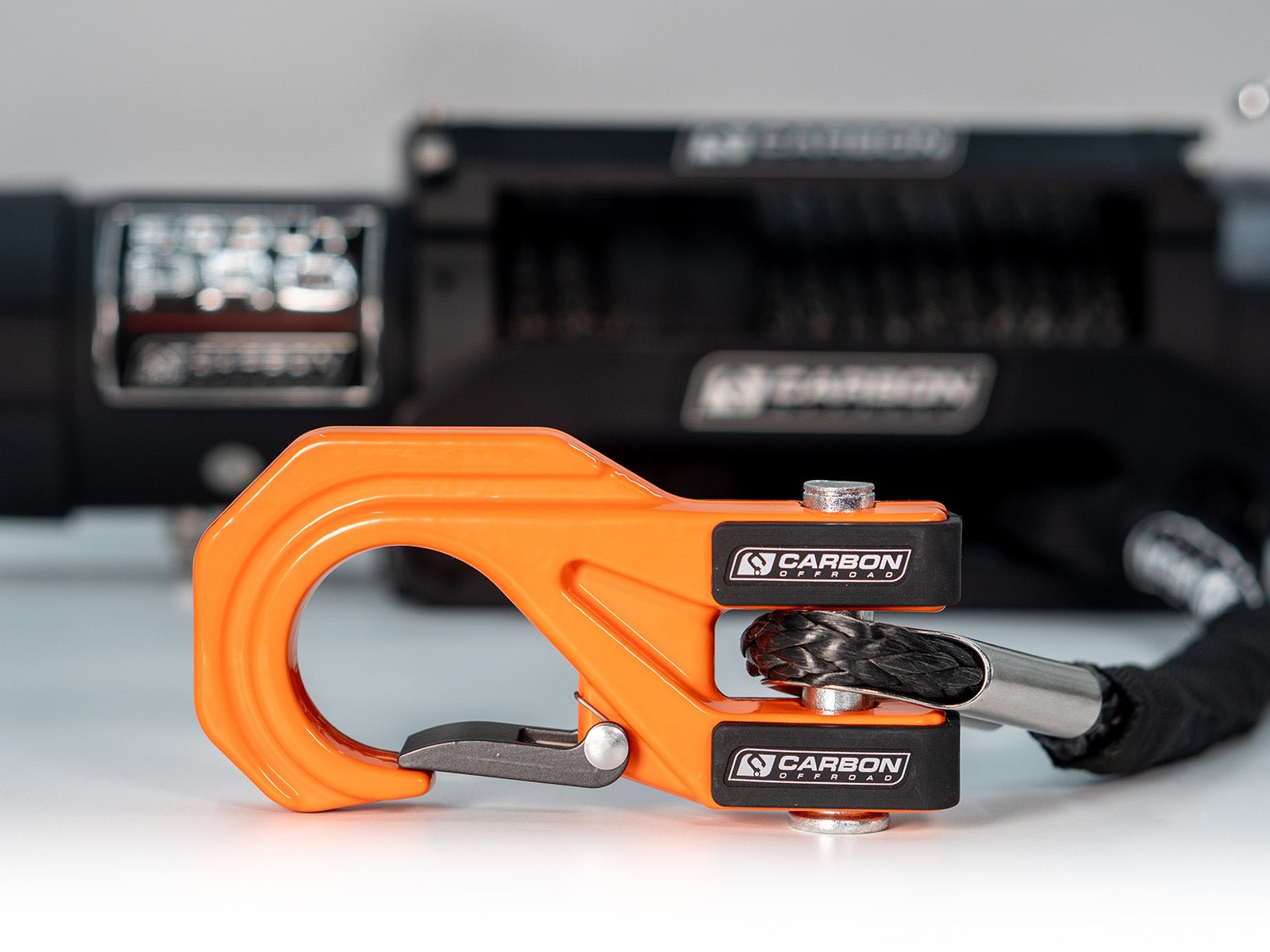

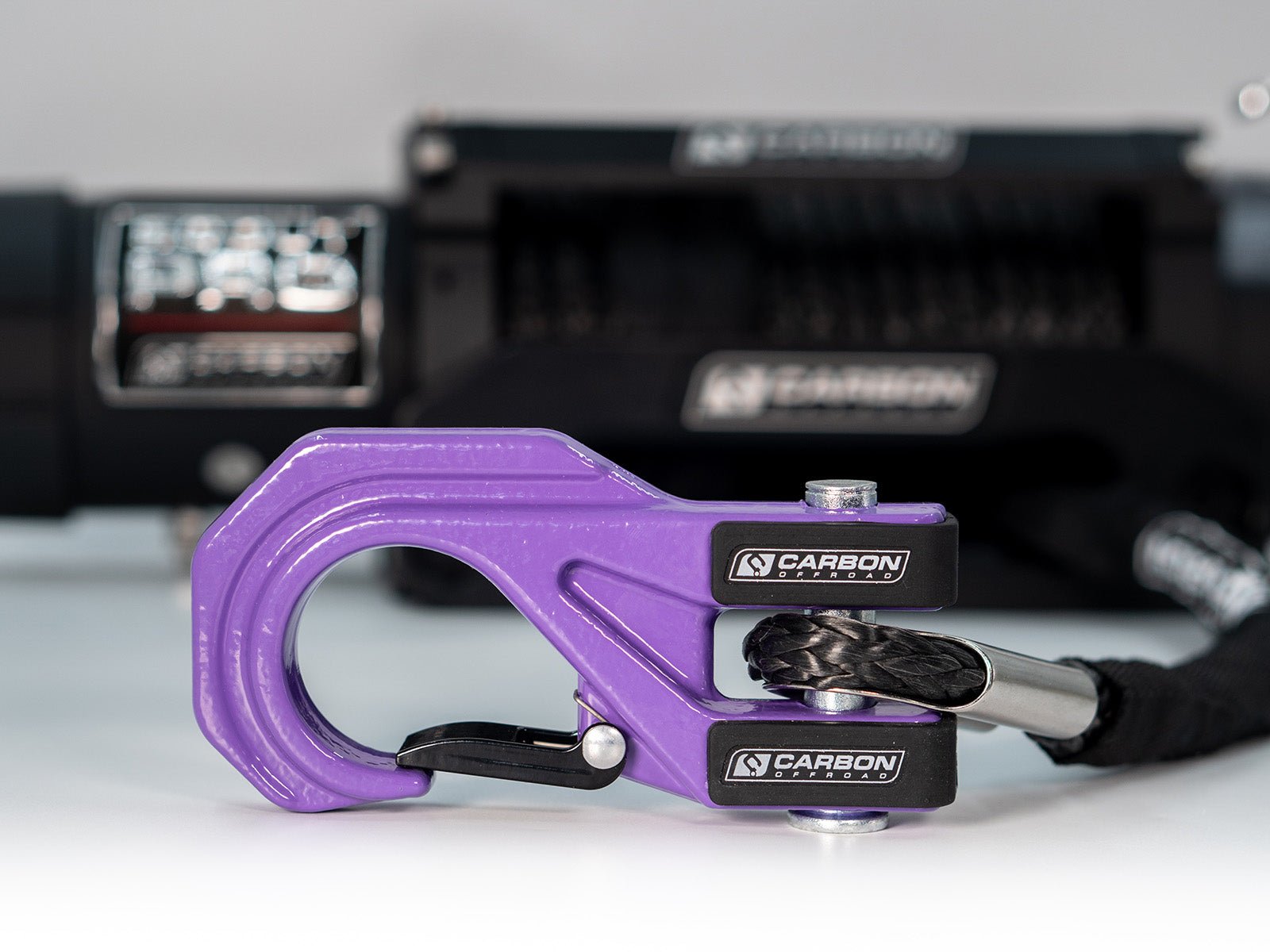

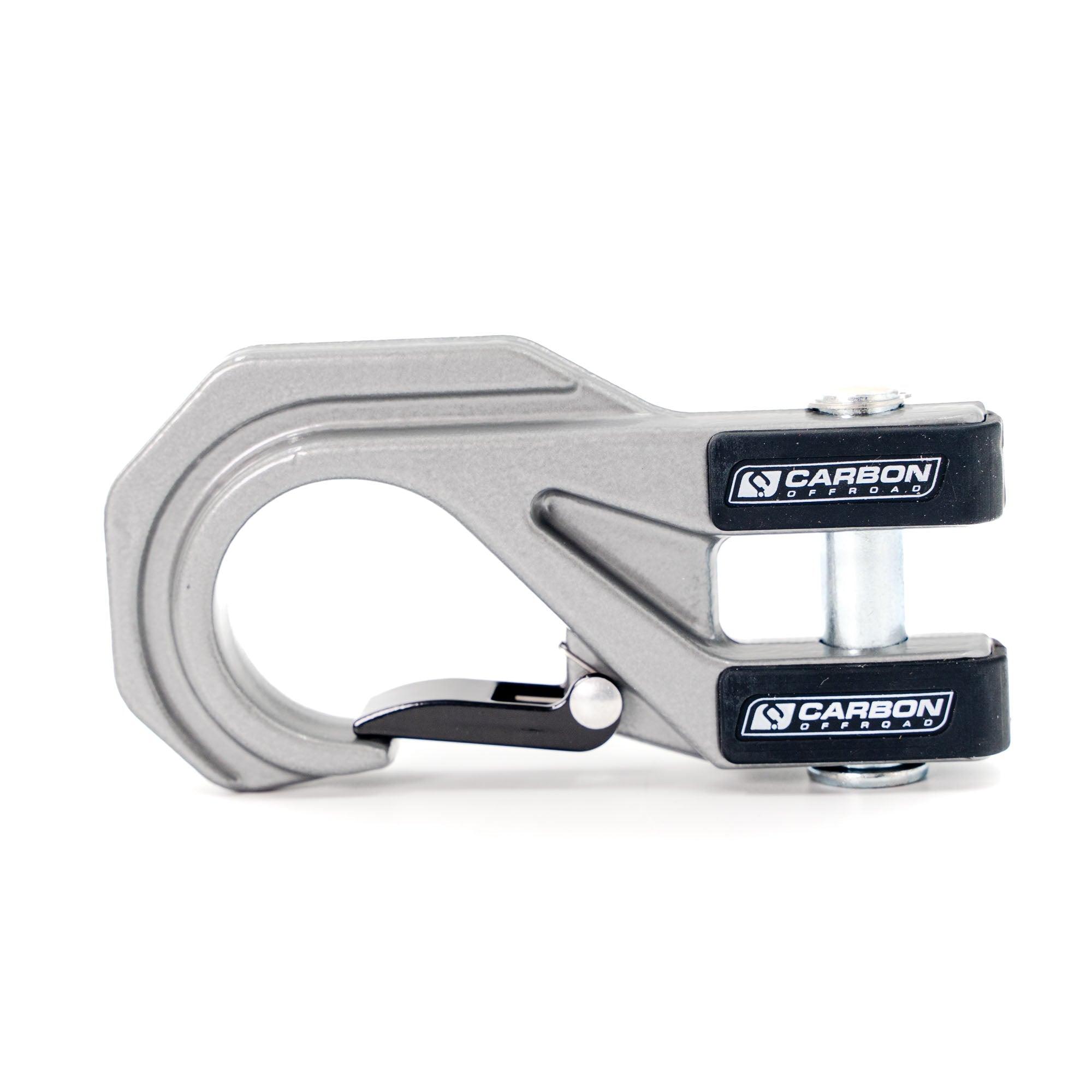

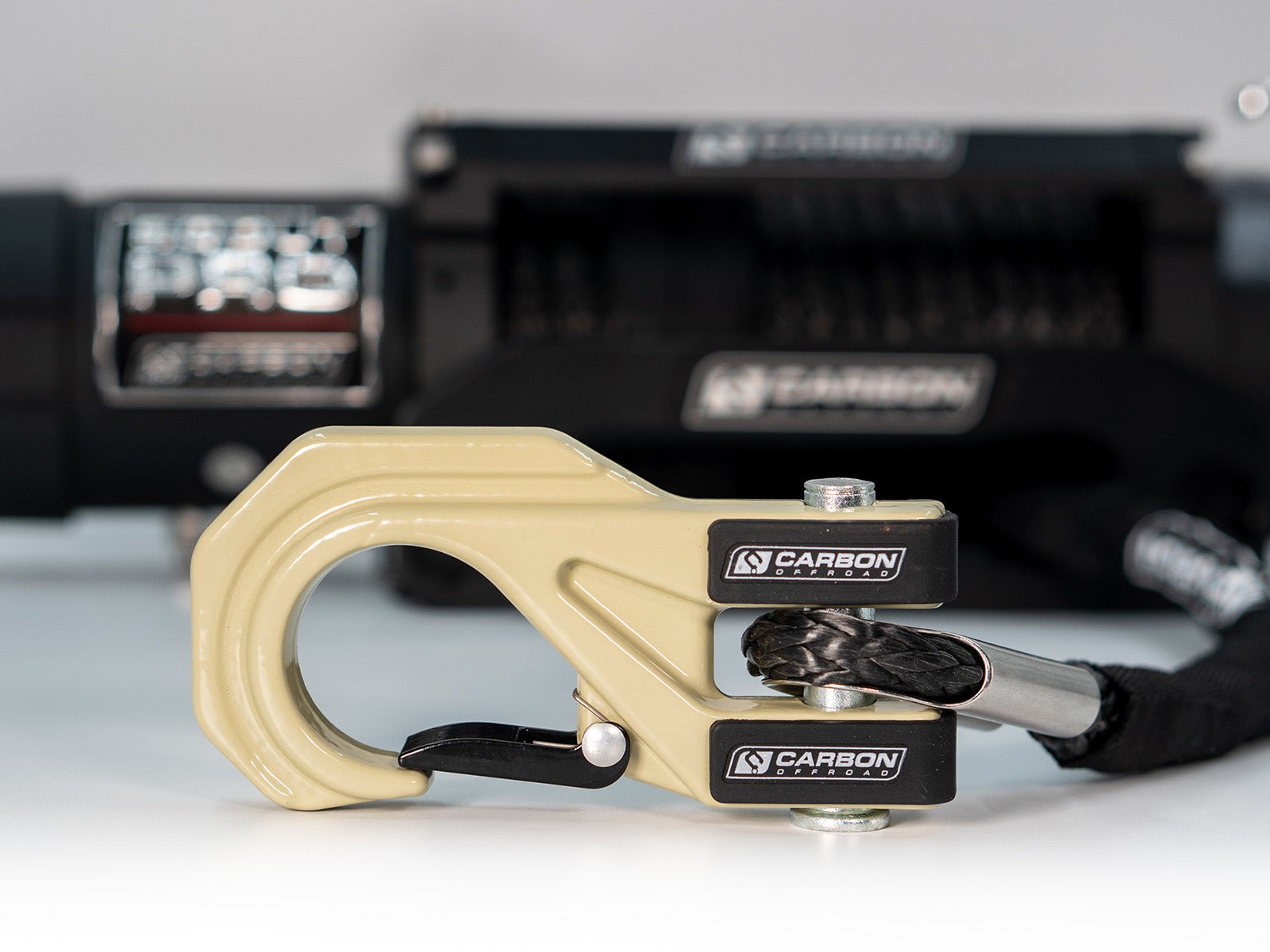

⚠️ Please Note: This package includes the Carbon Offroad Mega Pro Winch Hook (choose your colour) and premium MegaPro hardware.

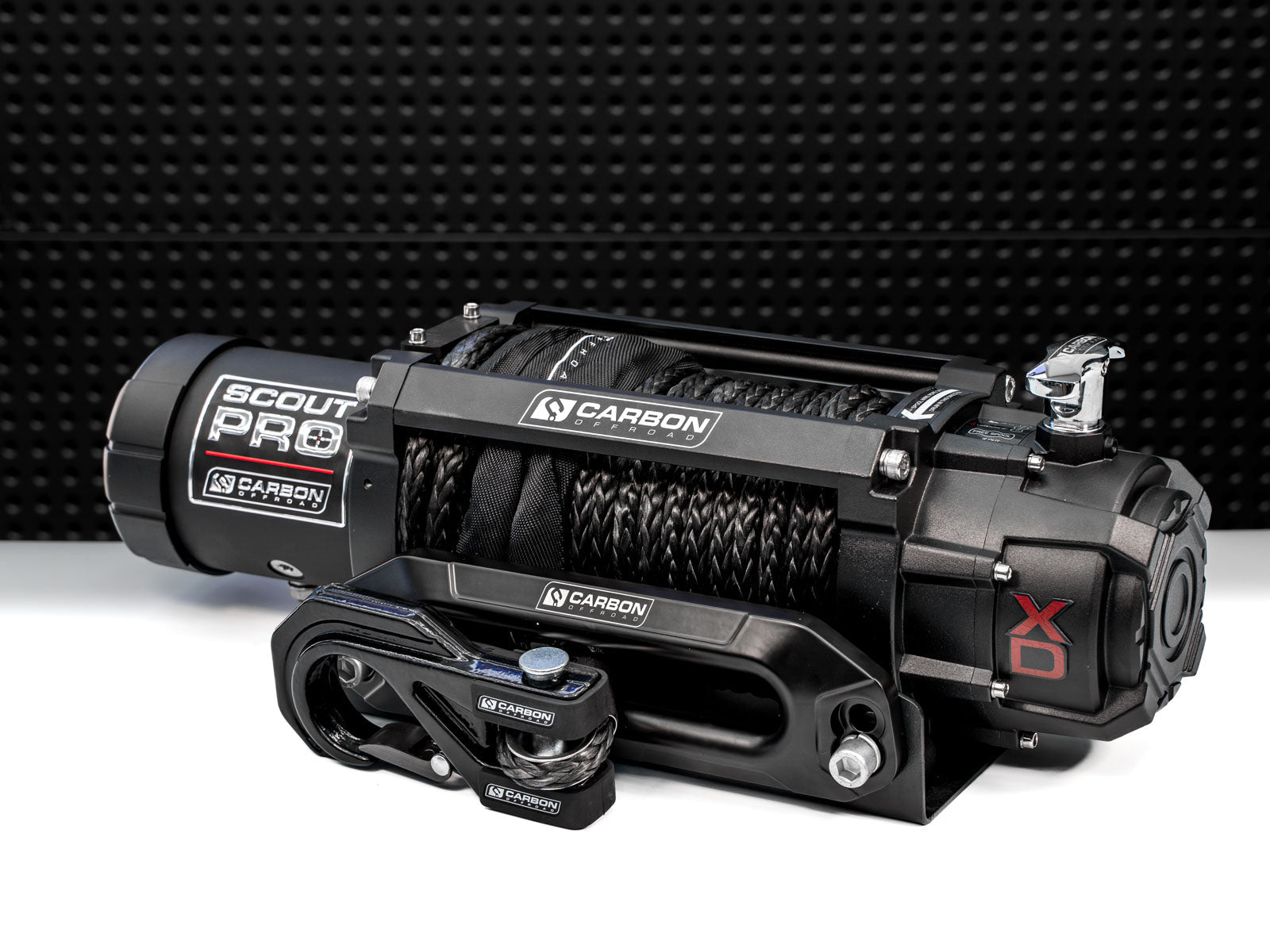

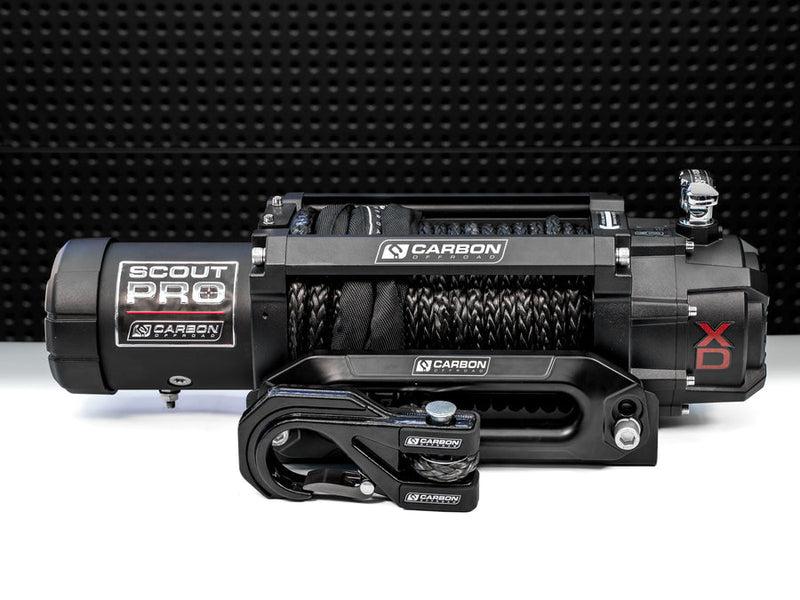

The Carbon Scout Pro XD10 Winch is a compact, 10,000lb-rated winch designed for frequent, heavy-duty off-road use in Australia. Built with oversized gearsets for strength and supplied with premium accessories like the Mega-Pro Rope Thimble and MegaPro fairlead, it’s engineered to keep your vehicle within spec and your warranty intact.
Key Features
- ✔️ Rated line pull: 10,000lb (4,536kg) single-line
- ✔️ Compact build with winch weight 19.0kg (with synthetic rope attached)
- ✔️ Powerful 12V DC 6HP series wound motor (24V option available)
- ✔️ 3-stage planetary geartrain with 180:1 ratio
- ✔️ IP68 waterproof and dustproof protection
- ✔️ Automatic brake in the motor bracket
- ✔️ Wireless remote included + wired remote with 3.7m lead
- ✔️ MegaPro Premium CNC billet fairlead (Type III hard anodised, multi-position)

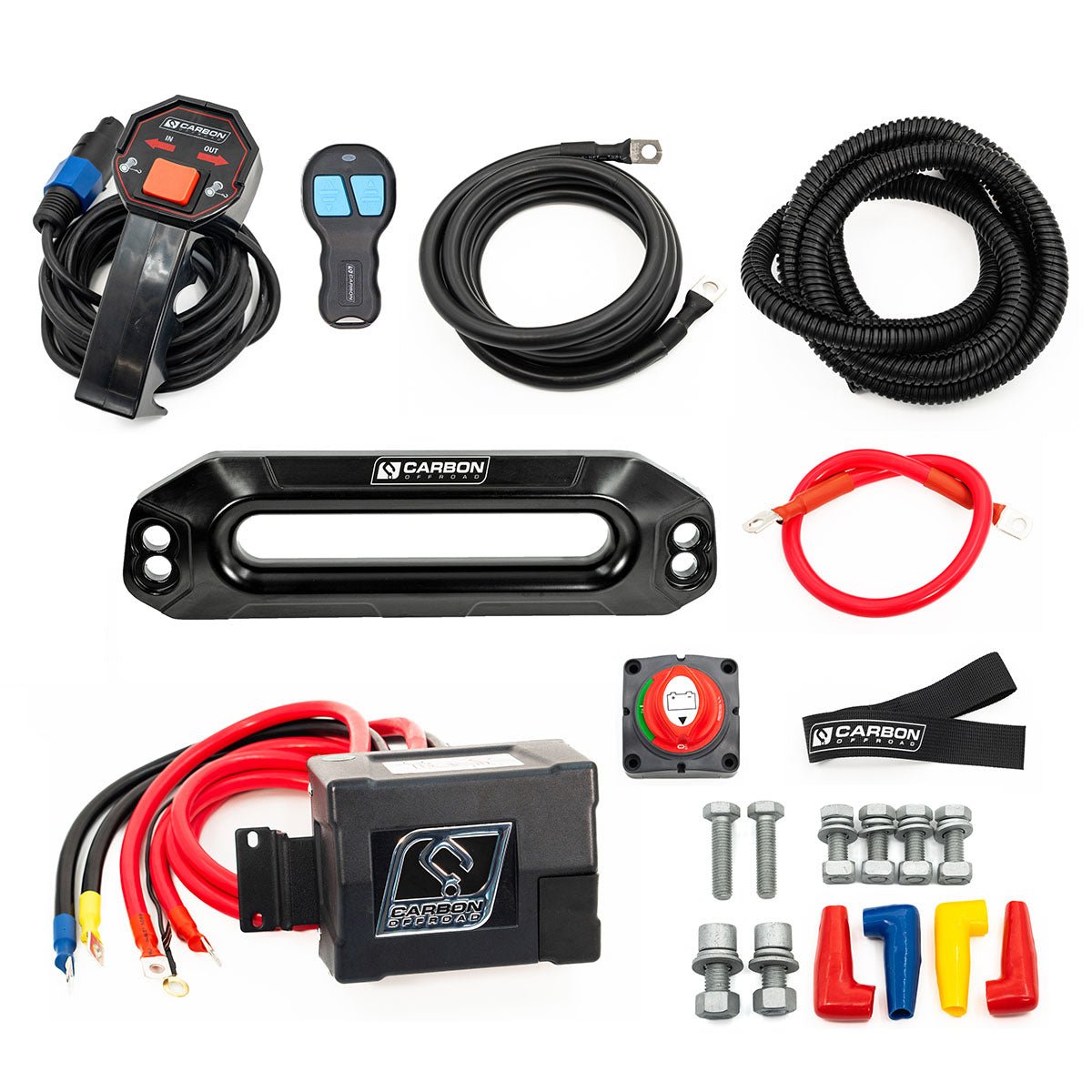

What’s Included (XD10 Package)
- ✔️ Carbon Scout Pro XD10 Winch V3

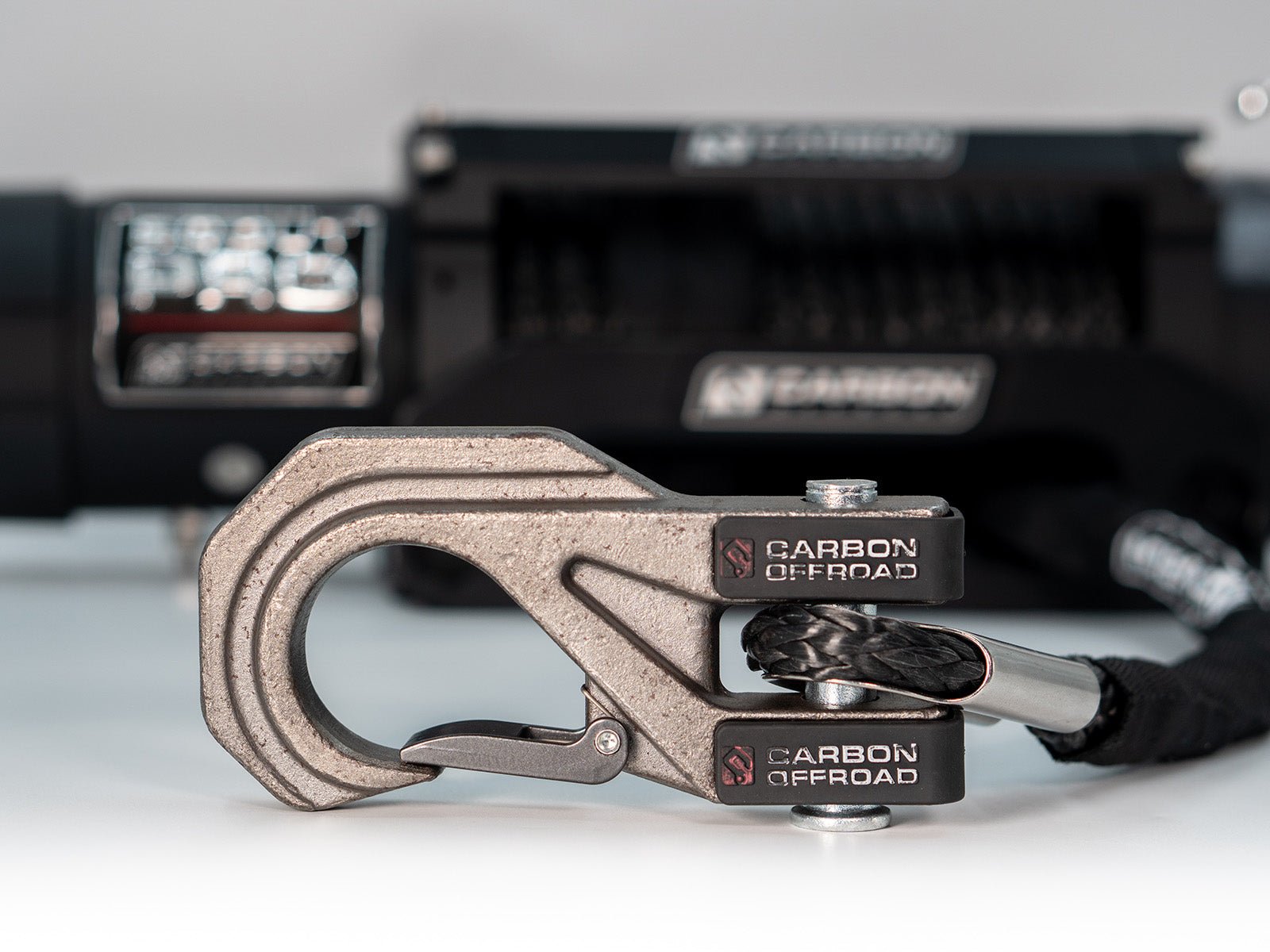

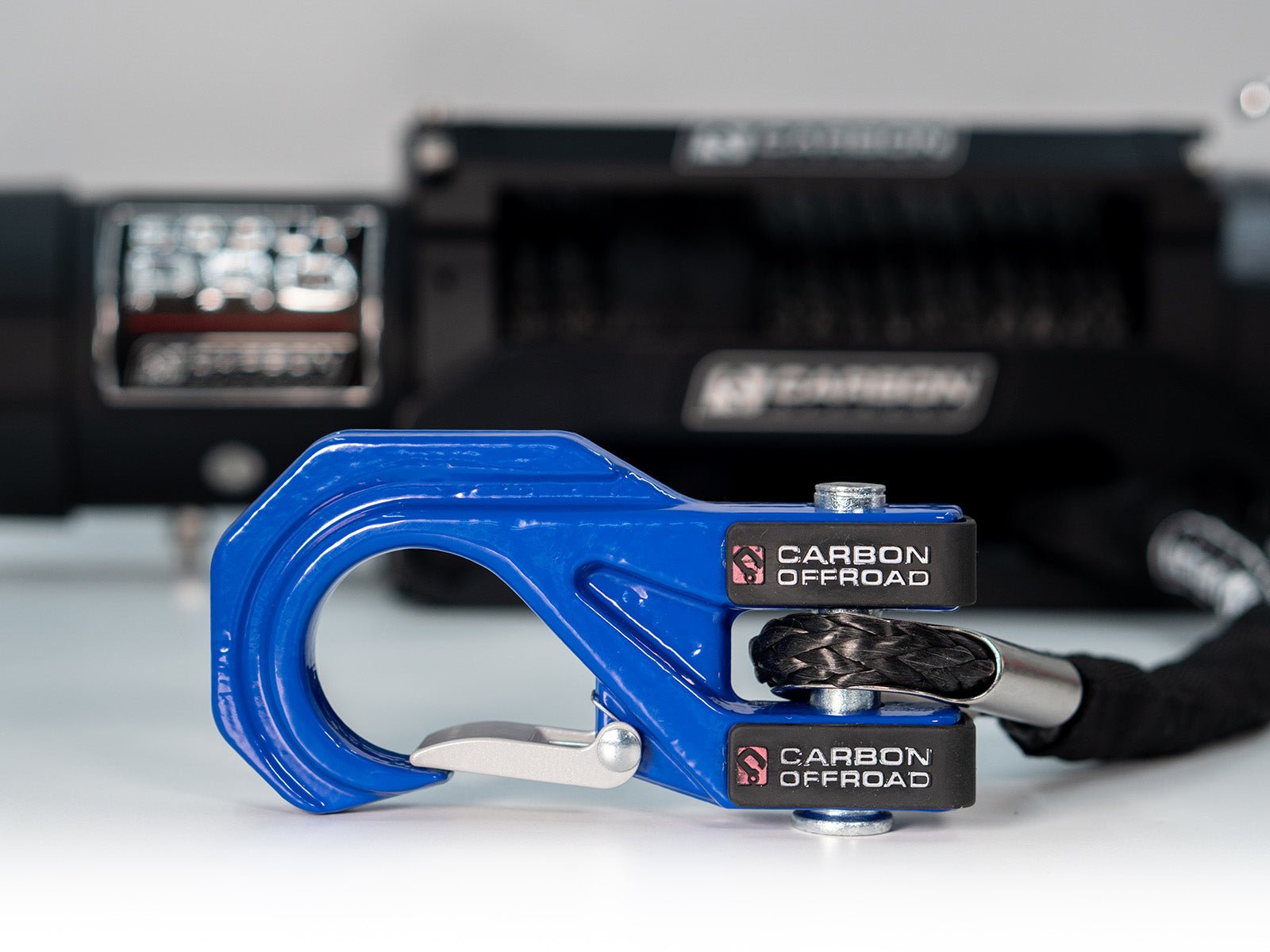

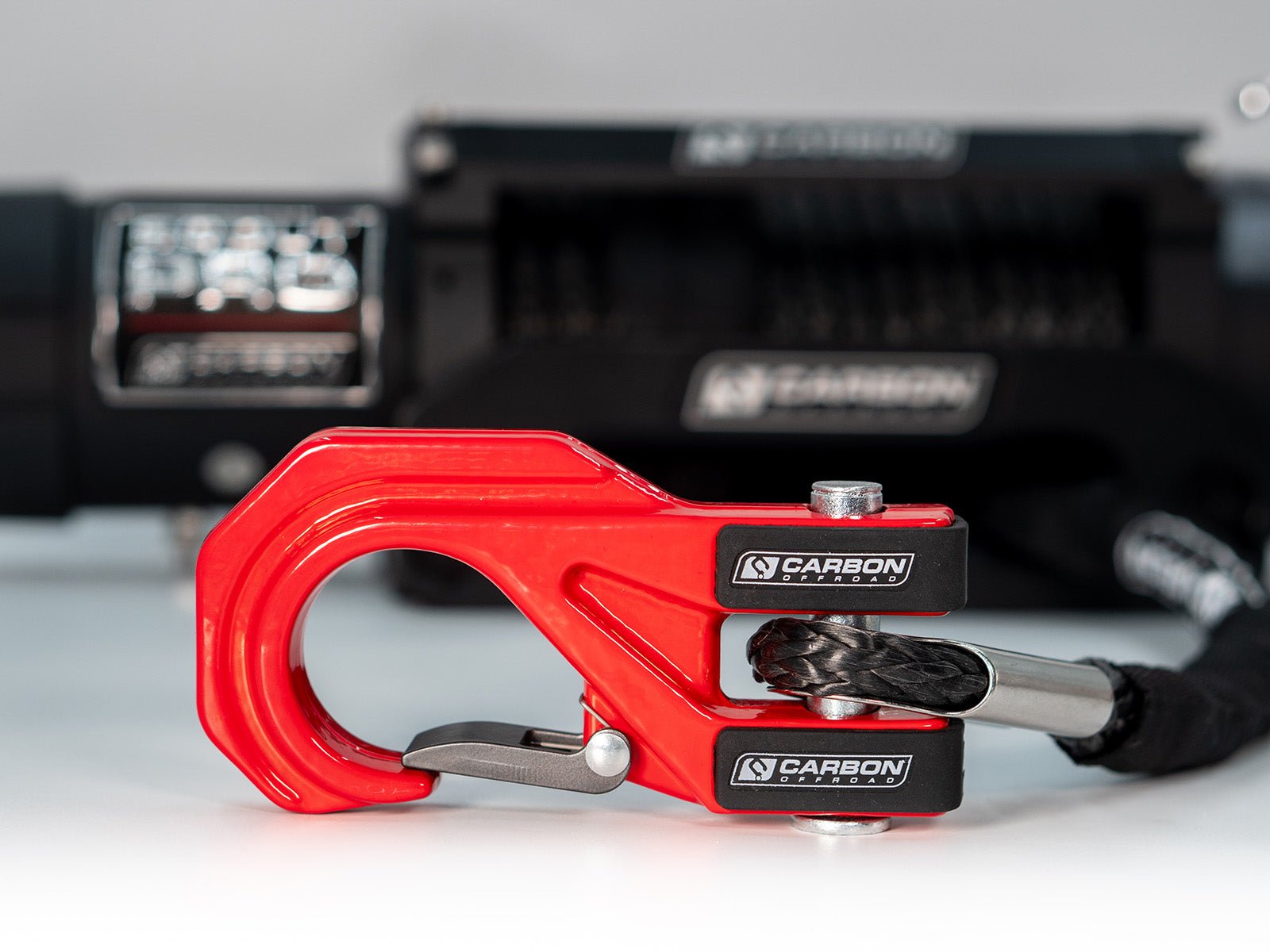

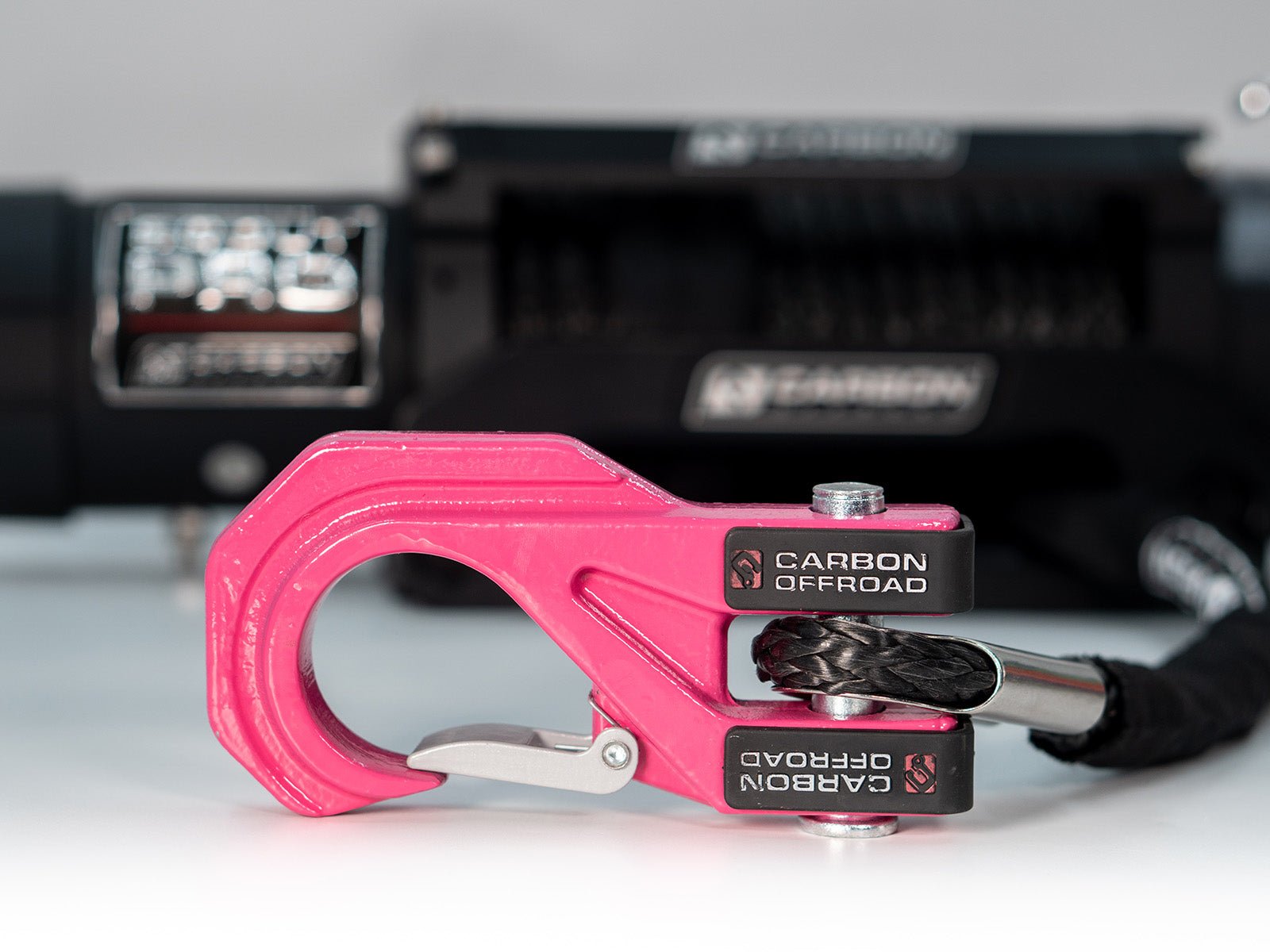

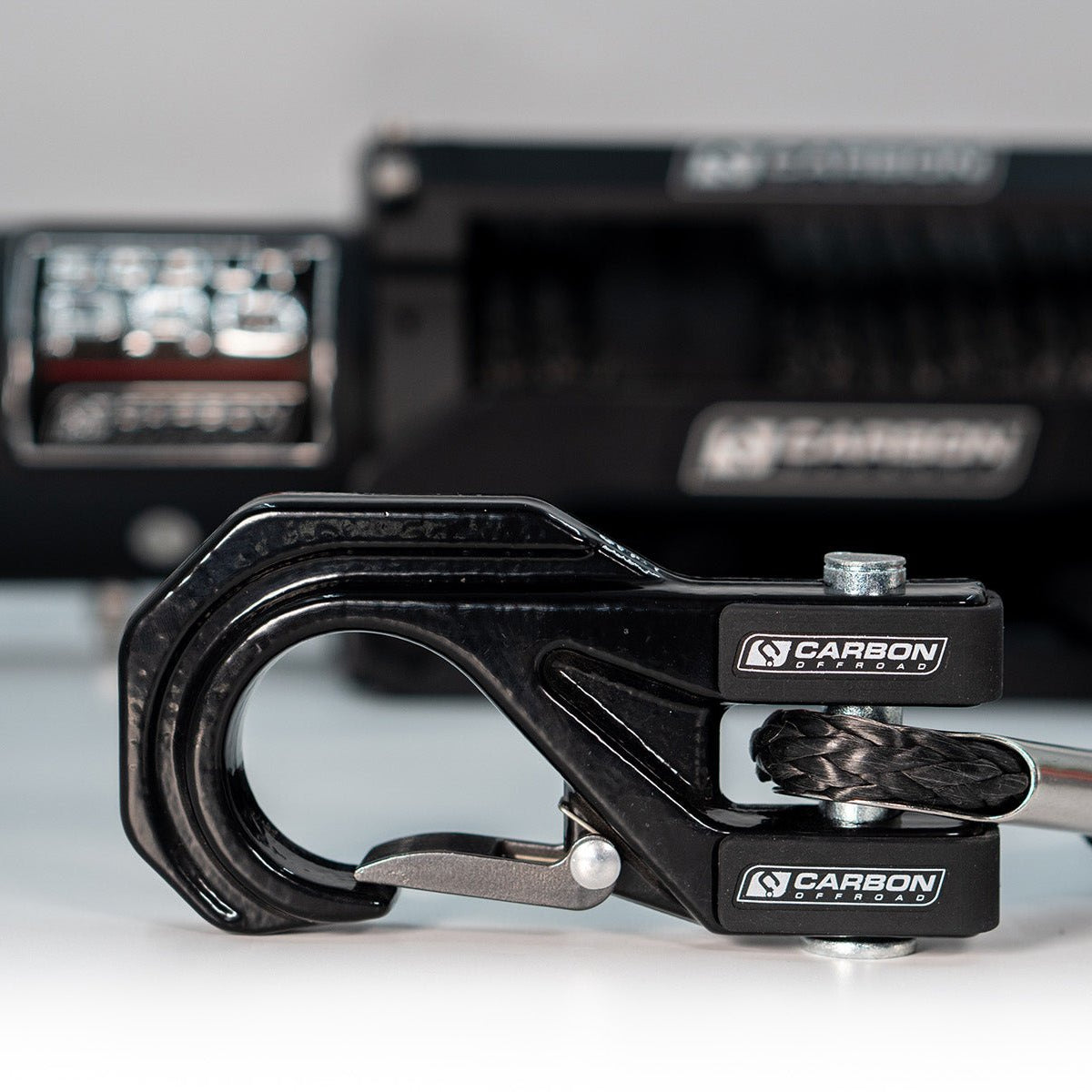

- ✔️ Carbon Offroad Mega Pro Winch Hook (choose your colour)
- ✔️ Mega-Pro Rope Thimble
- ✔️ MegaPro Premium CNC billet fairlead
- ✔️ Synthetic rope 24m × 10mm
- ✔️ Control box complete with cables
- ✔️ Wireless remote control included
- ✔️ Wired remote with 3.7m lead
- ✔️ Mounting bolts included
Speed & Performance Breakdown
12V DC performance specs across line pull, line speed and motor current.
Note: Values shown are for 12V DC operation and may vary depending on battery condition and installation.
Technical Specifications
- Part Number: CW-XD10
- Rated Line Pull: 10000 lbs (4536kg) single-line
- Motor: 12V DC 6 HP series wound motor (24V option available)
- Remote Control: Wired with 3.7m lead
- Wireless Remote Control: Included
- Geartrain: 3-stage planetary
- Gear Ratio: 180:1
- Rotating Ring Gear: Yes
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet (Type 3 hard anodised, multi-position)

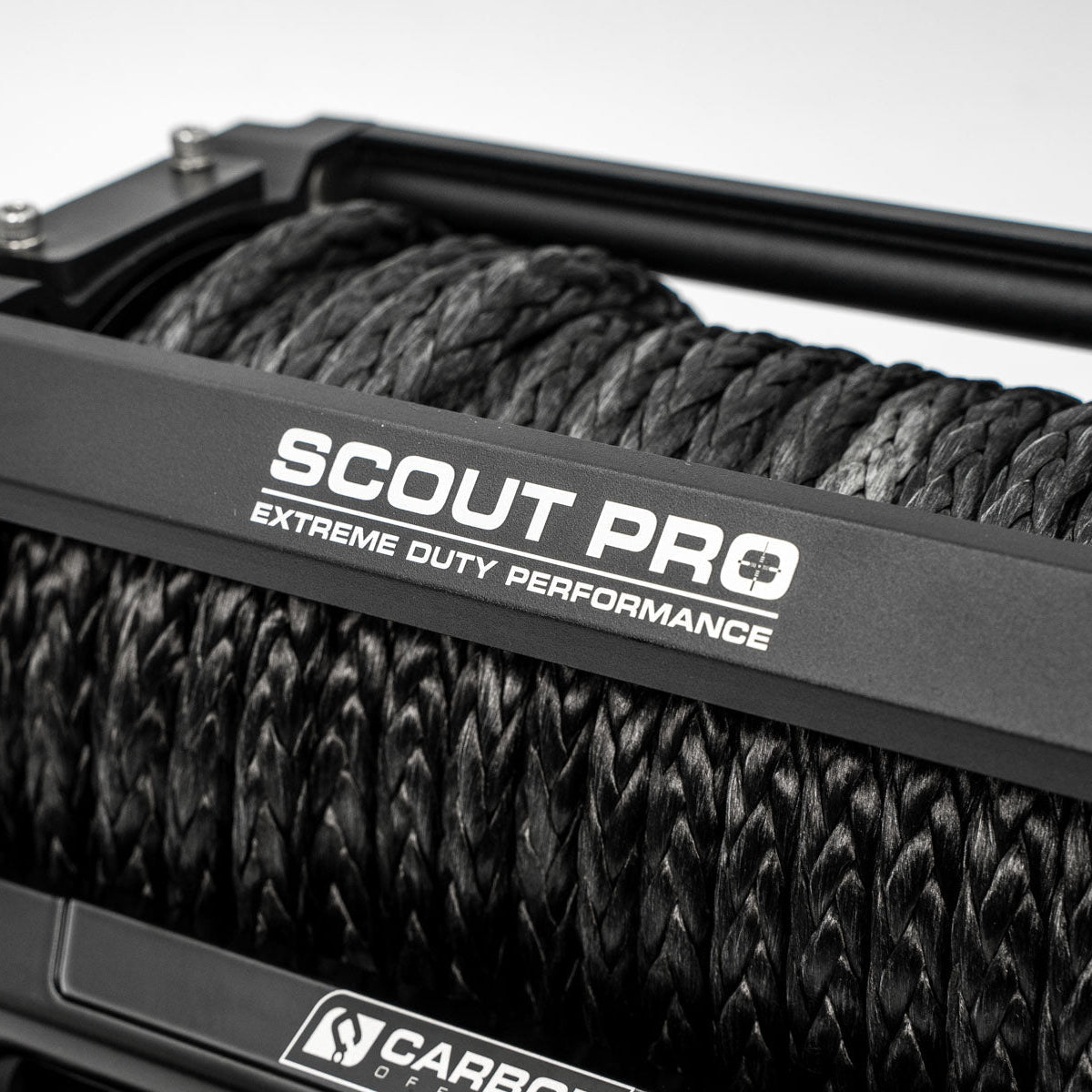

- Synthetic Rope: 24m × 10mm
- Drum Diameter / Length: 63mm × 224mm
- Mounting Bolt Pattern: 254mm × 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L × W × H): 538 × 158 × 187mm (21.2" × 6.2" × 7.4")
- Packing Dimensions (L × W × H): 580 × 200 × 220mm
- Winch Weight with Synthetic Rope Attached: 19.0kg
- Winch Weight (Complete Kit): 26.7kg (incl. rope, control box, cables, mounting bolts & fairlead)
- ✔️ Confirm your mounting platform matches the 254mm × 114.3mm bolt pattern
- ✔️ Use a 650 CCA minimum battery for reliable winching performance
- ✔️ Route all cables safely away from sharp edges, moving parts, and heat sources

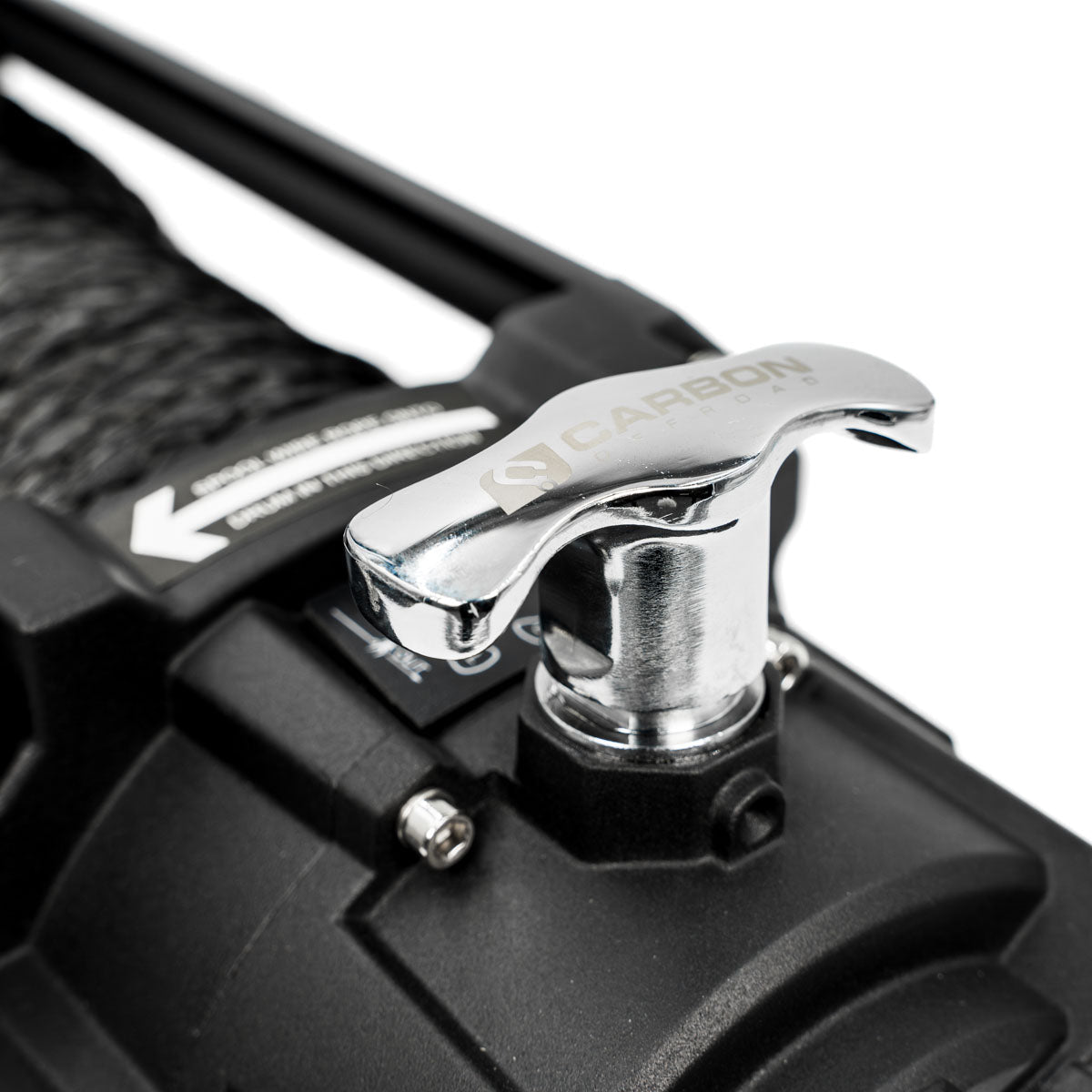

- ✔️ Test clutch engagement and brake operation before the first recovery
📄 Download Installation Guide (PDF)
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
- ✔️ Lifetime Mechanical Warranty
- ✔️ 5 Year Electrical Warranty
- ✔️ 5 Year Water Ingress Protection Warranty
