Carbon Scout Pro 15000lb Winch V3 with MegaPro Hook
- ✅ 15,000lb (6,803kg) single-line pull for heavy rigs & hard recoveries
- ✅ Powerful 12V 7.0HP series wound motor (24V option available)
- ✅ MegaPro Winch Hook included (choose your colour)
- ✅ 24m × 11mm UHMWPE synthetic rope + forged thimble
- ✅ IP68 water ingress protection + wired & wireless remotes + MegaPro CNC fairlead
Checkout securley with
- Description
- 🛠️ Installation
- Delivery
- 🛡️ Fitment Advice

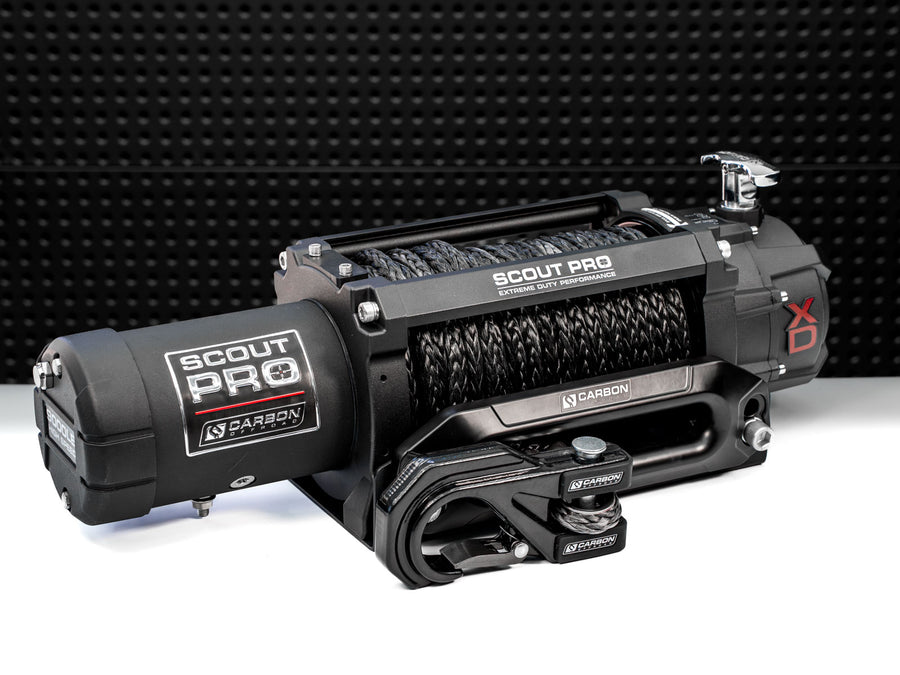

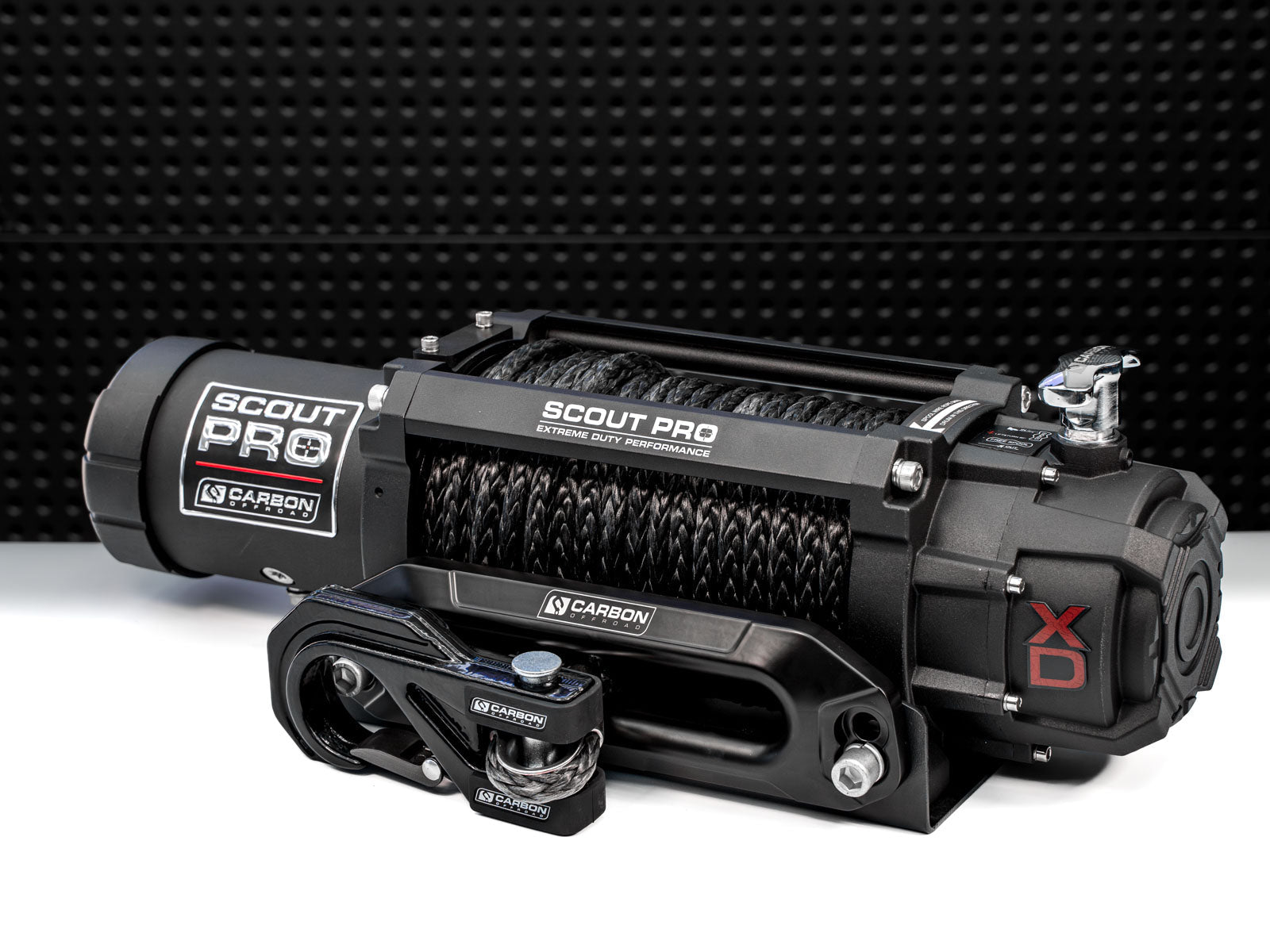

Carbon Scout Pro 15000lb Winch V3 with MegaPro Hook
SKU: CW-XD15BLK

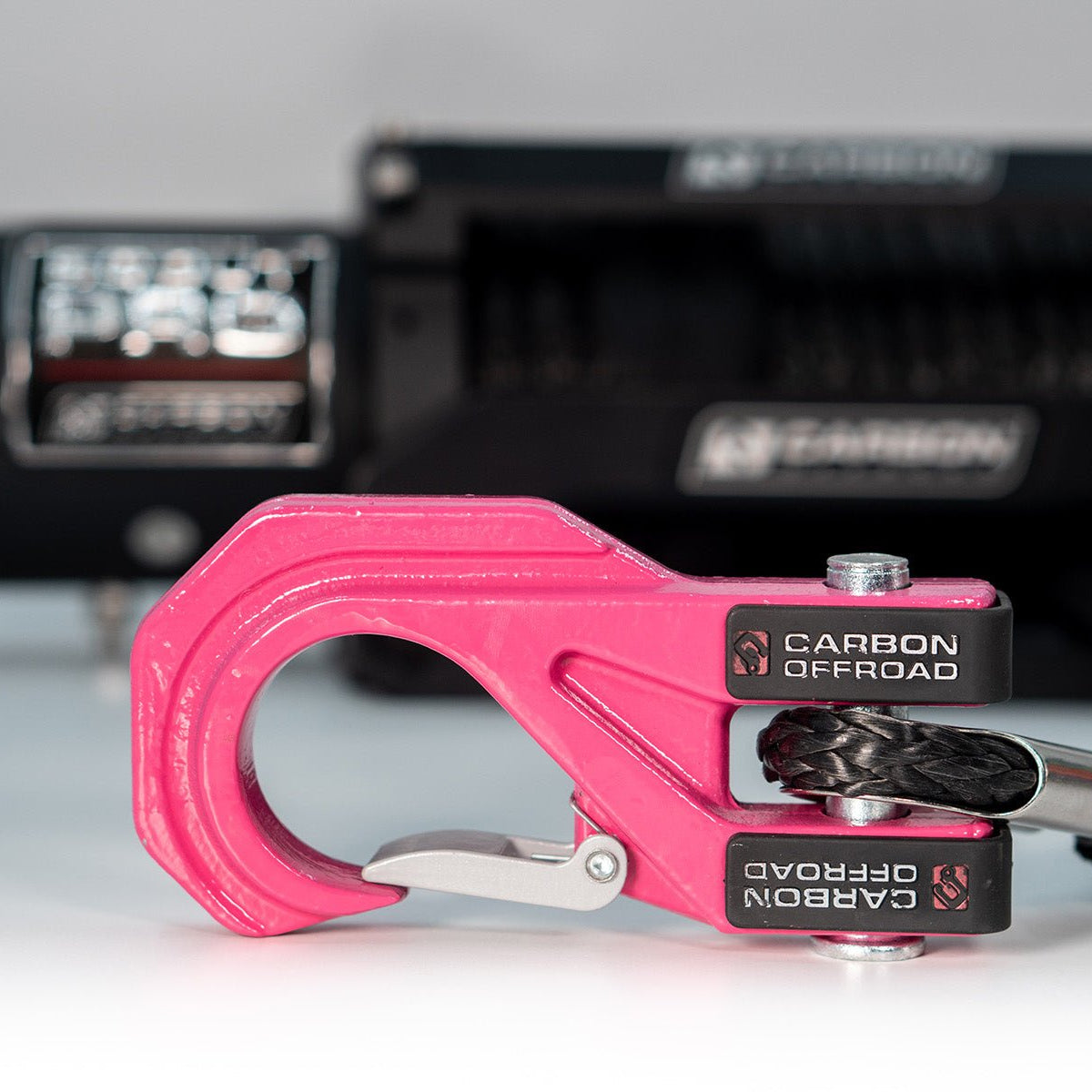

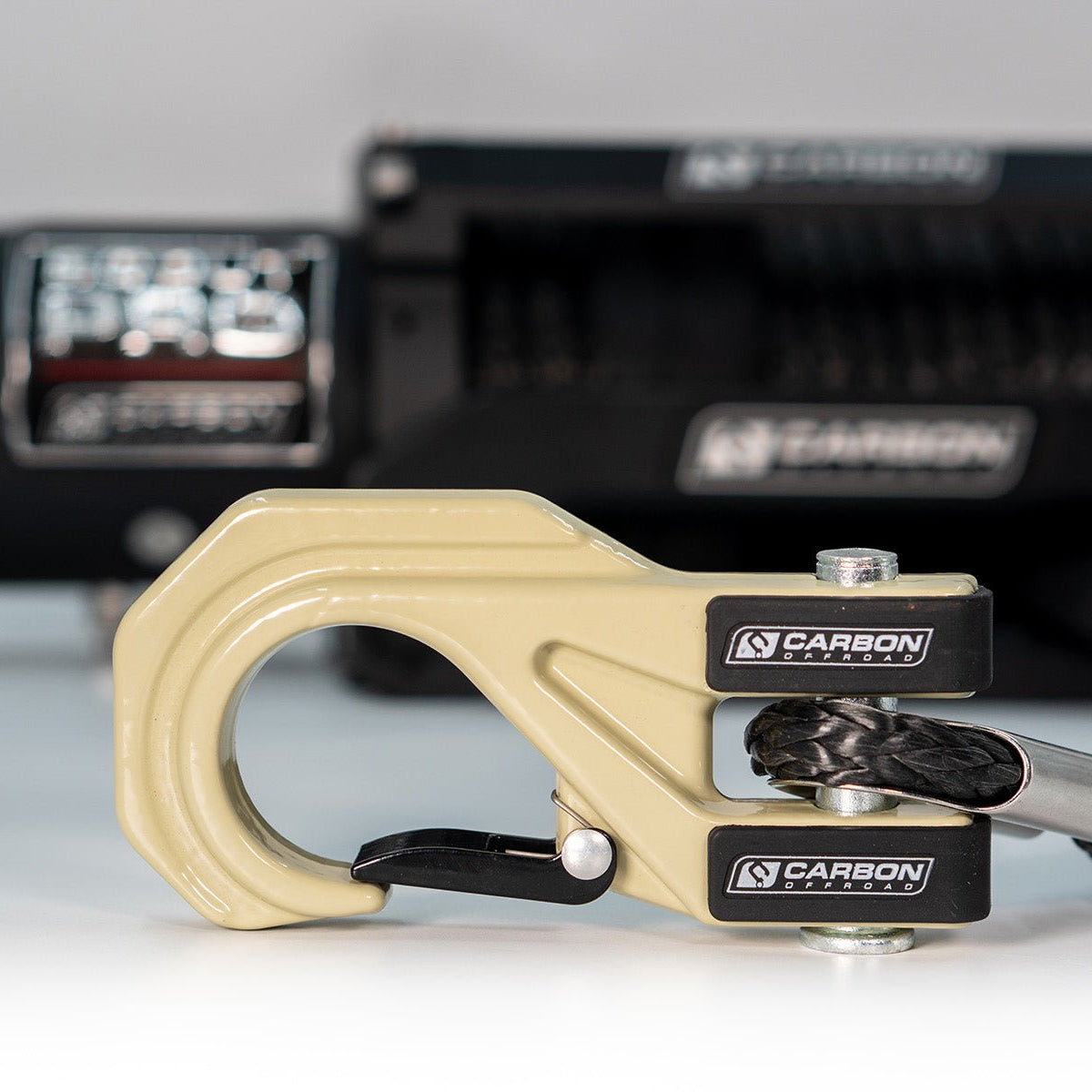

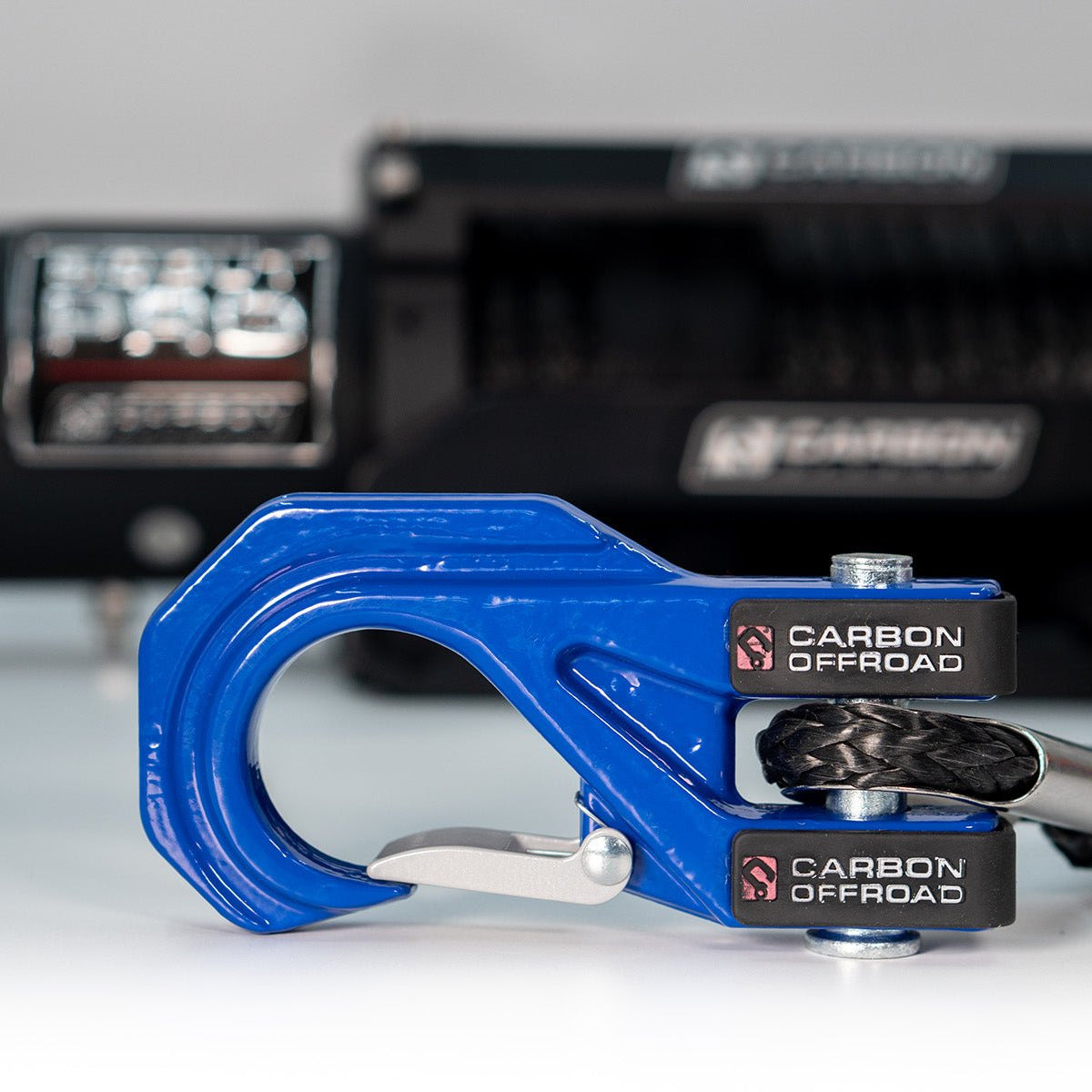

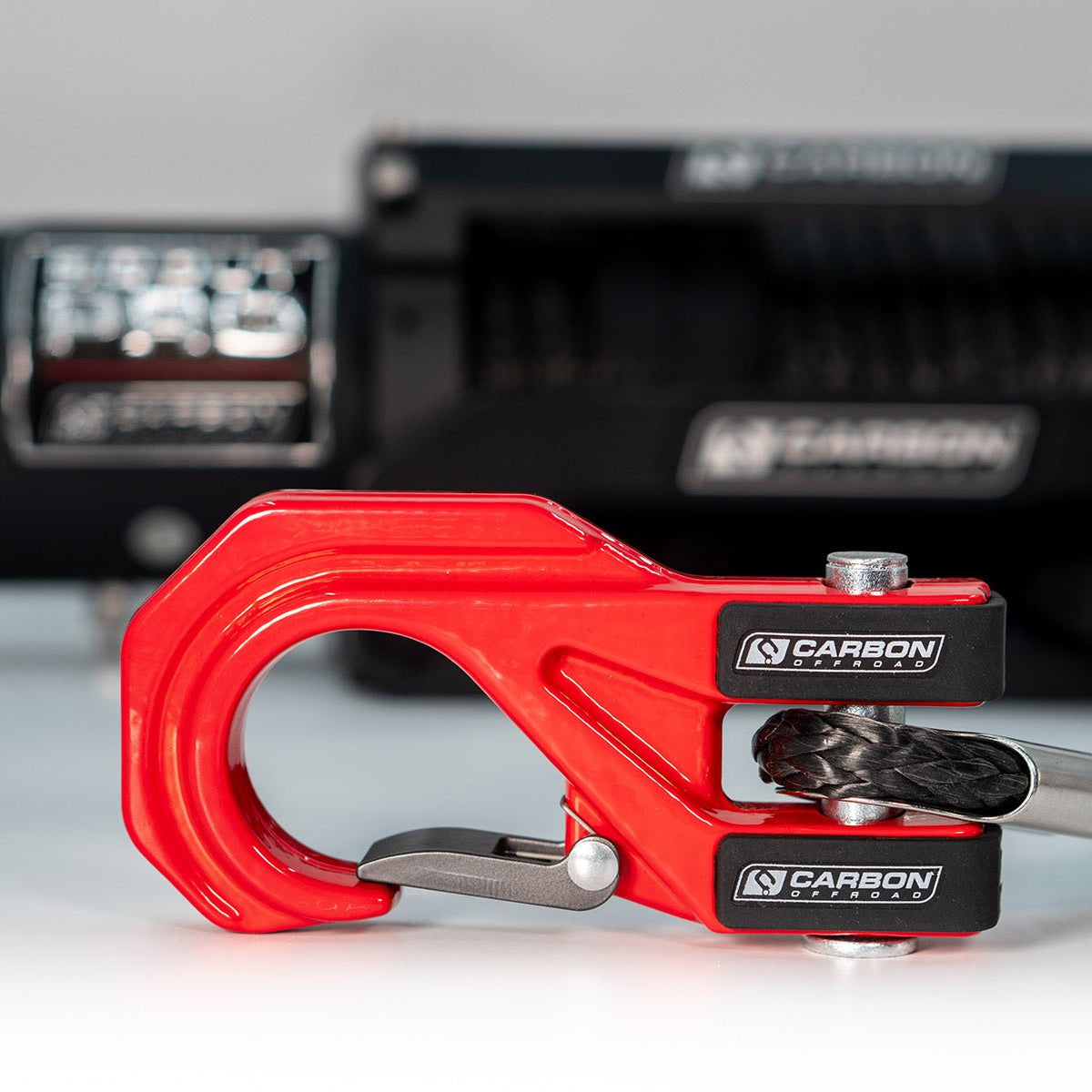

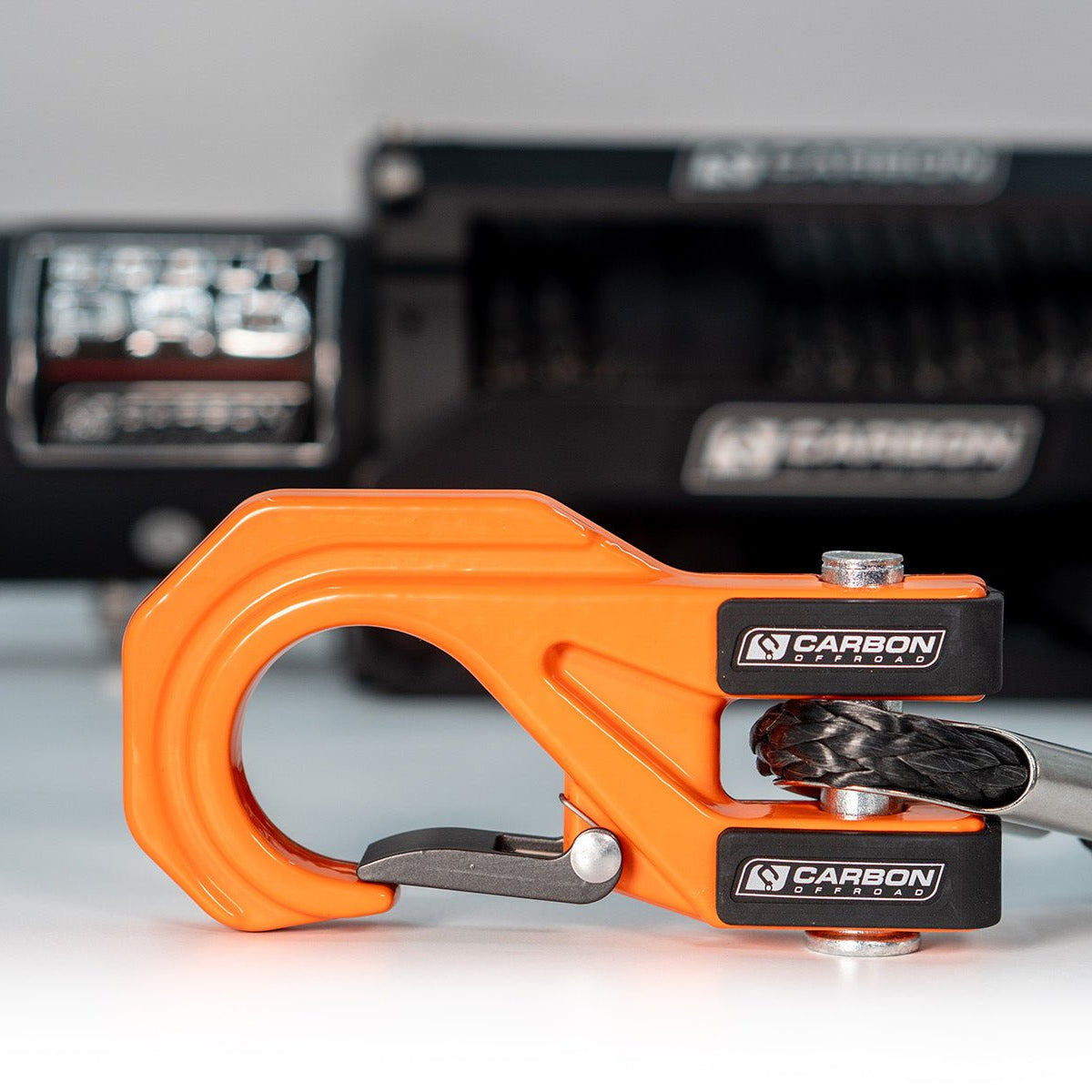

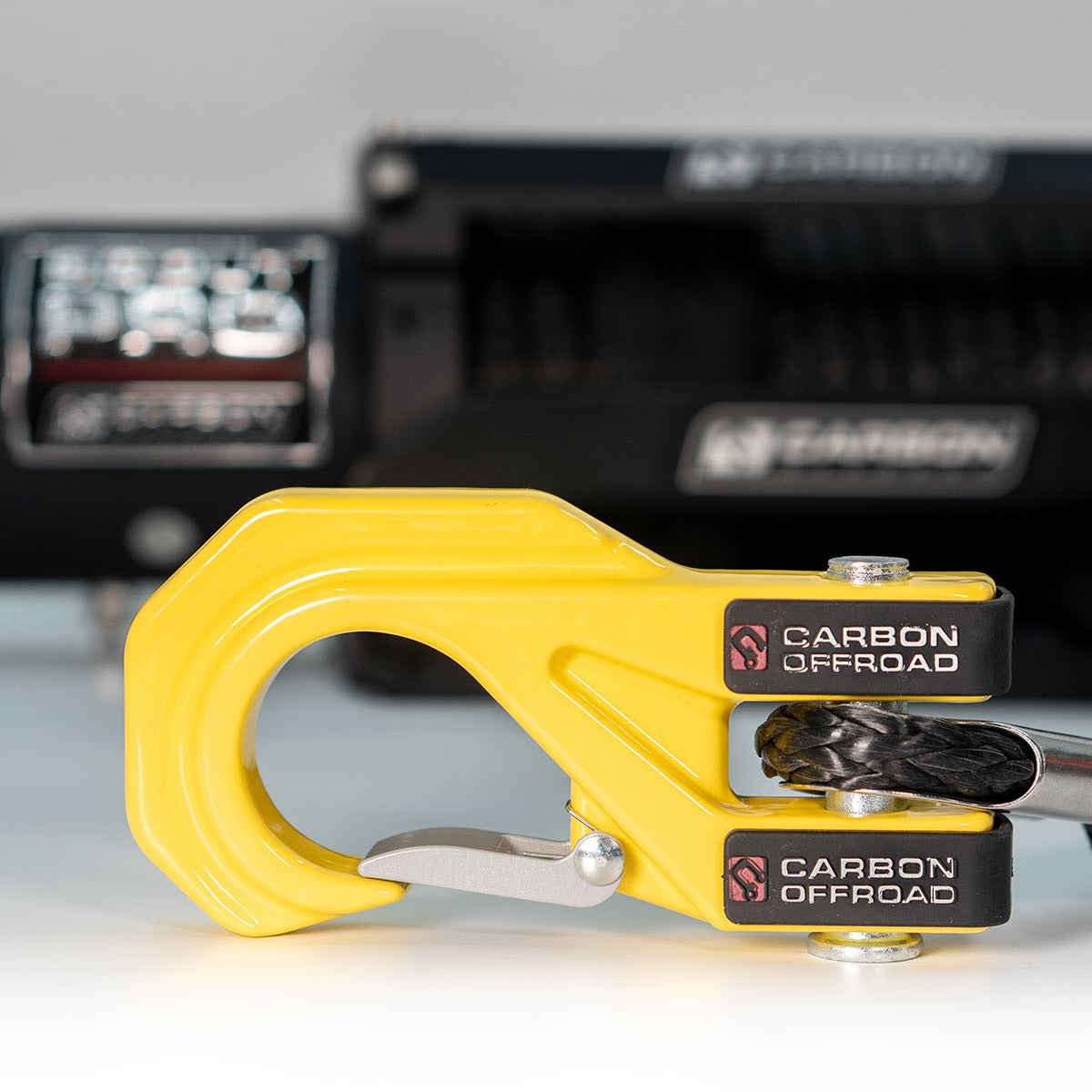

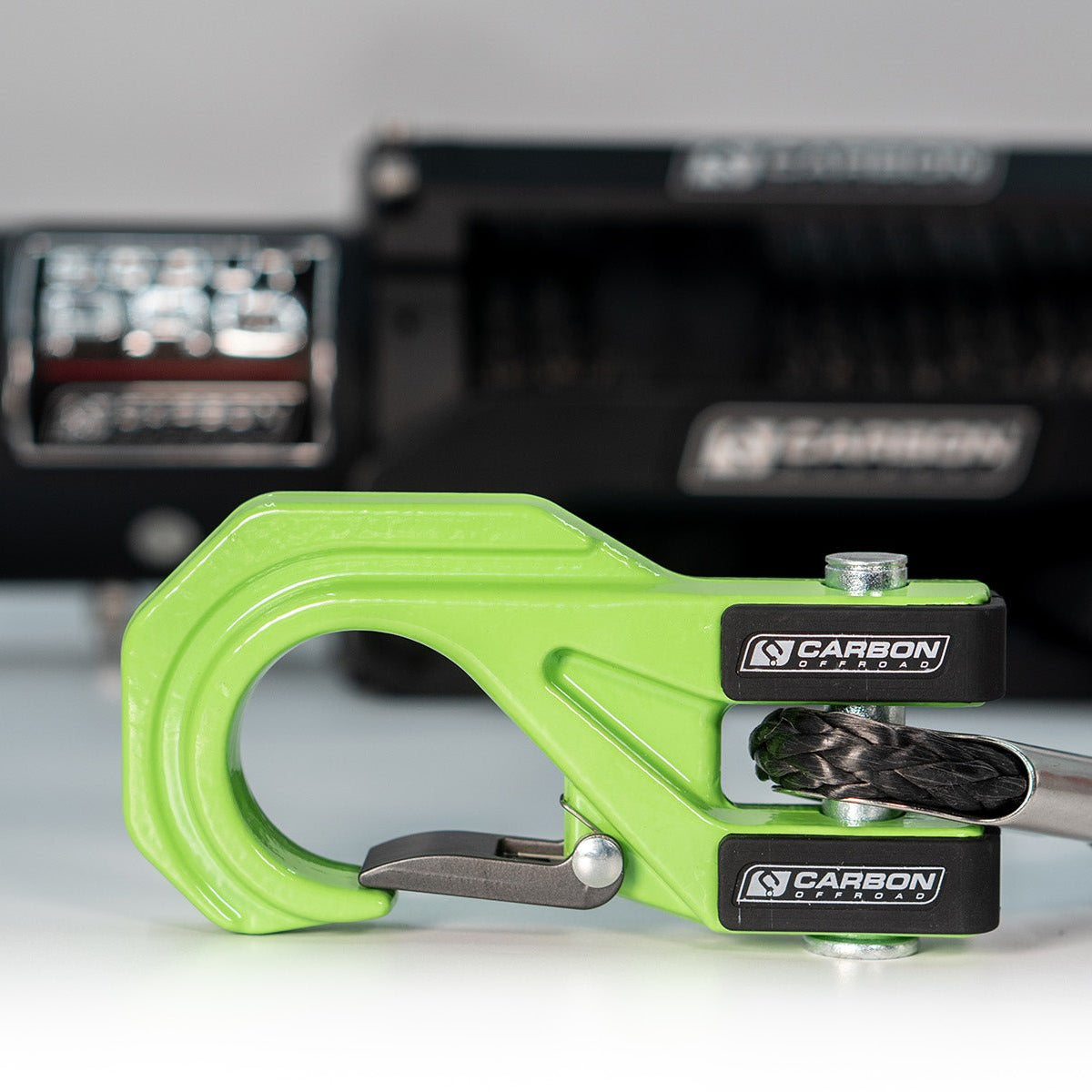

⚠️ Please Note: This winch package includes a Carbon Offroad MegaPro Winch Hook (hook colour selection available) plus premium MegaPro hardware.
The Carbon Offroad Scout Pro 15K Winch V3 is built for heavy rigs and extreme recoveries in Australia, delivering serious 15,000lb pulling power that bridges the gap between 12K units and truck-grade 20K setups. With a strong 7.0HP motor, tough driveline components, and premium recovery hardware, this is the go-to choice when you want big performance without oversizing your build.
Key Features
- ✔️ Rated line pull: 15,000lb (6,803kg) single-line
- ✔️ Powerful 12V DC 7HP series wound motor (24V option available)
- ✔️ 3-stage planetary geartrain with 218:1 ratio
- ✔️ Rotating ring gear for dependable engagement
- ✔️ Automatic brake in the motor bracket
- ✔️ 24m × 11mm UHMWPE synthetic rope
- ✔️ MegaPro Premium CNC billet fairlead (Type III hard anodised, multi-position)
- ✔️ Wired remote + wireless remote included for flexible control

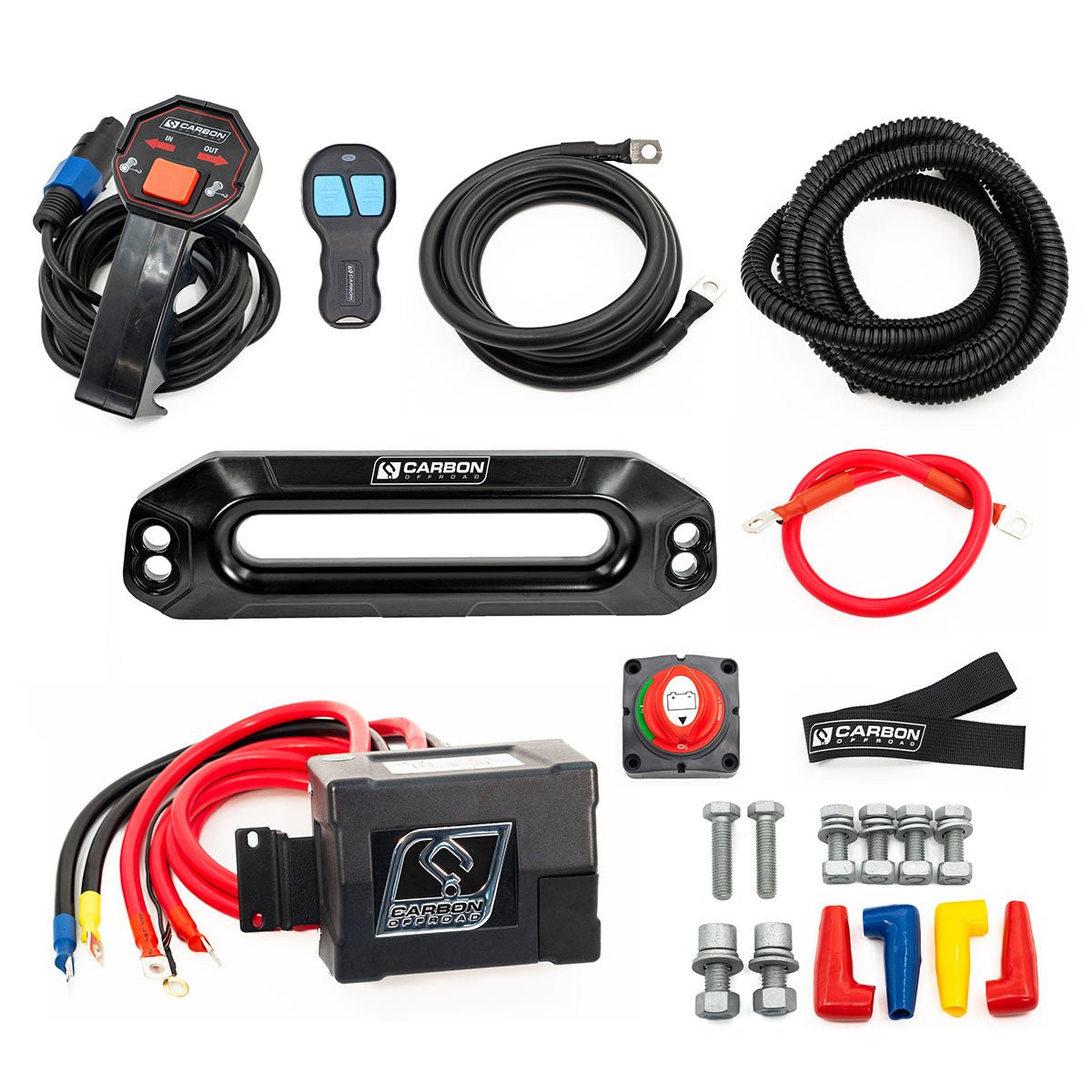

What’s Included (15K Package)
- ✔️ Carbon Scout Pro 15K Winch V3
- ✔️ Carbon Offroad MegaPro Winch Hook (hook colour selection available)
- ✔️ Forged thimble
- ✔️ MegaPro Premium CNC billet fairlead
- ✔️ UHMWPE synthetic rope 24m × 11mm
- ✔️ Control box complete with cables
- ✔️ Wireless remote control included
- ✔️ Wired remote with 3.6m lead
- ✔️ Mounting bolts included
Speed & Performance Breakdown
12V DC performance specs across line pull, line speed and motor current.
Note: Values shown are for 12V DC operation and may vary depending on battery condition and installation.
Technical Specifications
- Part Number: CW-XD15-V3
- Rated Line Pull: 15000 lbs (6803kg) single-line
- Motor: 12V DC 7 HP series wound motor (24V option available)
- Remote Control: Wired with 3.6m lead
- Wireless Remote Control: Included
- Geartrain: 3-stage planetary
- Gear Ratio: 218:1
- Rotating Ring Gear: Yes
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet (Type 3 hard anodised, multi-position)
- Synthetic Rope: 24m × 11mm
- Drum Diameter / Length: 63.5mm × 224mm
- Mounting Bolt Pattern: 254mm × 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L × W × H): 556.5 × 158 × 187mm
- Packing Dimensions (L × W × H): 580 × 200 × 220mm
- Winch Weight (Complete Kit): 26.7kg (incl. rope, control box, cables, mounting bolts & fairlead)
- ✔️ Confirm your mounting platform matches the 254mm × 114.3mm bolt pattern
- ✔️ Use a 650 CCA minimum battery for reliable winching performance
- ✔️ Route all cables safely away from sharp edges, moving parts, and heat sources
- ✔️ Test clutch engagement and brake operation before the first recovery
📄 Download Installation Guide (PDF)
Warranty, Service & Support
We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.
- ✔️ Lifetime Mechanical Warranty
- ✔️ 5 Year Electrical Warranty
- ✔️ 5 Year Water Ingress Protection Warranty
