Carbon 12K Winch V3X – 12,000lb with MegaPro Winch Hook
The Carbon 12K Winch V3X with MegaPro Hook is a complete recovery package built for real-world off-road use in Australia. This bundle combines a high-performance 12,000lb (5,450kg) single-line winch with the Carbon Offroad MegaPro Winch Hook (choose your colour) for a cleaner, safer and more efficient winching setup.

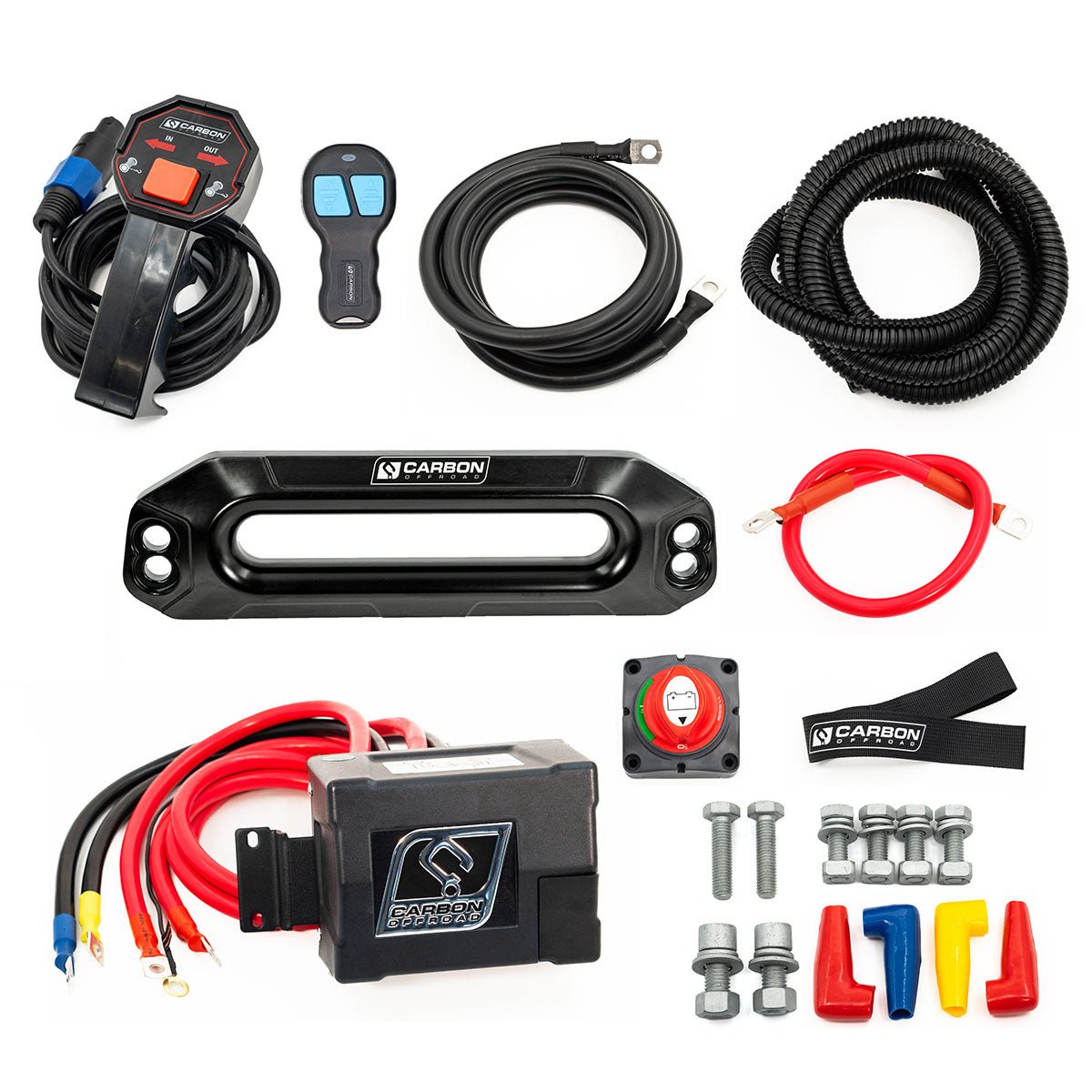

Supplied as a complete kit with synthetic rope, fairlead, wired and wireless remotes, isolator switch, cables and mounting hardware — it’s ready for installation and dependable recovery when it matters.
Speed & Performance Breakdown: 12V DC performance specs across line pull, line speed and motor current. Note: Values shown are for 12V DC operation and may vary depending on battery condition and installation.
Complete Winch + Hook Package
This bundle includes the Carbon 12K Winch V3X and the MegaPro Winch Hook so you can upgrade your recovery setup in one hit. The winch delivers strong pulling power and reliable control, while the MegaPro Hook adds a premium connection point and a neater stow against the fairlead.
12,000lb Performance for Tough Recovery

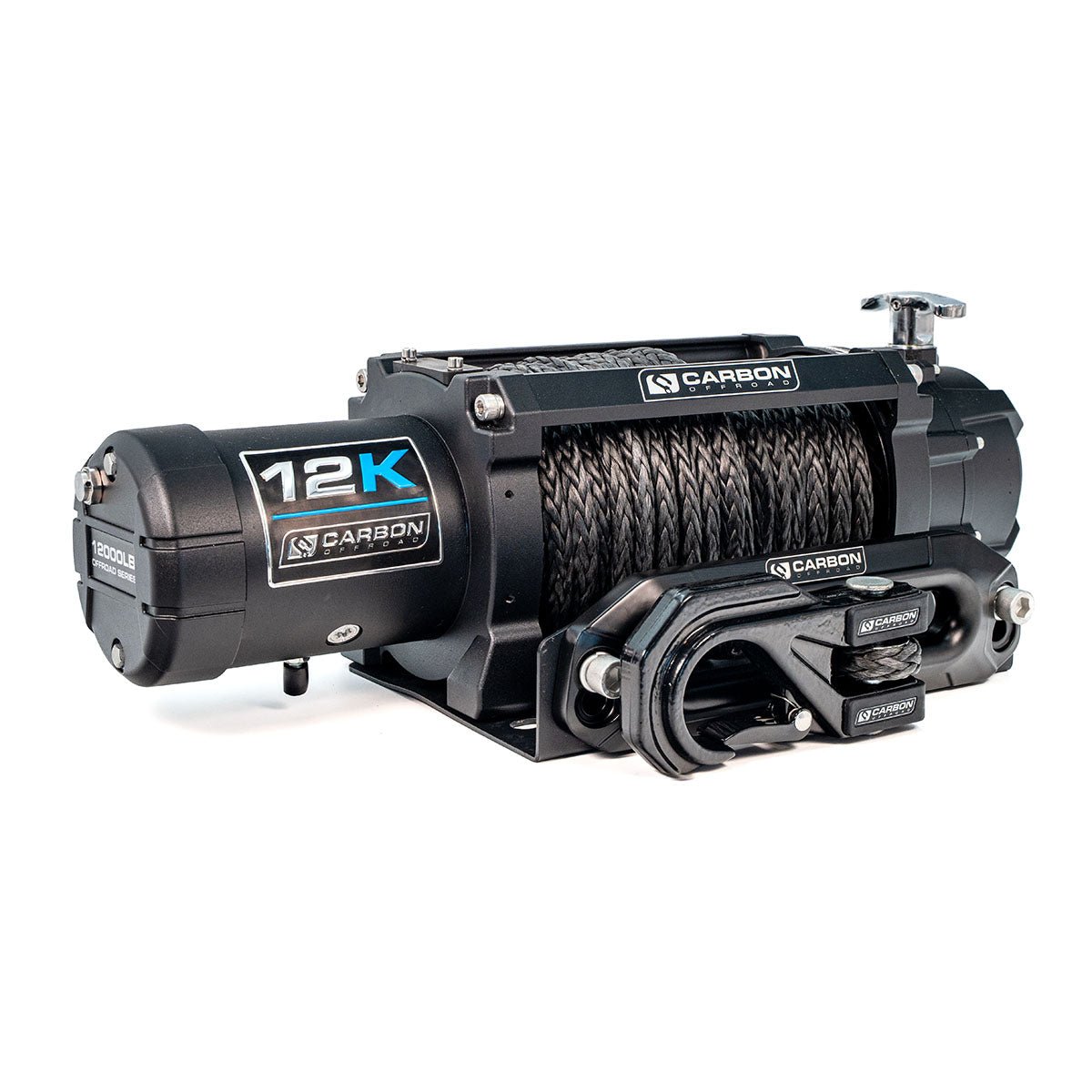

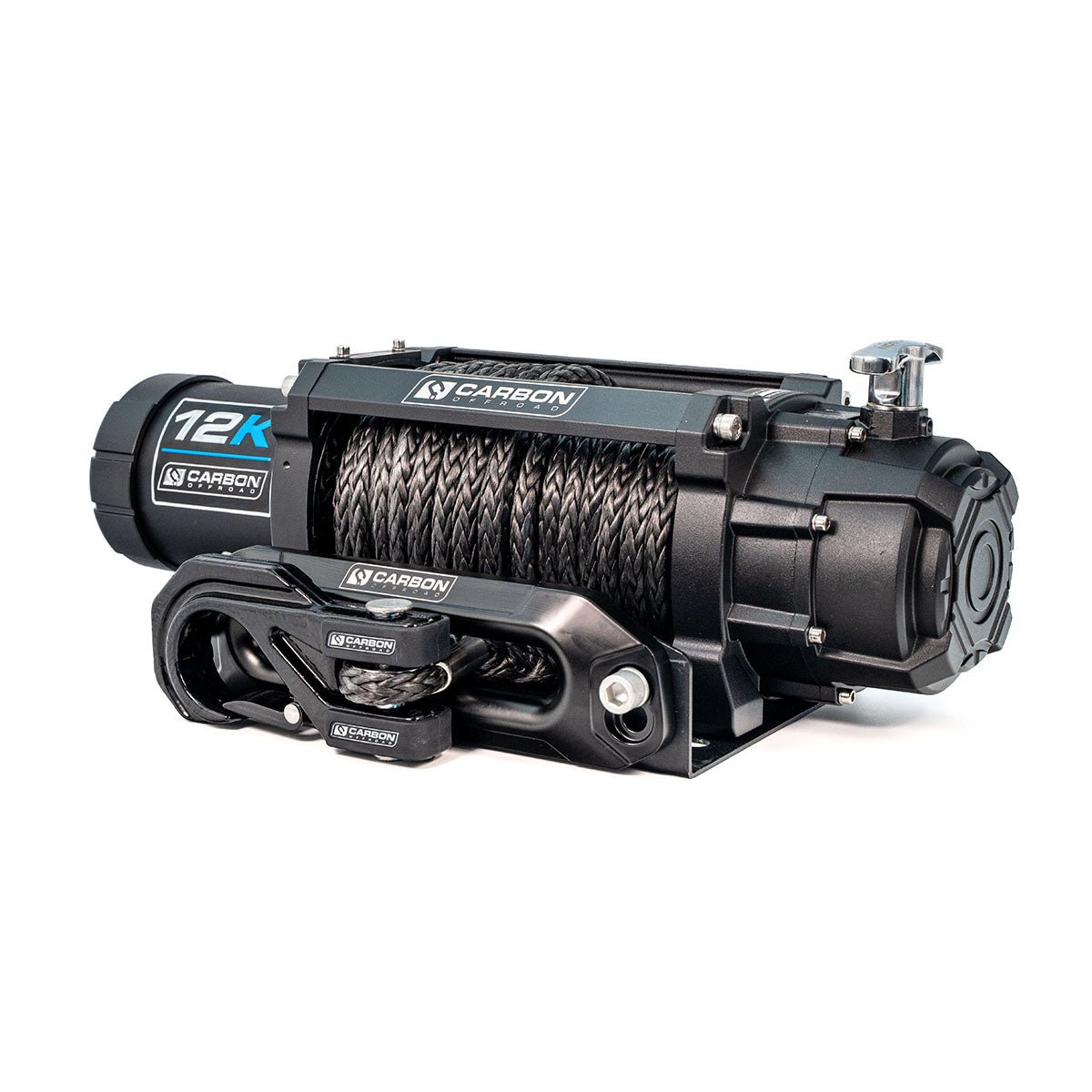

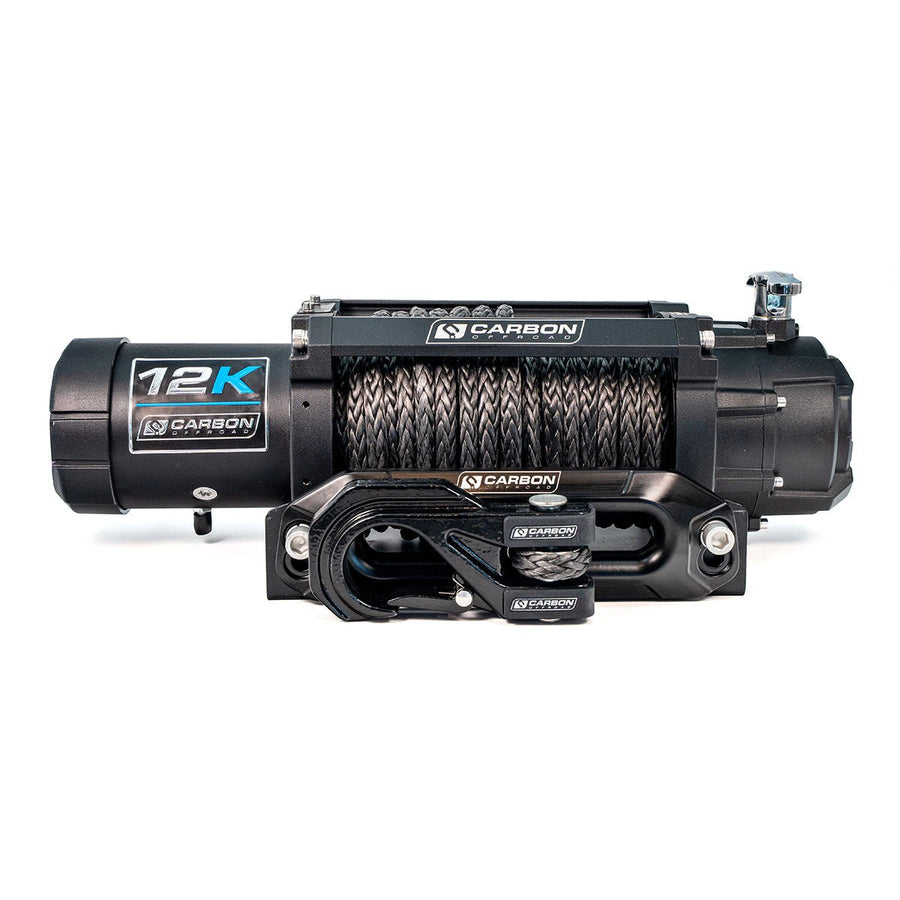

Powered by a 12V DC 6HP series-wound motor and a 3-stage planetary gearbox (218:1), the V3X is engineered for strong, controlled pulls. It also features a full load automatic brake integrated in the motor housing end plate, plus a rotating ring gear clutch for manual free-spool operation.
MegaPro Winch Hook Included

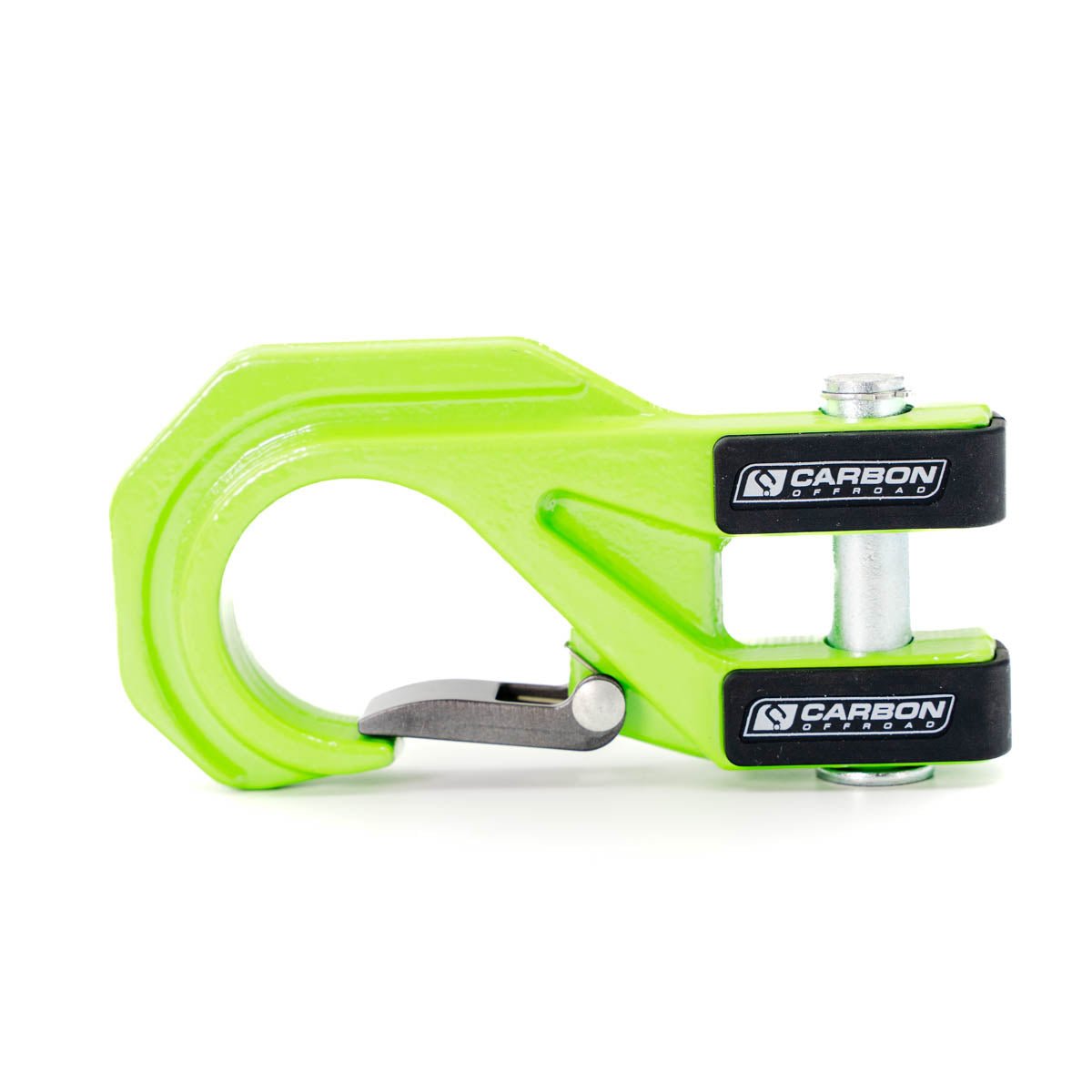

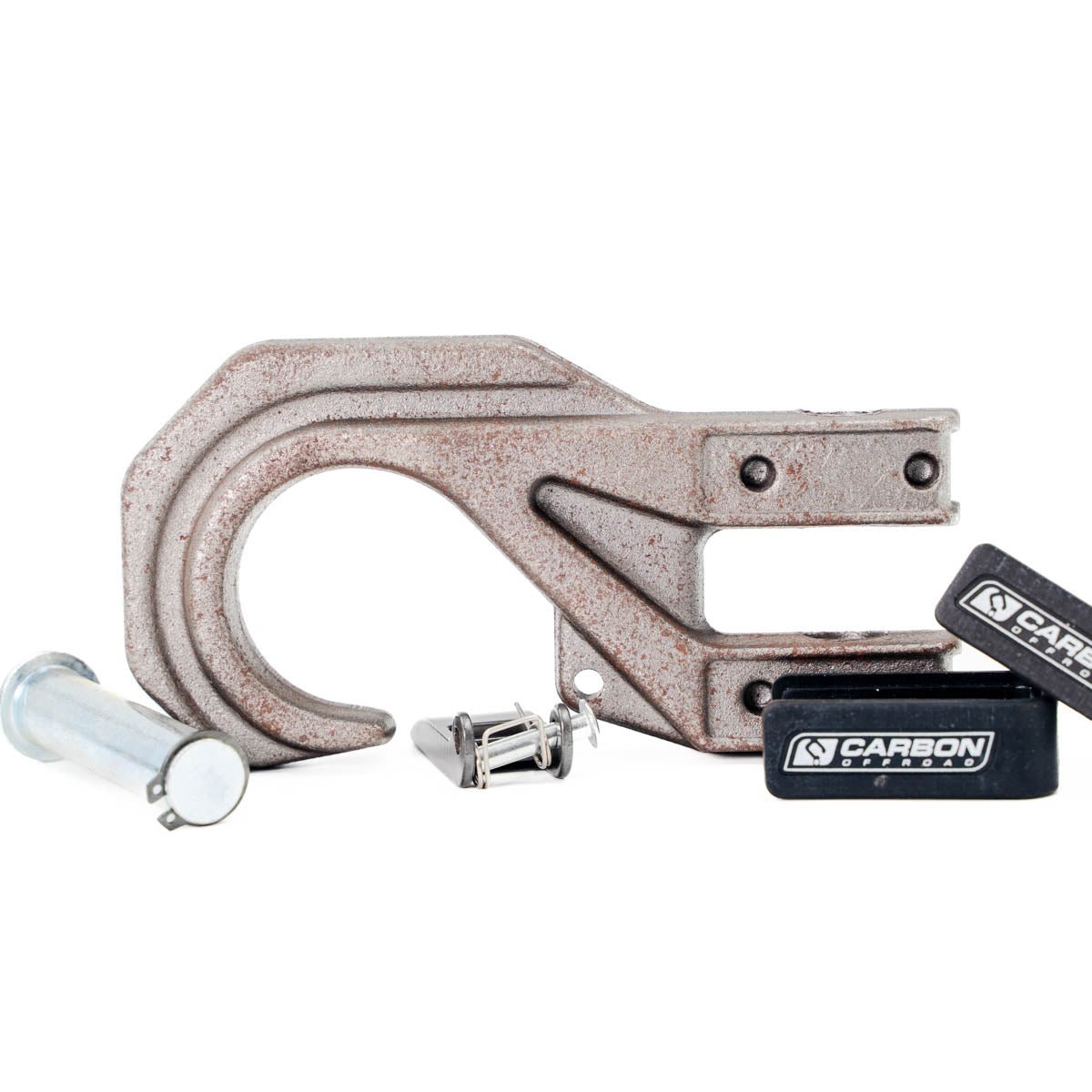

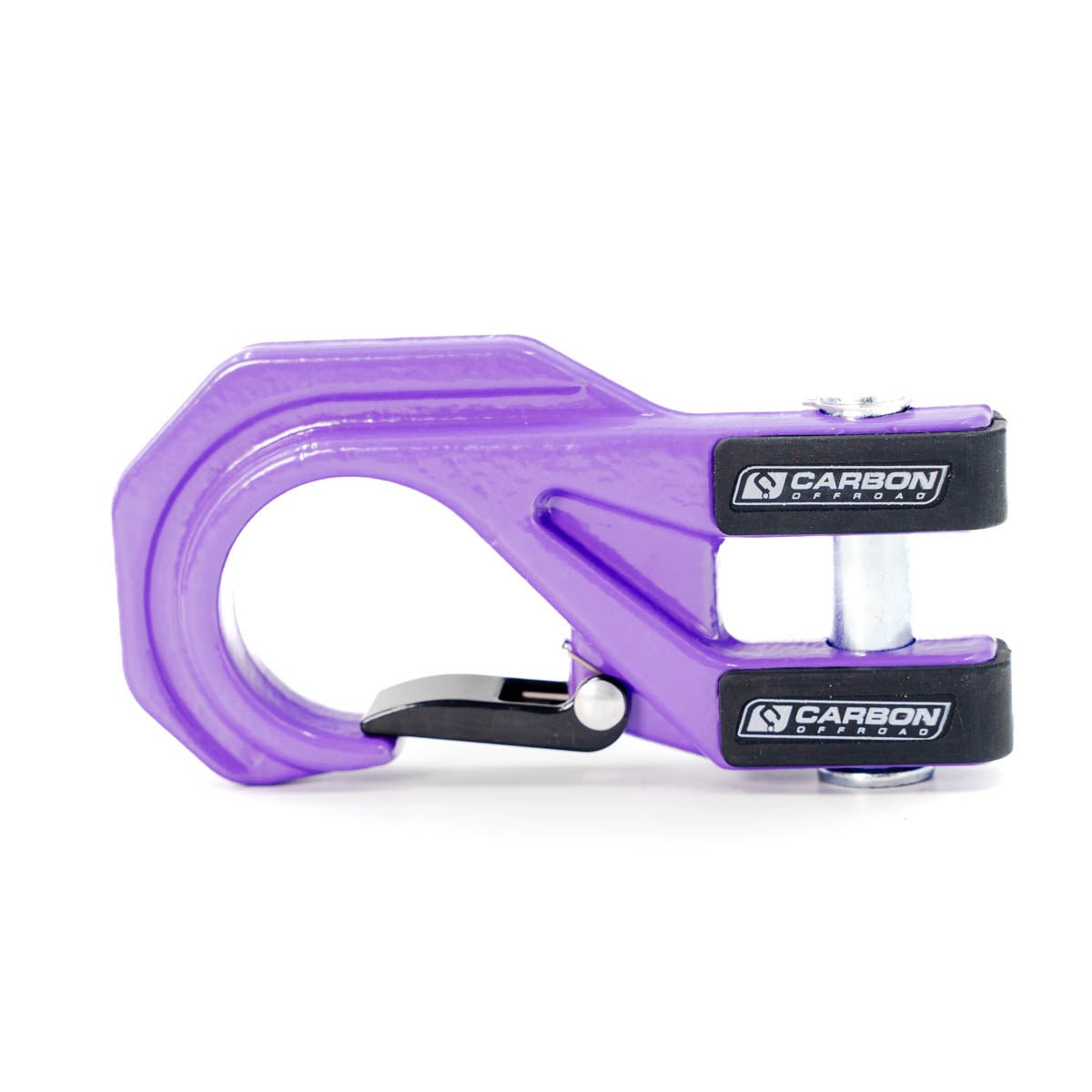

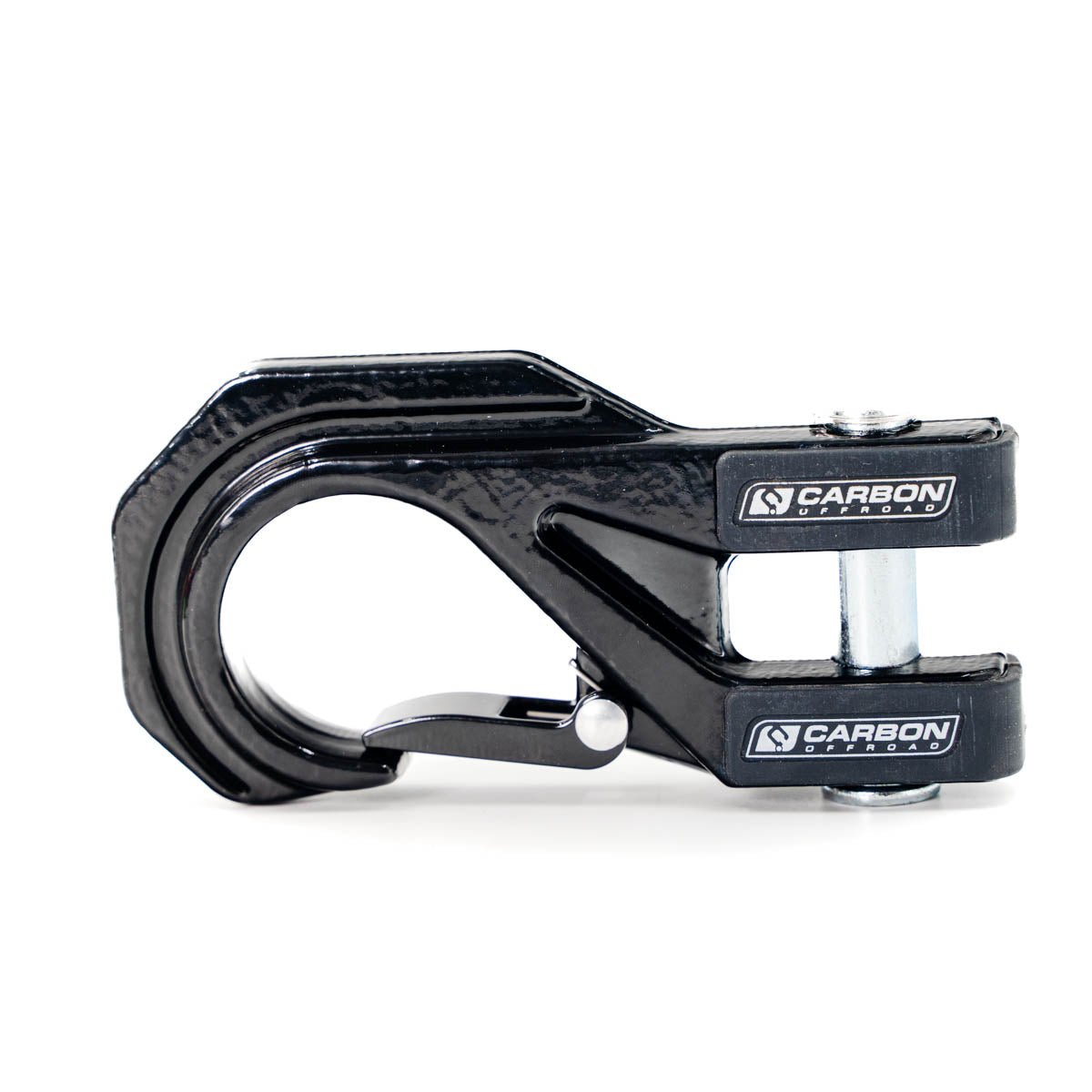

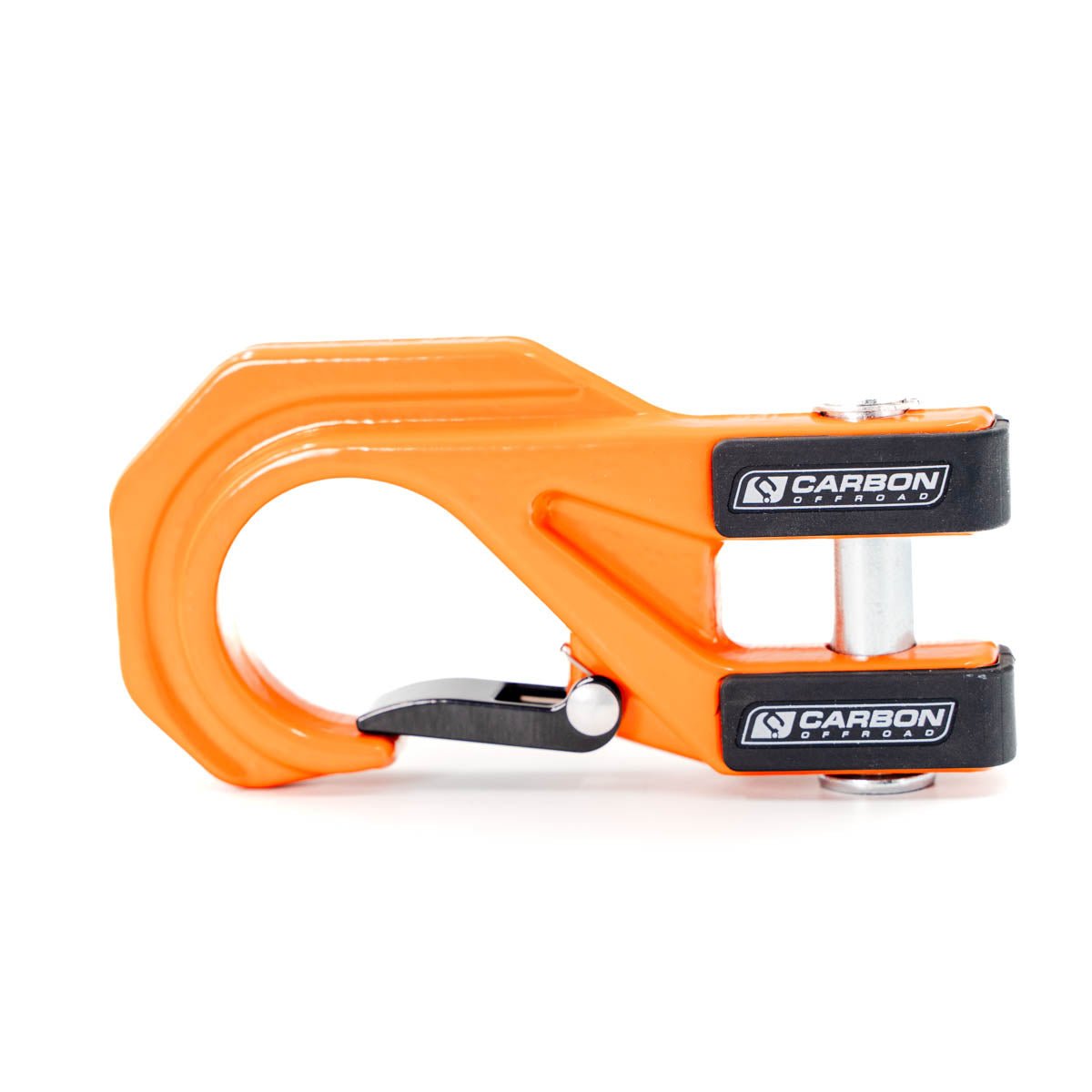

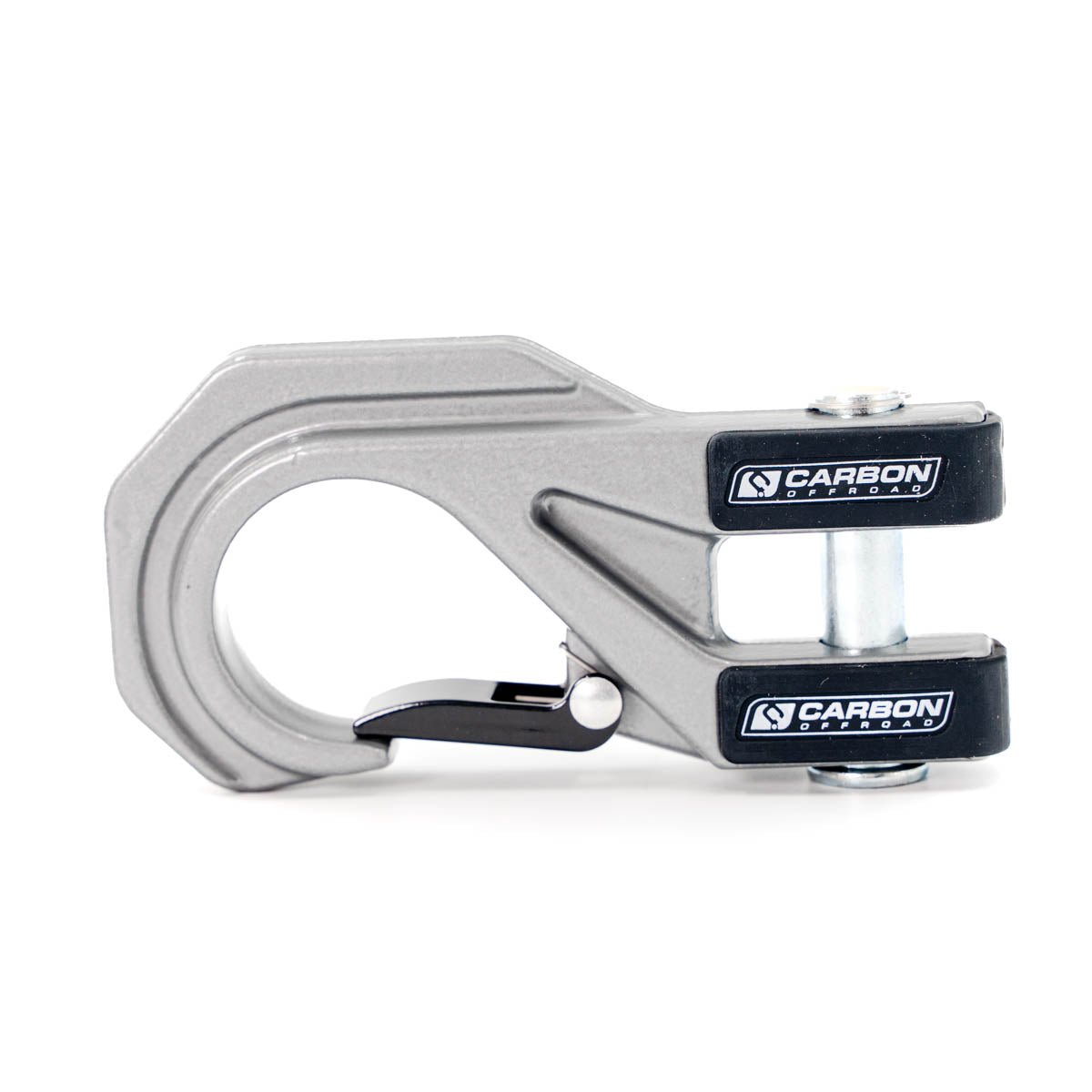

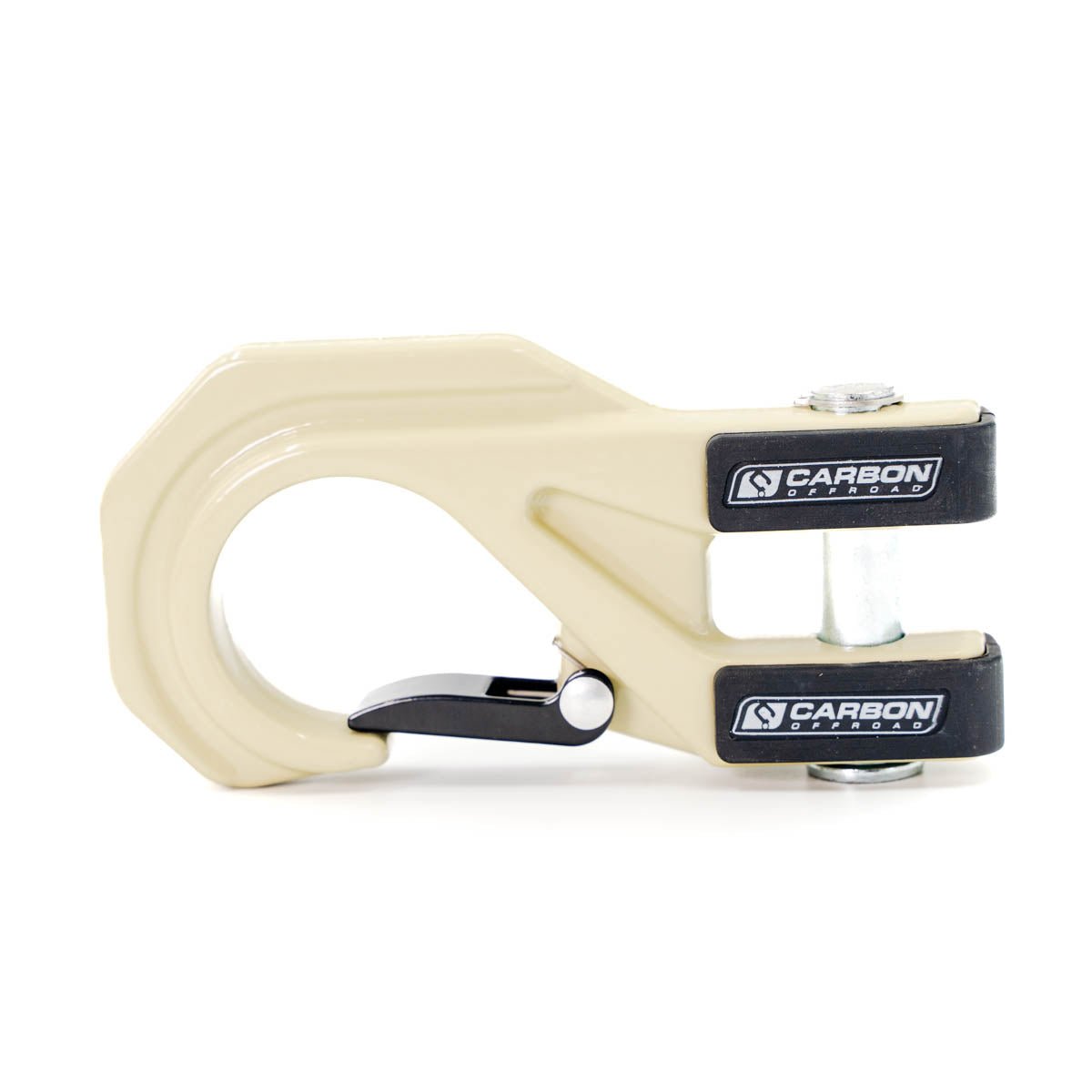

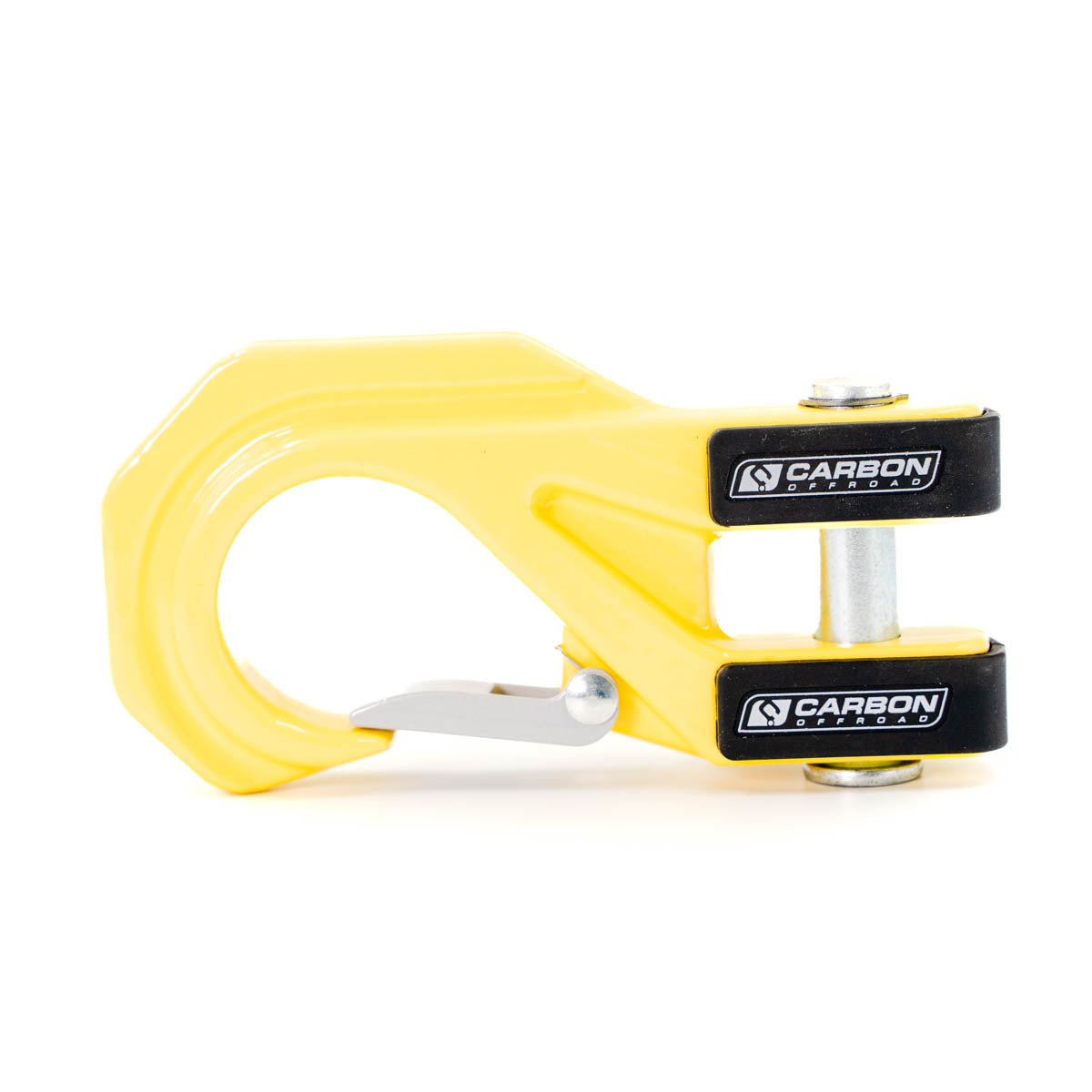

The included MegaPro Winch Hook is forged from heat-treated 40Cr alloy steel with an I-beam design to maximise strength while reducing weight. Its flat stow profile helps it sit neatly against the fairlead, and the hook gate design supports quick attachment to soft shackles or tree protectors.
Developed in Australia
Carbon Winches were developed by KPD Industries — an Australian off-road company with a mission to build a better winch. The project began in 2012 and led to the launch of Carbon Winch in 2016 after years of research, design and testing.
Why Buy This Bundle from Brixton 4x4
✔️ Complete recovery solution with no extra parts required
✔️ Premium MegaPro Winch Hook included (choose your colour)
✔️ Designed and tested for Australian off-road conditions
✔️ Backed by trusted aftermarket support through Brixton 4x4
Fit it once, trust it when it matters. The Carbon 12K Winch V3X with MegaPro Hook is a dependable recovery package built for real-world off-road use in Australia.
✔️ Part number: CW-12KV3X
✔️ Rated line pull: 12,000lb (5,450kg) single-line
✔️ Motor: 12V DC 6HP series wound motor (24V option available)
✔️ Geartrain: 3-stage planetary
✔️ Gear ratio: 218:1
✔️ Brake: Full load automatic brake installed in motor housing end plate

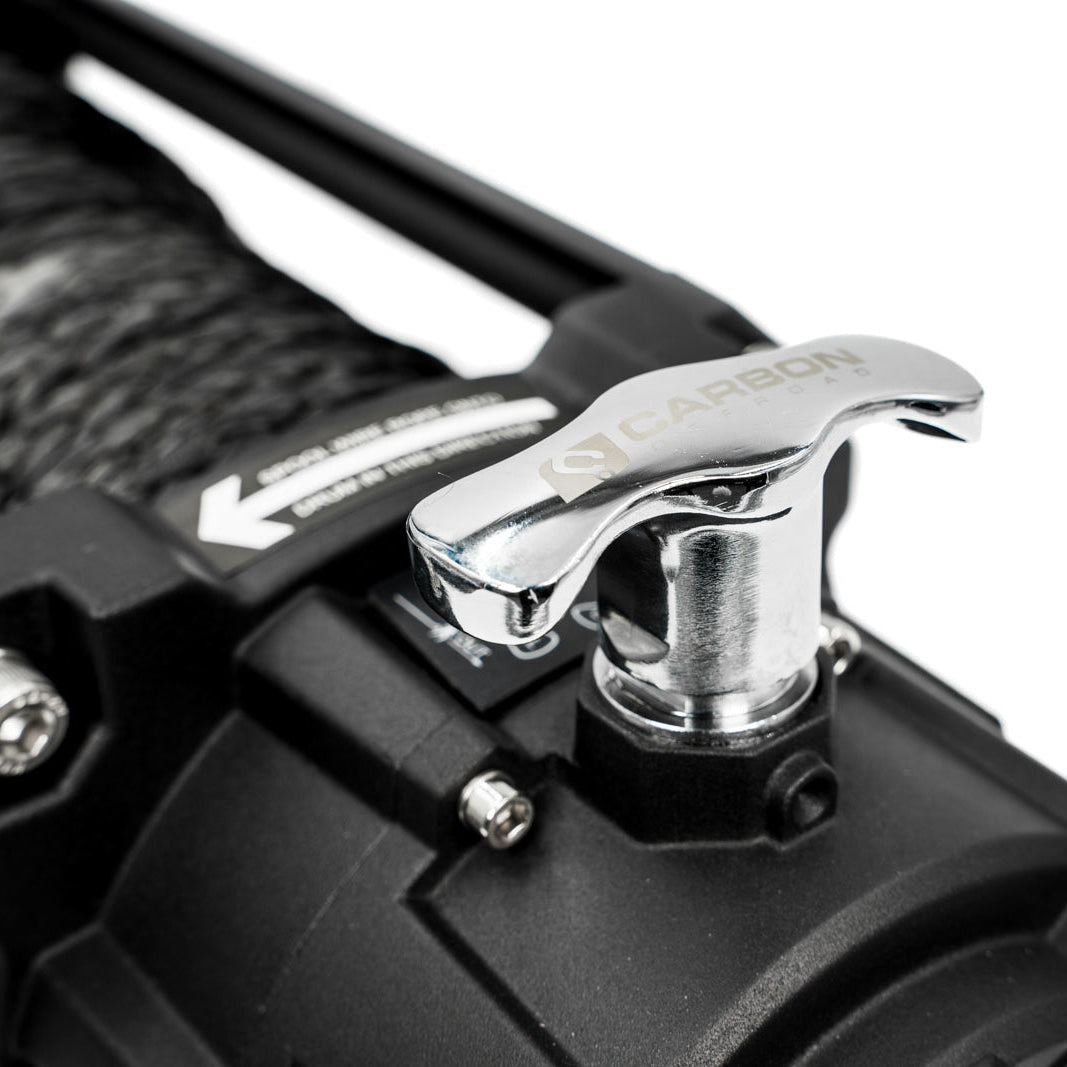

✔️ Clutch (free spooling): Rotating ring gear clutch with manual pull and twist handle
✔️ Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
✔️ Synthetic rope: 24m x 10mm diameter
✔️ Drum diameter/length: 63mm x 224mm
✔️ Mounting bolt pattern: 254mm x 114.3mm
✔️ Recommended battery: 650 CCA minimum for winching
✔️ Winch dimensions (L x W x H): 538 x 158 x 187mm
✔️ Packing dimensions (L x W x H): 580 x 200 x 220mm
✔️ Winch weight with synthetic rope attached: 19.7kg
✔️ Total weight incl. synthetic rope, control box, cables, bolts & fairlead: 26.65kg
✔️ Carbon 12K Winch V3X (12,000lb capacity)
✔️ Carbon Offroad MegaPro Winch Hook (choose your colour)
✔️ Synthetic rope: 24m x 10mm (pre-installed)
✔️ Multi-fit CNC billet alloy fairlead (black anodised with laser etched logo)
✔️ Wired remote switch with 12ft (3.7m) lead
✔️ Wireless remote control (included)
✔️ Control box with cables, isolator switch, mounting bolts & hardware
Warranty
✔️ Limited lifetime mechanical warranty
✔️ 5-year electrical warranty
✔️ 5-year water ingress protection warranty
Professional installation is recommended. Ensure the winch is mounted to a suitable winch cradle or compatible bull bar, and confirm all wiring, isolator switch placement and cable routing are completed safely and securely before operation.
