American Racing Draft VN510 Gloss Black w/ Diamond Cut Lip
VN51088012300
Checkout securley with
$350.00
- Description
- 🛡️ Fitment Advice

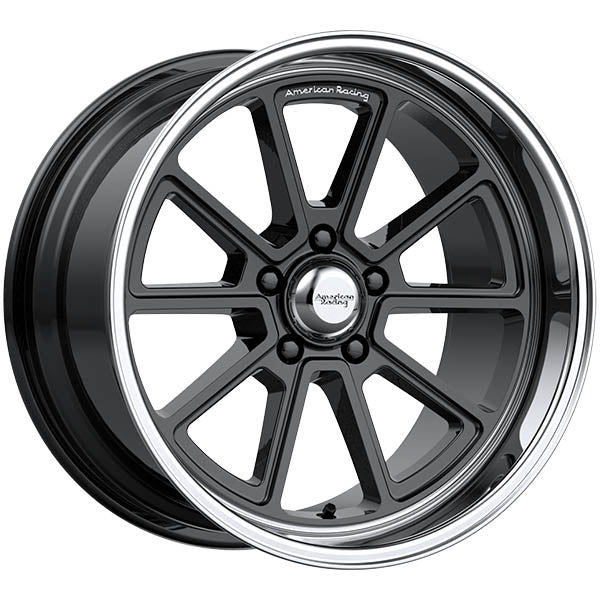

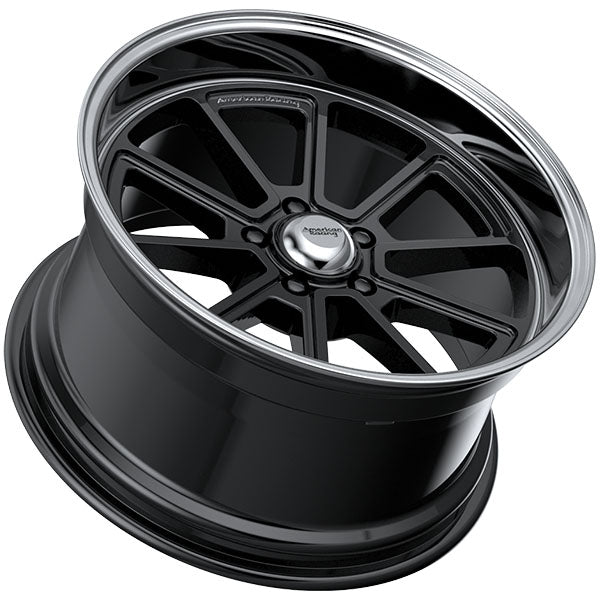

American Racing Draft VN510 Gloss Black w/ Diamond Cut Lip Alloy Wheels
Designed for the pro-touring crowd, the American Racing Draft VN510 blends modern performance with classic American Racing attitude. Inspired by the two-piece forged VF510, its clean, aggressive spoke layout delivers forged-level looks at cast-level pricing, finished in Gloss Black with a striking Diamond Cut lip.
Key Features
- Flow-formed aluminium construction for reduced weight without compromising strength
- Clean, aggressive spoke design inspired by the two-piece forged VF510
- Gloss Black finish with a Diamond Cut lip for a striking two-tone contrast
- Wide range of sizes and bolt patterns to suit classic muscle and restomod builds
- Bridges vintage authenticity with modern street and track performance
Wheel Specifications
| Diameter | Width | Bolt Pattern | Offset | Load Rating | Centre Bore |
|---|---|---|---|---|---|
| 18" | 8" | 5/114.3 | 0 | 716kg | 72.6mm |
| 18" | 8" | 5/120.65 | 0 | 716kg | 72.6mm |
| 18" | 8" | 5/127 | 0 | 716kg | 78.1mm |
| 18" | 10" | 5/114.3 | 0 | 716kg | 72.6mm |
| 18" | 10" | 5/120.65 | 0 | 716kg | 72.6mm |
| 18" | 10" | 5/120.65 | +12 | 716kg | 72.6mm |
| 18" | 10" | 5/127 | 0 | 716kg | 78.1mm |
| 18" | 10" | 5/127 | +12 | 716kg | 78.1mm |
| 20" | 8.5" | 5/120.65 | +6 | 716kg | 72.6mm |
| 20" | 8.5" | 5/127 | +6 | 716kg | 78.1mm |
| 20" | 10" | 5/120.65 | +6 | 716kg | 72.6mm |
| 20" | 10" | 5/127 | +6 | 716kg | 78.1mm |
Fitment
Suits a wide range of classic muscle and restomod platforms including first and second-generation Camaros, Chevelles, Novas, Pontiac GTOs and modernised C10 trucks. For another vintage-styled option, see the American Racing Torq Thrust D VN605 Chrome, or the American Racing Groove VN514 Chrome for a similarly classic five-spoke look.
Care & Installation
- Professional fitment and torque-to-spec installation is recommended for all wheels
- Clean with a pH-neutral wheel cleaner and soft brush to preserve the gloss black and diamond cut finishes
- Avoid abrasive cleaners or high-pressure cleaning directly on the diamond cut lip
- Regularly check and re-torque wheel nuts after initial installation
Finish details and care recommendations may vary. Manufacturer warranty information.
