TAG 4x4 Recovery Towbar for Toyota Landcruiser 78 Series Troopy (08/1991 - on)

TXR862
$1,105.00
$1,105.00

Checkout securley with

payment options
Online payments and cash on pick up available.

  • Description
  • TAG
  • Delivery
  • Documents
  • 🛡️ Fitment Advice
  • Description

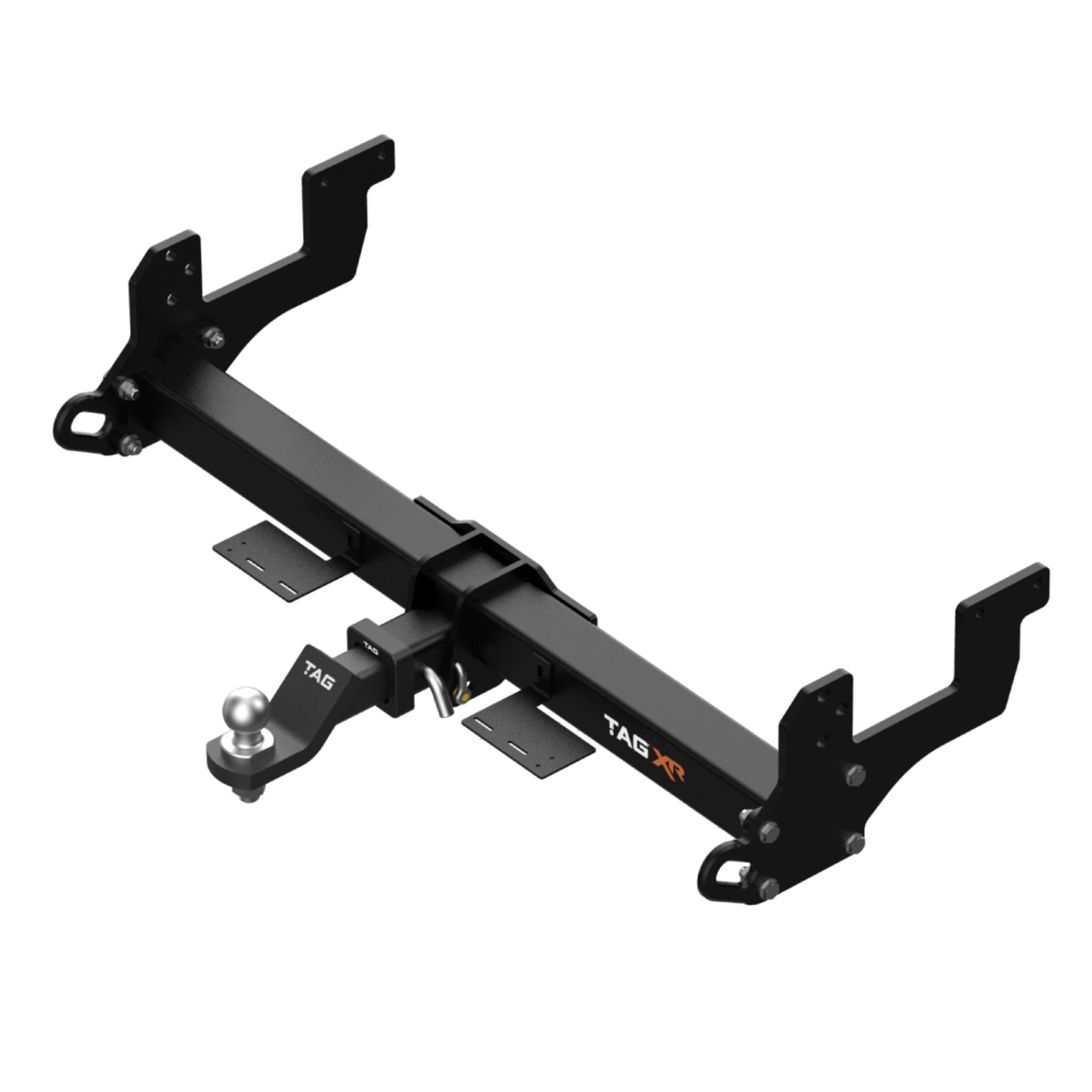

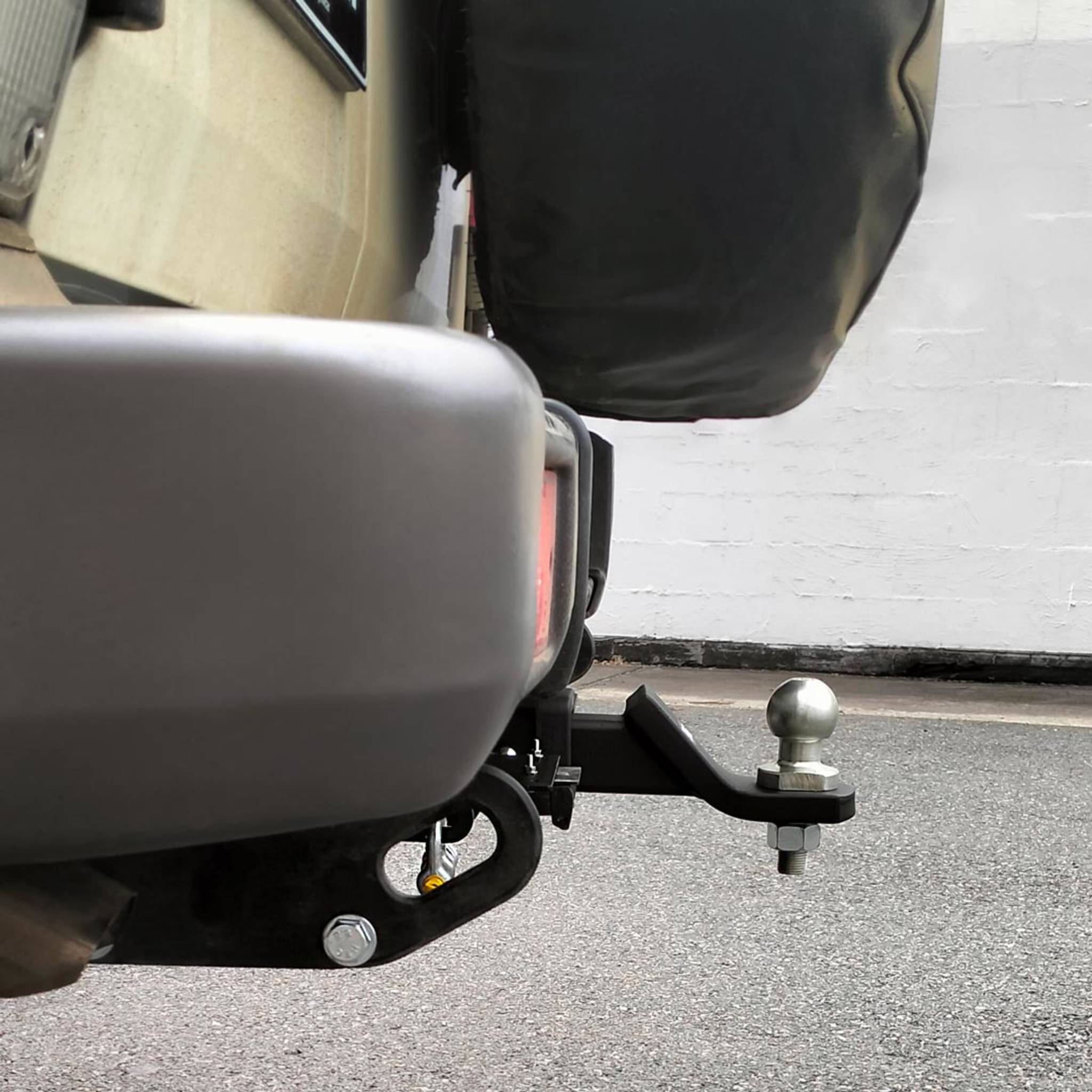

  • Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

    Featuring:

    • Extreme Duty Reinforced Crossbar

    • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

    • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

    • Textured Powder Coated Finish

    • Dual top-mounted Trailer & Anderson Plug Mounts

    • Class 4 Towbar - 50mm Square Hitch Receiver

    • TAG Limited Lifetime Warranty

    • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

    Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
  • TAG
  • TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.



    TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.



    TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.



    With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.

  • Delivery
  •

    For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.



    Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.



    Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!



    🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.











  • Documents
  • Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.



    TAG Accessories & Hitches Download



    TAG Towbars Download



    You may also be interested in these great towing accessories:



    Curt Spectrum Towing Brake Controller

    Curt Echo Bluetooth Brake Controller

    Jump Starter Kit

    Weight Distribution Hitch

    Adjustable Tow Ball Hitch

  • 🛡️ Fitment Advice
  •
    Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
    Specifications
    • Fitting Time [min.]: 90
    • Ball Weight [kg]: 350
    • Towbar Class: Heavy Duty (4x4 Recovery)
    • Towbar Capacity [kg]: 3500
    • Recovery Load-tested: 4000kg WLL
    • Recovery Points: 2
    • Hitch Type: 50mm Square Hitch Receiver
    • Tow Ball Mount: L4045TXR
    • Coating: Textured Powder Coated
    • Bumper Removed During Fitment: Yes
    • Bumper Cut Out Required: No
    • Exposure: Partially concealed
    Toyota Landcruiser (01/1990 - on)
    Make Model From To Body Series Engine Variant Drivetrain
    TOYOTA LANDCRUISER 09/2023 - Troop Carrier GDJL78 1GDFTV | 2.8L | Diesel GXL+ Automatic 4WD
    TOYOTA LANDCRUISER 09/2023 - Troop Carrier GDJL78 1GDFTV | 2.8L | Diesel WORKMATE Automatic AWD
    TOYOTA LANDCRUISER 09/2022 - Troop Carrier VDJ78R 1VDFTV | 4.5L | Diesel GXL, Workmate Manual 4WD
    TOYOTA LANDCRUISER 09/2022 - Troop Carrier VDJ78 1VDFTV | 4.5L | Diesel GXL, Workmate Manual 4WD
    TOYOTA LANDCRUISER 09/2016 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R (with DPF) 4WD
    TOYOTA LANDCRUISER 03/2007 - Troop Carrier VDJ78R 1VD-FTV | 4.5L | Diesel GXL WORKMATE Manual 4WD
    TOYOTA LANDCRUISER 03/2007 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R Manual 4WD
    TOYOTA LANDCRUISER 11/2001 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
    TOYOTA LANDCRUISER 11/2001 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
    TOYOTA LANDCRUISER 10/1999 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
    TOYOTA LANDCRUISER 01/1990 01/2007 Troop Carrier HZJ70RV, HZJ73, HZJ75RV, HZJ78R 1H-Z | 4.2L | Diesel D 4WD
    TOYOTA LANDCRUISER 10/1999 07/2001 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
