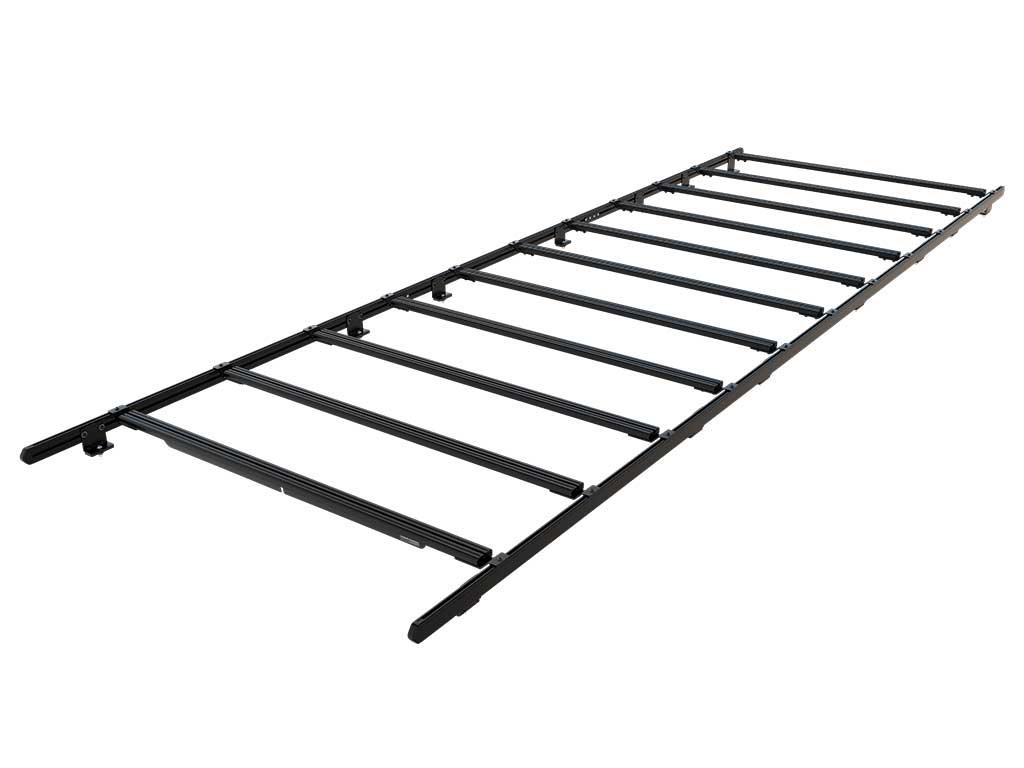

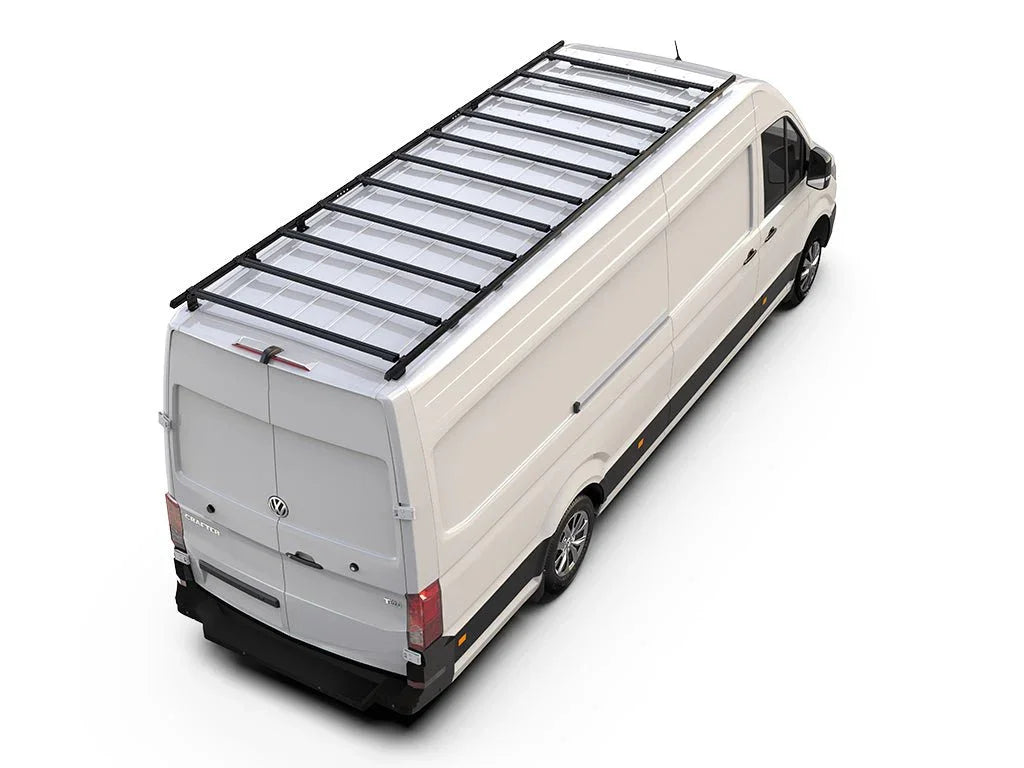

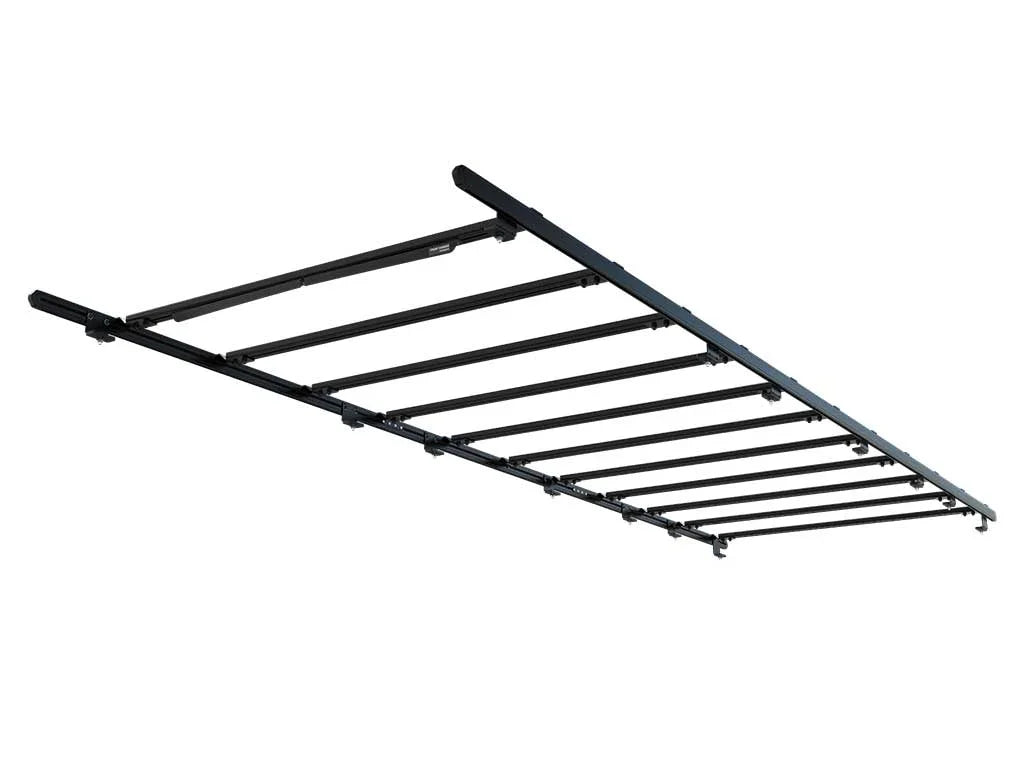

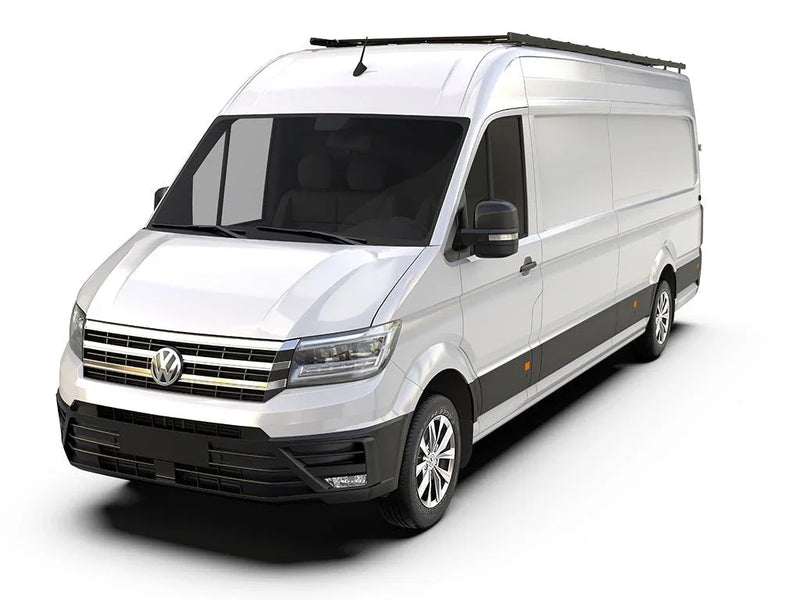

Volkswagen Crafter (L5H2/ LWB Maxi/Standard Roof) (2017-Current) Slimpro Van Rack Kit - by Front Runner
Fitment Advice
Checkout securley with
- Description
- Specifications
- Fitting Instructions
- Front Runner

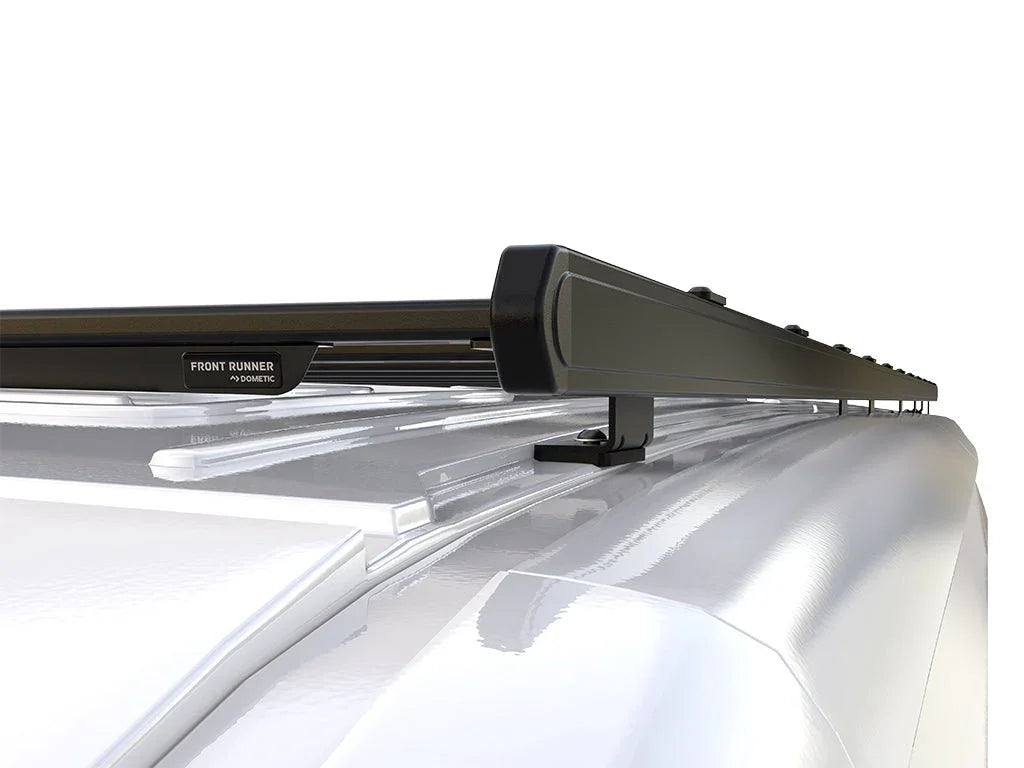

Included Slat Bracket can be inverted for a lower profile at 116mm (4.6'') height, or left in standard configuration at 158mm (6.2''). Compatible with most Front Runner accessories.
Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
Fitment guide and all mounting hardware are included.
No drilling or modification required.
All Front Runner racks are backed by a limited lifetime warranty.*
Consisting of:
1x BOXT114 - Tray Box MKII Top1x BOXT115 - Tray Box MKII Bottom1x BOXT116 - Tray Box MKII Combined Inner6x FAVF005 - Volkswagen Crafter Van Rack Foot Set / 65mm1x FAVF006 - Volkswagen Crafter Van Rack Foot Set / 90mm2x RRAC207 - Van Rack Joiner Kit2x RRAC208 - Van Rack Side Profile End Caps6x RRNS1345 - Narrow Slat / 1345mm (Pair)1x SPVT002 - Van Rack Side Profile / 1358mm2x SPVT003 - Van Rack Side Profile / 1560mm1x WDST013 - Wind Deflector Van Rack 30mm Lip Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steel Assembled Rack Kit Dimensions:4534mm (178.5'') L x 1456mm (57.3'') W x 158mm (6.2'') Approximate Installed
Weight: 51.14kg (112.74lbs) Volkswagen Crafter Van Rack Kit heights are adjustable from 116mm (Z bracket inverted) to 158mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat. The slat T slots and side profiles take standard M8 hex bolts top and bottom. Shipping Dimensions:Width: 300mm (12'')Length: 1805mm (71'')Height: 195mm (8'') Shipping
Weight:
Weight: 51.35kg (113lbs)Box Dimensions
195mm Depth 300mm Length 1805mm Width
