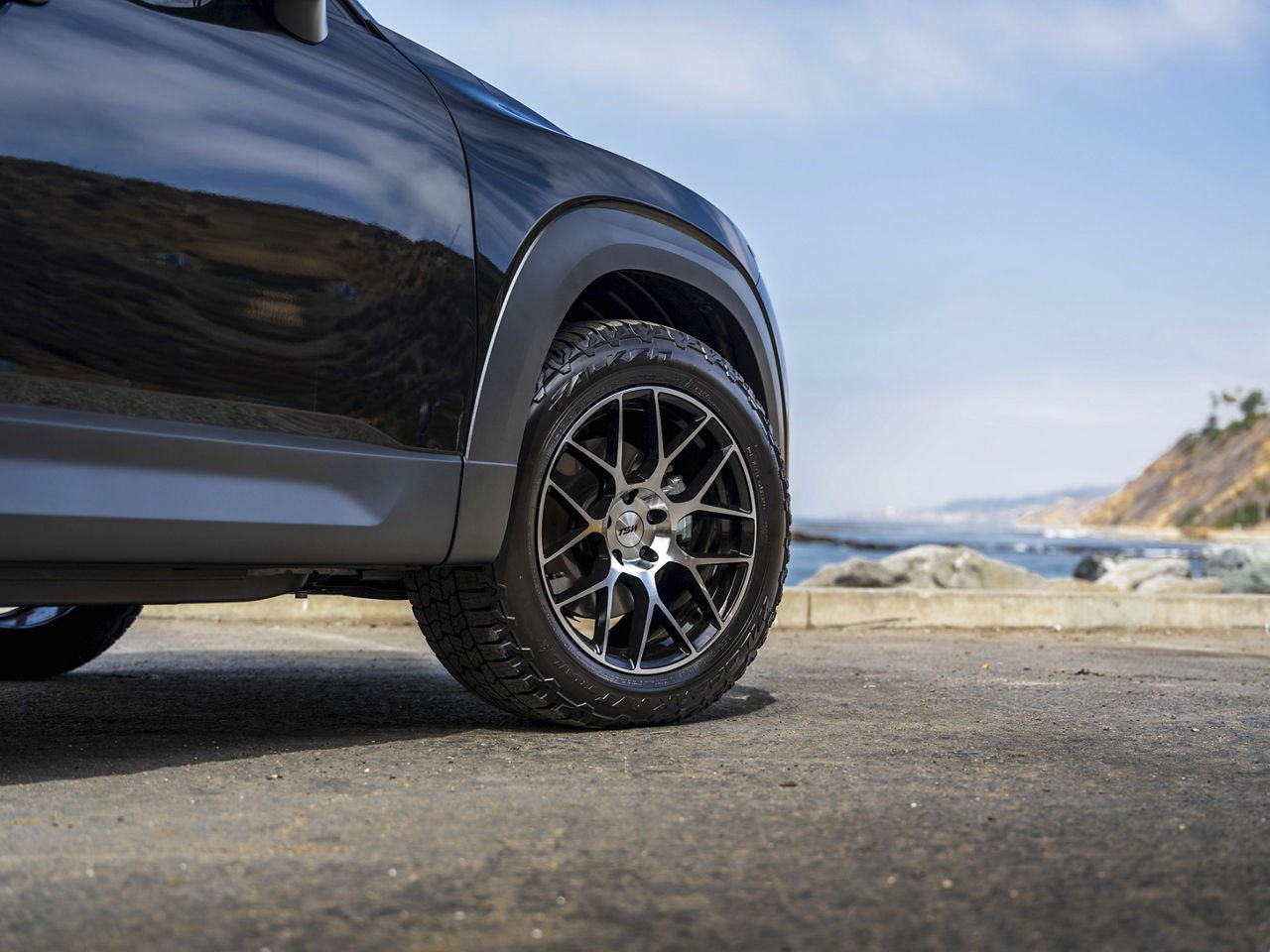

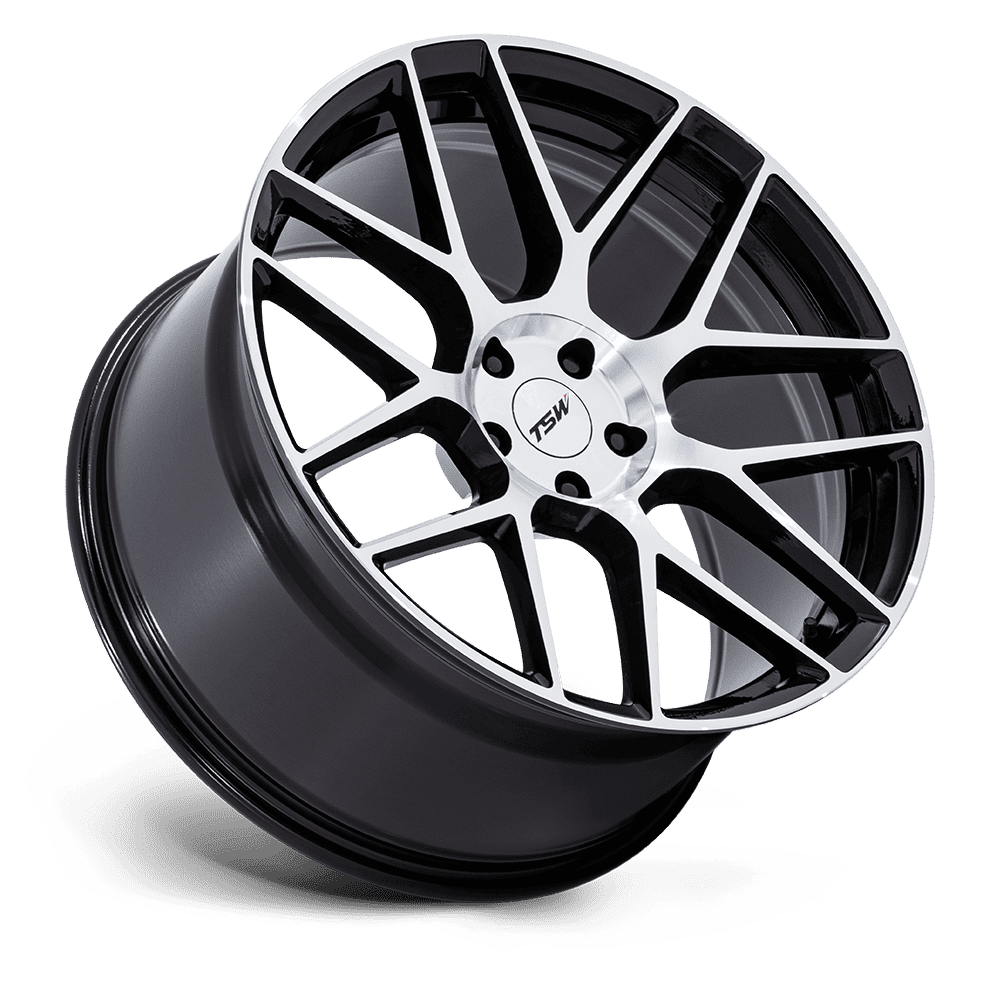

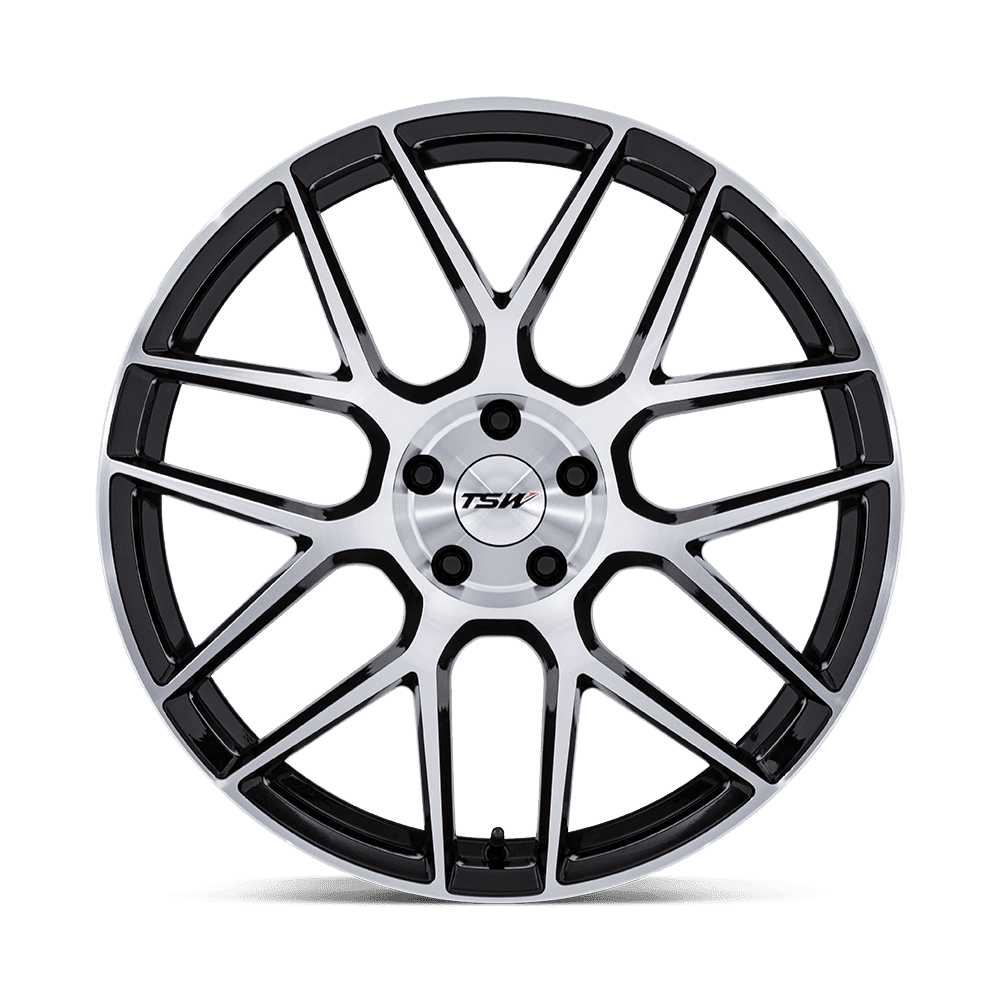

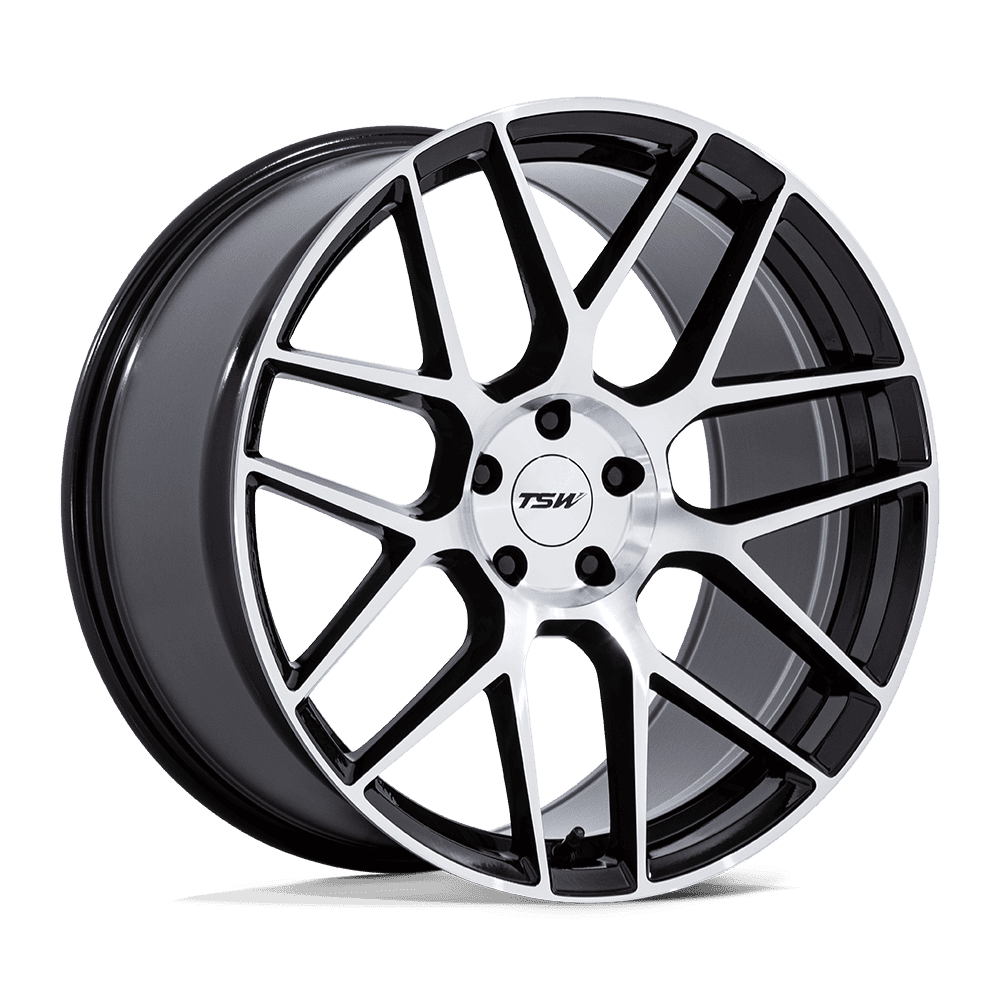

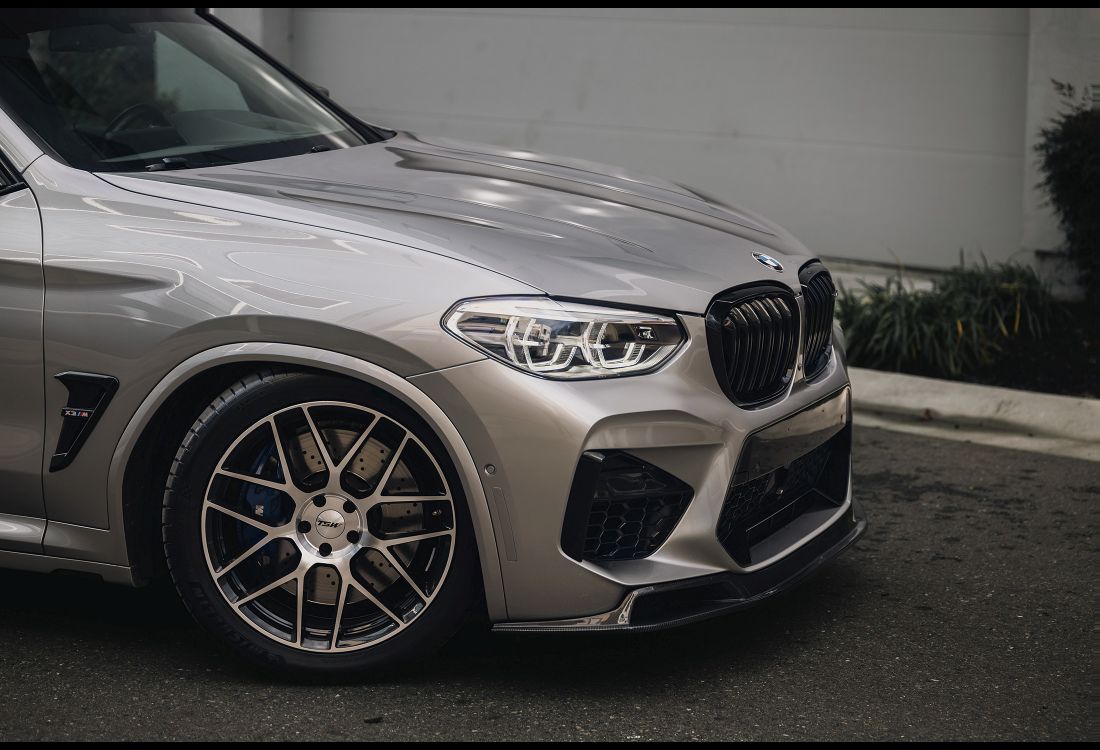

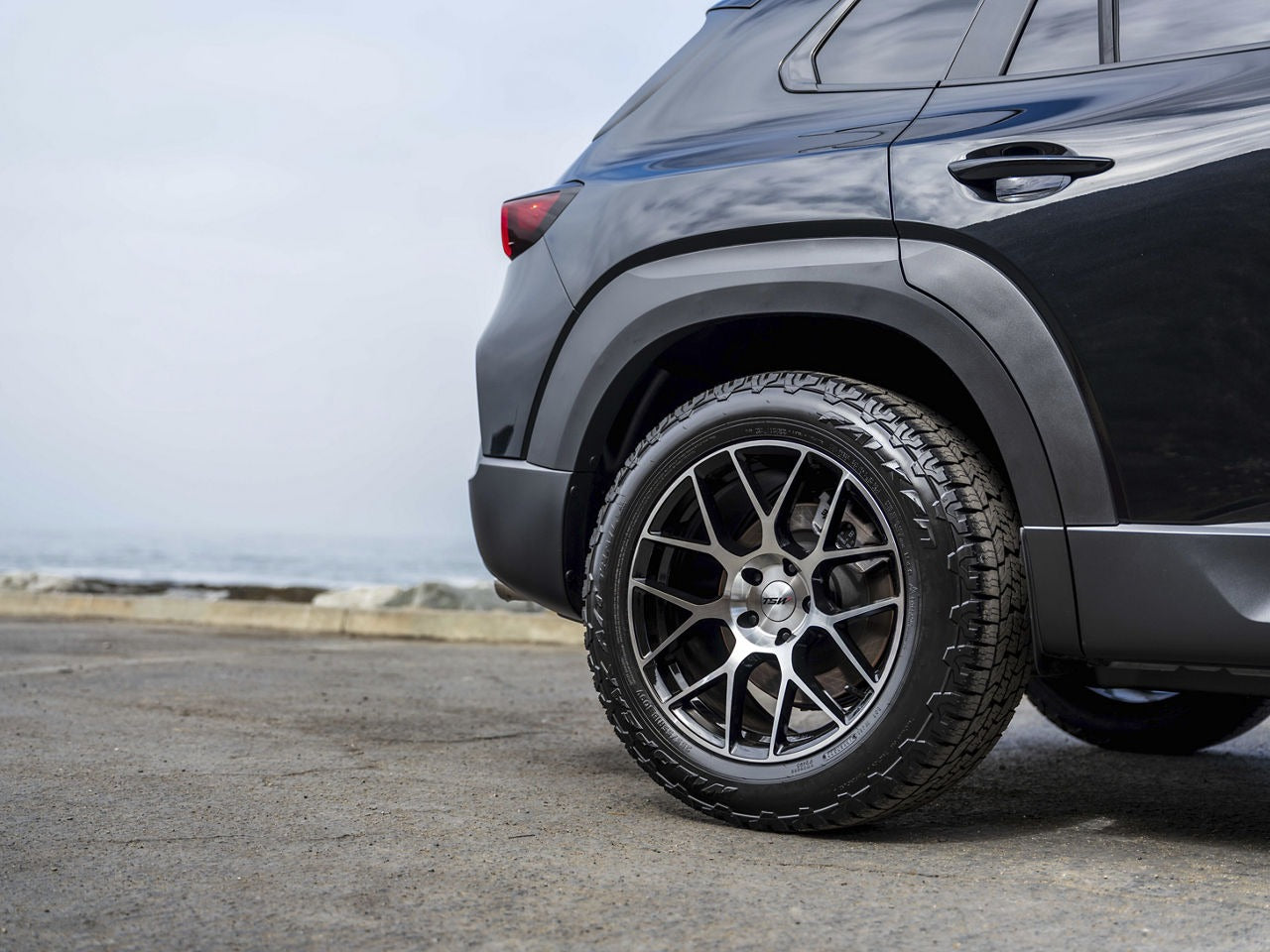

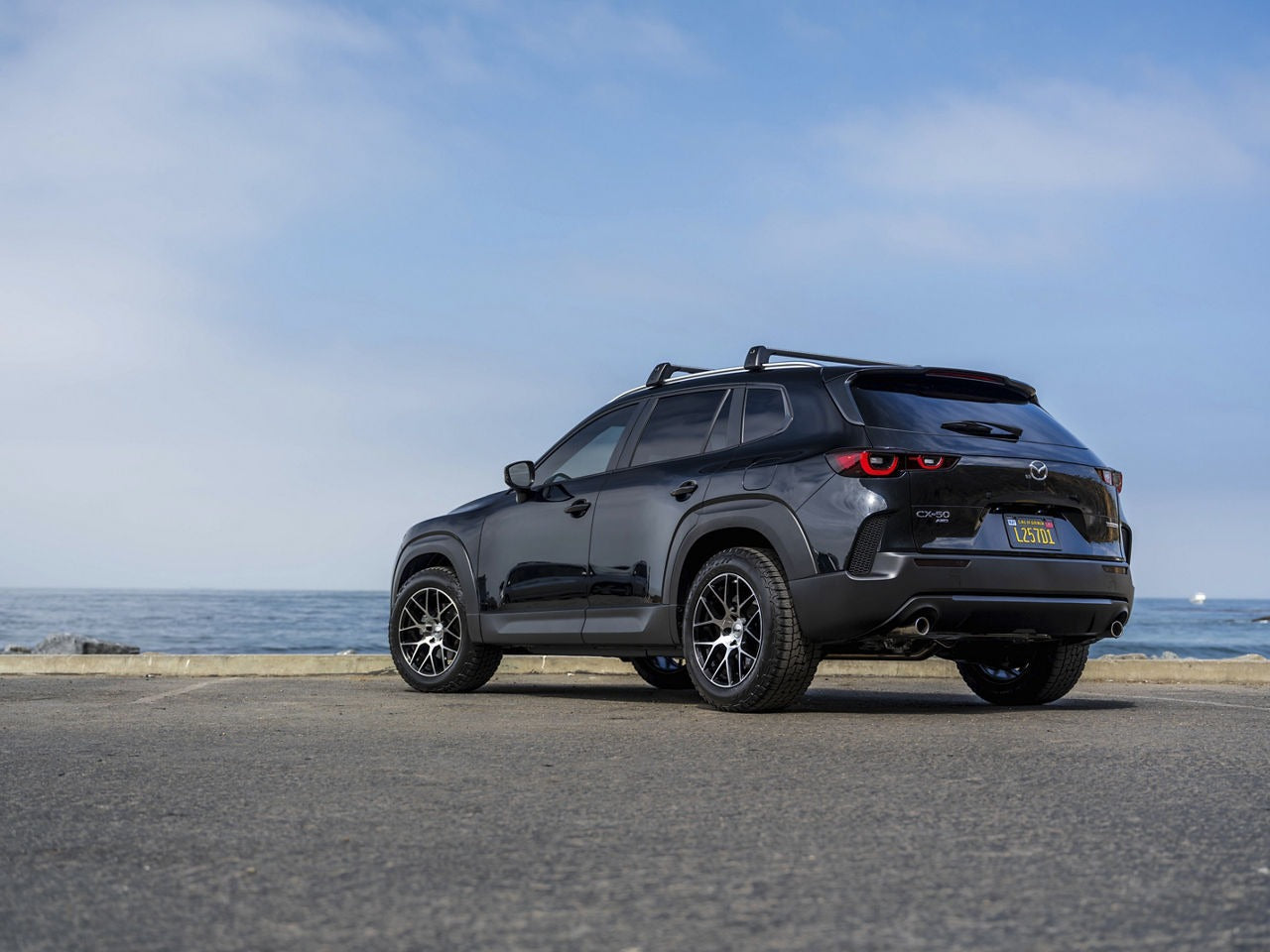

Upgrade your vehicle with the timeless style and performance engineering of the TSW Lasarthe Wheel. Designed for drivers who demand both aesthetic appeal and lightweight performance, the Lasarthe combines classic motorsport inspiration with modern manufacturing technology.
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load | Lip Size |
| 17X8 | 5X108 | 6.07 | 40mm | 72.56 | 18.25 lbs | 1375 | 0 |
| 17X8 | 5X112 | 6.27 | 45mm | 66.56 | 18.10 lbs | 1375 | 0 |
| 17X8 | 5X112 | 5.88 | 35mm | 66.56 | 18.61 lbs | 1375 | 0 |
| 17X8 | 5X114.3 | 6.07 | 40mm | 72.56 | 18.38 lbs | 1375 | 0 |
| 17X8 | 5X120 | 5.88 | 35mm | 74.1 | 18.65 lbs | 1375 | 0 |
| 18X8.5 | 5X100 | 6.25 | 38mm | 72.56 | 20.72 lbs | 1375 | 0 |
| 18X8.5 | 5X112 | 6.4 | 42mm | 66.56 | 20.68 lbs | 1375 | 0 |
| 18X8.5 | 5X114.3 | 6.13 | 35mm | 72.56 | 20.81 lbs | 1375 | 0 |
| 18X8.5 | 5X120 | 6.13 | 35mm | 74.1 | 20.99 lbs | 1375 | 0 |
| 18X9 | 5X112 | 6.77 | 45mm | 66.56 | 21.14 lbs | 1375 | 0 |
| 18X9.5 | 5X112 | 6.12 | 22mm | 66.56 | 21.96 lbs | 1375 | 0 |
| 18X9.5 | 5X114.3 | 6.23 | 25mm | 72.56 | 21.76 lbs | 1375 | 0 |
| 18X9.5 | 5X114.3 | 6.82 | 40mm | 72.56 | 21.16 lbs | 1375 | 0 |
| 18X9.5 | 5X120 | 6.82 | 40mm | 74.1 | 21.27 lbs | 1375 | 0 |
| 18X10.5 | 5X112 | 7.13 | 35mm | 66.56 | 22.76 lbs | 1375 | 0 |
| 18X10.5 | 5X114.3 | 6.73 | 25mm | 72.56 | 23.00 lbs | 1375 | 0 |
| 20X9 | 5X112 | 5.79 | 20mm | 66.56 | 26.33 lbs | 1800 | 0 |
| 20X9 | 5X112 | 6.77 | 45mm | 66.56 | 25.34 lbs | 1800 | 0 |
| 20X9 | 5X112 | 6.06 | 27mm | 66.56 | 26.17 lbs | 1800 | 0 |
| 20X9 | 5X114.3 | 6.38 | 35mm | 72.56 | 25.64 lbs | 1800 | 0 |
| 20X9 | 5X120 | 6.06 | 27mm | 74.1 | 26.02 lbs | 1800 | 0 |
| 20X10.5 | 5X112 | 7.25 | 38mm | 66.56 | 25.64 lbs | 1800 | 0 |
| 20X10.5 | 5X112 | 6.93 | 30mm | 66.56 | 26.15 lbs | 1800 | 0 |
| 20X10.5 | 5X114.3 | 7.25 | 38mm | 72.56 | 25.64 lbs | 1800 | 0 |
| 20X10.5 | 5X120 | 7.25 | 38mm | 74.1 | 25.64 lbs | 1800 | 0 |
| 22X9 | 5X112 | 6.06 | 27mm | 66.56 | 30.80 lbs | 1980 | 0 |
| 22X9 | 5X112 | 5.79 | 20mm | 66.56 | 31.09 lbs | 1980 | 0 |
| 22X9 | 5X114.3 | 6.5 | 38mm | 72.56 | 30.43 lbs | 1980 | 0 |
| 22X9 | 5X120 | 6.06 | 27mm | 74.1 | 30.58 lbs | 1980 | 0 |
| 22X10.5 | 5X112 | 7.25 | 38mm | 66.56 | 31.09 lbs | 1980 | 0 |
| 22X10.5 | 5X114.3 | 7.25 | 38mm | 72.56 | 31.07 lbs | 1980 | 0 |
| 22X10.5 | 5X120 | 7.25 | 38mm | 74.1 | 31.16 lbs | 1980 | 0 |
Key Features
-
Classic split-spoke wide mesh design inspired by the TSW Nurburgring
-
Manufactured using advanced Flow Formed Technology for strength and reduced weight
-
Engineered for street and track performance
-
Available in 17”, 18”, 19”, and 20” diameters
-
Offset options ranging from +20mm to +45mm
-
Premium finishes: Gloss Black Machined or Gloss Silver Machined
-
Durable, lightweight construction designed to elevate driving performance
For added off-road recovery capability, consider pairing your wheels with maxtrax recovery tracks.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
