Toyota Land Cruiser 76 Load Bar Kit / Gutter Mount - by Front Runner
Fitment Advice
Checkout securley with
- Description
- Specifications
- Dimensions
- Fitting Instructions
- Front Runner

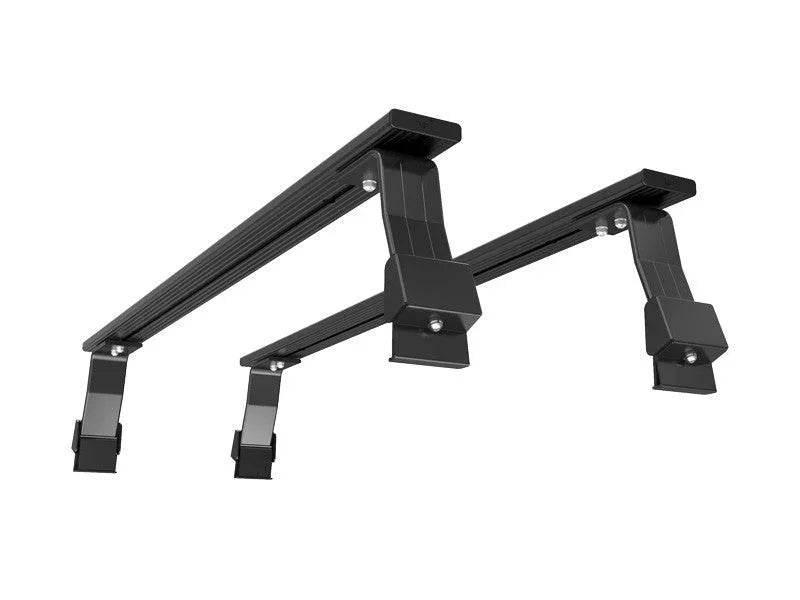

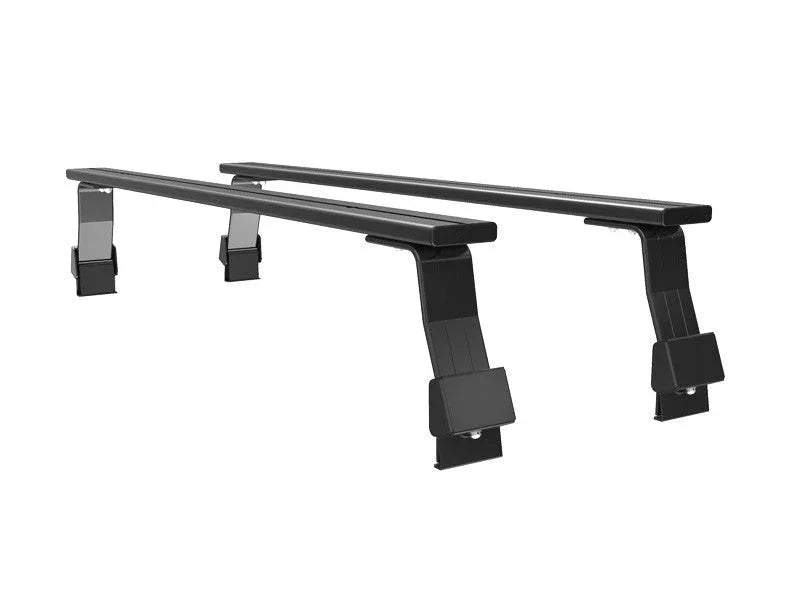

This low profile, smaller footprint solution includes 4 155mm Gutter Mount legs, 2 1425mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.
You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
2 x LASS103 - No 3 Leg 155mm (Pair) - by Front Runner 1 x LBSK016 - Roof Load Bar Pair 1425mm(W) - by Front Runner 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner Material used: Black epoxy powder-coated T6 aluminium High strength steel Approximate Installed Weight 7kg (16lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts. To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot or Grab-On Foot Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions: Width 120mm (5'')Length 1555mm (61'')Height 175mm (7'') Shipping
Weight: Weight 8.7kg (19.2lbs)
https://content.frontrunneroutfitters.com/collateral/doc/F_WDLB001.pdf
Travel. Dream. Design. Build. Test. Evolve. Repeat.
Legend has it that Front Runner was conceived between a 1988 Land Cruiser 70 and a 1992 Mercedes G-Wagen in Botswana, around a campfire, near a majestic Baobab, amongst elephant tracks, by a handful of friends from South Africa with backgrounds in engineering, design, manufacturing and off-road racing. After suffering through numerous equipment failures on their expeditions around the world, they decided to take their shared passion for vehicle based adventure travel and dream up new, smart gear and build it stronger than… well, as they put it, “stronger than the elephants at the watering hole 1 klick over.”
And just like that, before the moon gave way to the sun, we were born.
With the gruelling African bush as a testing ground, we at Front Runner focused on a tough love approach to developing products. With both feet facing the future and little sentimentally for mediocre ideas of the past – common approaches to off-road vehicle product design were quickly jettisoned in favor of innovation, new materials, and superior manufacturing practices.
Today our products have a well deserved reputation (if we don’t say so ourselves) for quality, intelligent design, and durability. Our manufacturing facility just outside of Johannesburg, South Africa features in house laser cutting, bending and powder coating. Our CAD designed products by a team of engineers and built by skilled craftsman in our ISO-9001 : 2015 Certified factory.
Our roof racks, water tanks, tents, awnings, drawer systems and camping accessories are enjoyed, used and abused around the world by casual campers, the U.N., overlanders, NGOs, outdoor enthusiasts and extreme athletes.
