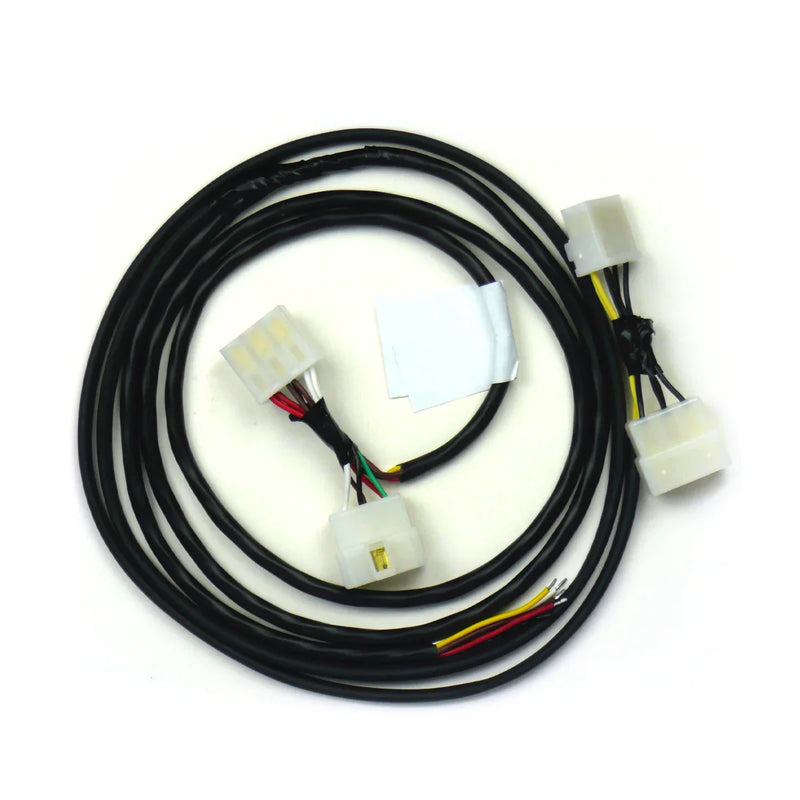

TAG Direct Fit Wiring Harness for Ford Courier (06/1985 - 2006), Mazda B2600 (1987 - 2006), B2500 (04/1996 - 11/2006), B2200 (1985 - 1996), B4000 (2005 - 2006), B-SERIES BRAVO (01/1985 - 11/2006), B2000 (1985 - 1988)
UNT255
$71.00
$56.80
Checkout securley with
- Description
- TAG
- Documents
- 🛡️ Fitment Advice
Towbar Direct Fit Harness - FORD COURIER / MAZDA BRAVO Ute
TAG has been designing and manufacturing towbars in Australia for over 35 years. All TAG towbars are designed, manufactured and tested to meet the stringent standards of ADR62/01.
TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.
TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production. Our engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.
With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.
Please find below downloads which include further specifications and drawings of many of the TAG towbar and hitch range.
TAG Accessories & Hitches Download
You may also be interested in these great towing accessories:
Curt Spectrum Towing Brake Controller
Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
Specifications
- Diagnostic Coding: Not Required
- Fog Cut Off: Not Applicable
- Reverse Sensor Cut Off: Not Applicable
- Wiring Option: Direct Fit Wiring Harness
- Fitting Time [min.]: 30
Ford Ranger (01/1985 - 03/2009), Courier (01/1985 - 03/2009), Mazda B-SERIES BRAVO (01/1985 - 03/2009)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FORD | COURIER | 02/2005 | 12/2006 | Ute | PH | 1V | 4.0L | Petrol | i | AWD |
| FORD | COURIER | 02/2005 | 12/2006 | Ute | PH | 1V | 4.0L | Petrol | i | RWD |
| FORD | COURIER | 08/2004 | 02/2006 | Cab Chassis | PH | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 08/2004 | 02/2006 | Cab Chassis | PH | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 08/2004 | 12/2006 | Cab Chassis | PH | WL-T | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 08/2004 | 12/2006 | Cab Chassis | PH | WLAT (12 V) | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 08/2004 | 02/2006 | Ute | PH | G6 | 2.6L | Petrol | AWD | |
| FORD | COURIER | 08/2004 | 02/2006 | Ute | PH | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 08/2004 | 12/2006 | Ute | PH | WLAT (12 V) | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 08/2004 | 12/2006 | Ute | PH | WLAT (12 V) | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 11/2002 | 07/2004 | Cab Chassis | PG | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 11/2002 | 07/2004 | Cab Chassis | PG | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 11/2002 | 07/2004 | Cab Chassis | PG | WLAT (12 V) | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 11/2002 | 07/2004 | Cab Chassis | PG | WLAT (12 V) | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 11/2002 | 07/2004 | Ute | PG | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 11/2002 | 07/2004 | Ute | PG | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 11/2002 | 07/2004 | Ute | PG | WLAT (12 V) | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 11/2002 | 07/2004 | Ute | PG | WLAT (12 V) | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 02/1999 | 11/2002 | Cab Chassis | PE | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 02/1999 | 11/2002 | Cab Chassis | PE | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 02/1999 | 11/2002 | Cab Chassis | PE | WLAT (12 V) | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 02/1999 | 11/2002 | Cab Chassis | PE | WLAT (12 V) | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 02/1999 | 11/2002 | Ute | PE | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 02/1999 | 11/2002 | Ute | PE | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 02/1999 | 11/2002 | Ute | PE | WLAT (12 V) | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 02/1999 | 11/2002 | Ute | PE | WLAT (12 V) | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 05/1996 | 02/1999 | Cab Chassis | PD | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 05/1996 | 02/1999 | Cab Chassis | PD | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 05/1996 | 02/1999 | Cab Chassis | PD | WL-T | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 05/1996 | 02/1999 | Cab Chassis | PD | WL-T | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 05/1996 | 02/1999 | Ute | PD | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 05/1996 | 02/1999 | Ute | PD | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 05/1996 | 02/1999 | Ute | PD | WL-T | 2.5L | Diesel | TD | AWD |
| FORD | COURIER | 05/1996 | 02/1999 | Ute | PD | WL-T | 2.5L | Diesel | TD | RWD |
| FORD | COURIER | 10/1991 | 04/1996 | Cab Chassis | PC | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 10/1991 | 04/1996 | Cab Chassis | PC | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 10/1991 | 04/1996 | Ute | PC | G6 | 2.6L | Petrol | i | RWD |
| FORD | COURIER | 10/1990 | 04/1996 | Ute | PC | G6 | 2.6L | Petrol | i | AWD |
| FORD | COURIER | 01/1988 | 04/1996 | Cab Chassis | PC | R2 | 2.2L | Diesel | D | RWD |
| FORD | COURIER | 06/1985 | 04/1996 | Ute | PC | R2 | 2.2L | Diesel | D | RWD |
| FORD | COURIER | 01/1989 | 06/1993 | Cab Chassis | PC | F2 (12 V) | 2.2L | Petrol | RWD | |
| FORD | COURIER | 01/1989 | 06/1993 | Ute | PC | F2 (12 V) | 2.2L | Petrol | RWD | |
| FORD | COURIER | 12/1989 | 12/1992 | Cab Chassis | PC | FE | 2.0L | Petrol | RWD | |
| FORD | COURIER | 12/1989 | 12/1992 | Ute | PC | FE | 2.0L | Petrol | RWD | |
| FORD | COURIER | 05/1987 | 11/1992 | Ute | PC | 4G54 | 2.6L | Petrol | AWD | |
| FORD | COURIER | 01/1988 | 12/1989 | Cab Chassis | PC | FE | 2.0L | Petrol | RWD | |
| FORD | COURIER | 06/1985 | 12/1989 | Ute | PC | FE | 2.0L | Petrol | RWD | |
| FORD | RANGER | 11/2006 | 03/2009 | Ute | PJ | WEAT | 3.0L | Diesel | TD | 4WD |
| FORD | RANGER | 11/2006 | 03/2009 | Ute | PJ | WEAT | 3.0L | Diesel | TD | RWD |
| FORD | RANGER | 11/2006 | 03/2009 | Ute | PJ | WLAT (16 V) | 2.5L | Diesel | TDdi | RWD |
| MAZDA | B-SERIES BRAVO | 11/2005 | 11/2006 | Cab Chassis | MJ (MJ2E) | 1V | 4.0L | Petrol | B4000 BRAVO i | RWD |
| MAZDA | B-SERIES BRAVO | 11/2005 | 11/2006 | Ute | MJ (MJ2E) | 1V | 4.0L | Petrol | B4000 BRAVO i | AWD |
| MAZDA | B-SERIES BRAVO | 11/2005 | 11/2006 | Ute | MJ (MJ2E) | 1V | 4.0L | Petrol | B4000 BRAVO i | RWD |
| MAZDA | B-SERIES BRAVO | 09/2000 | 11/2006 | Ute | UN | 4.0L | Petrol | B4000 BRAVO i | AWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 11/2006 | Cab Chassis | UN (UNY0) | G6 | 2.6L | Petrol | B2600 BRAVO i | RWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 10/2006 | Ute | UN | WL-T | 2.5L | Diesel | B2500 BRAVO TD | RWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 11/2006 | Ute | UN | G6Y1 | 2.6L | Petrol | B2600 BRAVO i | AWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 11/2006 | Ute | UN | JK26 | 2.6L | Petrol | B2600 BRAVO i | AWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 11/2006 | Ute | UN | G6Y1 | 2.6L | Petrol | B2600 BRAVO i | RWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 03/2005 | Cab Chassis | UN | WLF5 | 2.5L | Diesel | B2500 BRAVO TD | AWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 03/2005 | Cab Chassis | UN | WL-T | 2.5L | Diesel | B2500 BRAVO TD | RWD |
| MAZDA | B-SERIES BRAVO | 02/1999 | 03/2005 | Ute | UN | WLF5 | 2.5L | Diesel | B2500 BRAVO TD | AWD |
| MAZDA | B-SERIES BRAVO | 05/1996 | 02/1999 | Cab Chassis | UF | WL-T | 2.5L | Diesel | B2500 BRAVO TD | RWD |
| MAZDA | B-SERIES BRAVO | 04/1996 | 02/1999 | Ute | UF (UFY0) | WL-T | 2.5L | Diesel | B2500 BRAVO TD | AWD |
| MAZDA | B-SERIES BRAVO | 04/1996 | 02/1999 | Ute | UF (UFY0) | WL-T | 2.5L | Diesel | B2500 BRAVO TD | RWD |
| MAZDA | B-SERIES BRAVO | 11/1991 | 02/1999 | Cab Chassis | UF | G6 | 2.6L | Petrol | B2600 BRAVO i | RWD |
| MAZDA | B-SERIES BRAVO | 12/1990 | 02/1999 | Cab Chassis | UF | G6 | 2.6L | Petrol | B2600 BRAVO i | AWD |
| MAZDA | B-SERIES BRAVO | 01/1990 | 05/1999 | Ute | UF (UFY0) | G6 | 2.6L | Petrol | B2600 i | AWD |
| MAZDA | B-SERIES BRAVO | 01/1990 | 02/1999 | Ute | UF (UFY0) | G6 | 2.6L | Petrol | B2600 i | RWD |
| MAZDA | B-SERIES BRAVO | 01/1988 | 03/1996 | Cab Chassis | UF | R290 | 2.2L | Diesel | B2200 D | RWD |
| MAZDA | B-SERIES BRAVO | 01/1985 | 03/1996 | Ute | UF (UFY0) | R290 | 2.2L | Diesel | B2200 D | RWD |
| MAZDA | B-SERIES BRAVO | 03/1988 | 11/1991 | Cab Chassis | UF | F2L5 | 2.2L | Petrol | B2200 i | RWD |
| MAZDA | B-SERIES BRAVO | 03/1988 | 11/1991 | Ute | UF | F2L8 | 2.2L | Petrol | B2200 i | RWD |
| MAZDA | B-SERIES BRAVO | 03/1987 | 01/1991 | Ute | UF (UFY0) | 4G54 | 2.6L | Petrol | B2600 | AWD |
| MAZDA | B-SERIES BRAVO | 01/1987 | 10/1991 | Cab Chassis | UF | 4G54 | 2.6L | Petrol | B2600 i | AWD |
| MAZDA | B-SERIES BRAVO | 05/1985 | 07/1988 | Cab Chassis | UF | FE (8V) | 2.0L | Petrol | B2000 | RWD |
| MAZDA | B-SERIES BRAVO | 05/1985 | 07/1988 | Ute | UF | FE (8V) | 2.0L | Petrol | B2000 | RWD |
TAG 7 Pin Flat Socket (Vehicle Side)
