Stedi ST3K 21.5 Inch 20 LED Slim LED Light Bar
Checkout securley with
- Description
- Delivery
- 🛡️ Fitment Advice

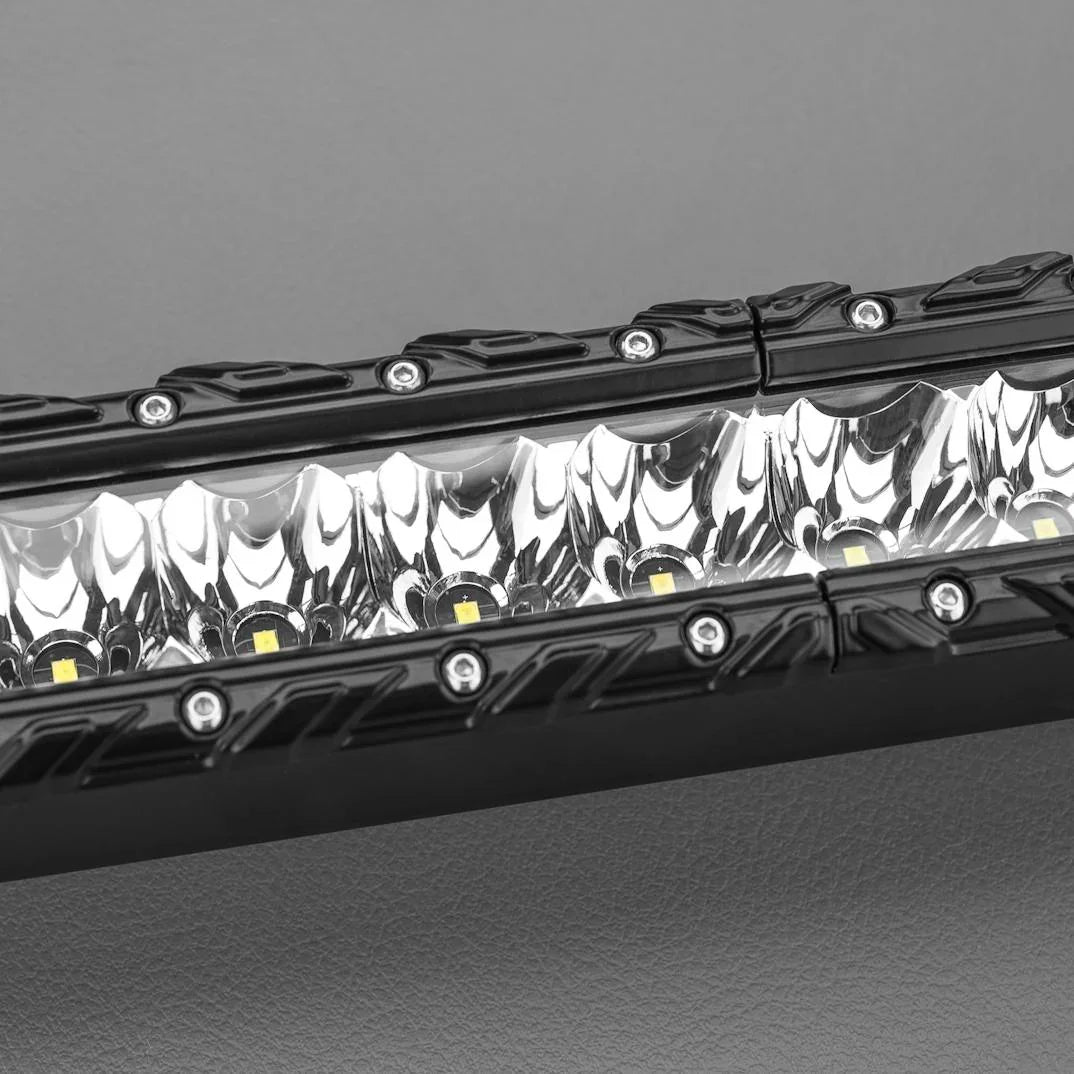

ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!

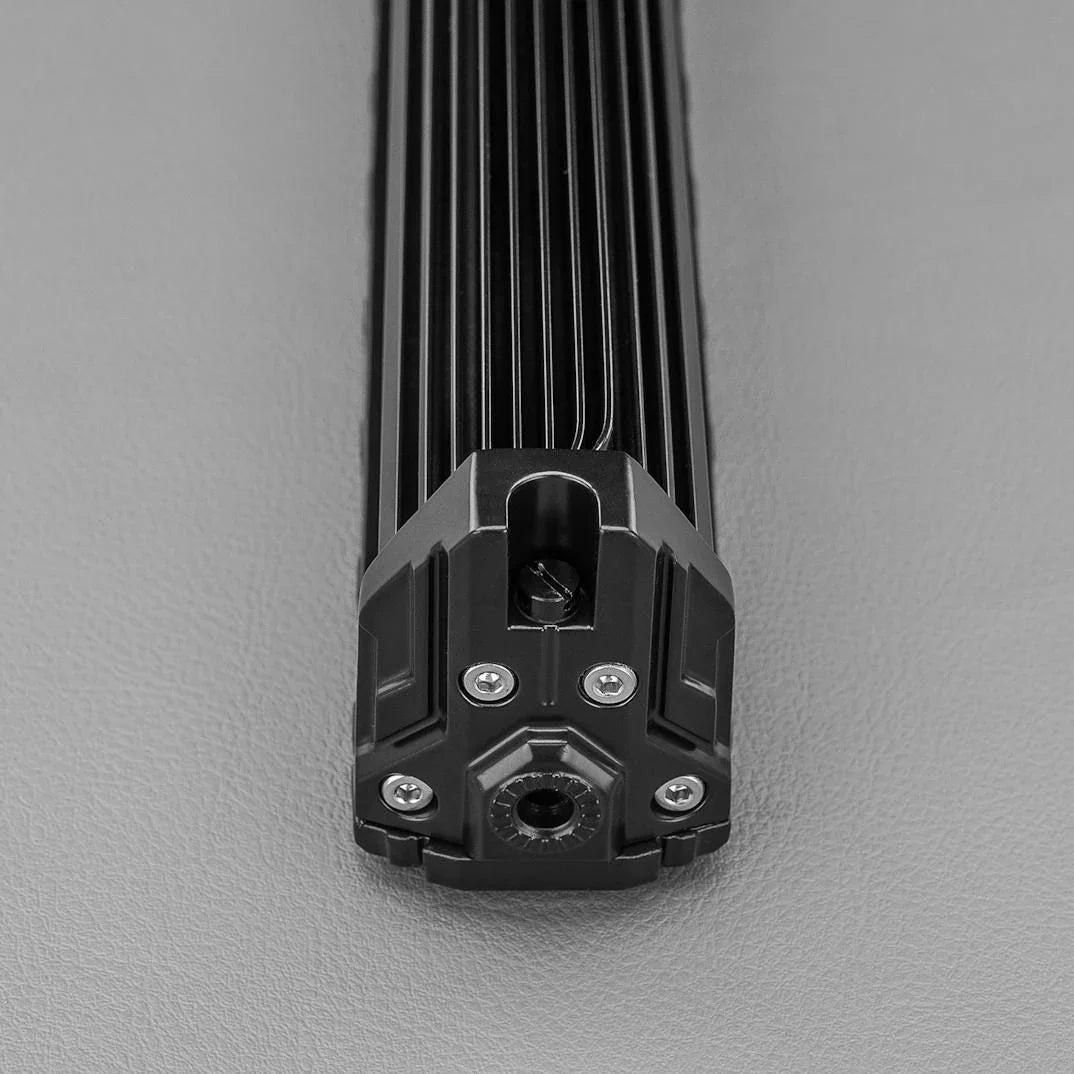

Environmentally sealed Deutsch DT-2 connector.
Protected against EMC and RFI.
Protected against EMC and RFI.
Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!
Specifications
| LED | 20 x Osram Oslon White |
| EFFECTIVE LUMEN | 4,100Lm |
| PEAK INTENSITY | 243,200cd |
| OPERATING VOLTAGE | 10-30V DC |
| IP RATING | IP68 |
| CURRENT DRAW | 4.3A @ 13.5v |
| COLOUR TEMPERATURE (CCT) | 5700 Kelvin |
| HOUSING MATERIAL | Aluminium Extrusion & Cast |
| LENS | GE™ Lexan |
| MOUNTING BRACKET | Powder Coated 3mm Stainless Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | Flood Spot Combo |
| LIFESPAN | 50,000 Hours |
| WEIGHT | 1.855 |
| OPERATING ENVIRONMENT | -40° to +50° Celsius |
| PHOTOMETRIC DATA | |
| 10 M | 2, 430 Lx |
| 50 M | 97 Lx |
| 100 M | 24 Lx |
| 200 M | 6 Lx |
| 493 M | 1 Lx |
