Slimsport Roof Rack Kit for VW Amarok 2023+ Lightbar Ready by Front Runner
Fitment Advice
Checkout securley with
- Description
- Specifications
- Installation
- Front Runner

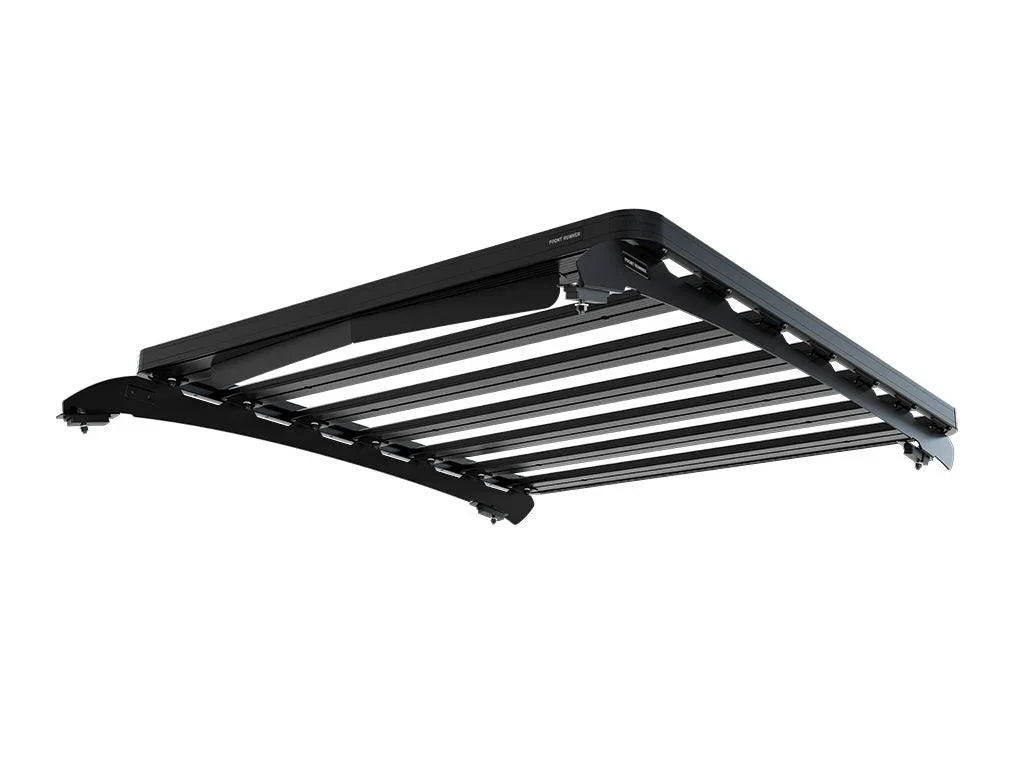

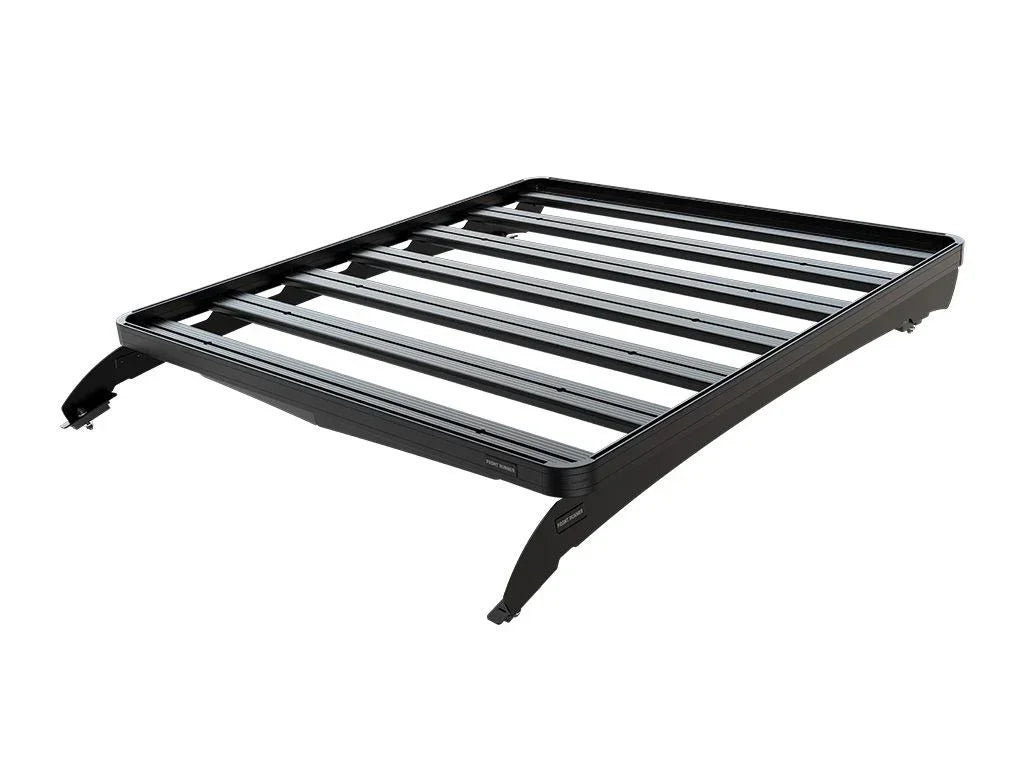

- This low-profile flat deck Slimsport rack has a load carrying area of 1468mm (57.8") x 1233mm (48.5").

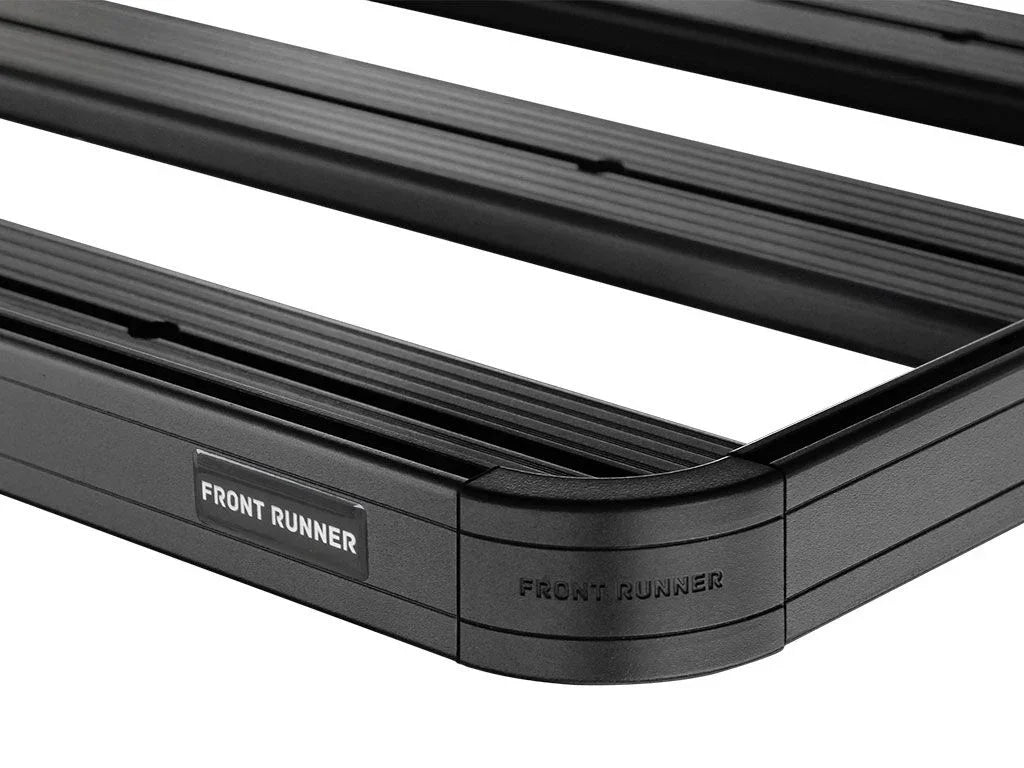

- The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
- The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
- Easily add on the Rack Accessory Mounting Bracket Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for most Front Runner side mount accessories (sold separately).

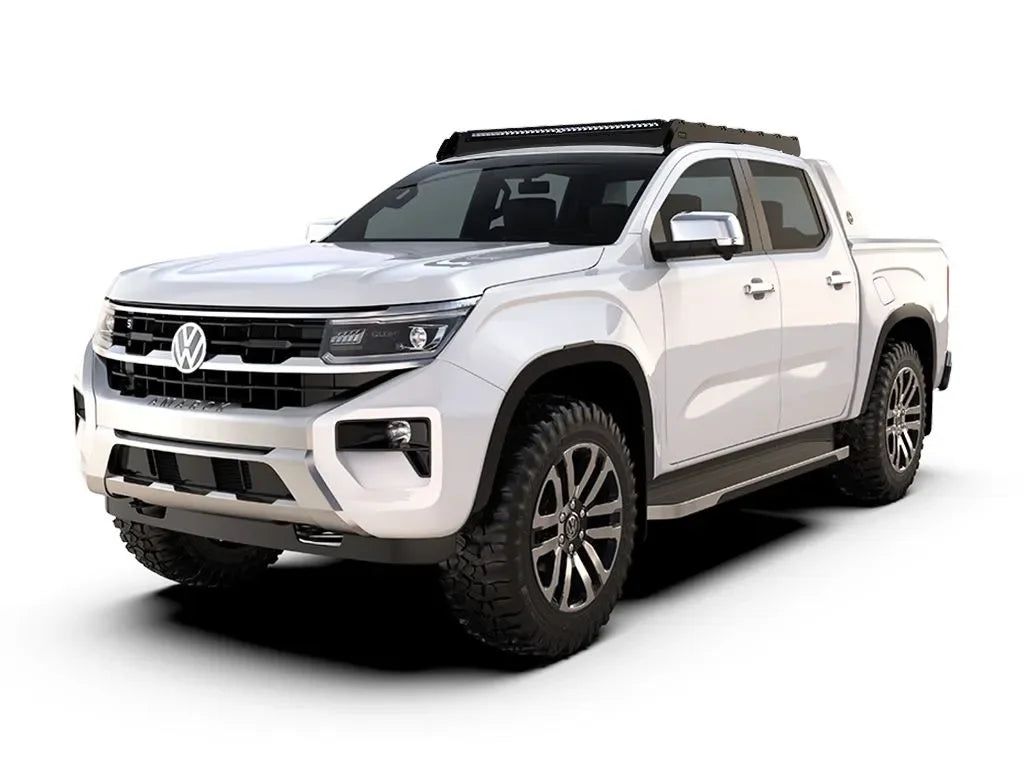

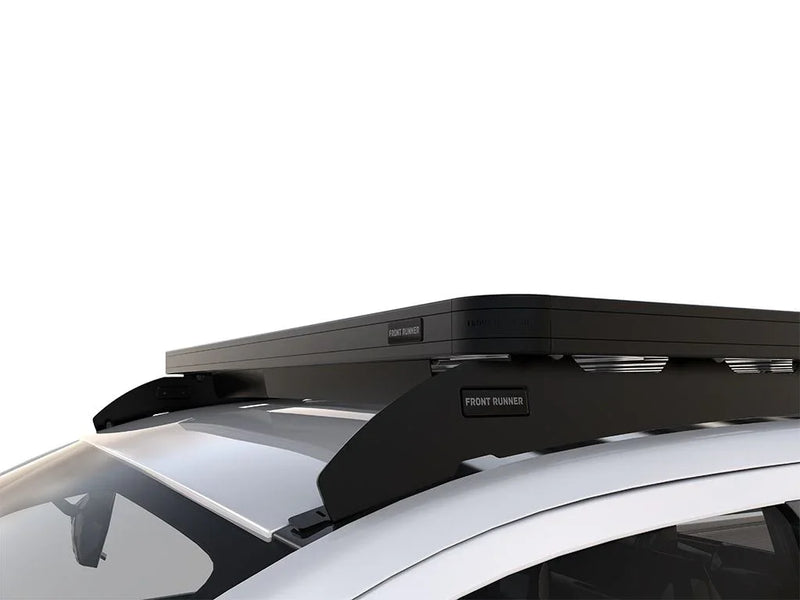

- Included in the Volkswagen Amarok (2023-Current) Slimsport Roof Rack Kit/Lightbar Ready has a 40" cutout to allow the use of the Front Runner 40” LED Slim Light Bar 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately), and allows full operation of the moon roof.Fitment guide and all mounting hardware included.
- 6"/T30 Torx Allen Key for Slimsport Rack is required for installation (sold separately).
- Note: Drilling required for installation.
- Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
- Note: Only compatible with rear factory antenna or when no front antenna is fitted.
- All Front Runner Racks are backed by a Limited Lifetime Warranty*
KSVA002T - Volkswagen Amarok (2023-Current) Slimsport Roof Rack Kit/Lightbar Ready
Consisting of:
1x KSFR006 - Ford Ranger T6.2(22+)/VW Amarok(23+)DC Ssport Tray
1x RRAC312 - Ford Ranger T6 Dbl Cab(22-Curr)SlmSprt 40" Lbar WF
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 21.3kg (46.96lbs)
Assembled Tray Dimensions:
1468mm (57.8") L x 1233mm (48.5") W x 139mm (5.5") H

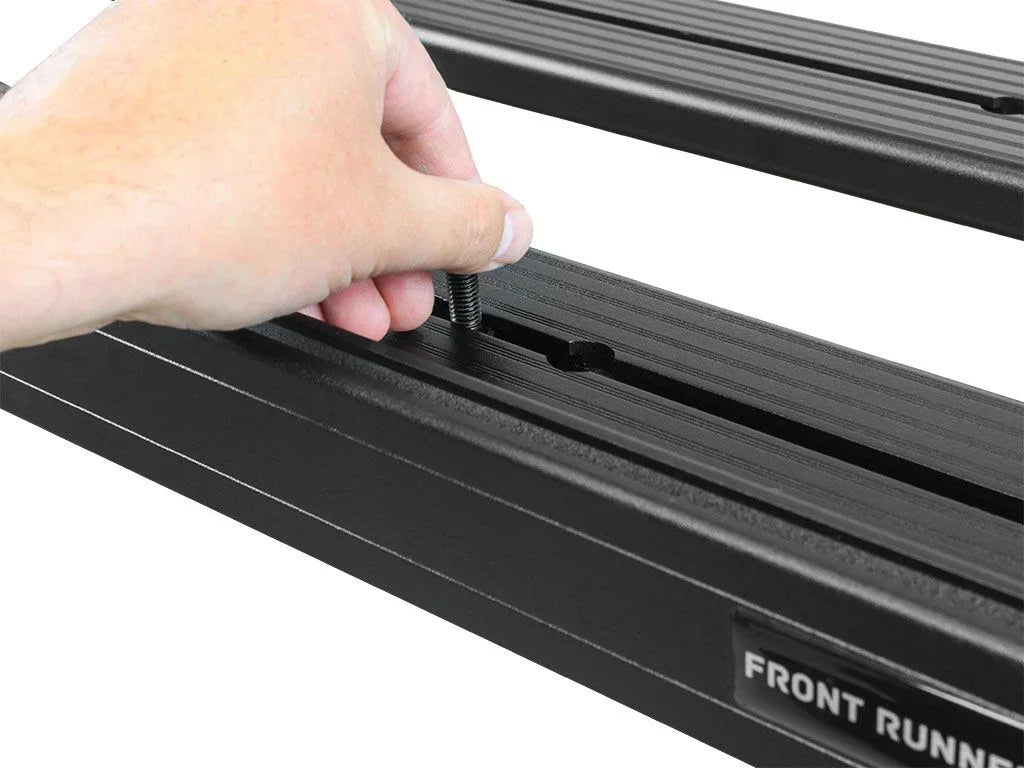

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 225mm (9")
Shipping Weight:
Weight: 25kg (55lbs)
View / Download
- Language: EN
- Filename: F_KSFR006.pdf
- Filesize: 73.89 M
View / Download
- Language: EN
- Filename: F_RRAC312.pdf
- Filesize: 15.19 M
