ROH Assault Wheels Matte Black with Graphite Face Black Bolts

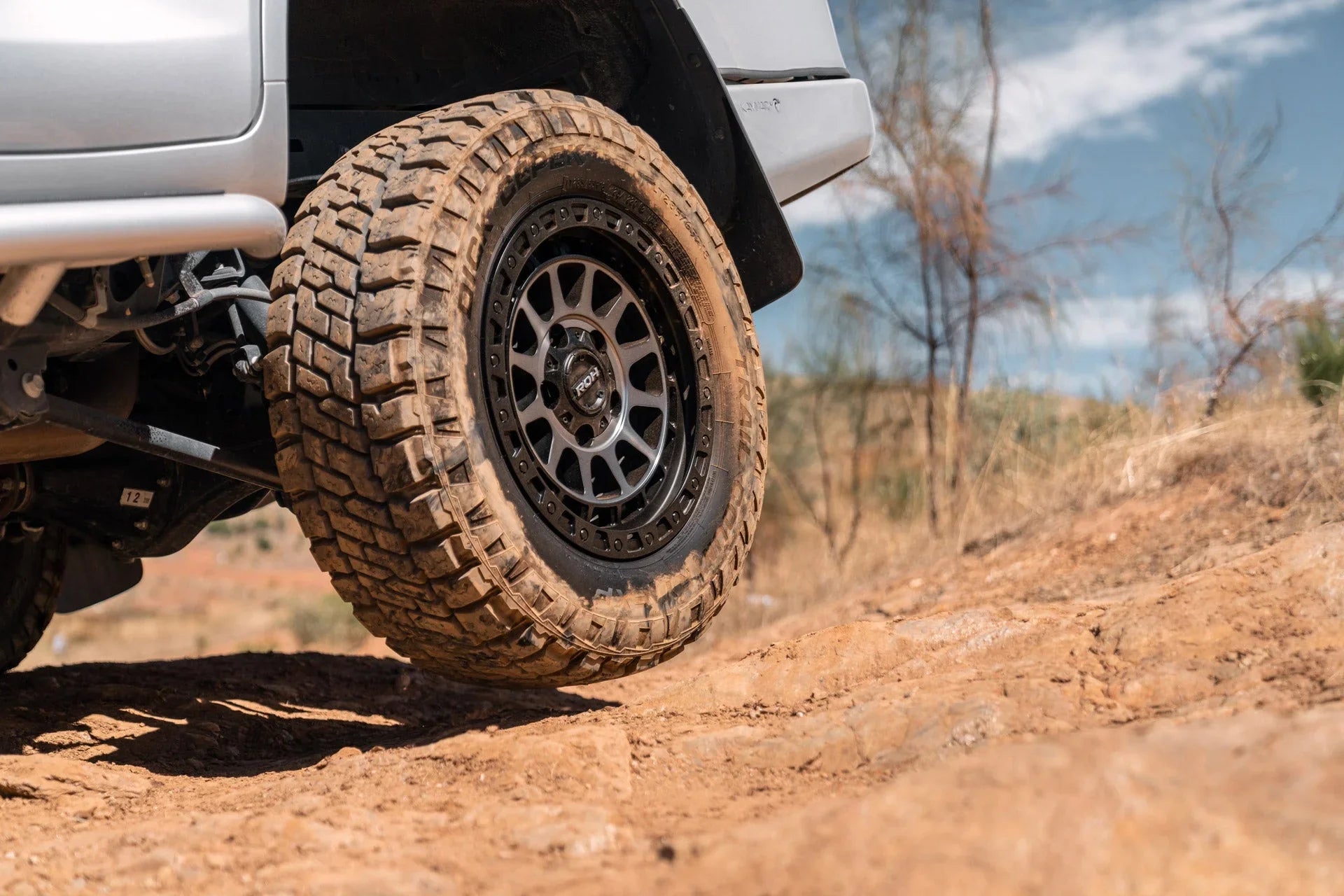

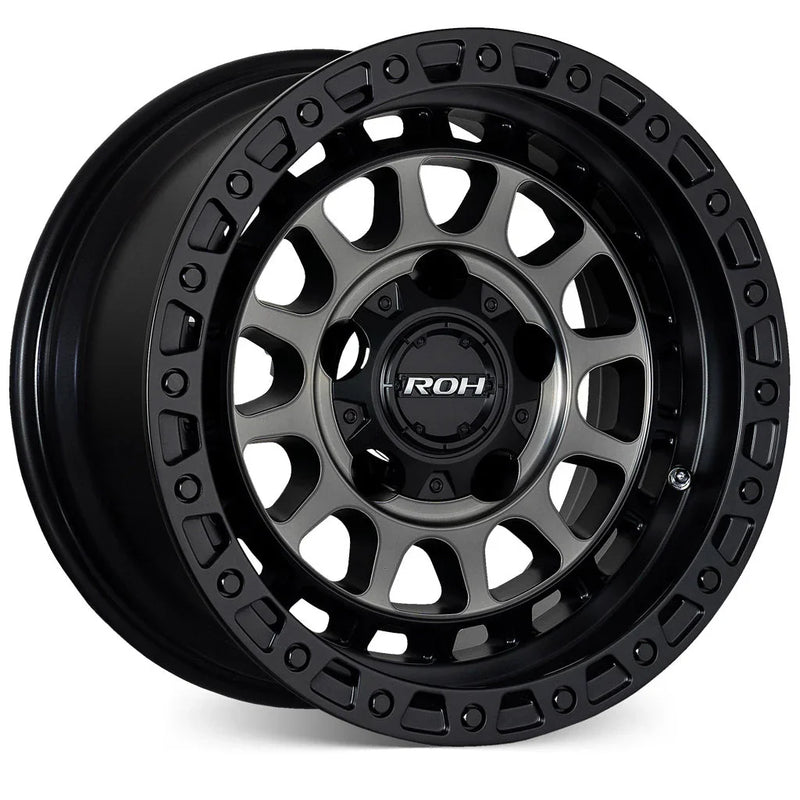

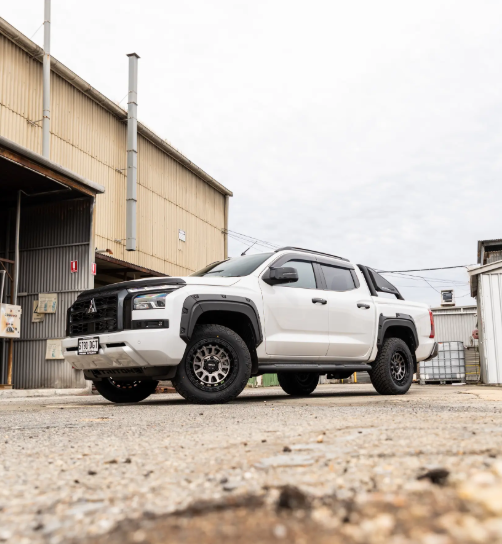

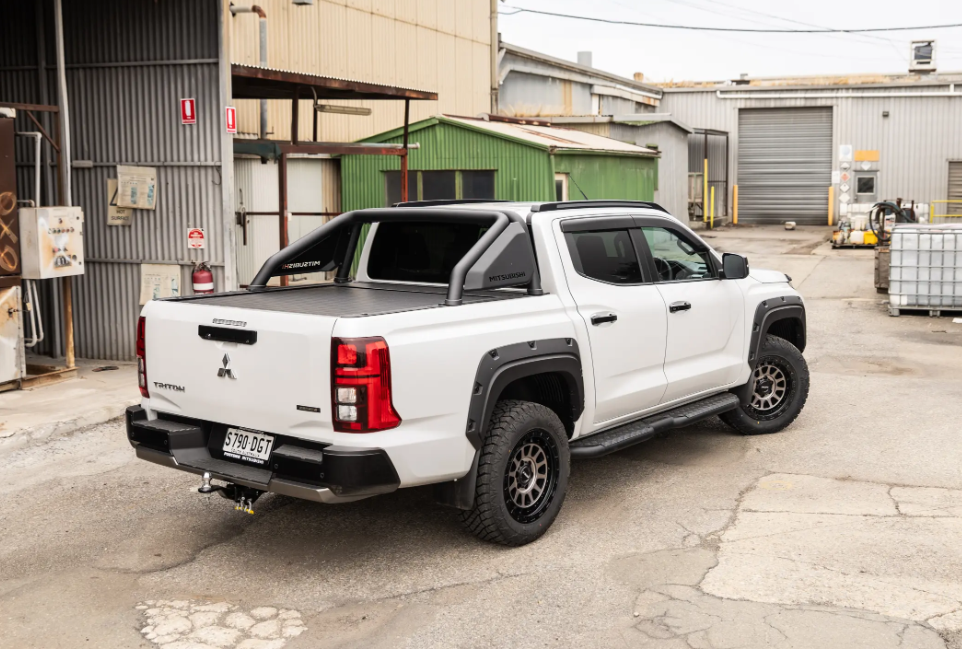

New to the exclusive range of ROH Dakar Proven Wheels®, the all new ROH Assault 4×4 wheel features a matt black outer lip with a graphite face centre finish coupled with black anodised aluminium bolts. ROH Assault is available in 16”, 17” and 18” sizes.
Looking for Next Gen Ford Ranger Wheels? The ROH Assault is in 18x9 6/139.7 +40 is perfect fit for the new Next Gen Ford Ranger. It is also a Toyota LandCruiser 300 wheel fitment.

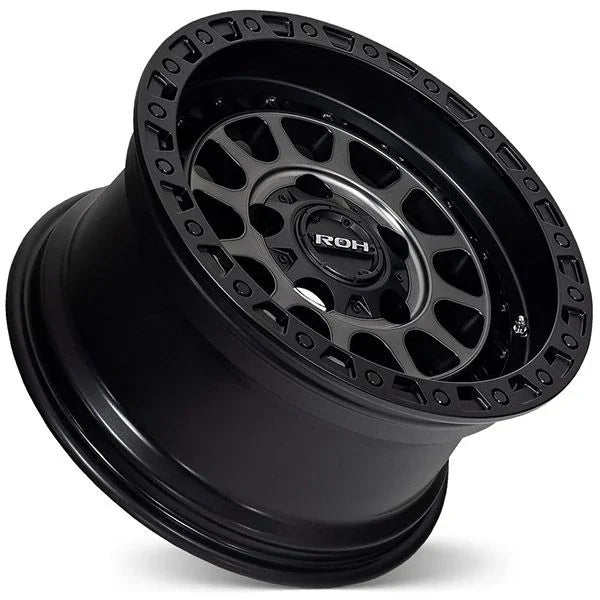

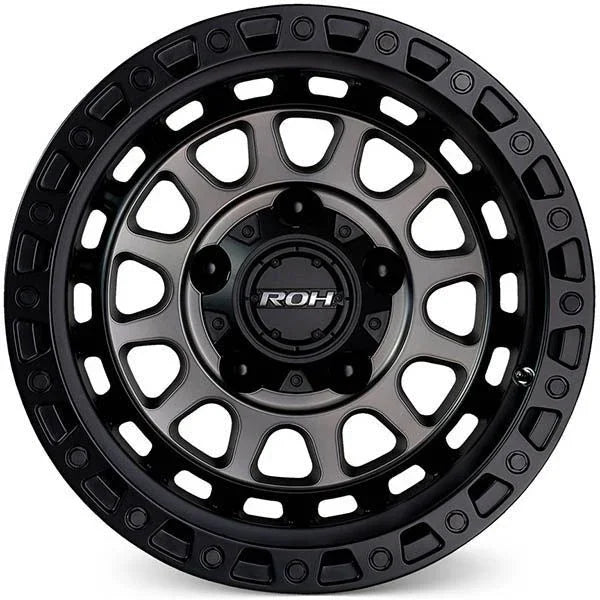

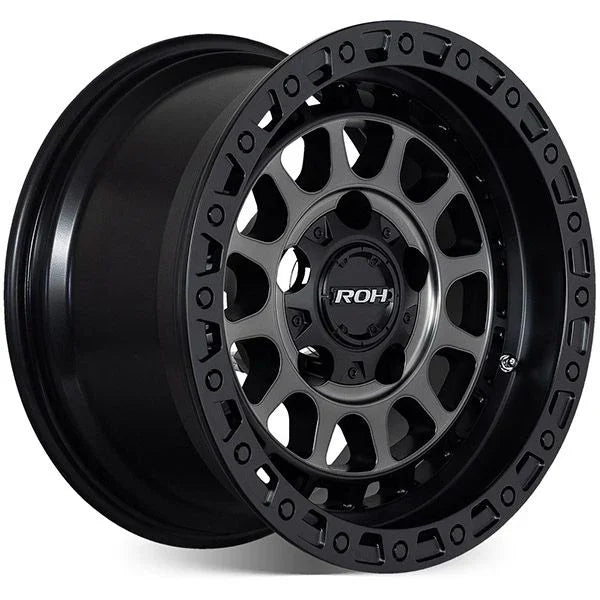

ROH Assault is a rally inspired deep-dish full faced design enhanced with a beadlock style matt black lip. Design details include 20 black anodised aluminium bolts that adorn the matt black outer lip, which features integrated debris release slots.

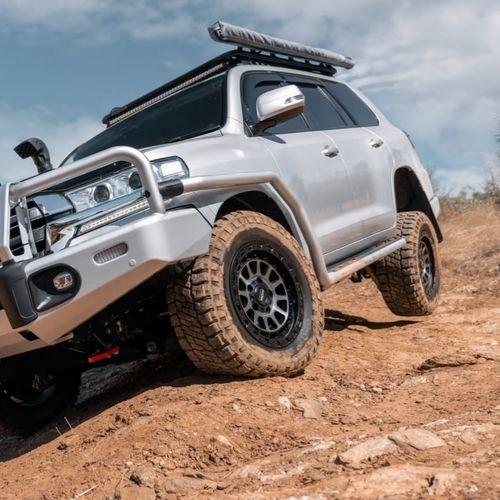

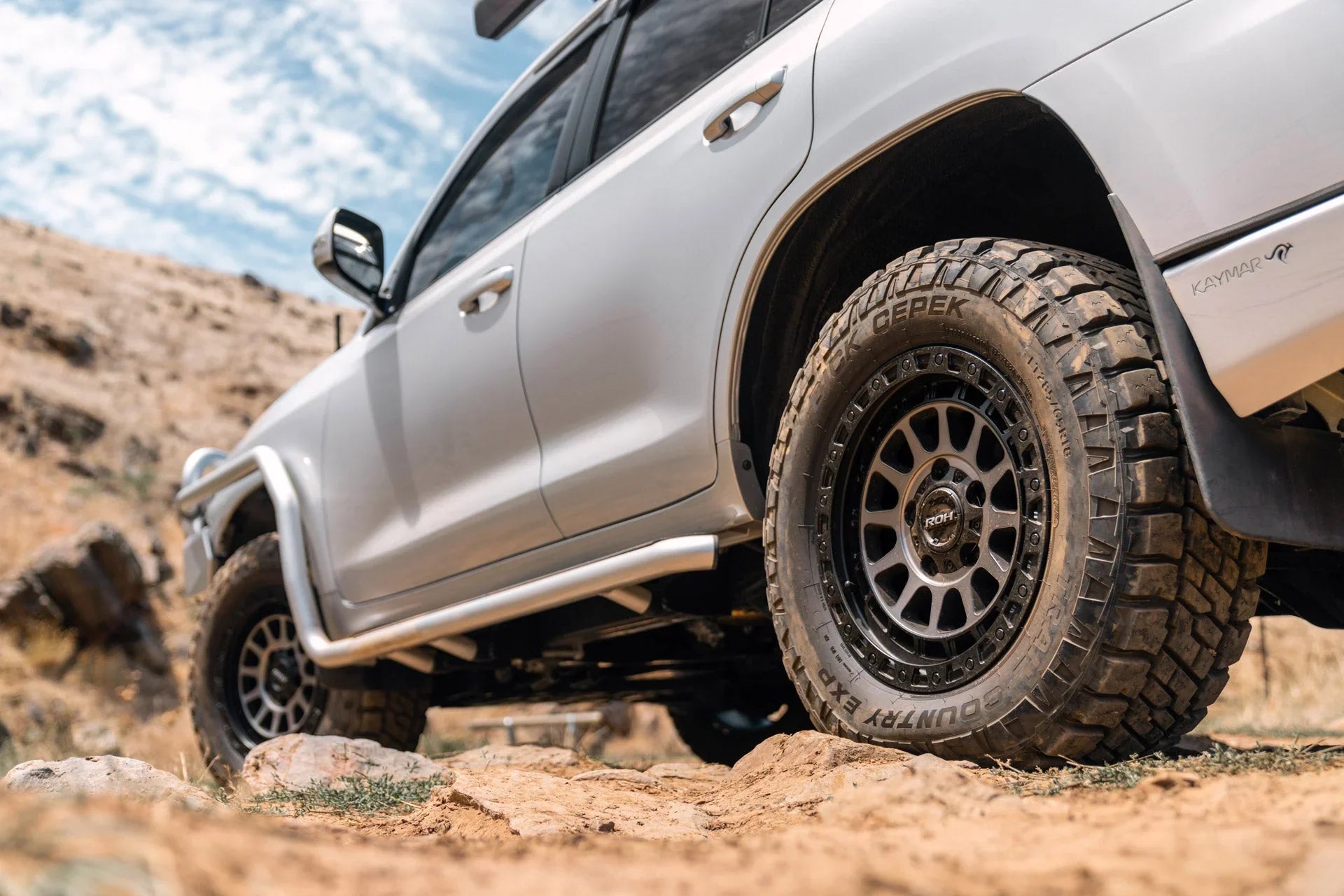

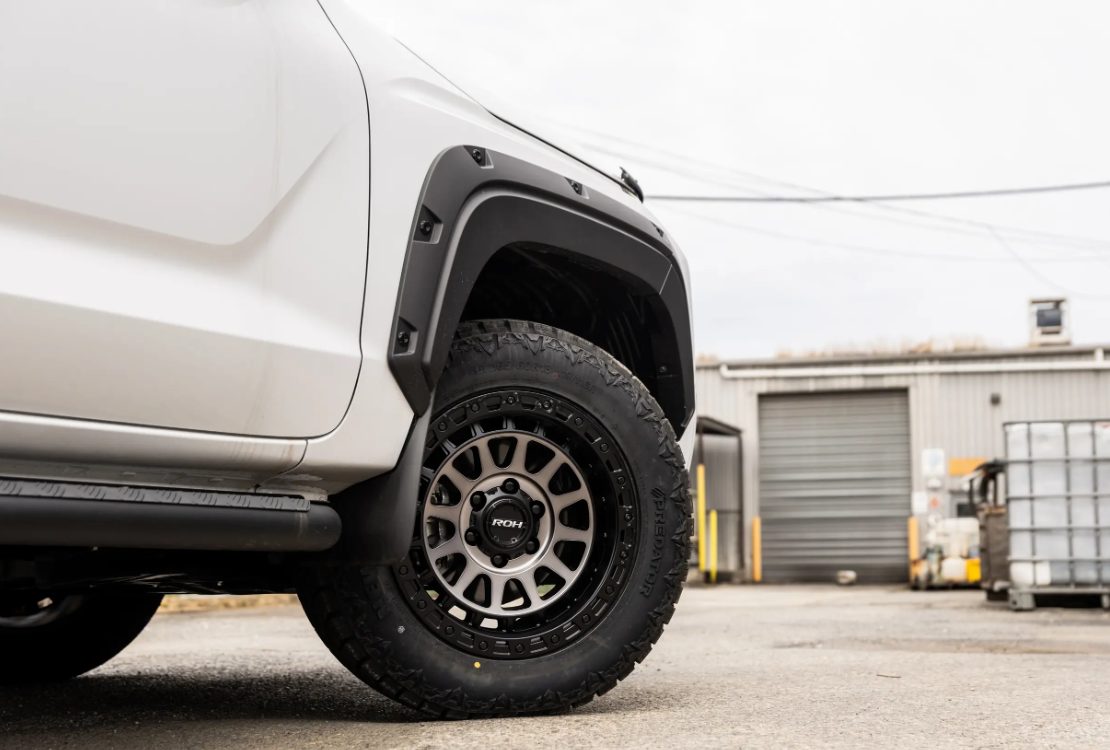

ROH Assault will fit a large range of the most popular 4×4 and SUV vehicles including top-selling Hilux, Prado, Ranger, D-Max, BT-50 and Triton. ROH Assault Wheel is load-rated for Land Cruiser 79 Series in 16×9 & 17×9 at 1500kg per wheel and 200 series Land Cruiser in 17×9 & 18×9 at 1500kg per wheel making it an ideal choice when fitting a GVM+ suspension upgrade.
*Also available is the ROH Assault Wheels in Full Machined finish
| DIAMETER | WIDTH | STUDS | PCD | OFFSET | LOAD RATING |
|---|---|---|---|---|---|
| *16 | 9 | 5 | 150 | -59 | 1500kg |
| *16 | 9 | 5 | 150 | -12 | 1500kg |
| *17 | 9 | 5 | 150 | -59 | 1500kg |
| *17 | 9 | 5 | 150 | -12 | 1500kg |
| *17 | 9 | 6 | 139.7 | 12 | 1250kg |
| 17 | 9 | 6 | 139.7 | 25 | 1250kg |
| *17 | 9 | 5 | 120 | 30 | 1050kg |
| *17 | 9 | 5 | 150 | 35 | 1500kg |
| *18 | 9 | 6 | 139.7 | 12 | 1250kg |
| 18 | 9 | 6 | 139.7 | 25 | 1250kg |
| *18 | 9 | 5 | 120 | 30 | 1050kg |
| *18 | 9 | 5 | 150 | 35 | 1500kg |
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCUALTOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
