RoadVision 21" LED Light Bar Single 40 Series Platinum 522x55x40mm
- ✔️ Compact 21" slimline LED light bar – 522mm long
- ✔️ 5975lm output with 1275m beam distance
- ✔️ Projector Combo beam – 6 Driving / 15 Spot
- ✔️ Osram Hi-Lux 3W LEDs & blackout stealth look
- ✔️ IP67 waterproof & anti-vibration mount system
Checkout securely with
- Description
- 📊 Specifications
- Delivery

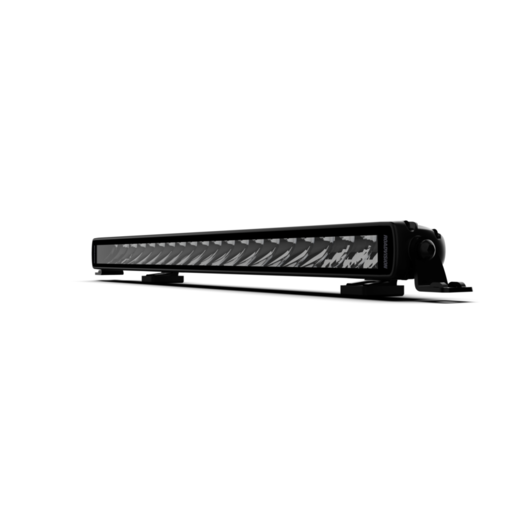

RoadVision 21" LED Light Bar Single 40 Series Platinum 522x55x40mm
Experience powerful long-range illumination with the RoadVision S40 Series 21" LED Light Bar. Built for high-performance 4WD, SUV, and truck applications, this slimline single-row bar delivers exceptional beam distance and brightness from a compact design. Measuring just 522mm in length, it’s ideal for license plate, roof rack, or tight bull bar installations where space is limited.
The S40 Series uses advanced Projector Beam Technology to produce up to 5975 lumens and reach an impressive 1275m beam distance, while drawing minimal power thanks to Roadvision’s multi-volt input and thermal management design. With a stealthy smoked lens, blackout mounts, and premium Osram Hi-Lux LEDs, this bar offers high-end performance in a rugged, weather-resistant body rated to IP67.
Designed specifically for long-range visibility with moderate close-range intensity, the S40 Series is perfect for highway and off-road driving across Australia. Whether you're navigating outback trails or night highways, RoadVision’s S40 light bars deliver maximum performance in a sleek, low-profile package.
✔️ Key Features
- 🚘 Compact 21" (522mm) single-row LED light bar
- 💡 Projector Beam Combo – 6 Driving / 15 Spot configuration
- 🌟 Produces 5975 lumens with Osram Hi-Lux 3W LEDs
- 🔦 Beam distance of up to 1275m
- 🛠️ Lightweight die-cast aluminium housing & polycarbonate lens
- 🌧️ IP67 waterproof and dustproof rated
- ⚙️ Multi-volt 10-30V DC input with low current draw
- 🔥 Advanced Thermal Management for efficiency & longevity
- 🔌 Includes 2 Pin Deutsch Plug & anti-vibration mounts
🛠️ Applications
Perfect for:
- ✔️ Highway touring and long-range driving
- ✔️ Roof rack, grille, or number plate mounts
- ✔️ Utes, 4WDs, SUVs and trucks with space constraints
📦 Why Choose Brixton 4x4?
- ✔️ Trusted supplier of premium 4WD lighting accessories in Australia
- ✔️ Fast Australia-wide shipping and easy returns
- ✔️ Expert team to help you find the right fit for your rig
| Description | S40 Series 21" LED Light Bar |
| Beam Type | Projector Combo 6 Driving / 15 Spot |
| Maximum Lumens | 5975lm |
| Beam Distance | 1275m |
| Maximum Watts | 94W |
| Light Source | 21x3W Osram LEDs |
| Current Draw Amps | 6.6A (9.2A @ 13.8V) |
| Voltage Input | 10–30V DC |

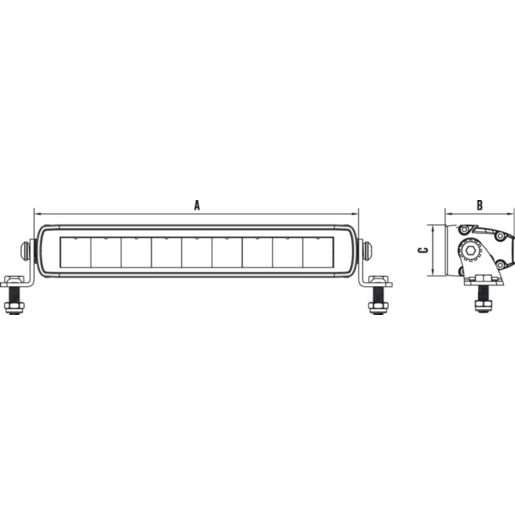

| Dimensions (AxBxC) | 522x55x40mm |
| Bar Length | 21" (522mm) |
| Wiring | 2 Pin Deutsch Plug |
| Maximum Lux @ 10m | 4065 Lux |
| Meters @ 1 Lux | 638m |
| Meters @ 0.5 Lux | 1275m |
FREIGHT COSTS CAN BE CALCULATED IN THE CART OR CHECKOUT
* Oversize, heavy or bulky items are excluded from free freight. Costs will vary depending on delivery location.
| Shipping Category | Description | Example | Estimate Costs |
| Standard | General items | Camping gear, lights, electrical |
$15
|
| Oversize Items - 1 | Large items, low weight | Flares, large roof racks | $45 - $90 |
| Oversize Items - 2 | Medium size, heavy items | Winches, bash plates, lift kits | $50 - $100 |
| Oversize Items - 3 | Long / oversize items | Awnings, long cross bars | $50 - $200 |
| Oversize Items - 4 | Over 25kgs or very large | Large bike racks | $100 - $200 |
| Oversize Items - 5 | Large - delivery to commercial address only | Roller covers & lids | $50 - $100 |
| Wheels | Wheels | Rims, Wheels, Tyres | From. $20 per wheel |
| Towbars | Towbars | Towbars, wiring hitches | From $40 per delivery, depending on product size and destination. |
| Protection | Protection | Bullbars, rear bars, side steps, nudge bars | From $100 per delivery, depending on product size and destination. |
#excludes remote or island locations. Some products are not available for delivery to NT, WA or TAS.
USA & New Zealand Freight Available
Please request a personalised quote from the product page using the CLICK HERE TO GET A PERSONALISED QUOTE button and include your delivery address in the notes section.
Wheels & Tyres
Wheel & tyre freight charges vary depending on the quantity purchased. The online freight calculator at checkout will provide an accurate price, dependent upon the total weight of the goods purchased. Minimum freight is $20 for 1 wheel or tyre. If your postcode does not render a delivered price in the cart/checkout please email or contact our team via online chat for a personalised quote.
S40
Tailored for long-range illumination, it's ideal for highway driving, especially for trucks, 4x4s, and SUVs. With Roadvision's thermal tech, it can achieve an incredible 1833m maximum beam distance.
Shop Now
S52
Designed for high-intensity output, it's the preferred choice for challenging terrains like windy roads and bush tracks. Even with its immense intensity, it can cover up to 1625m in beam distance.
Shop Now
S70
The flagship model represents the best of both worlds. It delivers an astounding 27,500lm of light intensity and can illuminate up to 2236m, perfect for off-road enthusiasts.
Shop Now
S40 Series
| Part Number | RBL4013SC | RBL4021SC | RBL4032SC | RBL4040SC | RBL4050SC |
|---|---|---|---|---|---|
| Description | S40 Series 13" LED Light Bar | S40 Series 21" LED Light Bar | S40 Series 32" LED Light Bar | S40 Series 40" LED Light Bar | S40 Series 50" LED Light Bar |
| Beam Type | Projector Combo 6 Driving/6 Spot | Projector Combo 6 Driving/15 Spot | Projector Combo 6 Driving / 27 Spot | Projector Combo 6 Driving / 36 Spot | Projector Combo 12 Driving / 42 Spot |
| Maximum Lumens | 3218lm | 5975lm | 9211lm | 11706lm | 14970lm |
| Beam Distance | 832m | 1275m | 1568m | 1668m | 1833m |
| Maximum Watts | 49W | 94W | 150W | 188W | 231W |
| Light Source | 12x3 Watt Osram LED's | 21x3 Watt Osram LED's | 33x3 Watt Osram LED's | 42x3 Watt Osram LED's | 54x3 Watt Osram LED's |
| Current Draw Amps | 2.9~4.1A @ 13.8V | 6.6~9.2A @ 13.8V | 10.3~14.4A @ 13.8V | 11.7~17.2A @ 13.8V | 13.6~22.1A @ 13.8V |
| Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
| Dimensions AxBxC | 315x55x40mm | 522x55x40mm | 798x55x40mm | 1005x55x40mm | 1281x55x40mm |
| Bar Length | 13" (315mm) | 21" (522mm) | 32" (798mm) | 40" (1005mm) | 50" (1281mm) |
| Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin ATP Plug | 2 Pin ATP Plug | 2 Pin ATP Plug |
| Maximum Lux @ 10m | 1730 Lux | 4065 Lux | 6150 Lux | 6957 Lux | 8402 Lux |
| Meters @ 1 Lux | 416m | 638m | 784m | 834m | 917m |
| Meters @ 0.5 Lux | 832m | 1275m | 1568m | 1668m | 1833m |
S52 Series
| Part Number | RBL5213SC | RBL5221SC | RBL5230SC | RBL5240SC | RBL5250SC |
|---|---|---|---|---|---|
| Description | S52 Series 13" LED Light Bar | S52 Series 21" LED Light Bar | S52 Series 30" LED Light Bar | S52 Series 40" LED Light Bar | S52 Series 50" LED Light Bar |
| Beam Type | Projector Combo 6 Driving / 3 Spot | Projector Combo 6 Driving / 9 Spot | Projector Combo 6 Driving / 18 Spot | Projector Combo 6 Driving / 24 Spot | Projector Combo 6 Driving / 33 Spot |
| Maximum Lumens | 6063lm | 9560lm | 13779lm | 16500lm | 19463lm |
| Beam Distance | 721m | 1088m | 1334m | 1483m | 1625m |
| Maximum Watts | 74W | 127W | 208W | 257W | 335W |
| Light Source | 9x10 Watt Osram LED's | 15x10 Watt Osram LED's | 24x10 Watt Osram LED's | 30x10 Watt Osram LED's | 39x10 Watt Osram LED's |
| Current Draw Amps | 4.1~6.2A @ 13.8V | 6.2~10.6A @ 13.8V | 10.8~17.3A @ 13.8V | 13.6~22.1A @ 13.8V | 15.4~28.4A @ 13.8V |
| Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
| Dimensions AxBxC | 332x67x52mm | 524x67x52mm | 812x67x52mm | 1004x67x52mm | 1292x67x52mm |
| Bar Length | 13" (332mm) | 21" (524mm) | 30" (812mm) | 40" (1004mm) | 50" (1292mm) |
| Wiring | 2 Pin Deutsch Plug | 2 Pin ATP Plug | 2 Pin ATP Plug | 2 Pin ATP Plug | No Plug |
| Maximum Lux @ 10m | 1300 Lux | 2964 Lux | 4450 Lux | 5500 Lux | 6600 Lux |
| Meters @ 1 Lux | 361m | 544m | 667m | 742m | 812m |
| Meters @ 0.5 Lux | 721m | 1088m | 1334m | 1483m | 1625m |
