Rival Aluminum 5 Piece Bash Plate Set for GWM Tank 300 & 500 2021 onwards
✅ Rival 4x4 5-piece aluminium bash plate set for GWM Tank 300 & 500 (2021+, petrol only) — engine, radiator, transmission, transfer case, and fuel tank. 34.7kg combined.
✅ 6mm high-strength aluminium alloy, bolt-on to factory mounting points — no drilling required. Corrosion-resistant powder coat finish.
✅ Complete front-to-rear underbody coverage. All mounting hardware, fasteners, and installation instructions included.
Checkout securley with
- Description
- Delivery
- 🛡️ Fitment Advice
The Rival 4x4 5-Piece Bash Plate Set delivers complete front-to-rear underbody coverage for the GWM Tank 300 (2021+, 2.0L Turbo Petrol, AT, 4WD). From the radiator at the front to the fuel tank at the rear, every critical component is protected. At 34.7kg combined, this 6mm aluminium set provides serious protection without the weight penalty of a steel equivalent.
What’s protected:
- Engine Bash Plate — covers the sump and oil pan. A cracked sump means oil loss, engine seizure, and a costly recovery.
- Radiator Bash Plate — shields the cooling system from frontal and underbody impacts. A punctured radiator leads to instant overheating.
- Transmission Bash Plate — protects the gearbox housing from rock strikes that can crack the casing and cause total drivetrain failure.
- Transfer Case Bash Plate — guards the heart of the 4WD system, mounted low and central in the direct path of trail debris.
- Fuel Tank Bash Plate — heavy-duty protection for the fuel tank, which spans a large area beneath the rear of the vehicle.
Specifications:
- Material: 6mm high-strength aluminium alloy
- Combined weight: 34.7kg
- Finish: Corrosion-resistant powder coat
- Mounting: Bolt-on to factory mounting points — no drilling required

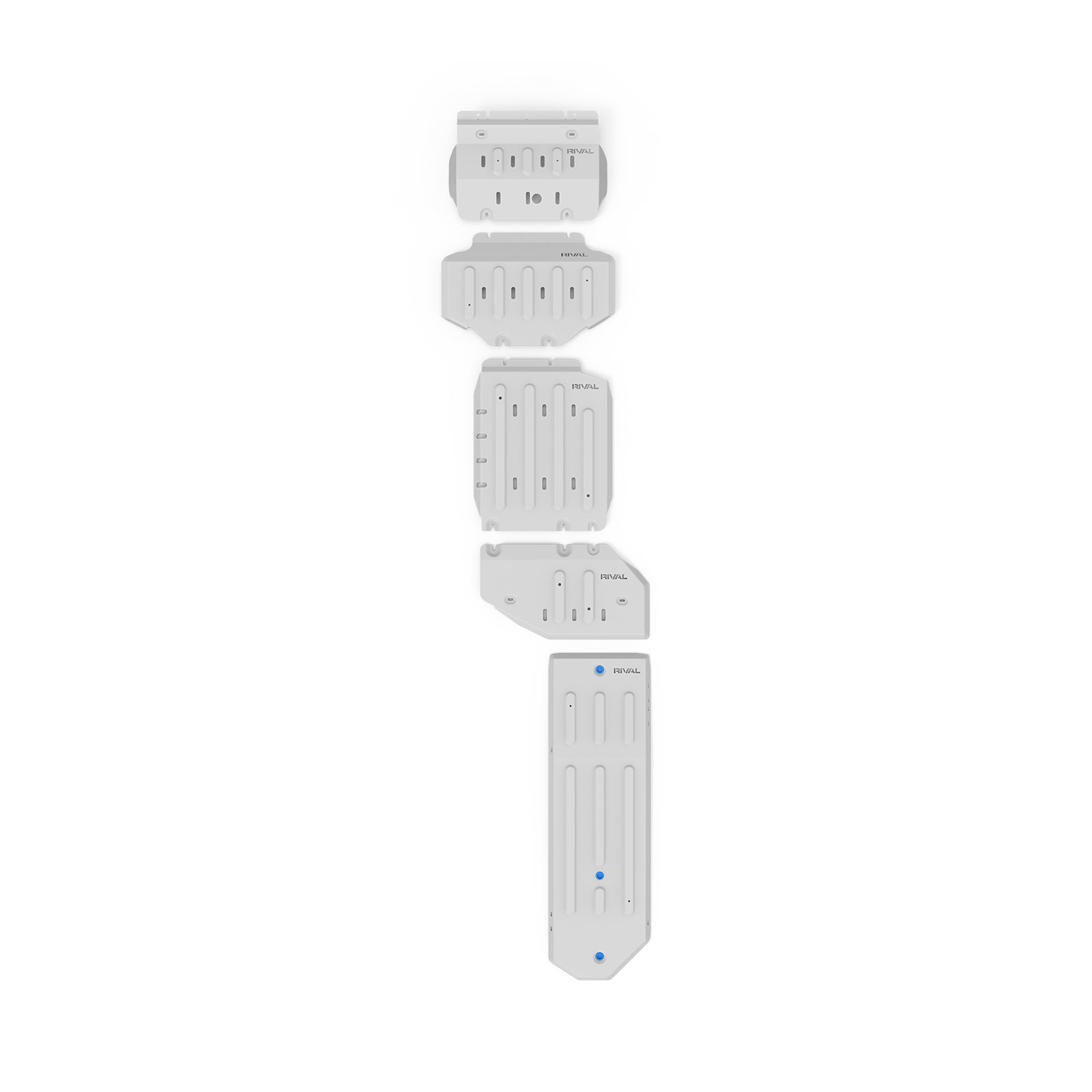

- Number of plates: 5 (Engine + Radiator + Transmission + Transfer Case + Fuel Tank)
- Fitment: GWM Tank 300 2.0L AT 4WD (2021–present), petrol only
What’s included:
- 1x Engine Bash Plate
- 1x Radiator Bash Plate
- 1x Transmission Bash Plate
- 1x Transfer Case Bash Plate
- 1x Fuel Tank Bash Plate
- Complete mounting hardware, bolts, fasteners, and installation instructions
Compatibility:
- GWM Tank 300 & 500 (2021–present) — 2.0L Turbo Petrol, AT, 4WD. Petrol models only.
- Also compatible with Tank 500 3.0L AT 4WD — verify via product listing.
