Outback Armour Digressive Lift Kit for Toyota LandCruiser Prado 150 - 2009 onwards
- ✅ Engineered for harsh conditions
- ✅ Assembled option
- ✅ 3-4 Year / Unlimited km warranty*
❗Contact us on chat for personalised quote including delivery
🤔 Not sure what lift kit you need for your rig? Get a personalised quote HERE.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The Outback Armour “Digressive” (DSV) shock absorber range has been developed and engineered in Australia to handle extremely demanding off-road environments, including continuous corrugations, harsh mining tracks, remote station travel, and other challenging conditions.
Its digressive valving is designed to allow the suspension to move freely across uneven terrain, working alongside the springs to absorb impacts. At the same time, it helps control body roll and pitching, supporting overall vehicle stability and driver control.
These shock absorbers are purpose-built for durability in remote environments, including the Australian outback, African plains, and the jungles of Papua New Guinea, with a focus on preventing failure caused by heat buildup or fatigue.
Key features include:
- 65mm heavy wall twin-tube body
- Adjustable height spring seat
- 40mm high-flow digressive piston
- 18mm hard-chromed piston rod
- NBR foam cell construction
- Internal top-out stop
- Internal baffle systems
- Integrated external heat sink
- High-temperature multi-lip Viton seals
- Additional wiper and scraper seals to remove debris
- Extreme-duty fully synthetic Fuchs oil
The fully synthetic Fuchs oil used in the digressive shock range is formulated to perform under extreme temperatures for extended periods. It maintains resistance to aeration, helping reduce the risk of shock fade and failure in harsh off-road conditions.
Each unit is supplied ready for installation and includes rubber bushings.
The recommended maximum normal ride height for this shock, measured from the centre of the wheel to the guard, is 575mm.
Prado 150 Front Lift Kits Include:
Front - Digressive Trail - 50mm (approx unladen)
- Spacer - height adjustable spring set
- Suits OEM bumper

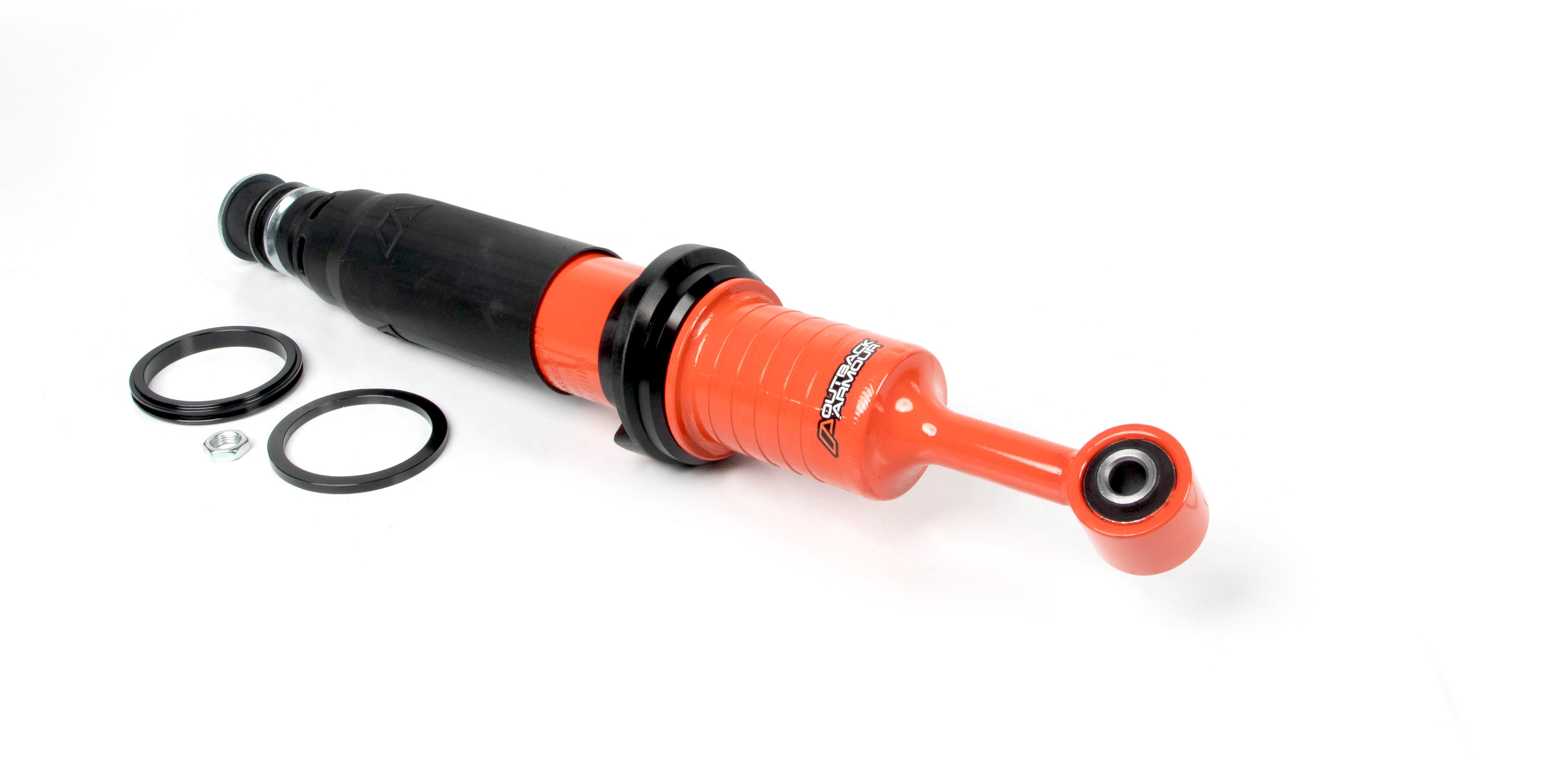

Digressive - Front Shock OASU0840003-DSV x 2 ea.
Front - Trail OASU1015001 x 1 pr.
Strut Mount OASU0725002 x 2 each
Front - Digressive Expedition - 50mm (approx 50-100kgs)
- Spacer - height adjustable spring set
- Suits Bullbar
Digressive - Front Strut OASU0840003-DSV x2 ea.
Front - Expedition OASU1015003 x1 pr.
Strut Mount OASU0715002 x2 ea.
Front - Digressive Expedition HD - 50mm (approx 100-150kgs)
- Spacer - height adjustable spring set
- Suits Bullbar & Winch
Digressive - Front Strut OASU0840003-DSV x2 ea.
Front - Expedition HD OASU1015005 x1 pr.
Strut Mount OASU0715002 x2 ea.
Prado 150 Rear Lift Kits Include:
Rear - Digressive Trail - 50mm (approx unladen)
Digressive - Rear Shock OASU0140028-DSV x2 ea.
Rear - Trail OASU1015004 x1 pr.
Rear - Digressive Expedition - 50mm (approx 200kg load)
Digressive - Rear Shock OASU0140028-DSV x2 ea.
Rear - Expedition OASU1015006 x1 pr.
