Outback Armour Adjustable Bypass Lift Kit for Toyota LandCruiser 300 Series 2021 onwards GR Sport GVM Upgrade (3,800kg)
- ✅ Engineered for harsh conditions
- ✅ Assembled option
- ✅ 3-4 Year / Unlimited km warranty*
❗Contact us on chat for personalised quote including delivery
🤔 Not sure what lift kit you need for your rig? Get a personalised quote HERE.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice

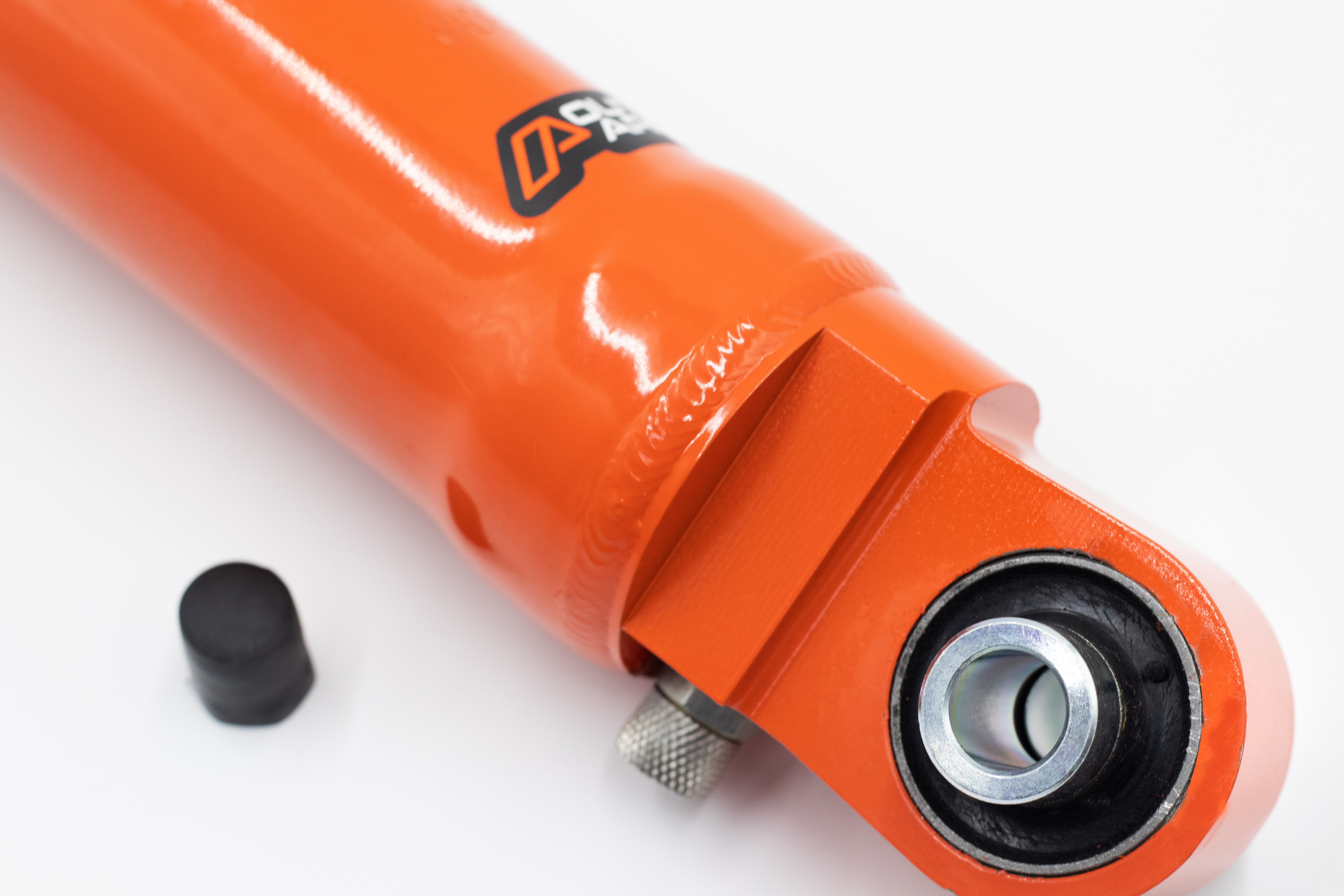

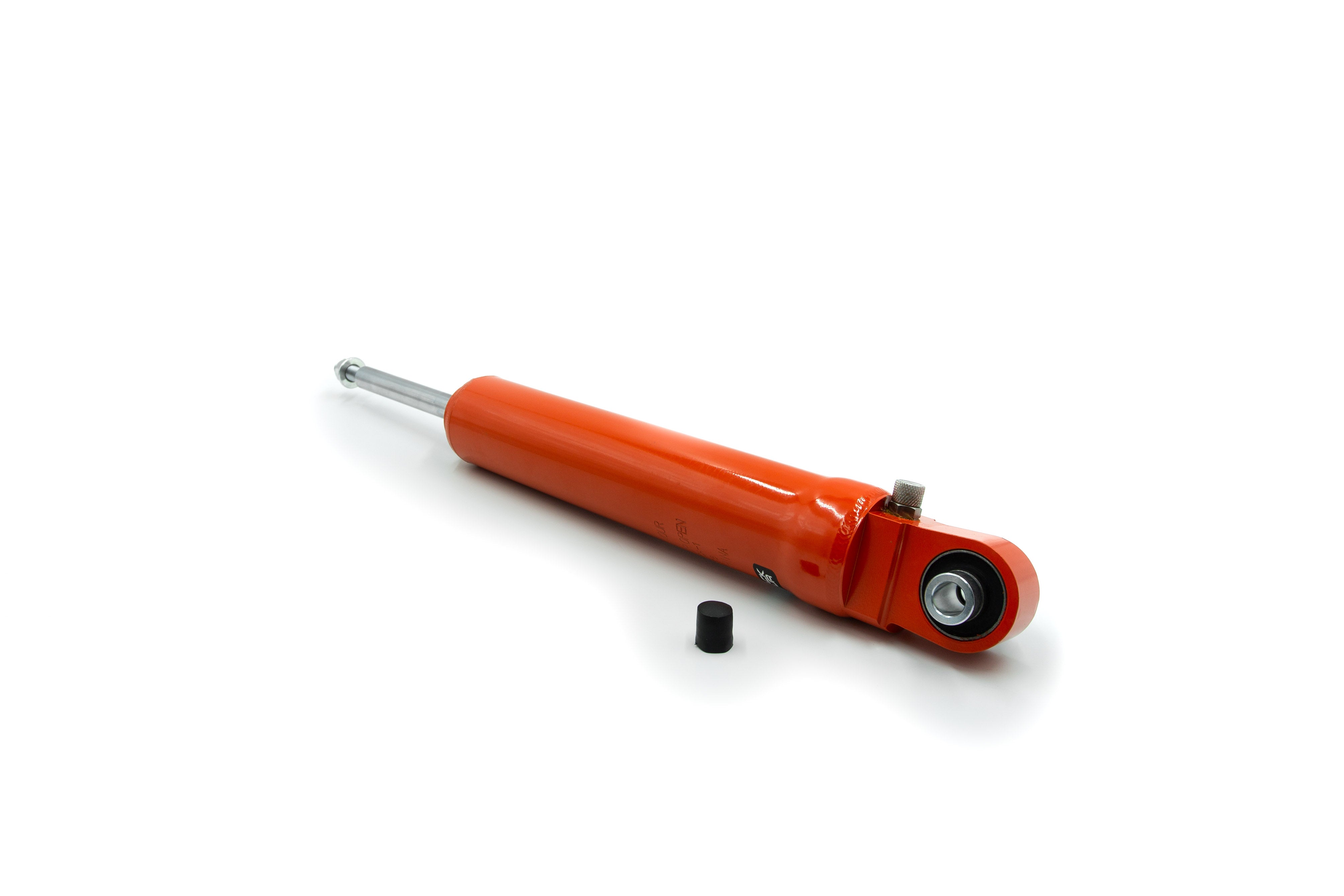

Designed and engineered in Australia by Outback Armour, this system features an adjustable internal bypass that offers more than 20 stages of velocity-sensitive damping control. This allows both front and rear settings to be adjusted as needed to suit accessories, load weight, terrain, driving conditions, and personal comfort preferences.
Increasing the bypass (-) provides a softer, more comfortable ride, while decreasing the bypass (+) delivers greater control.
A high-strength polymer adjustable spring seat is included to fine-tune ride height or compensate for additional accessories. Each unit is supplied with a complete fitting kit, including rubber bushes.
The maximum recommended ride height, measured from the centre of the wheel to the guard, is 575mm for the Prado and 560mm for the FJ Cruiser.
Specifications:
- Bushings: Natural rubber
- Maximum CWG: 575mm
- Finish: Orange baked enamel
- Piston: 45mm high-flow performance
- Piston rod: 20mm hard chromed
- Protection: Synthetic dust boot
- Seal: Triple-lip high-temperature Viton
- Shock construction: 65mm twin tube
- Shock range: Adjustable Internal Bypass (ADJ)
- Steel tube: Hydraulic pressure tube
*Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.

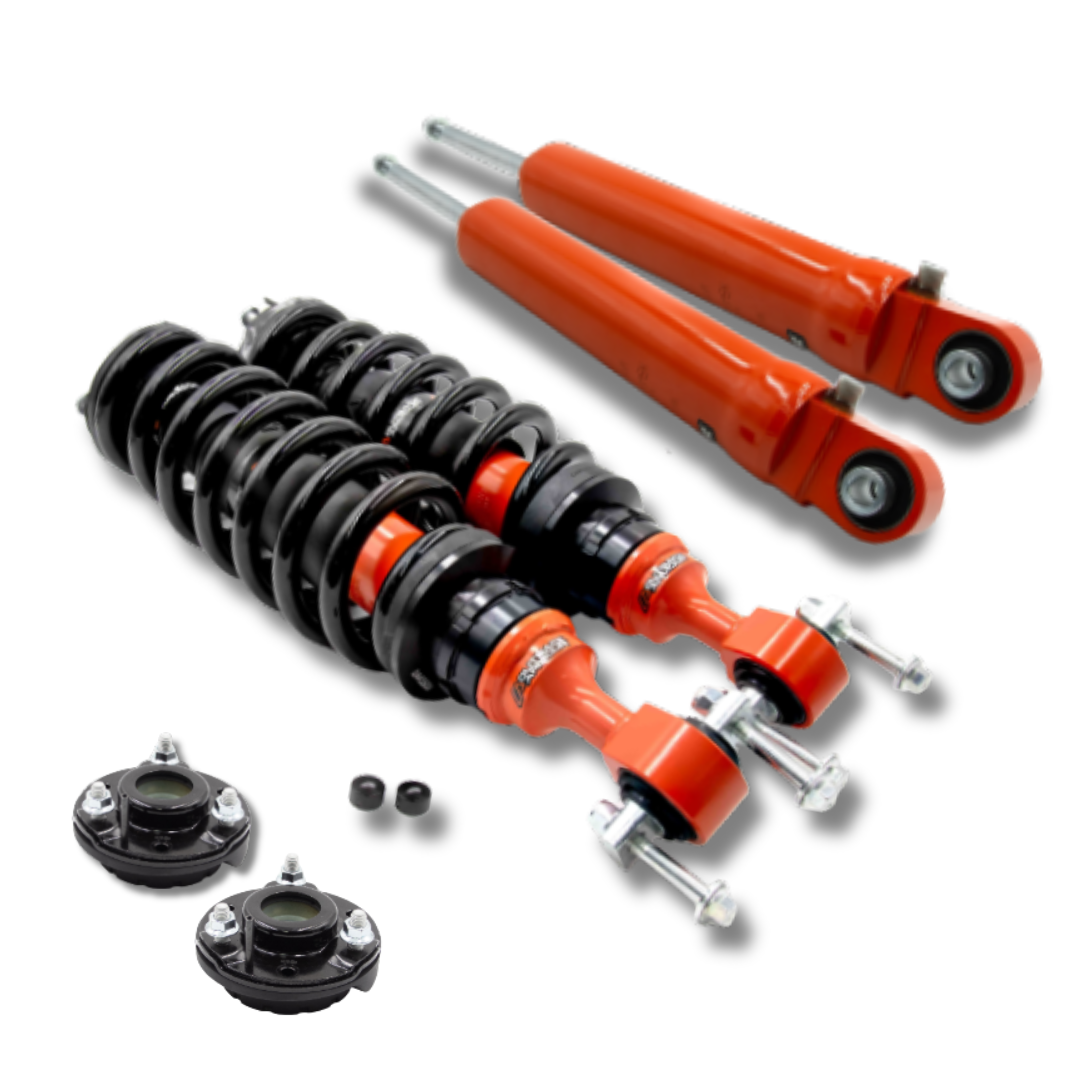

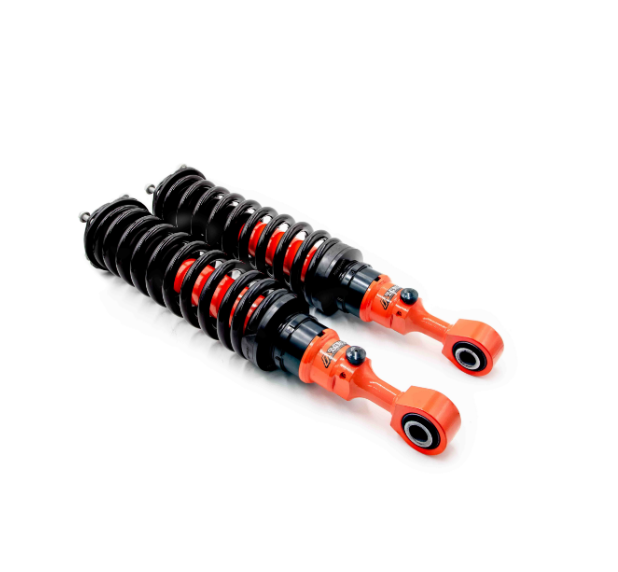

Toyota Land Cruiser 300 Front Lift Kits Include:
Front - Adjustable Bypass Trail - 35mm (approx unladen)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits oem bumper
Adjustable Bypass - Front Strut (GVM) OASU0865032-GVM x2 ea.
Front - Trail OASU1020021 x1 pr.
Strut Mount OASU0720003 x2 ea.
Front - Adjustable Bypass Expedition - 35mm (approx 50-100kgs)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar
Adjustable Bypass - Front Strut (GVM) OASU0865032-GVM x2 ea.
Front - Expedition OASU1020023 x1 pr.
Strut Mount OASU0720003 x2 ea.
Front - Adjustable Bypass Expedition HD - 35mm (approx 100-150kgs)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar & winch
Adjustable Bypass - Front Strut (GVM) OASU0865032-GVM x2 ea.
Front - Expedition HD OASU1020025 x1 pr.
Strut Mount OASU0720003 x2 ea.
Toyota Land Cruiser 300 Rear Lift Kits Include:
Rear - Adjustable Bypass Trail - 50mm (approx 150kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock - HD Coilover OASU0165094-ADJ x2 ea.
Rear - Expedition OASU1020026-GR x1 pr.
Bump Stop Kit - Rear - (2 per kit) OASU4210302 x1 kit
Coil Perch Reinforcement Kit OASU3730009 x1 kit
Airbag Kit - Rear (Raised) OASU1205051HP x1 kit
Rear - Adjustable Bypass Expedition - 50mm (approx 300kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock - HD Coilover OASU0165094-ADJ x2 ea.
Rear - Expedition HD OASU1020028-GR x1 pr.
Bump Stop Kit - Rear - (2 per kit) OASU4210302 x1 kit
Coil Perch Reinforcement Kit OASU3730009 x1 kit
Airbag Kit - Rear (Raised) OASU1205051HP x1 kit
