Outback Armour Adjustable Bypass Lift Kit for Nissan Navara NP300 2015 onwards Coil Rear - Series 3, 4 & 5
- ✅ Engineered for harsh conditions
- ✅ Assembled option
- ✅ 3-4 Year / Unlimited km warranty*
❗Contact us on chat for personalised quote including delivery
🤔 Not sure what lift kit you need for your rig? Get a personalised quote HERE.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice

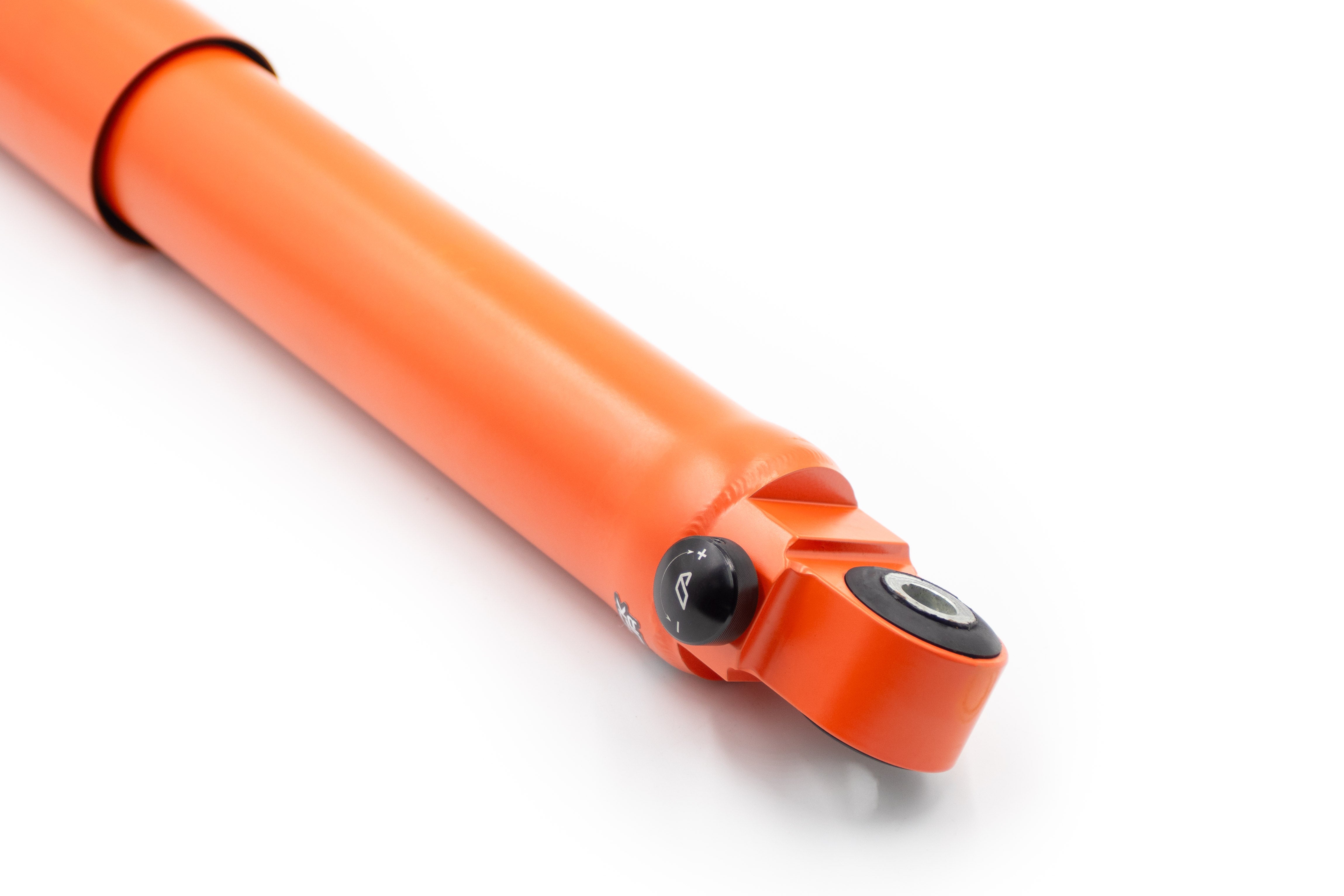

Designed and engineered in Australia by Outback Armour, this system features an adjustable internal bypass that offers more than 20 stages of velocity-sensitive damping control. This allows both front and rear settings to be adjusted as needed to suit accessories, load weight, terrain, driving conditions, and personal comfort preferences.
Increasing the bypass (-) provides a softer, more comfortable ride, while decreasing the bypass (+) delivers greater control.
A high-strength polymer adjustable spring seat is included to fine-tune ride height or compensate for additional accessories. Each unit is supplied with a complete fitting kit, including rubber bushes.
Specifications:
- Bushings: Natural rubber
- Maximum CWG: 575mm
- Finish: Orange baked enamel
- Piston: 45mm high-flow performance
- Piston rod: 20mm hard chromed
- Protection: Synthetic dust boot
- Seal: Triple-lip high-temperature Viton
- Shock construction: 65mm twin tube
- Shock range: Adjustable Internal Bypass (ADJ)
- Steel tube: Hydraulic pressure tube
*Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Nissan Navara Front Lift Kits Include:
Front - Adjustable Bypass Trail - 30mm (approx unladen)
- Threaded + spacer - height adjustable spring seat
- 20+ settings for damping control
- Suits oem bumper
Adjustable Bypass - Front Strut OASU0865006-ADJ x2 ea.
Front - Trail OASU1040007 x1 pr.
Strut Mount OASU0740001 x2 ea.
Front - Adjustable Bypass Trail - 50mm (approx unladen)
- Threaded + spacer - height adjustable spring seat
- 20+ settings for damping control
- Suits oem bumper
- Must install UCA part # OASU3530002-F
Adjustable - Front Strut (Ext. Travel) OASU0865036-ADJ x2 ea.
Front - Trail/Expedition/Expedition HD OASU1040001 x1 pr.
Strut Mount OASU0740001 x2 ea.
Front - Adjustable Bypass Expedition - 30mm (approx 50-100kgs)
- Threaded + spacer - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar
Adjustable Bypass - Front Strut OASU0865006-ADJ x2 ea.
Front - Trail/Expedition/Expedition HD OASU1040001 x1 pr.
Strut Mount OASU0740001 x2 ea.
Front - Adjustable Bypass Expedition - 50mm (approx 50-100kgs)
- Threaded + spacer - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar
- Must install UCA part # OASU3530002-F
Adjustable - Front Strut (Ext. Travel) OASU0865036-ADJ x2 ea.
Front - Trail/Expedition/Expedition HD OASU1040001 x1 pr.
Strut Mount OASU0740001 x2 ea.
Front - Adjustable Bypass Expedition HD - 30mm (approx 100-150kgs)
- Threaded + spacer - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar & winch
Adjustable Bypass - Front Strut OASU0865006-ADJ x2 ea.
Front - Expedition HD OASU1030001 x1 pr.
Strut Mount OASU0740001 x2 ea.
Front - Adjustable Bypass Expedition HD - 40mm (approx 100-150kgs)
- Threaded + spacer - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar & winch
- Must install UCA part # OASU3530002-F
Adjustable - Front Strut (Ext. Travel) OASU0865036-ADJ x2 ea.
Front - Trail/Expedition/Expedition HD OASU1040001 x1 pr.
Strut Mount OASU0740001 x2 ea.
Nissan Navara Rear Lift Kits Include:
Rear - Performance Trail - 15mm (approx unladen)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0160021-ADJ x2 ea.
Rear - Trail OASU1030002 x1 pr.
Headlight Adjustment Bracket OASU3730002 x1 ea.
Adjustable Sway Bar Link - Rear OASU3348001 x2 ea.
Rear - Performance Expedition - 15mm (approx 150kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0160021-ADJ x2 ea.
Rear - Expedition OASU1030004 x1 pr.
Headlight Adjustment Bracket OASU3730002 x1 ea.
Adjustable Sway Bar Link - Rear OASU3348001 x2 ea.
Rear - Performance Expedition HD - 15mm (approx 300kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0160021-ADJ x2 ea.
Rear - Expedition HD OASU1030006 x1 pr.
Headlight Adjustment Bracket OASU3730002 x1 ea.
Adjustable Sway Bar Link - Rear OASU3348001 x2 ea.
Our team is here to help you find the right gear for your setup. We can provide expert fitment advice and personalised quotes tailored to your vehicle and requirements.
Simply visit our Quote Request page, leave your details along with the products you're interested in, and one of our team members will be in touch with you shortly.
