Outback Armour Adjustable Bypass Lift Kit for Mazda BT50 10/2011 to 06/2020
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
Designed and engineered in Australia by Outback Armour, this system features an adjustable internal bypass that offers more than 20 stages of velocity-sensitive damping control. This allows both front and rear settings to be adjusted as needed to suit accessories, load weight, terrain, driving conditions, and personal comfort preferences.
Increasing the bypass (-) provides a softer, more comfortable ride, while decreasing the bypass (+) delivers greater control.
A high-strength polymer adjustable spring seat is included to fine-tune ride height or compensate for additional accessories. Each unit is supplied with a complete fitting kit, including rubber bushes.
This kit suits Mazda BT50 10/2011 to 06/2020

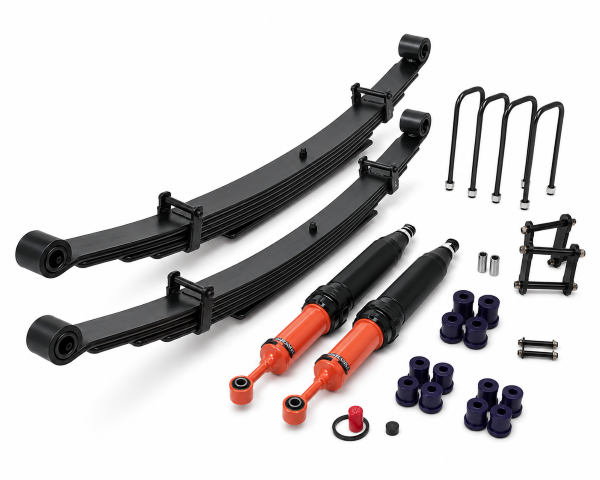

*Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Mazda BT50 Front Lift Kits Include:
Front - Adjustable Bypass Trail - 50mm (approx unladen)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits oem bumper
Adjustable Bypass - Front Strut OASU0865005-ADJ x2 ea.
Front - Trail OASU1048001 x1 pr.
Strut Mount OASU0750001 x2 ea.
Front - Adjustable Bypass Expedition- 50mm (approx 50-100kgs)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar
Adjustable Bypass - Front Strut OASU0865005-ADJ x2 ea.
Front - Expedition OASU1048002 x1 pr.
Strut Mount OASU0750001 x2 ea.
Front - Adjustable Bypass Expedition HD- 50mm (approx 100-150kgs)
- Threaded - height adjustable spring seat
- 20+ settings for damping control
- Suits steel bullbar & winch
Adjustable Bypass - Front Strut OASU0865005-ADJ x2 ea.
Front - Expedition HD OASU1048003 x1 pr.
Strut Mount OASU0750001 x2 ea.
Mazda BT50 Rear Lift Kits Include:
Rear - Adjustable Bypass Trail - 40mm (approx unladen)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165009L-ADJ x2 ea.
Trail OASU1148005 x2 ea.
UBolt - M14 x 88 ID (RND) x 210 L OASU2388001 x4 ea.
Greasable Pin OASU2500042 x2 ea.
Greasable Shackle - Reverse OASU2400060REV x2 ea.
Leaf Spring Bush Kit OASU210028K x1 ea.
Centre Bearing Spacer Kit OASU3748001 x1 ea.
Rear - Adjustable Bypass Expedition - 40mm (approx 150kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165009L-ADJ x2 ea.
Expedition OASU1148001 x2 ea.
UBolt - M14 x 88 ID (RND) x 210 L OASU2388001 x4 ea.
Greasable Pin OASU2500042 x2 ea.
Greasable Shackle - Reverse OASU2400060REV x2 ea.
Leaf Spring Bush Kit OASU210028K x1 ea.
Centre Bearing Spacer Kit OASU3748001 x1 ea.
Rear - Adjustable Bypass Expedition HD - 40mm (approx 300kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165009L-ADJ x2 ea.
Expedition HD OASU1148002 x2 ea.
UBolt - M14 x 88 ID (RND) x 210 L OASU2388001 x4 ea.
Greasable Pin OASU2500042 x2 ea.
Greasable Shackle - Reverse OASU2400060REV x2 ea.
Leaf Spring Bush Kit OASU210028K x1 ea.
Centre Bearing Spacer Kit OASU3748001 x1 ea.
Rear - Adjustable Bypass Expedition XHD - 40mm (approx 500kg load)
- 20+ settings for damping control
Adjustable Bypass - Rear Shock OASU0165009L-ADJ x2 ea.
Expedition xHD OASU1148003 x2 ea.
UBolt - M14 x 88 ID (RND) x 210 L OASU2388001 x4 ea.
Greasable Pin OASU2500042 x2 ea.
Greasable Shackle - Reverse OASU2400060REV x2 ea.
Leaf Spring Bush Kit OASU210028K x1 ea.
Centre Bearing Spacer Kit OASU3748001 x1 ea.
Our team is here to help you find the right gear for your setup. We can provide expert fitment advice and personalised quotes tailored to your vehicle and requirements.
Simply visit our Quote Request page, leave your details along with the products you're interested in, and one of our team members will be in touch with you shortly.
