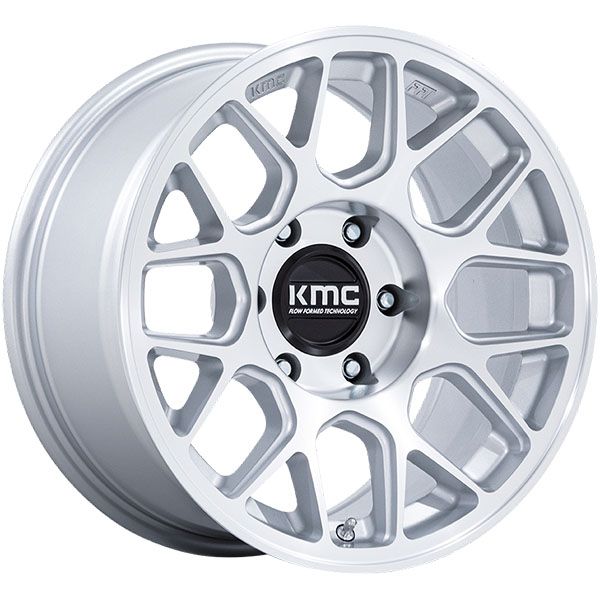

KMC Hatchet KM730 Gloss Silver with Machined Face
Checkout securley with
- Description
- 🛡️ Fitment Advice
The KMC Hatchet KM730 in Gloss Silver with a Machined Face pairs a rugged, split-spoke face with Flow Formed construction for a wheel that looks tough and performs like it. The bright machined face over a gloss silver base gives it a premium edge, while the deep face and BRS bead retention technology make it a genuine trail-ready upgrade for dual-cab utes and 4x4 SUVs.
Standout Features
- Machined face over a gloss silver base for a bright, premium look
- Flow Formed aluminium construction reduces unsprung weight while adding strength over a standard cast wheel
- BRS (Bead Retention System) grooved bead seat grips the tyre at low PSI for safer, more capable off-road airing down
- Deep, rugged split-spoke face for an aggressive stance
- Multiple 5 and 6 stud fitments rated to 1202kg per wheel
Fitment Options
Available as a 17x8.5 wheel across 5/127, 6/120, 6/135 and 6/139.7 bolt patterns with a range of offsets, the Hatchet KM730 is suited to popular dual-cab utes and SUVs including the Toyota HiLux, Ford Ranger, Isuzu D-MAX, Mazda BT-50 and Jeep Wrangler. Use the variant selector above to choose the bolt pattern and offset that suits your vehicle, and check fitment with your installer before purchase.
Available Bolt Patterns
5/127, 6/120, 6/135 and 6/139.7, with offsets from -10mm to +25mm depending on pattern.
Specifications
| Size | Bolt Pattern | Offset | Backspace | Centre Bore | Weight | Load Rating | SKU |
|---|---|---|---|---|---|---|---|
| 17x8.5 | 5/127 | -10mm | 4.36" | 71.5mm | 12.5kg | 1202kg | KM730SD17855010N |
| 17x8.5 | 6/120 | +25mm | 5.73" | 66.9mm | 11.7kg | 1202kg | KM730SD17857725 |
| 17x8.5 | 6/135 | 0mm | 4.75" | 87.1mm | 12.3kg | 1202kg | KM730SD17856300 |
| 17x8.5 | 6/135 | +25mm | 5.73" | 87.1mm | 11.7kg | 1202kg | KM730SD17856325 |
| 17x8.5 | 6/139.7 | -10mm | 4.36" | 106.1mm | 12.4kg | 1202kg | KM730SD17856810N |
| 17x8.5 | 6/139.7 | +25mm | 5.73" | 106.1mm | 11.4kg | 1202kg | KM730SD17856825 |
You Might Also Like
Prefer a different finish? The Hatchet KM730 is also available in Matte Black and Metallic Blue.
Structural warranty applies to original retail purchasers.
