Built for versatility, the KMC Enduro KM522 combines a clean multi-spoke pattern with a durable finish, making it a practical choice across passenger, 4WD and light truck applications.

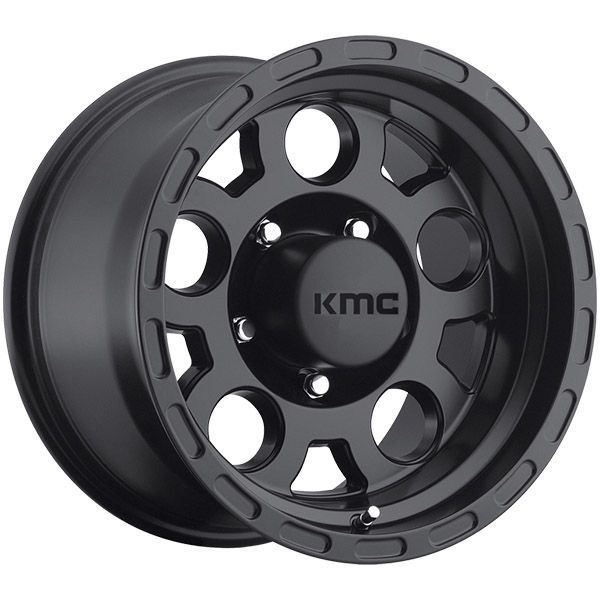

KMC Enduro KM522 Matte Black — Style and Performance
Finished in black, this wheel is built from cast aluminium for a strong, lightweight result that suits daily driving and off-road use alike. One of the widest fitment ranges in the KMC line-up, suiting passenger, 4WD and light truck platforms.
Key Features
- Clean, multi-spoke design suited to street and off-road use
- Durable Matte Black finish that resists everyday wear
- Cast aluminium construction
- Broad size range from 15-inch through to 18-inch
- Suits a wide variety of 4WDs, utes and passenger vehicles
Specifications
Available in the following diameter, width, bolt pattern and offset combinations:
| Diameter | Width | Bolt Pattern (PCD) | Offset | Load Rating | Centre Bore |
|---|---|---|---|---|---|
| 15" | 7" | 5/114.3 | -6 | 952 kg | 83.7 mm |
| 15" | 7" | 6/139.7 | -6 | 952 kg | 108.0 mm |
| 15" | 9" | 5/114.3 | -12 | 861 kg | 83.7 mm |
| 15" | 9" | 5/139.7 | -12 | 861 kg | 108.0 mm |
| 16" | 8" | 5/114.3 | 0 | 997 kg | 83.7 mm |
| 16" | 8" | 6/139.7 | 0 | 997 kg | 108.0 mm |
| 16" | 8" | 8/165.1 | 0 | 1451 kg | 130.9 mm |
| 16" | 9" | 5/127 | -12 | 997 kg | 83.7 mm |
| 16" | 9" | 5/135 | -12 | 997 kg | 94.6 mm |
| 16" | 9" | 6/139.7 | -12 | 997 kg | 108.0 mm |
| 17" | 9" | 5/127 | -6 | 997 kg | 83.7 mm |
| 17" | 9" | 6/139.7 | -6 | 997 kg | 108.0 mm |
| 18" | 9" | 5/127 | 0 | 997 kg | 83.7 mm |
| 18" | 9" | 6/135 | 0 | 997 kg | 94.6 mm |
| 18" | 9" | 6/139.7 | 0 | 997 kg | 108.0 mm |
| 18" | 9" | 8/165.1 | 0 | 1451 kg | 130.9 mm |
| 18" | 9" | 8/170 | 0 | 1451 kg | 130.9 mm |
Fitment
Select the diameter, bolt pattern and offset combination that matches your vehicle at checkout. All variants are cast aluminium, finished in black, and covered by KMC's structural warranty.
You May Also Like
Finish and structural coverage per manufacturer terms. Manufacturer warranty information.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
