KMC Aztec KM554 Gloss Silver with Machined Face
Checkout securley with
- Description
- 🛡️ Fitment Advice

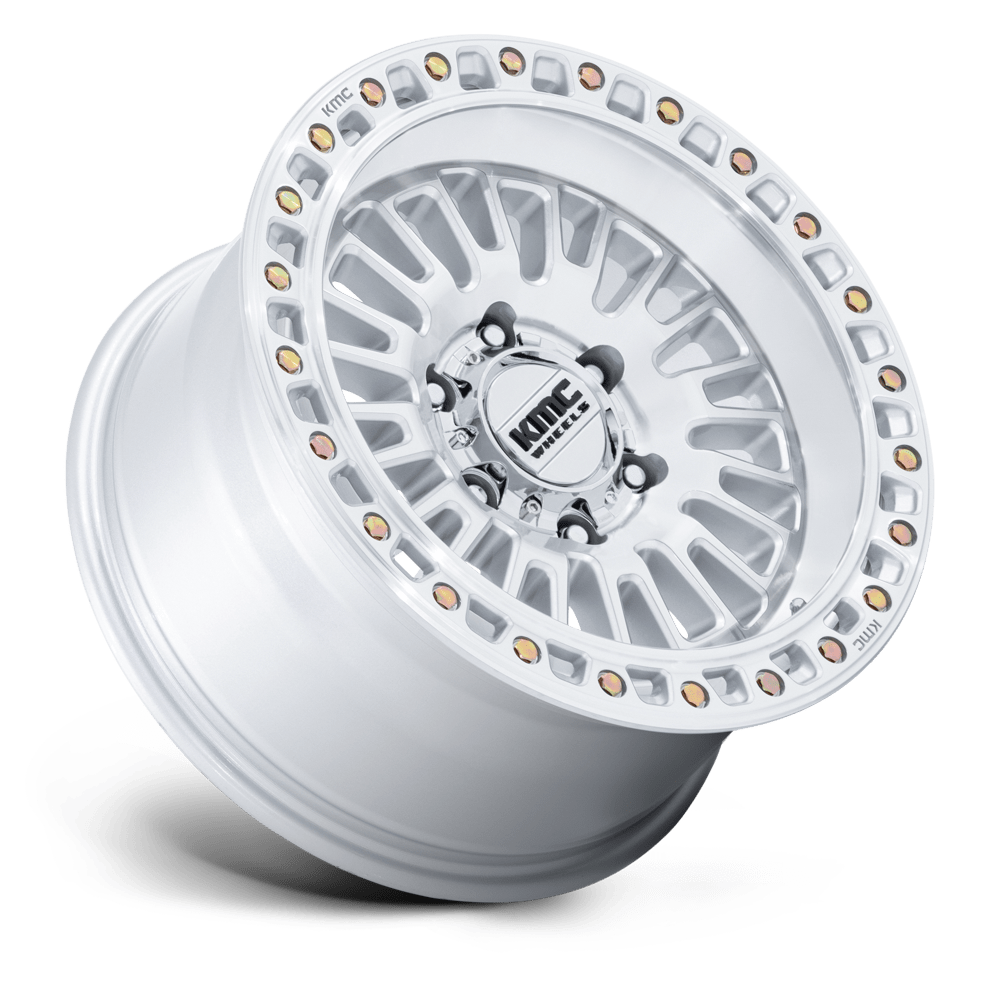

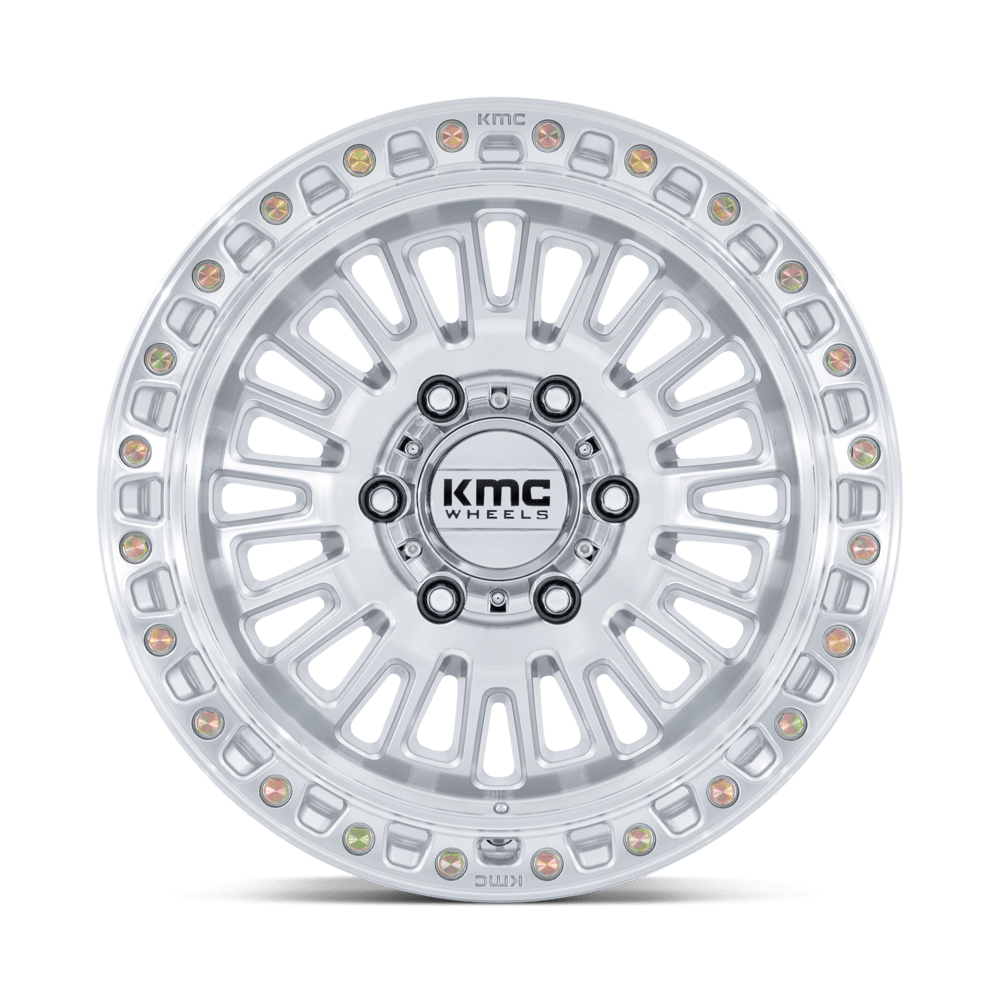

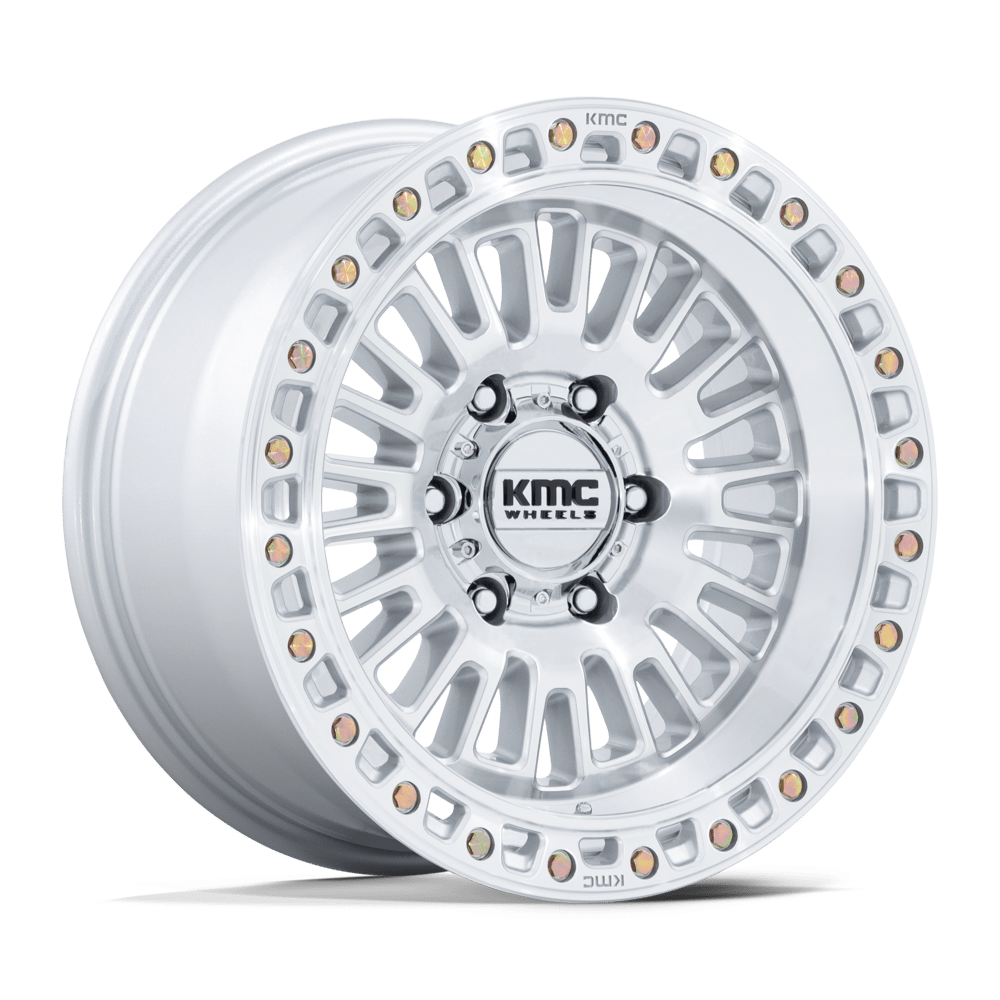

Bright and versatile, the KMC Aztec KM554 in Gloss Silver with a Machined Face gives your 4WD or SUV a clean, premium look while keeping the tough simulated beadlock styling that makes the Aztec stand out. This 17-inch cast aluminium wheel is built to handle daily driving and weekend trail runs alike.
Standout Features
- Machined face over a gloss silver base for a bright, premium look
- Simulated beadlock ring adds rugged off-road styling
- Strong cast aluminium build rated to 1202kg per wheel
- Multiple 5 and 6 stud fitments to suit a wide range of 4WDs and SUVs
- Suits both street-driven and trail-ready builds
Fitment Options
Available as a 17x8.5 wheel across several 5 and 6 stud bolt patterns, the Aztec KM554 can be matched to most popular dual-cab utes, wagons and SUVs. Use the variant selector above to choose the bolt pattern and offset that suits your vehicle, and check fitment with your installer before purchase.
Available Bolt Patterns
5/127, 6/114.3, 6/120, 6/135 and 6/139.7, with 0mm and +25mm offset options depending on bolt pattern.
Specifications
| Size | Bolt Pattern | Offset | Backspace | Centre Bore | Weight | Load Rating | SKU |
|---|---|---|---|---|---|---|---|
| 17x8.5 | 5/127 | 0mm | 4.75" | 71.5mm | 14.6kg | 1202kg | KM554SD17855000 |
| 17x8.5 | 6/114.3 | 0mm | 4.75" | 66.1mm | 14.0kg | 1202kg | KM554SD17856400 |
| 17x8.5 | 6/114.3 | +25mm | 5.73" | 66.1mm | 14.1kg | 1202kg | KM554SD17856425 |
| 17x8.5 | 6/120 | 0mm | 4.75" | 66.9mm | 14.0kg | 1202kg | KM554SD17857700 |
| 17x8.5 | 6/120 | +25mm | 5.73" | 66.9mm | 14.1kg | 1202kg | KM554SD17857725 |
| 17x8.5 | 6/135 | 0mm | 4.75" | 87.1mm | 14.4kg | 1202kg | KM554SD17856300 |
| 17x8.5 | 6/139.7 | 0mm | 4.75" | 106.1mm | 14.1kg | 1202kg | KM554SD17856800 |
| 17x8.5 | 6/139.7 | +25mm | 5.73" | 106.1mm | 13.9kg | 1202kg | KM554SD17856825 |
You Might Also Like
Prefer to stick with the silver theme? The KMC IMS KM552 in Gloss Silver with Machined Face offers a similar bright finish in a monoblock style, or step up to a brushed look with the KMC KM707 in Brushed Silver.
Structural warranty applies to original retail purchasers.
