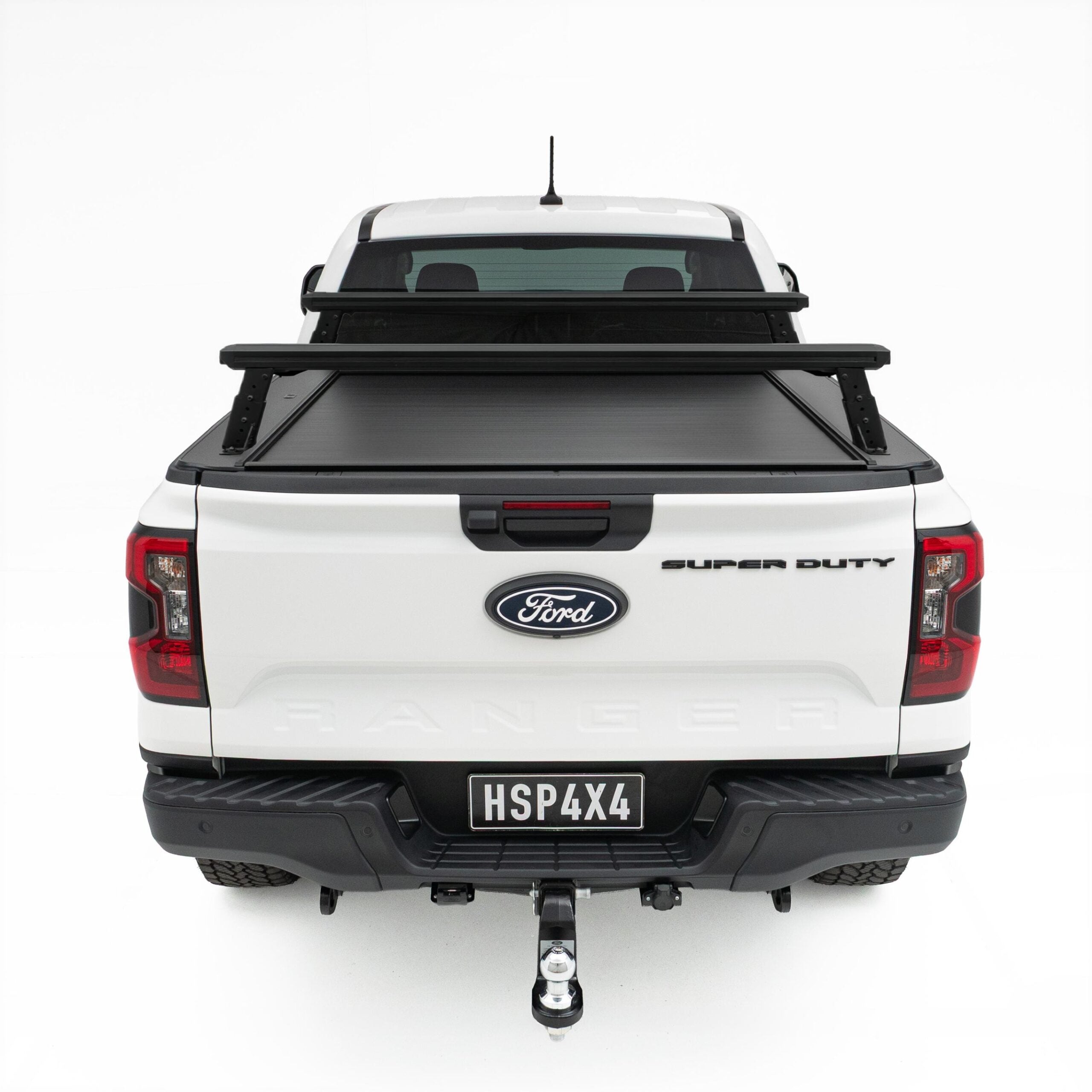

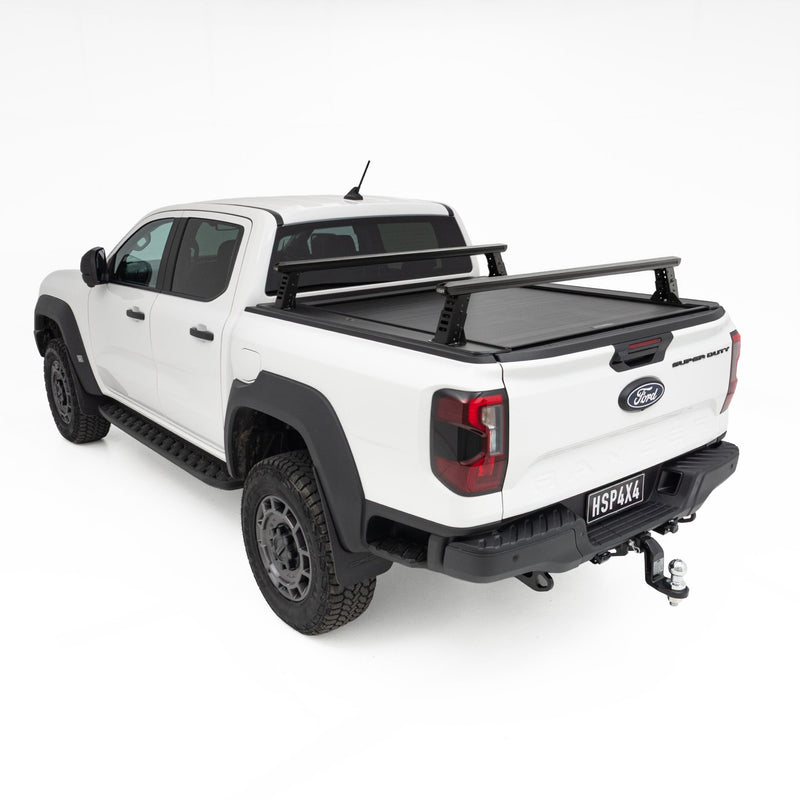

HSP Tub Rack Ford Ranger SuperDuty

The HSP Load Rack JNR is a lightweight, height-adjustable tub rack designed for versatility and everyday practicality. Built from quality Australian-sourced materials, it provides a durable carrying solution while reducing vehicle weight compared to traditional tub racks. Designed to integrate seamlessly with the Roll R Cover or mount directly to the tub, the Load Rack JNR offers excellent compatibility with a wide range of popular roof rack accessories.

Features

• Adjustable height from 185mm to 260mm
• 150kg dynamic load capacity (evenly distributed)
• 300kg static load capacity (evenly distributed)
• Compatible with the Roll R Cover or can be mounted directly to the tub
• Integrated 8 universal smart channels compatible with leading accessory brands including Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide x 7mm thick
• Lightweight alloy construction with a durable powder coated finish and steel legs
• Helps reduce GVM when compared with conventional tub rack systems
• Designed, manufactured and sourced entirely in Australia

Technical Specifications

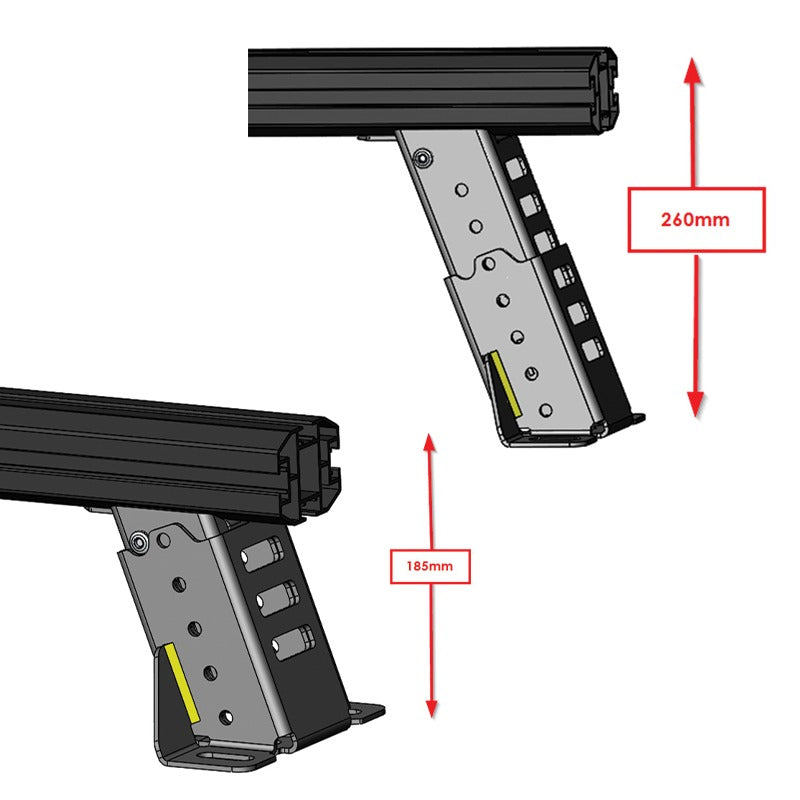

Height Adjustment

• Adjustable range: 185mm to 260mm

Tie Down Points

The complete kit includes 36 tie down points, consisting of:

• 5 tie down points on each leg
• 4 universal channels on each top bar

Load Capacity

• Dynamic: 150kg (evenly distributed)
• Static: 300kg (evenly distributed)

Materials & Manufacturing

Inner Leg

Materials

• 3mm BlueScope GALVABOND steel (Australian made)

Manufacturing Process

• Fibre optic laser cutting
• CNC press brake folding
• Hardware insertion using Hemlock Structural Rivets
• Powder coated in Interpon Textura Black
• Packaged in Australia

Outer Leg

Materials

• 3mm BlueScope 250 MPa Mild Steel (Australian made)

Manufacturing Process

• Fibre optic laser cutting
• CNC press brake folding
• Laser welding
• Zinc plating completed by a local plating supplier
• Hardware insertion using Hemlock Structural Rivets
• Powder coated in Interpon Textura Black

Installation

The HSP Load Rack JNR features a fully adjustable design to suit a variety of applications while keeping installation straightforward. It is DIY friendly and designed for quick fitting.

Click here to download the PDF installation instructions.

Warranty

HSP products are built for long-term reliability and are backed by local Australian support for added peace of mind.

• 2-year warranty on the unit
• Minimal moving parts simplify maintenance and replacement if required
• Australian manufactured with readily available replacement parts
• Australian-based customer service support
