HSP Ladder Rack Toyota Hilux SR5/ GR (A-Deck) 2015 onwards
- ✅ Adjustable ladder rack designed for Toyota Hilux SR5 and GR models.
- ✅ 150kg dynamic and 300kg static load capacity.
- ✅ Compatible with Rhino Rack, Thule, Yakima & Front Runner accessories.
- ✅ Lightweight Australian-made alloy design with Roll R Cover or tub mounting options.
Checkout securley with
- Description
- HSP
- 🛡️ Fitment Advice
The HSP Load Rack Pro is a fully adjustable ladder rack engineered specifically for the Toyota Hilux SR5 and GR. Striking the right balance between a clean, modern profile and serious load-carrying capability, it's built for tradespeople and adventurers who demand more from their ute. The complete kit handles up to 150kg dynamic and 300kg static — among the highest ratings in its class — while the low-profile alloy construction keeps your GVM in check compared to traditional tubular racks.
The Load Rack Pro integrates 16 universal smart channels, making it compatible with accessories from leading brands including Rhino Rack, Yakima, Front Runner, and Thule. It mounts directly to the tub or works seamlessly with a Roll R Cover, and is available as a full kit or individual bars to suit A-frame sports bars and custom setups.
Note: Does not fit Hilux Rugged & Rugged X Models (this applies to rear ladder racks also).
Features

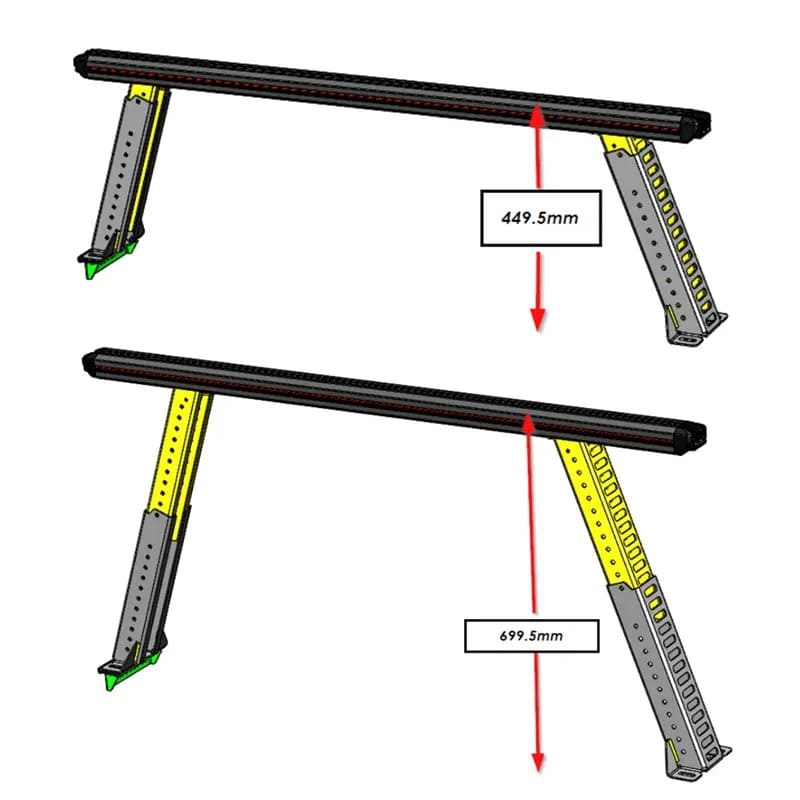

- Fully adjustable height range: 450mm – 700mm
- 150kg dynamic / 300kg static weight capacity (complete kit, evenly distributed)
- Works with Roll R Cover or mounts directly to tub

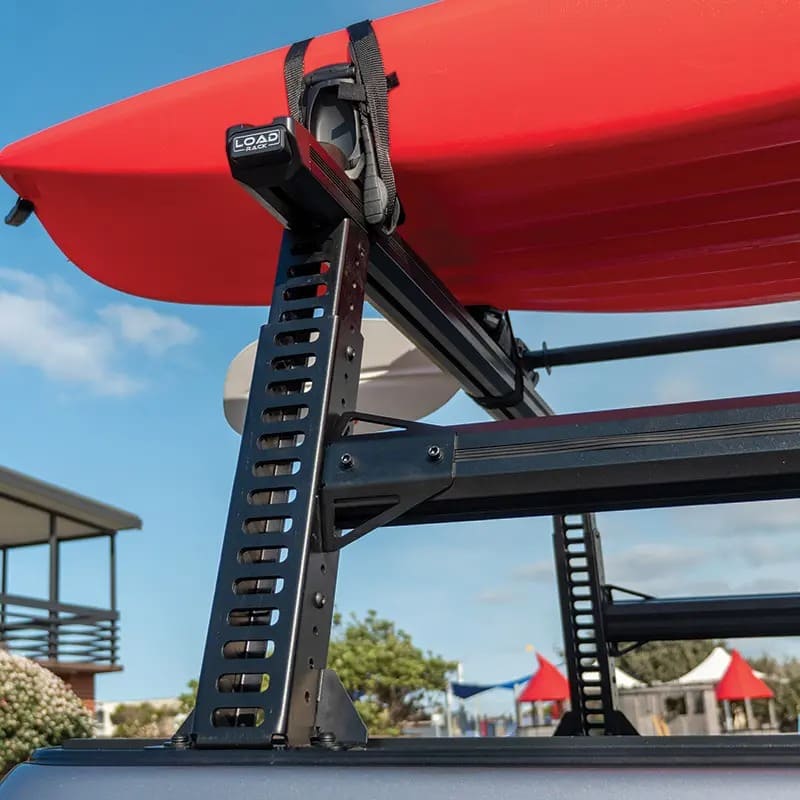

- 16 integrated universal smart channels – compatible with Rhino Rack, Thule, Yakima & more
- Maximum channel nut size: 21.9mm wide x 7mm thick
- Available as full kits or individual bars
- Lightweight alloy construction with powder coat finish and steel legs
- Lower GVM impact than traditional ladder racks
- 100% designed, manufactured, and sourced in Australia
Technical Specifications
- Fits: SR, SR5, GR, Workmate, Hi-Rider (SR/SR5/Workmate), N80
- Does Not Fit: Rugged X
- Complete Kit – 140 Tie Down Points: 14 large + 19 small points per leg (both sides), 4 per joiner bar
- Single Leg Kit – 72 Tie Down Points: 14 large + 24 small points per leg
- Single Leg Capacity: 60kg dynamic / 120kg static
Compatibility
This Load Rack Kit is also compatible with the following makes and models:
- Toyota Hilux: Revo 2015+ SR, SR5, GR & Rugged X
- Nissan Navara: NP300 D23 2021+
- Isuzu D-Max: Gen 3 MY2021+
- Mazda BT-50: TF 2020+
- GWM Haval Cannon: NPW 2020+
- LDV T-60: SK80C 2018+
- Mitsubishi Triton: MV 2024+ (naked tub only)
- Isuzu D-Max: Gen 2 MY2012–MY2019 (naked tub only)
- Nissan Navara: NP300 2015–2020 (naked tub only)
- Mazda BT-50: UP + UR 2013–2020 (naked tub only)
Fitting Notes
The HSP Load Rack Pro is fully adjustable for a straightforward, DIY-friendly install with minimal fitting time. See the kit-specific fitting instructions below.

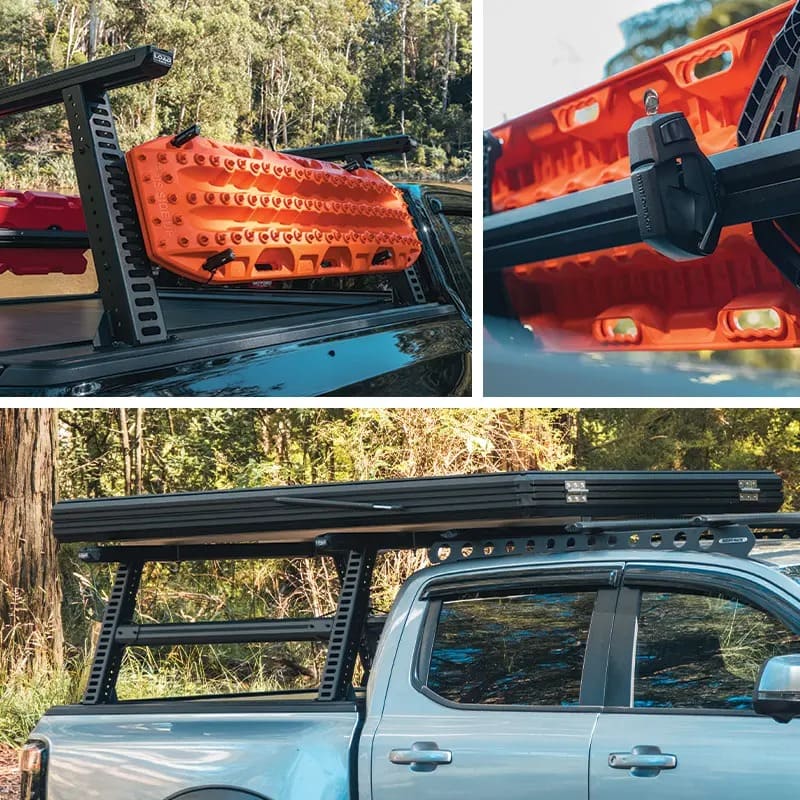

Complete Kit Suits Hilux 2015+ – Roll R Cover Mounted
- RLRRC load rack Rear leg to suit Roll R Cover rfs
- FLRRC load rack Front leg to suit Roll R Cover rfs
- ABLR Accessories Bar issue 1

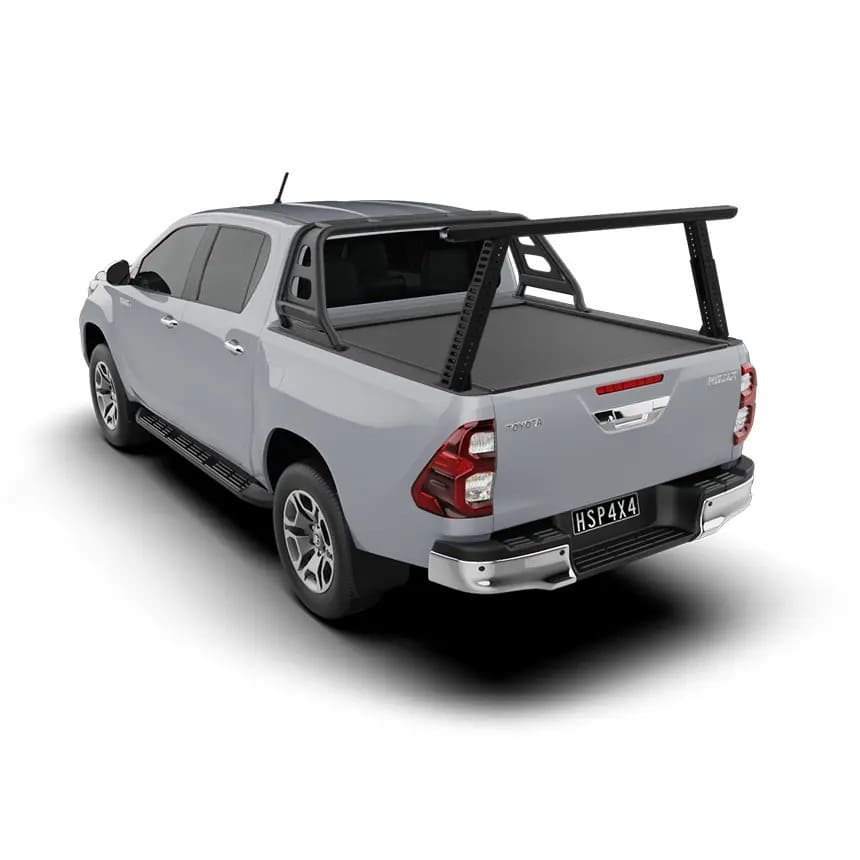

Rear Bar Kit Suits Hilux 2015+ – Roll R Cover Mounted

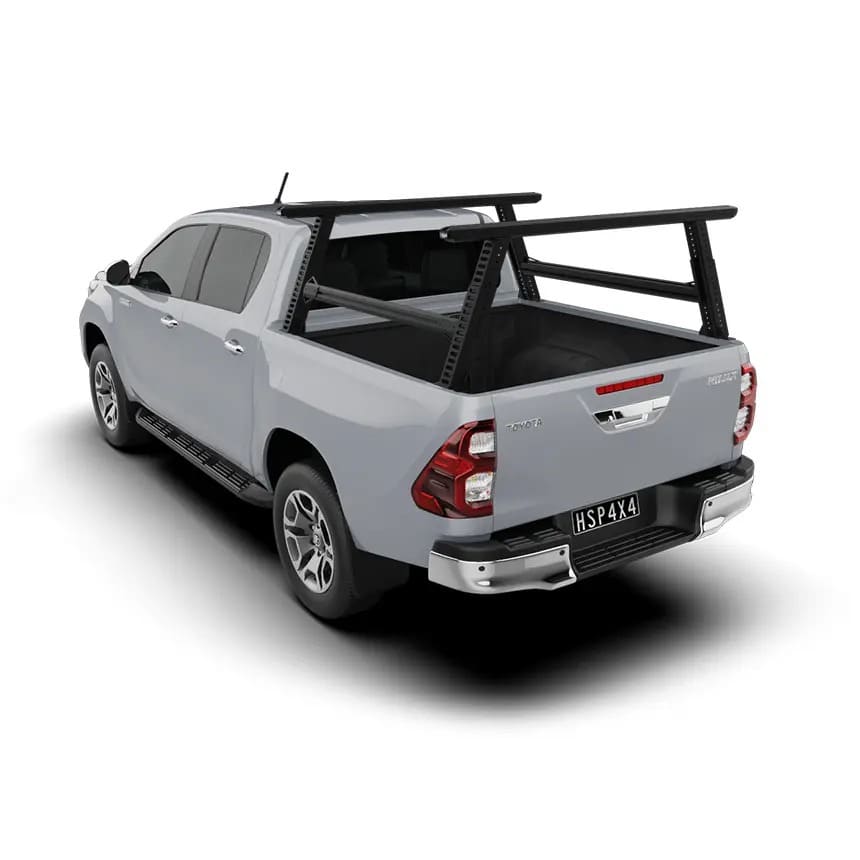

Complete Kit Suits Hilux 2015+ – Tub Mounted

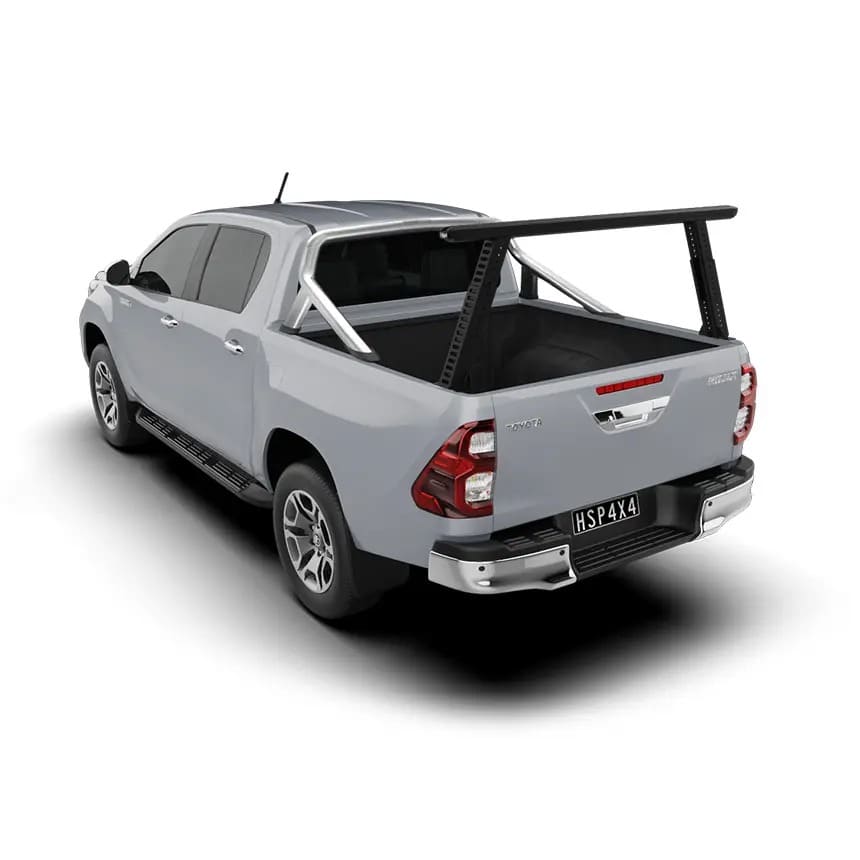

Rear Bar Kit Suits Hilux 2015+ – Tub Mounted
Warranty
- 2-year warranty on the unit
- Minimal moving parts for straightforward servicing
- Australian-made with locally available replacement parts
- Backed by an Australian-based customer service team
