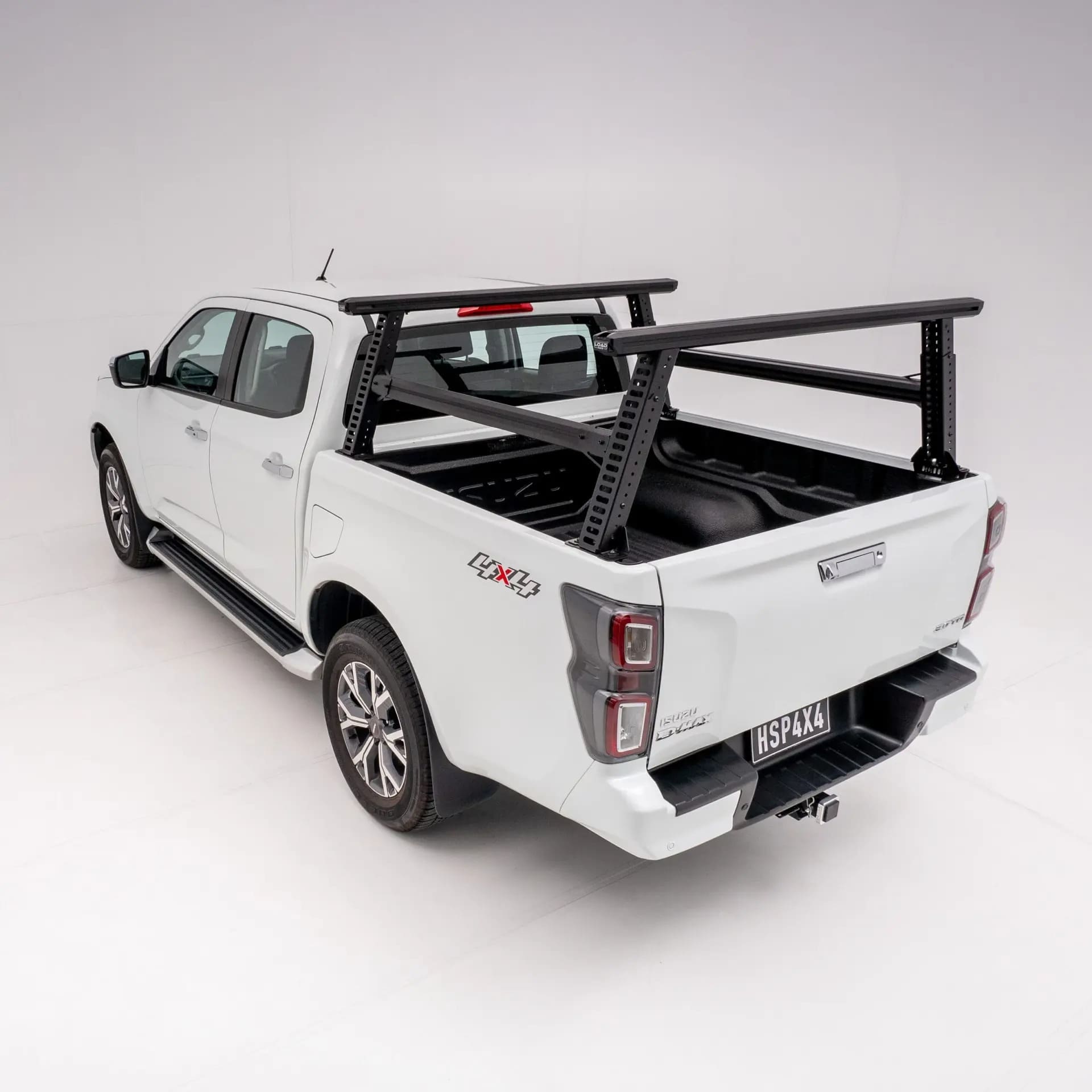

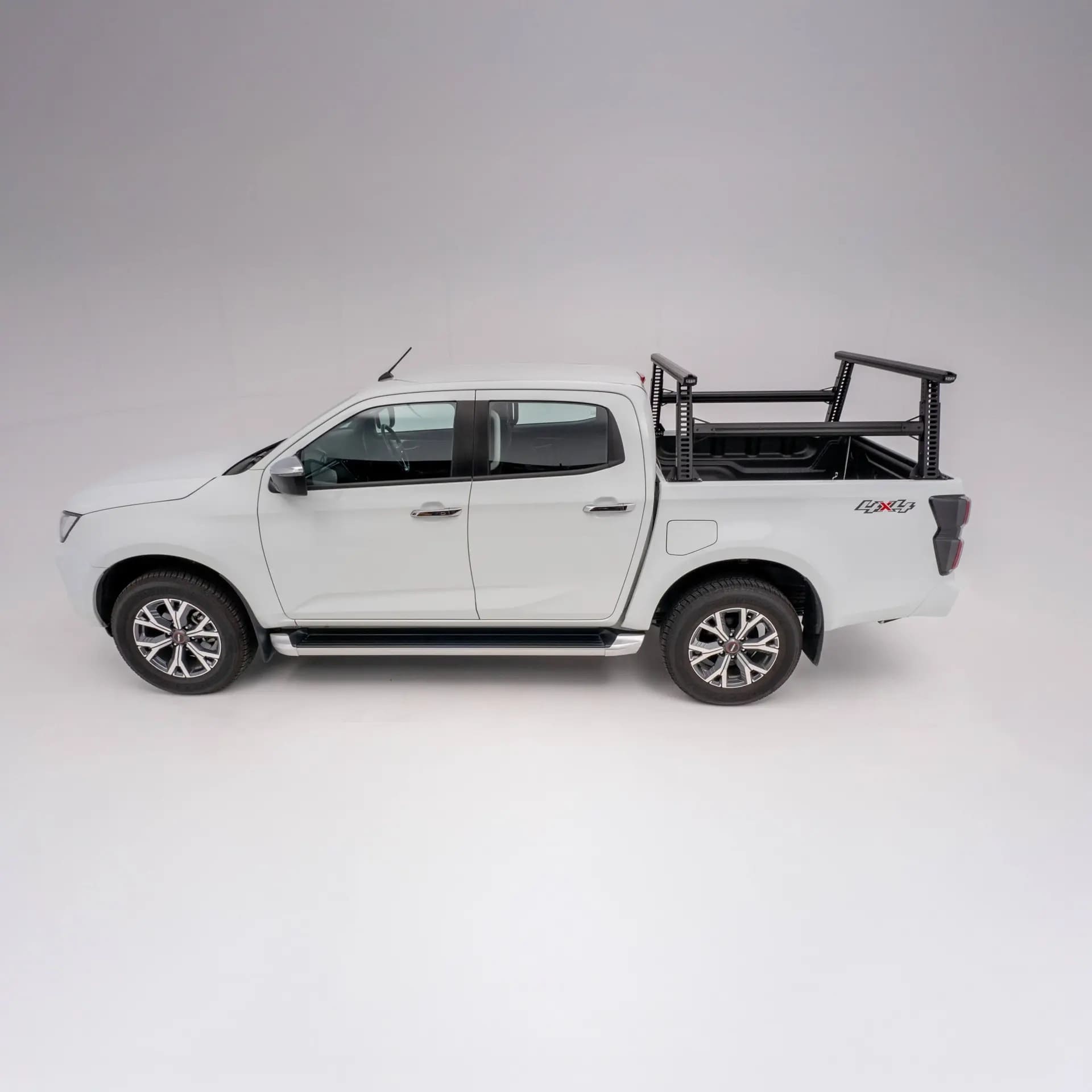

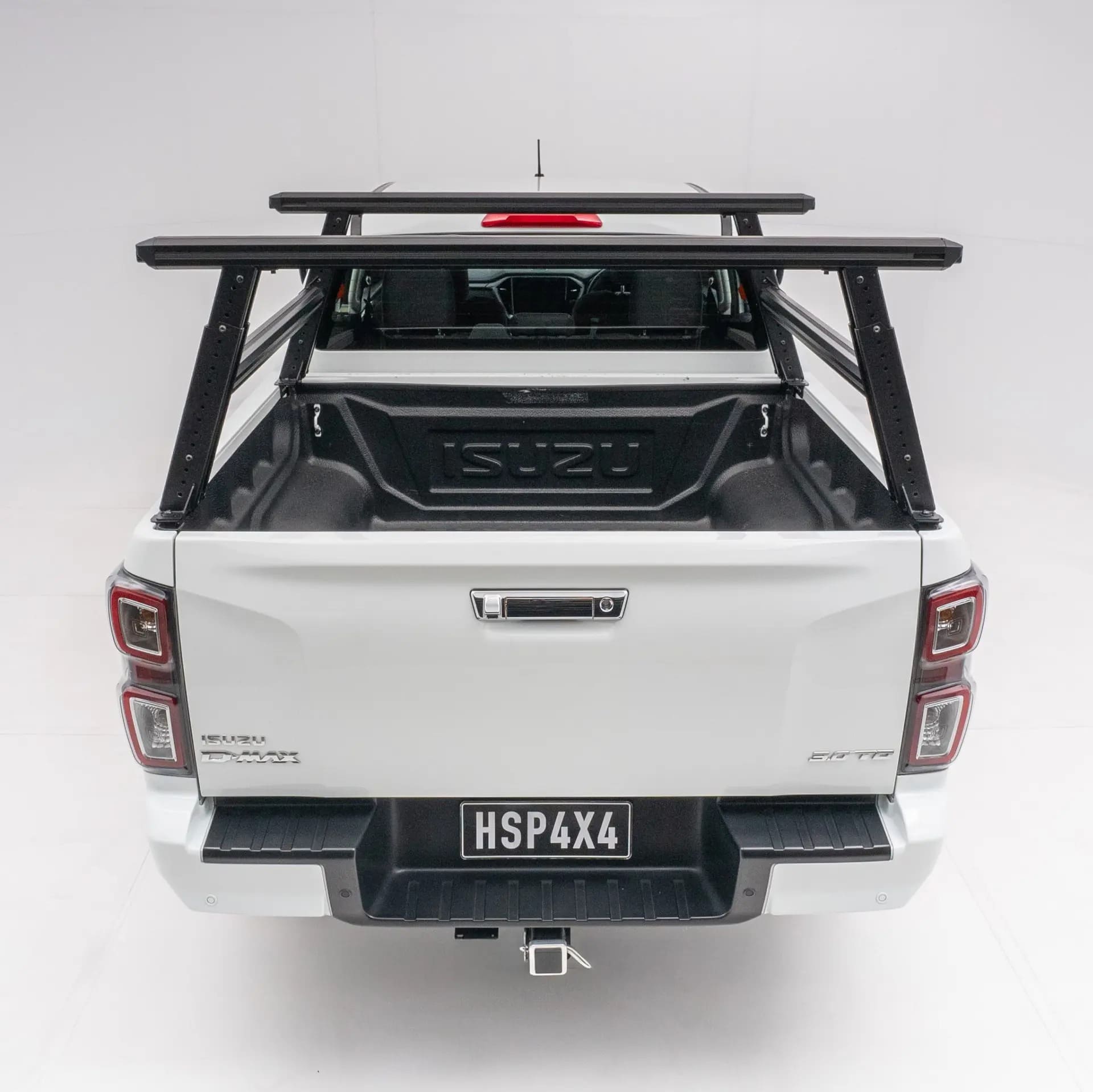

HSP Ladder Rack Isuzu D-Max 2013-2020

The HSP Load Rack Pro is fully adjustable Isuzu DMAX Ladder Rack and represents the perfect blend of functionality and aesthetics. It is also available in single rear sets to suit your A-frame sports bars and unique vehicle set ups. The Load Rack provides a more stylized finish than traditional tubular racks, and is ready to accommodate a variety of accessories from your favourite brands like Rhino Rack, Yakima, Front Runner, Thule, and more.

NOTE: Due to the weak tub of this ute, you can only hold 60kg of Dynamic Weight Capacity.

Features

• Fully adjustable to suit your docking heights
• NOTE: Due to the weak tub of this ute, you can only hold 60kg of Dynamic Weight Capacity.
• ONLY available for direct to tub mounting
• Integrated 16 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Available as full kits or individual bars to suit different requirements
• Constructed from light weight alloy with a powder coated finish and steel legs
• Decreases GVM compared to traditional ladder racks
• Proudly Australian: 100% designed & made & sourced in Australia

Technical Specifications

• Compatible Vehicles: Isuzu D-Max Gen 2 – Dual Cab, MY2012–2020

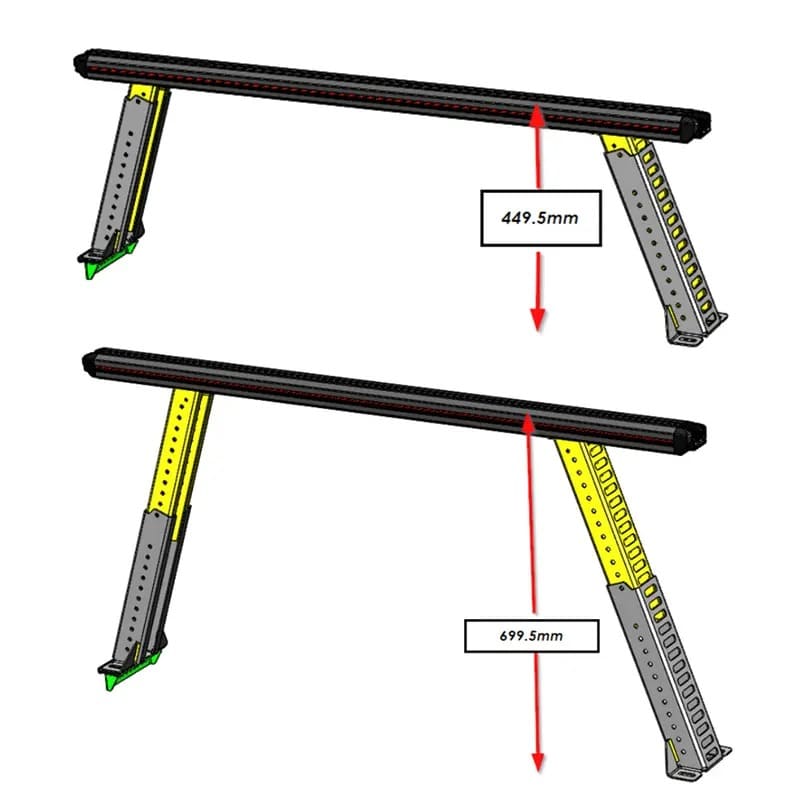

• Height Adjustable Range: 450mm – 700mm
• Complete Kit – 140 Tie Down Points: 14 large + 19 small points per leg (both sides), 4 per joiner bar
• Single Leg Kit – 72 Tie Down Points: 14 large + 24 small points per leg
• Single Leg Capacity: 30kg dynamic / 60kg static
• Complete Kit Capacity: 60kg dynamic / 120kg static

Compatibility

Fitting Notes

Please note the HSP Load Rack Pro is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

See the attached Load Rack Complete Kit PDF fitting instructions for the D-Max below.

Tub Mounted - Complete Kit Suits MY2012-2020MY19

• LR2-R Instructions
• FLRRC load rack Front leg to suit naked tub rfs
• ABLR accessories bar issue 1

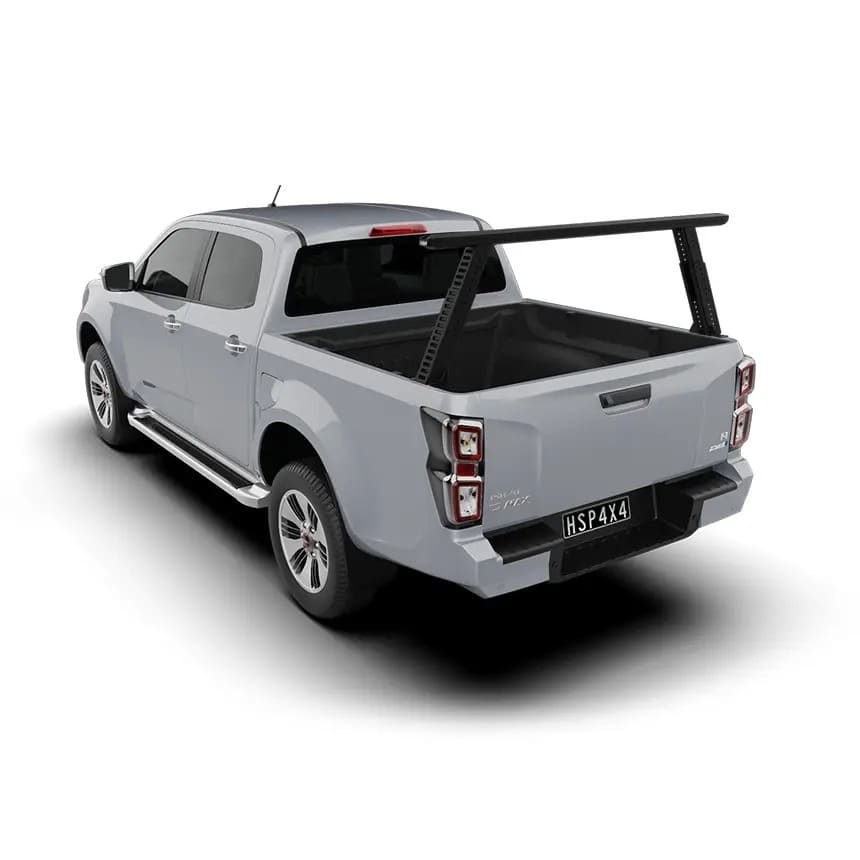

Tub Mounted - Rear Bar Suits MY2012-2020MY19

• LR2-R Instructions

Warranty

• 2-year warranty on the unit
• Minimal moving parts for straightforward servicing
• Australian-made with locally available replacement parts
• Backed by an Australian-based customer service team

Need Help Choosing?

Our team is available via online chat to help you select the right configuration for your vehicle and setup. We offer Australia-wide delivery and a range of flexible payment options to suit your budget — just reach out and we'll get you sorted.
