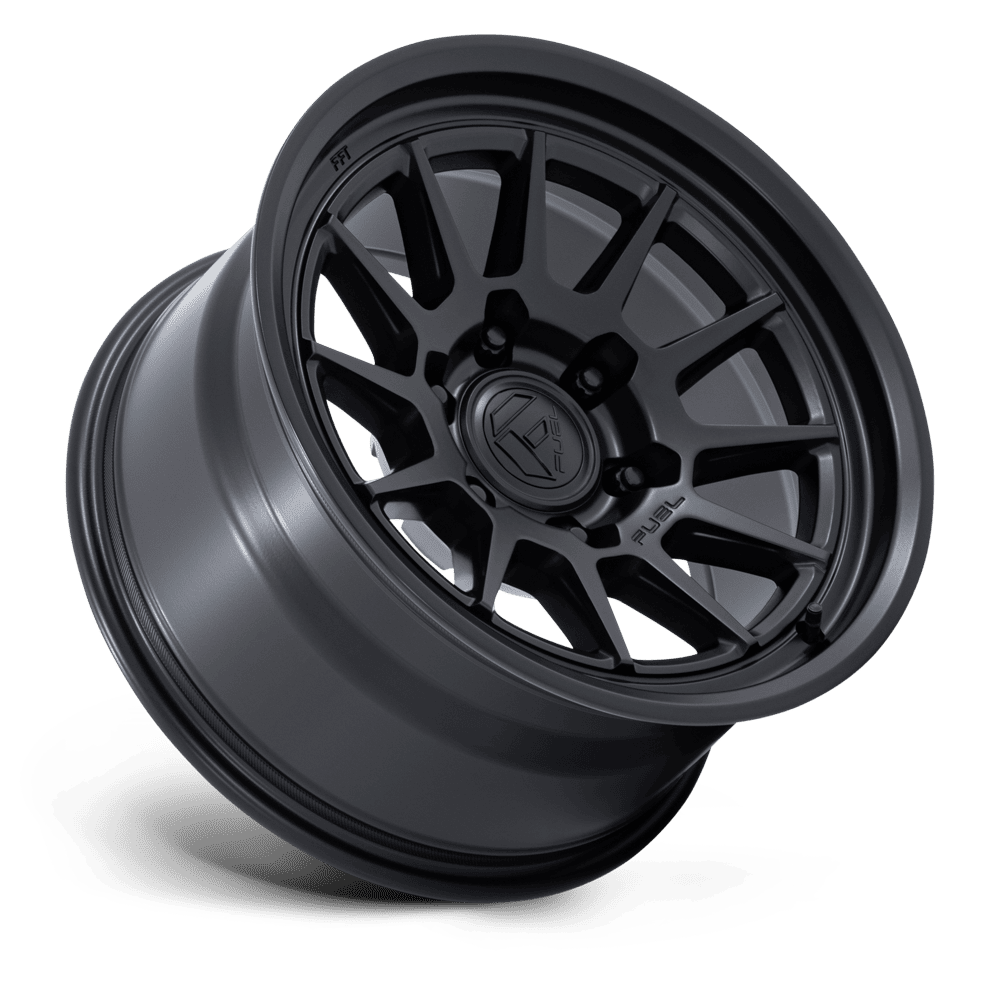

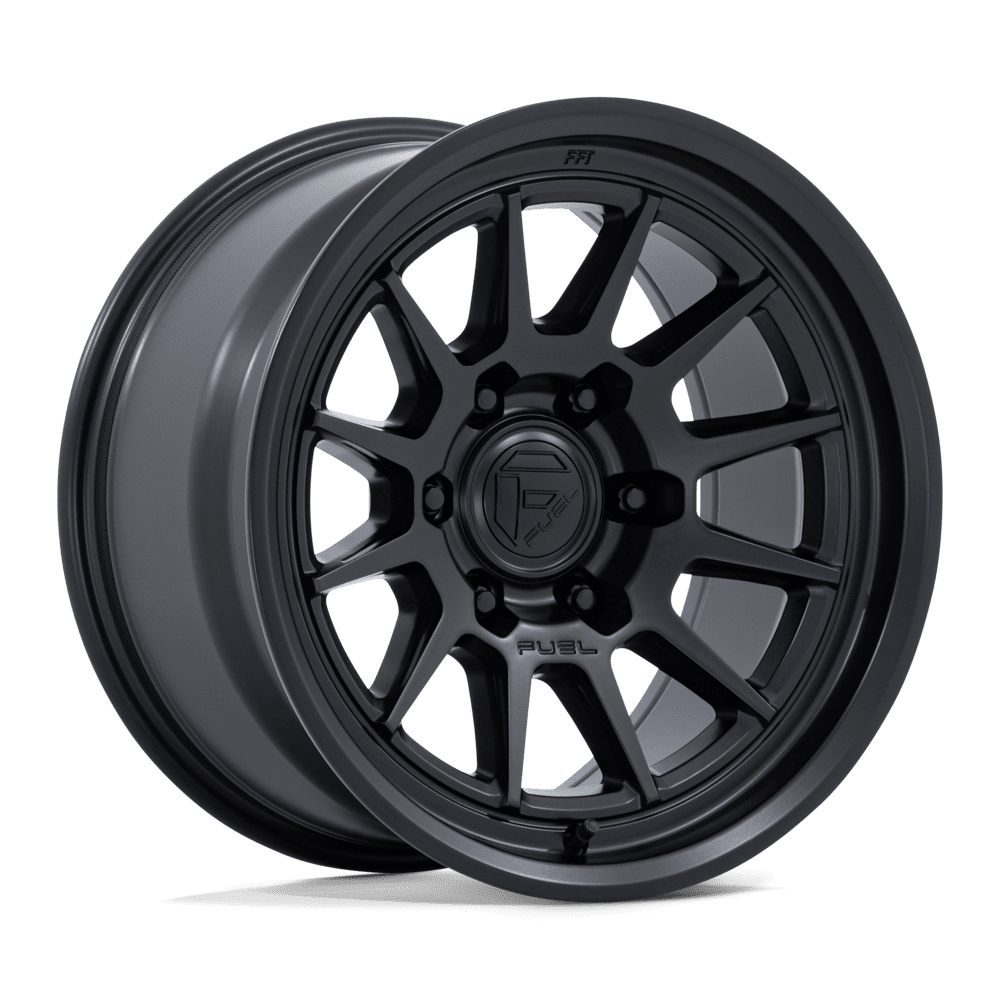

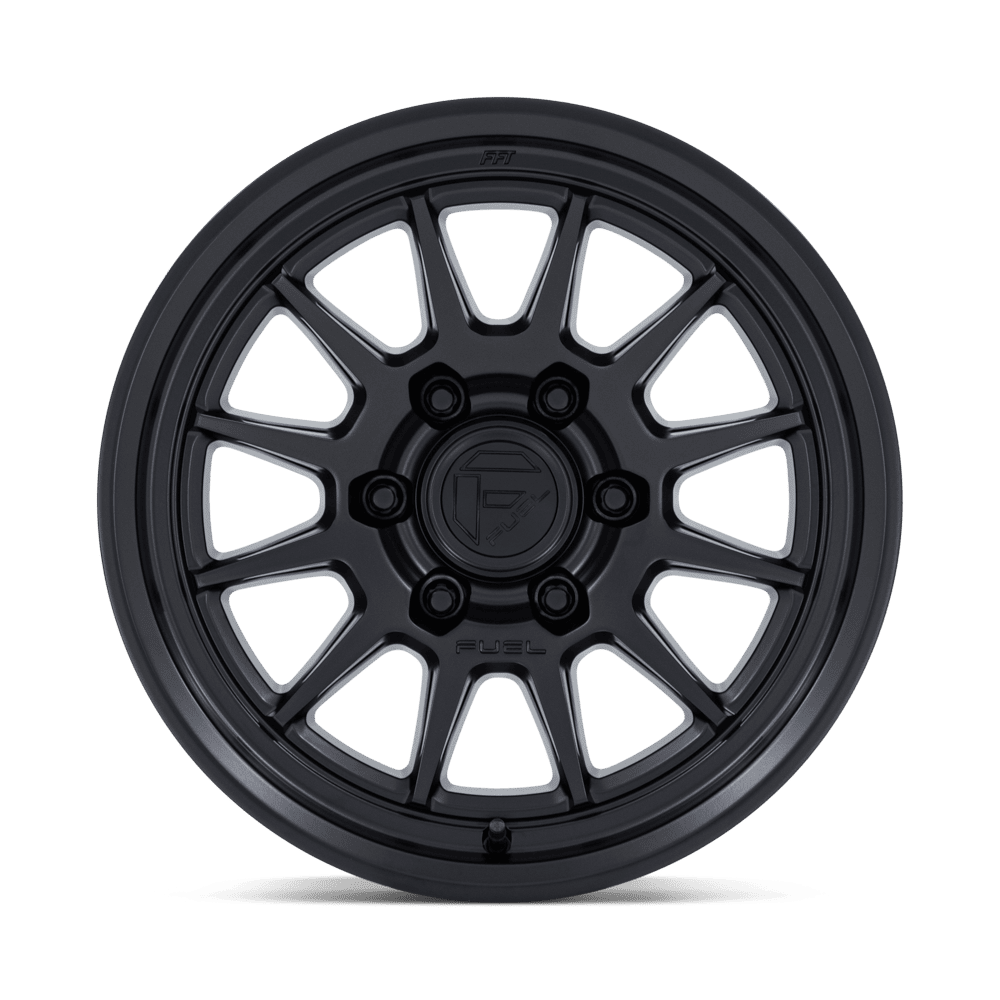

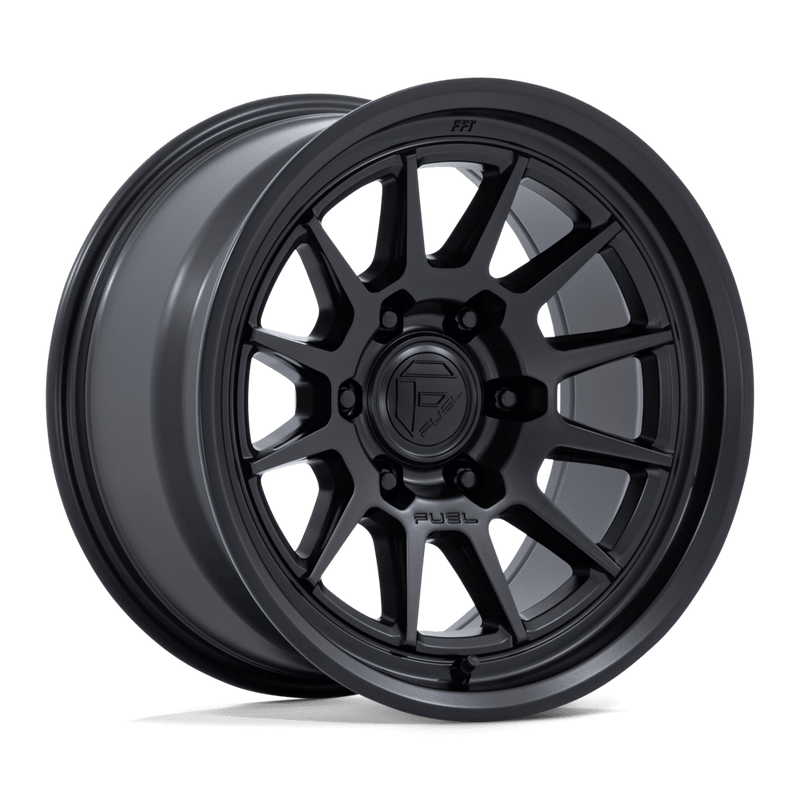

Fuel Off-Road SPUR FC902 Wheels – Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice
The Fuel Off-Road Spur FC902 is built for truck and 4WD owners who want a capable, no-nonsense wheel that performs as hard as it looks. Manufactured using Fuel's Flow Formed Technology, the Spur starts as a cast wheel and is then spun under heat and pressure to stretch and align the aluminium grain structure — the result is a wheel that's lighter and stronger than a standard cast unit, without the price tag of a full forged build.
The Matte Black finish keeps things clean and purposeful — a flat, dark look that suits everything from a daily work truck to a weekend trail rig. Available in 17" diameters across 6-lug and 8-lug bolt patterns, the Spur FC902 is a practical, high-value upgrade for lifted trucks and 4WDs that see real-world use.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 6X114.3 | 5.73 | 25mm | 66.06 | 27.72 lbs | 2650 |
| 17X8.5 | 6X135 | 5.73 | 25mm | 87.1 | 27.50 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 27.06 lbs | 2650 |
| 17X9 | 6X135 | 5.04 | 1mm | 87.1 | 26.62 lbs | 2650 |
| 17X9 | 6X135 | 4.53 | -12mm | 87.1 | 27.94 lbs | 2650 |
| 17X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 26.18 lbs | 2650 |
| 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 27.50 lbs | 2650 |
Key Features
- Flow Formed Technology — heat and pressure forming process that produces a lighter, stronger wheel than standard cast construction
- Practical, capable design — built for trucks and 4WDs that see real daily and off-road use, not just show duty
- Matte Black finish — clean, flat dark look that suits work trucks, trail rigs, and everything in between
- 17" sizing across 6-lug and 8-lug bolt patterns — wide fitment coverage for lifted trucks and 4WDs
Expert Help — Australia Wide
Not sure which bolt pattern or offset suits your vehicle? Our team is available via live online chat to help you nail the right fitment the first time. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get rolling sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
